6X4 Oil Fuel Tank Truck 5m3 10m3 15m3 30m3
Company introductionXiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd, was established in2002 and is located in Suizhou city, Hubei province, in the central part of China. Its distance toWuhan is 186 kilometers and to SanXia (The Three Gorges) is 330 kilometers,and the traffi......
Send Inquiry
Product Description
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd, was established in
2002 and is located in Suizhou city, Hubei province, in the central part of China. Its distance to
Wuhan is 186 kilometers and to SanXia (The Three Gorges) is 330 kilometers,and the traffic is
very convenient. Its total assets exceeds $320 million. In addition, our site has an area of
690,000 square meters and it has a staff of more than 6000.
Wecome to vist the factory and let us develop together .
Main paremeters of the oil fuel tank truck(5m3 10m3 15m3 30m3 are optional)
Keeping your oil tanker truck on the road all year long is our priority.
Our fuel tankers are designed to deliver several different types of fuel through a pump
and metering system.Special features of fuel tanks include extra heavy duty off road
construction options and several tank models and styles to choose from to suit your
specific application. Tanks are available in aluminum steel or stainless steel. We also
offer air operated top safety railing system and heavy duty aluminum guardrail style rear
bumper are to ensure your tank is safe and efficient.
| Cabin | HW76 cab, with one sleeper , air condition 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10300×2496×3148 |
| Wheel base (mm) | 4300 +1350 | |
| Wheel track (front/rear) (mm) | 2020/1830 | |
| Weight in KGS | Tare Weight | 12000 |
| Payload | 27000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | |
| Horse Power(HP) | 371 HP | |
| Emission standard | Euro 2 or Euro 4 | |
| Gearbox | HW19710, 10-speed forward and 2 reverse gear | |
| Steering | German ZF8098 | |
| Fuel tank | 300 liters | |
| Tire | 12R22.5 tubeless tyre | |
| Tank specifications | Size: 20,000 liters.Three compartments,with three bottom valves;With one pump, the fuel can be pumped in , also pumped out | |

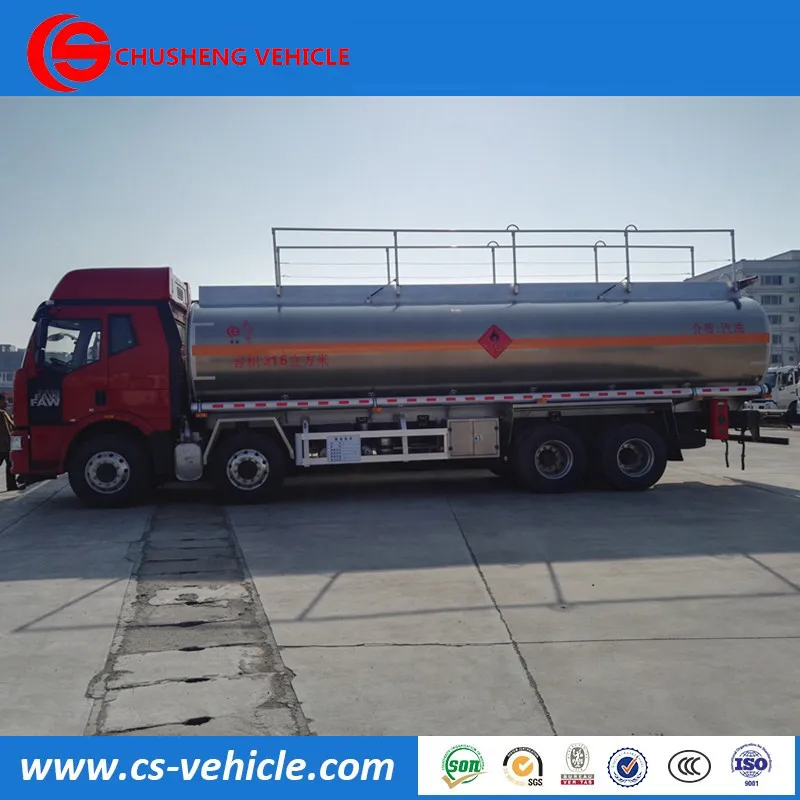

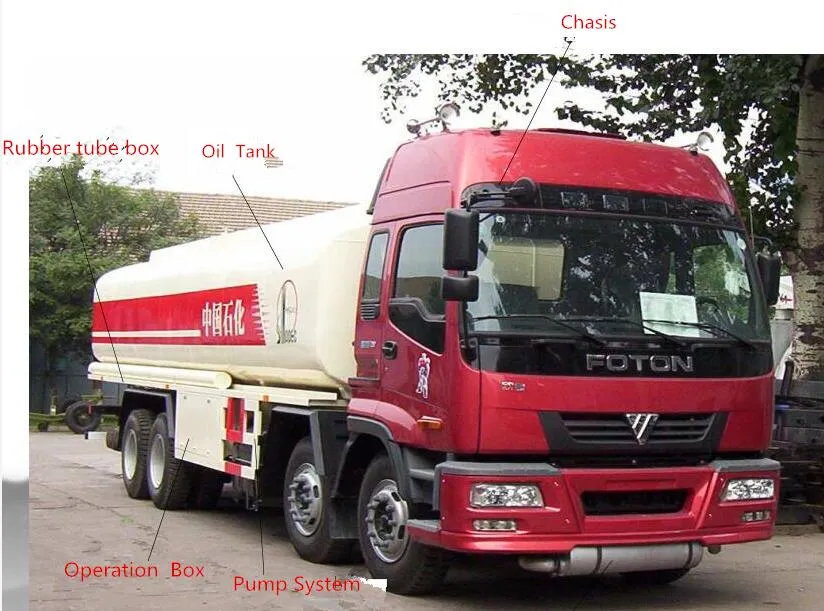

1. Outside structure of fuel tank truck

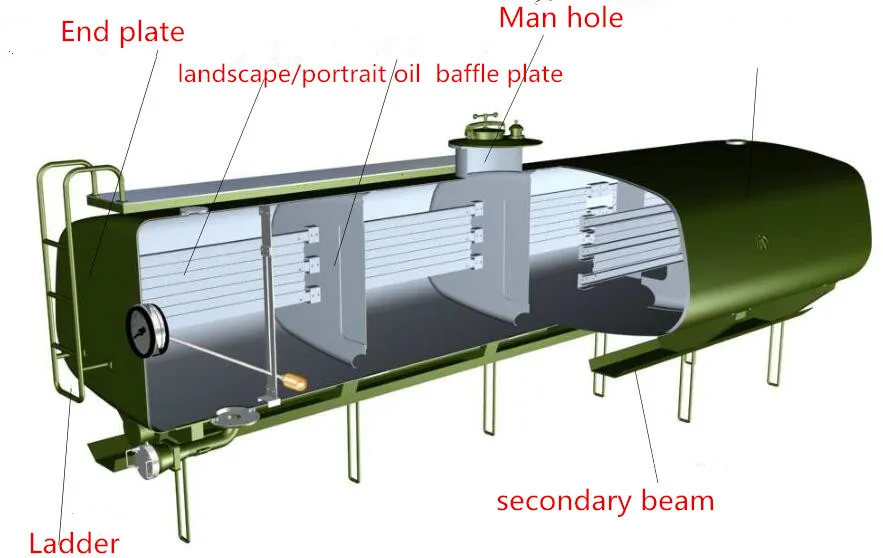

2.Oil tank inside structure
Certificate

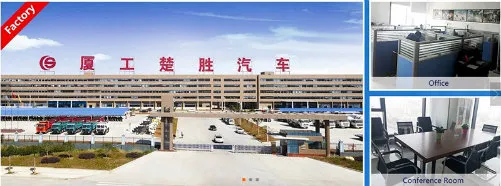

Factory Fast View
