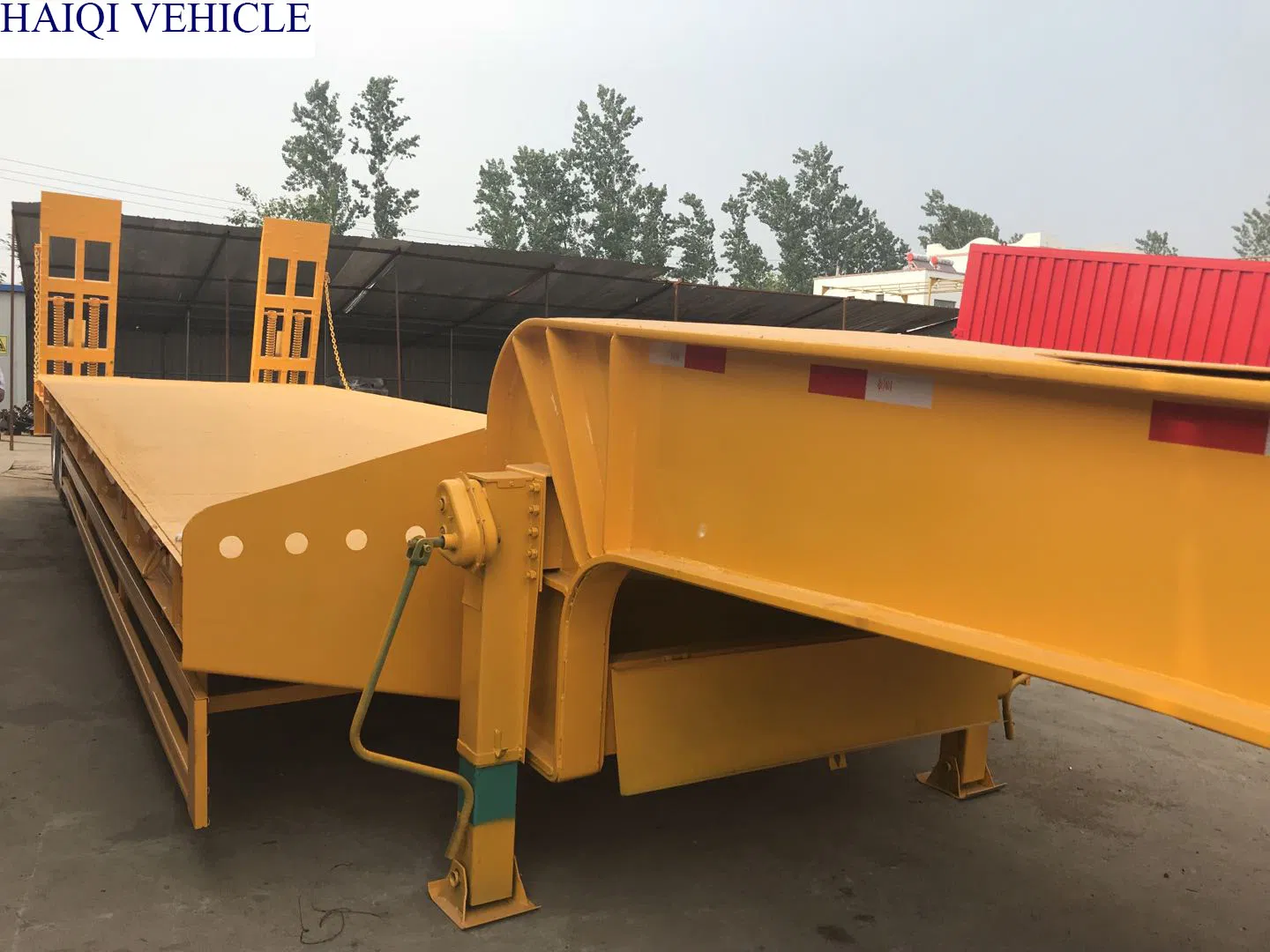

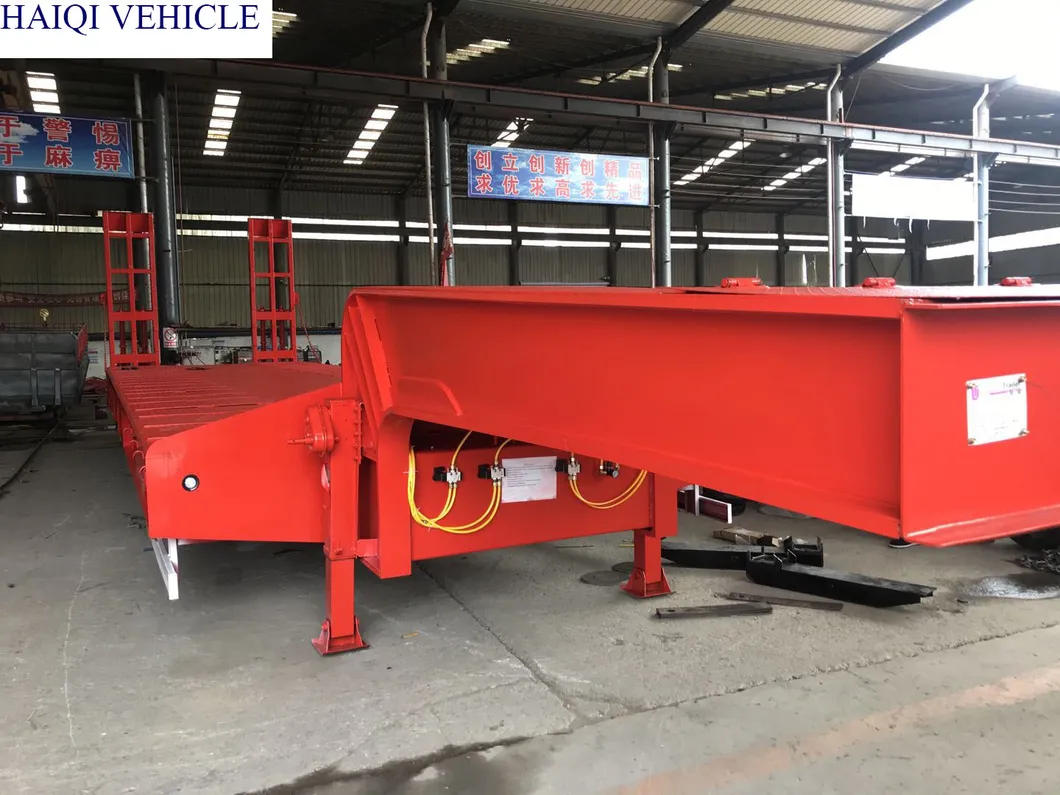

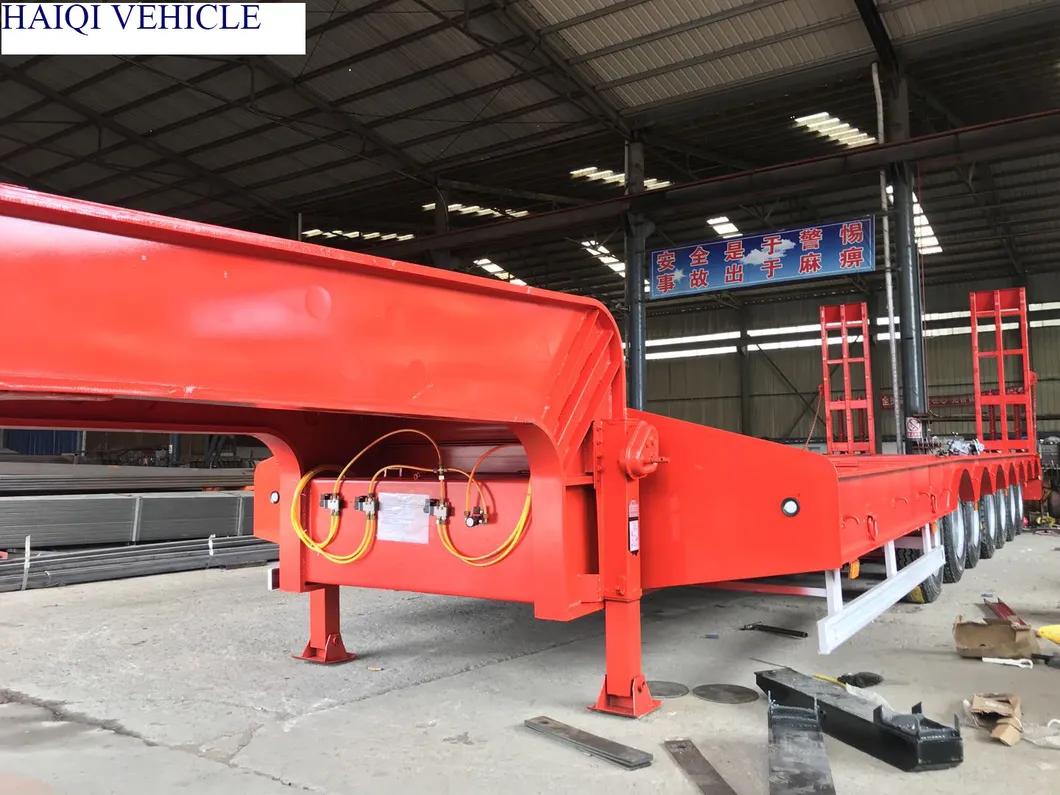

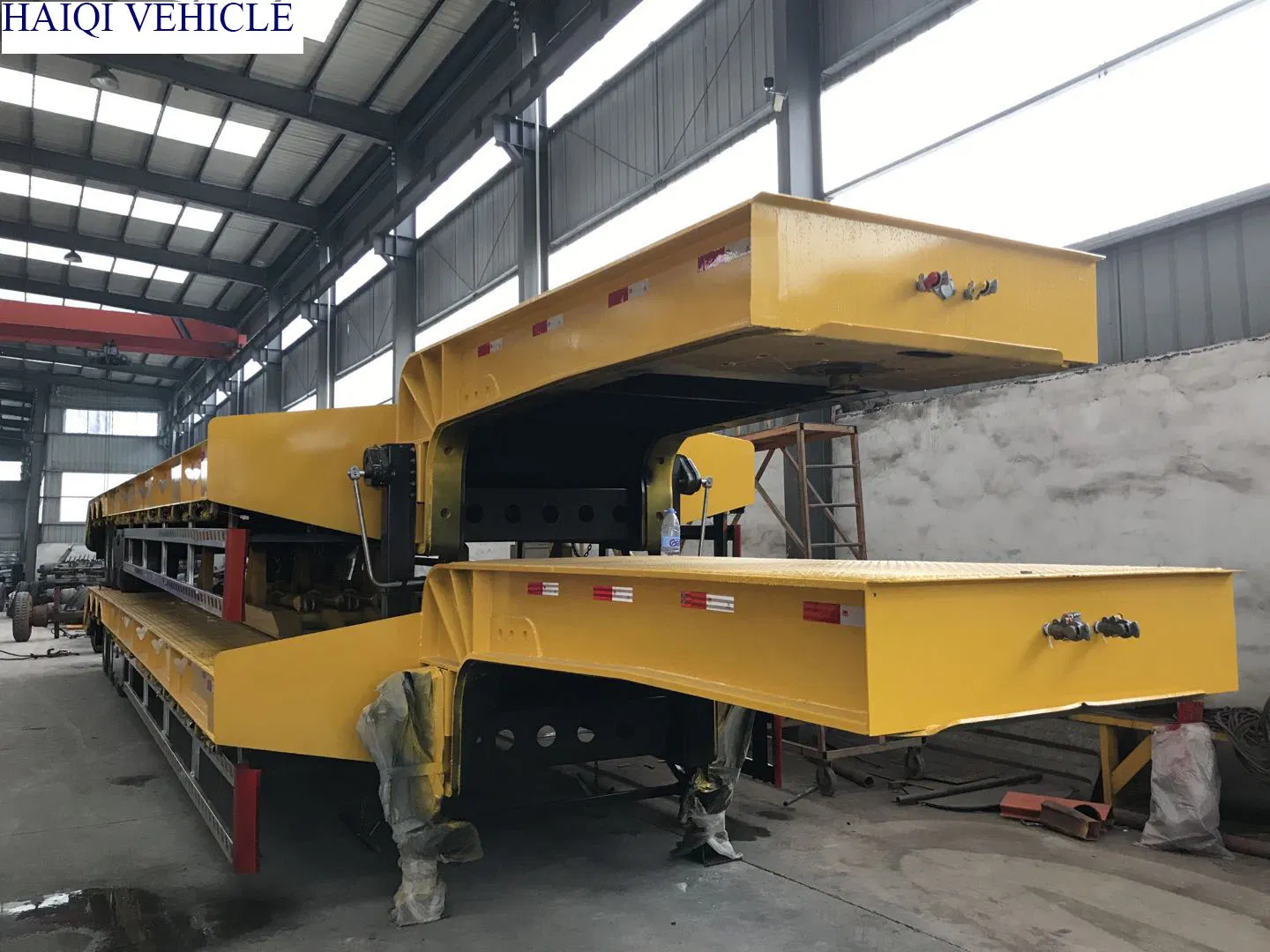

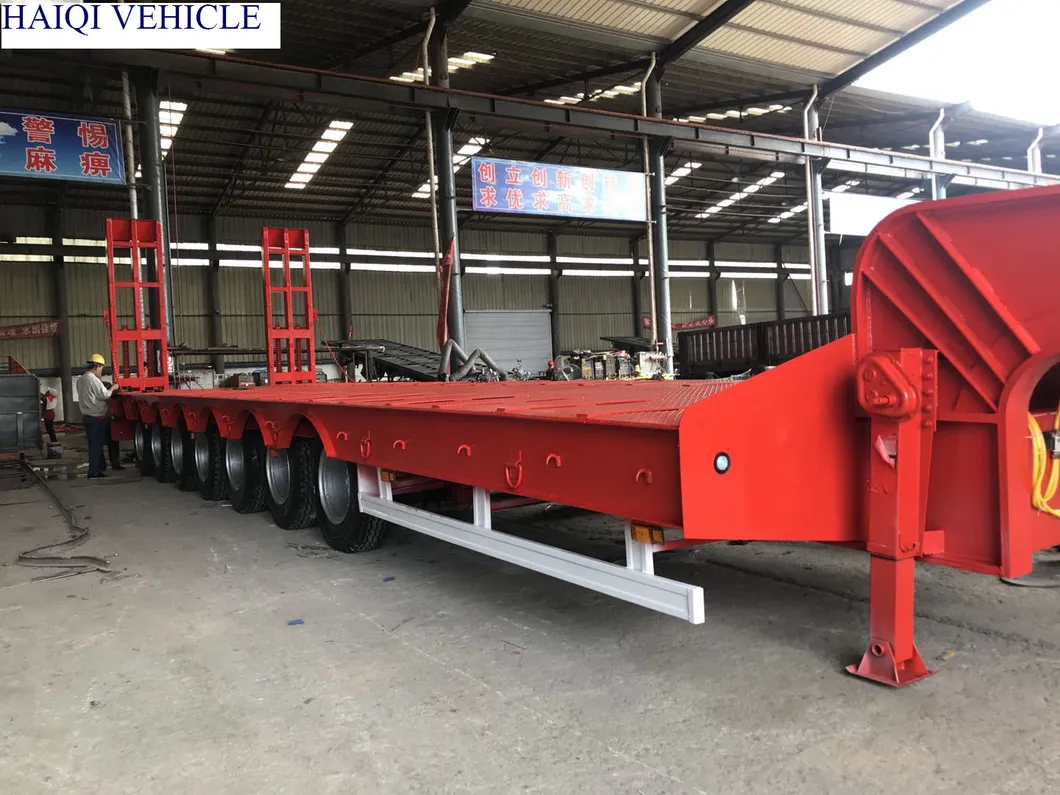

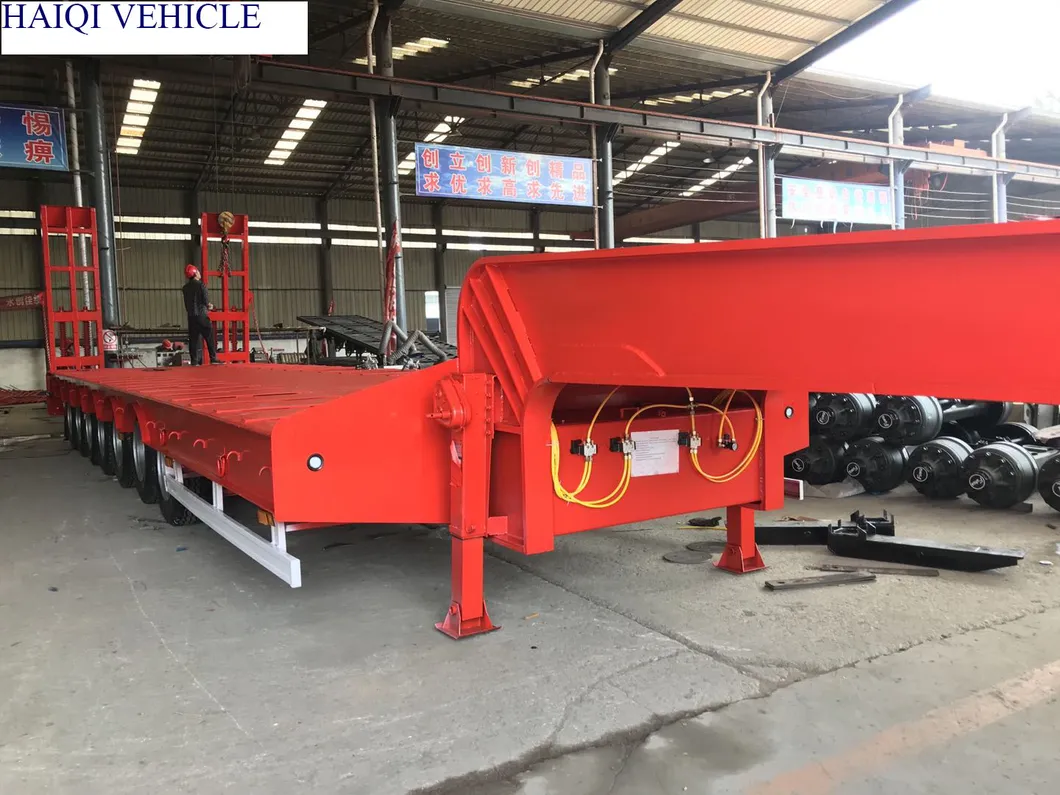

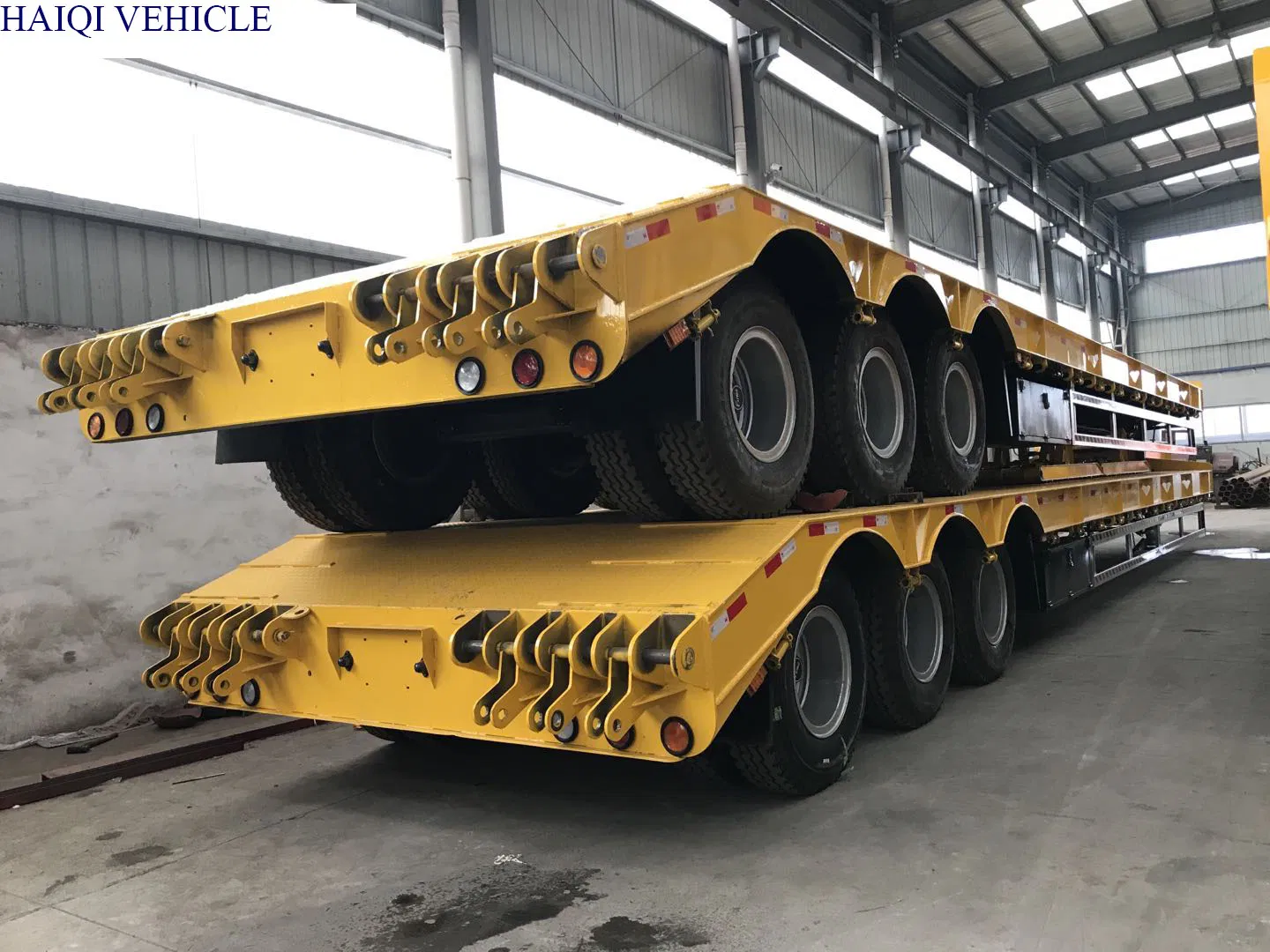

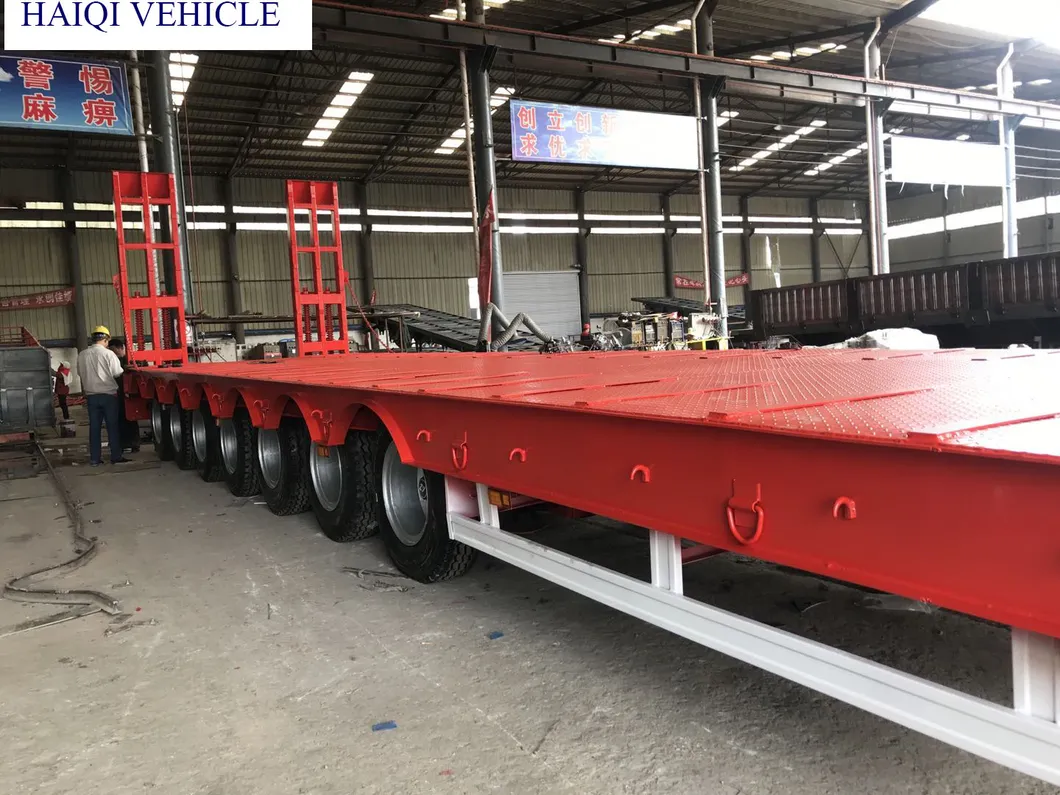

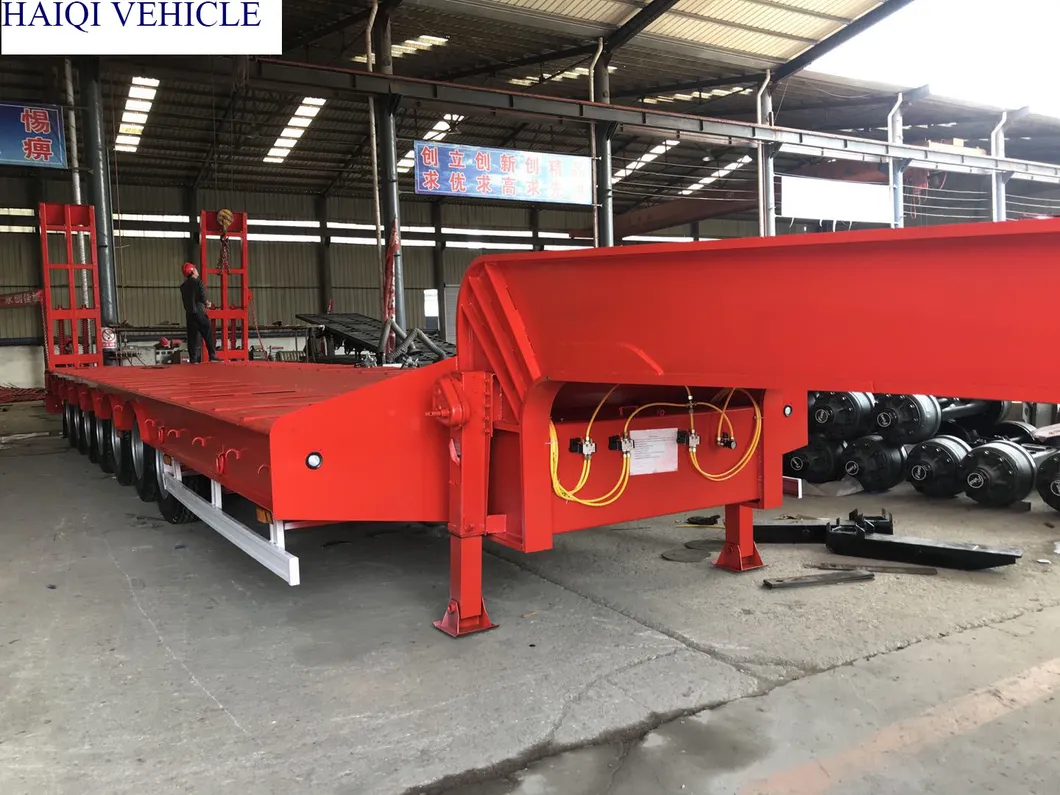

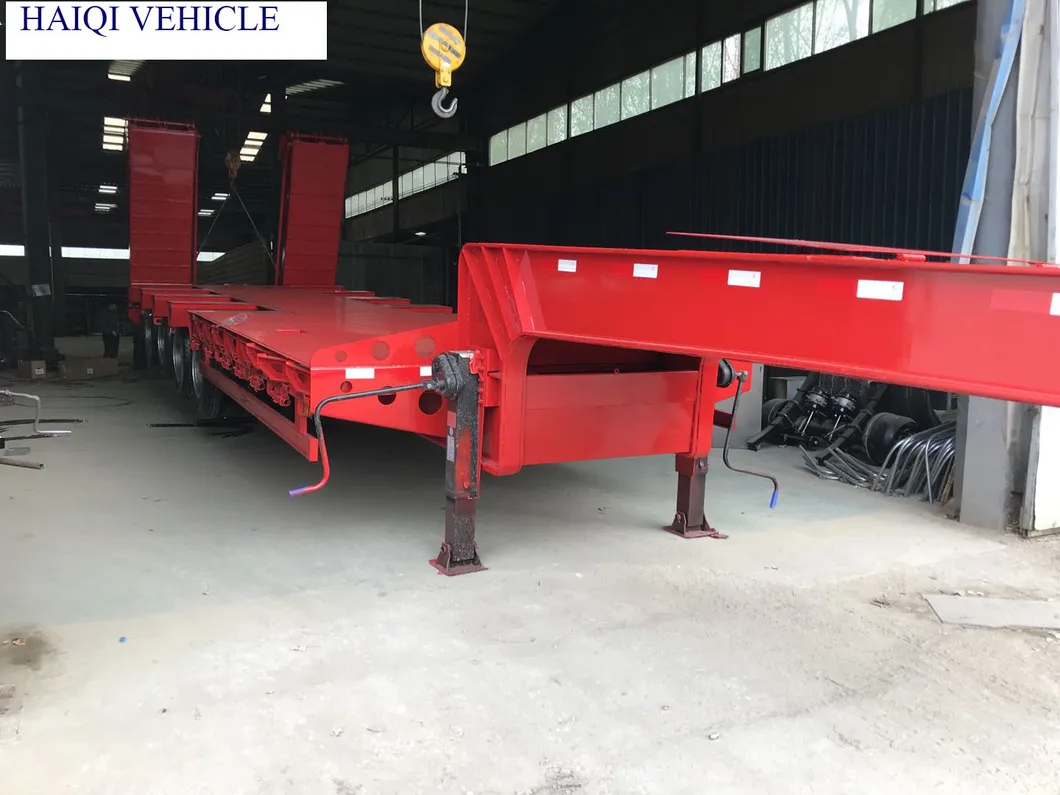

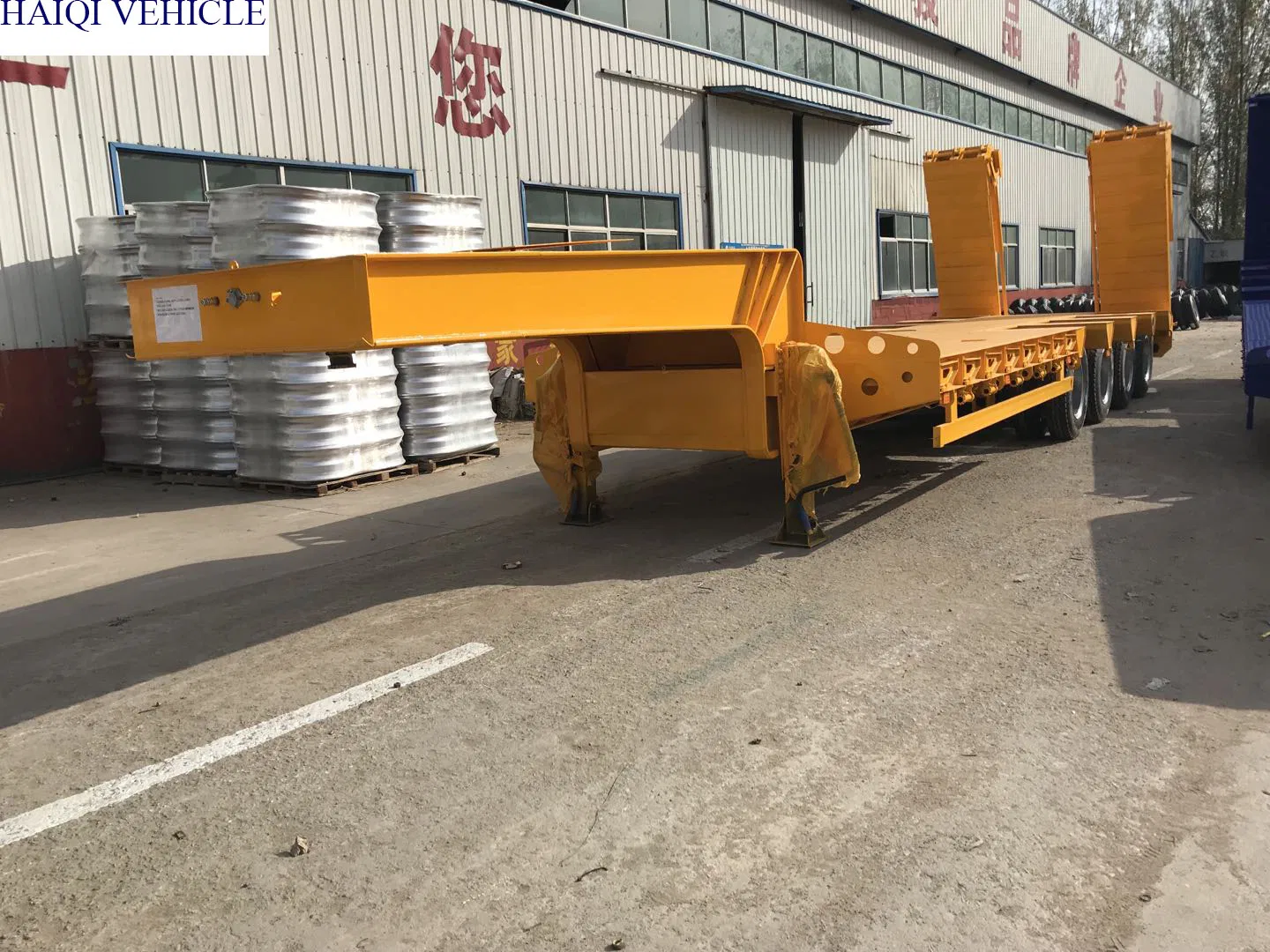

70ton/80ton/ 90ton /100ton Lines Low Bed Semi Trailer with Good Payload

Product Description

7 AXLE Lowbed Trailer: 16.5 M 7 Axle 120 Ton Lowbed Semi-Trailer Specifications

DIMENSIONS
Tare Weight	15,000kg
Payload	120,000kg
Total Weight	135,000kg
Overall Length	16500±50mm
Overall Width	3400mm
Cargo Deck length	12,192mm
Loading Deck Height	1220mm
Overall Height	1760mm
Ground clearance	Min.300mm with load
Wheel Track(each axle)	2380mm
Wheelbase	7500mm+1310mm+1310mm+1310mm+1310mm+1310mm+1310mm
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes,550mm Height I beam, Top Flange 30mm,width 140mm; Middle Flange thickness 12mm; Bottom Flange 30mm,width 140mm,Crossbeam H beam,Sidebeam height 350#.
Floor	5mm checkered Plate
Axle	7 Axle ZY brand 16 ton 2380mm Axle.
Suspension	Front 3 axle with lift able airbag suspension, rear 4 axle with mechanical suspension
King Pin	One unit of 3'5(/90#) SAE standard JOST brand bolted-in Kingpin,one 2' extra kingpin
Landing Gear	Two-speed, manual operating, Landing Gear 28 Ton
Wheel Rim	Twenty nine units of 7.5-20 10 hole wheel rim(including one spare rim)
Tire	Twenty nine units of 10.00R20tube Tire(including one spare tyre)
Spare Wheel Carrier	One set of spare wheel on gooseneck.
Pneumatic Braking System	A system with emergency brake and parking brake; Dual line - air brake,piggyback spring on all axles; Two units of RE 4 relay valve (or equivalent);Fourteen units of T30/30 spring brake chamber; 3 units of 45L air tanks; two units of standard copper air-connector.
Electrical System	One unit of 24V 7-pin ISO 1185 standard socket; Standard Tail lamp with LED turn signal, brake light & reflector, 10 units of flashing signal side lamp and two rear flashing Signal lamp. One set of 6-core standard Cable.
Painting	Sand blasting processing on rust - proof protection. One coat of anti-corrosive primer, two coats of finish urethane paint, Color as customer choice
Signal Lights	LED Rear has Stop & Indicating Lights. Both Sides have Flashing Signal Lights.
Euphroe & Hooks	Both sides have 8 Nos each Euphroe & 8 Nos Hooks.deck not leak tyre type. fix with enough numbers of screw/nuts,rear mechanical spring ladder, rear Landing gear.

70ton/80ton/90ton/100ton Lines Low Bed Semi Trailer with Good Payload

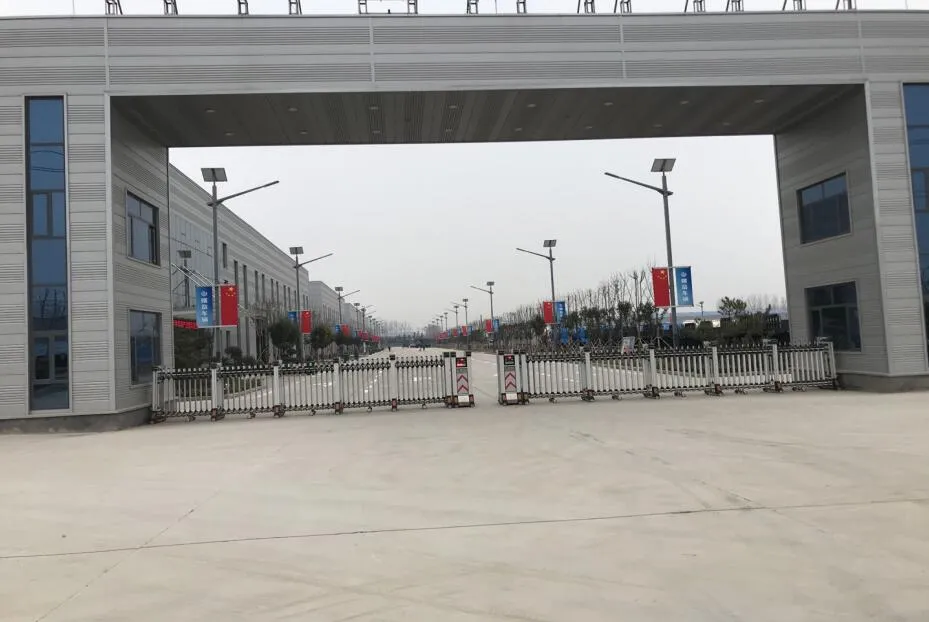

Shandong Haiqi Vehicle sales Co., Ltd was found in 2004; We are TRUCKS and SEMI TRAILERS manufacturing factory and we specialized in domestic and export all types of semi trailers production. Our factory locates in Liangshan industry zone which is called Max. Scale Semi Trailer Manufacturing Base in China.
We have modernized workshops which installed with series of perfect semi trailer production lines and manufacturing equipment. We sincerely cooperate with friends to create brilliance.

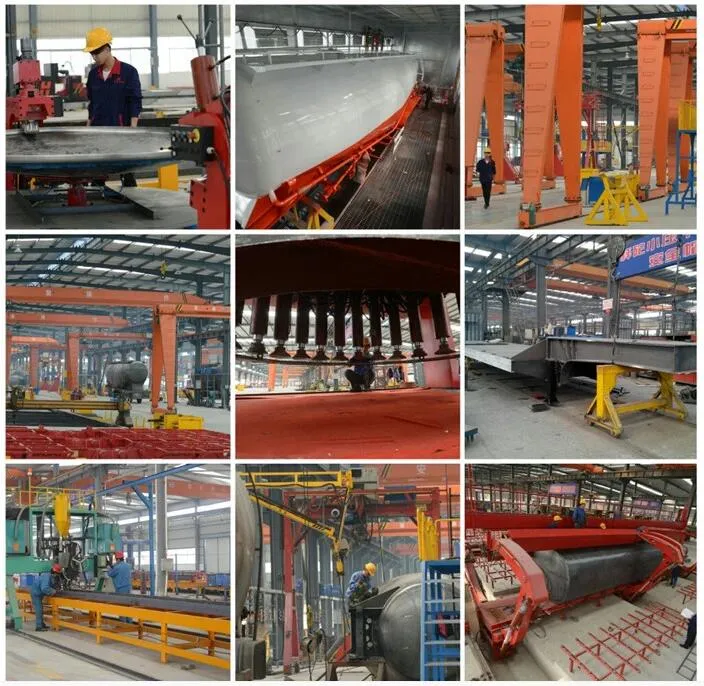

PRODUCTS LINE EQUIPMENTS:
A.PLASMA CUTTING
B.HYDRAULIC BENDING MACHINE
C.MAINBEAM ASSEMBLY PLATFORM
D.PLATE ROLLING WELDING MACHINE
70ton/80ton/90ton/100ton Lines Low Bed Semi Trailer with Good Payload

CUSTOMERS VISIT:
70ton/80ton/90ton/100ton Lines Low Bed Semi Trailer with Good Payload

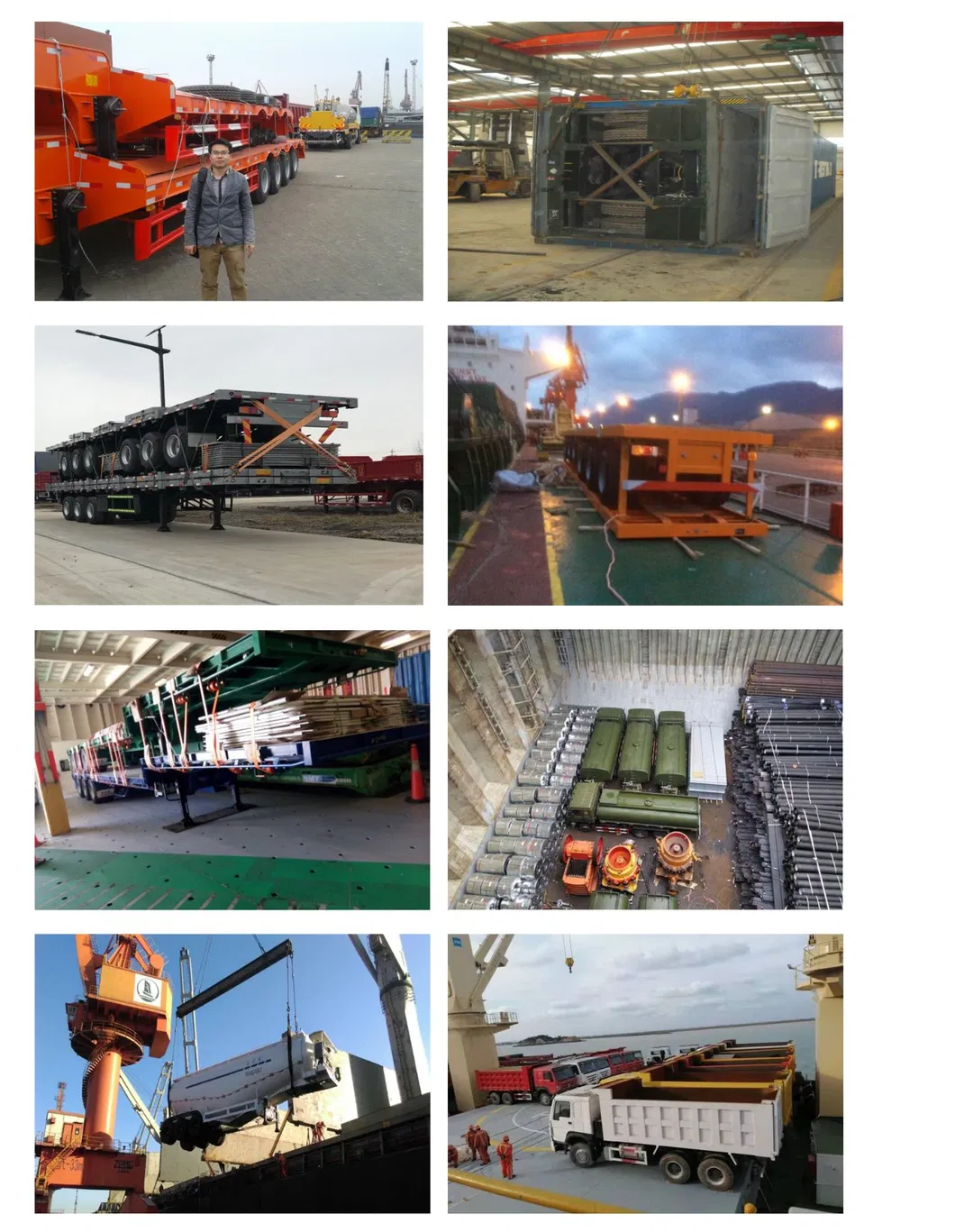

TRAILER &TRUCKS EXPORT AND DELIVERY:
70ton/80ton/90ton/100ton Lines Low Bed Semi Trailer with Good Payload

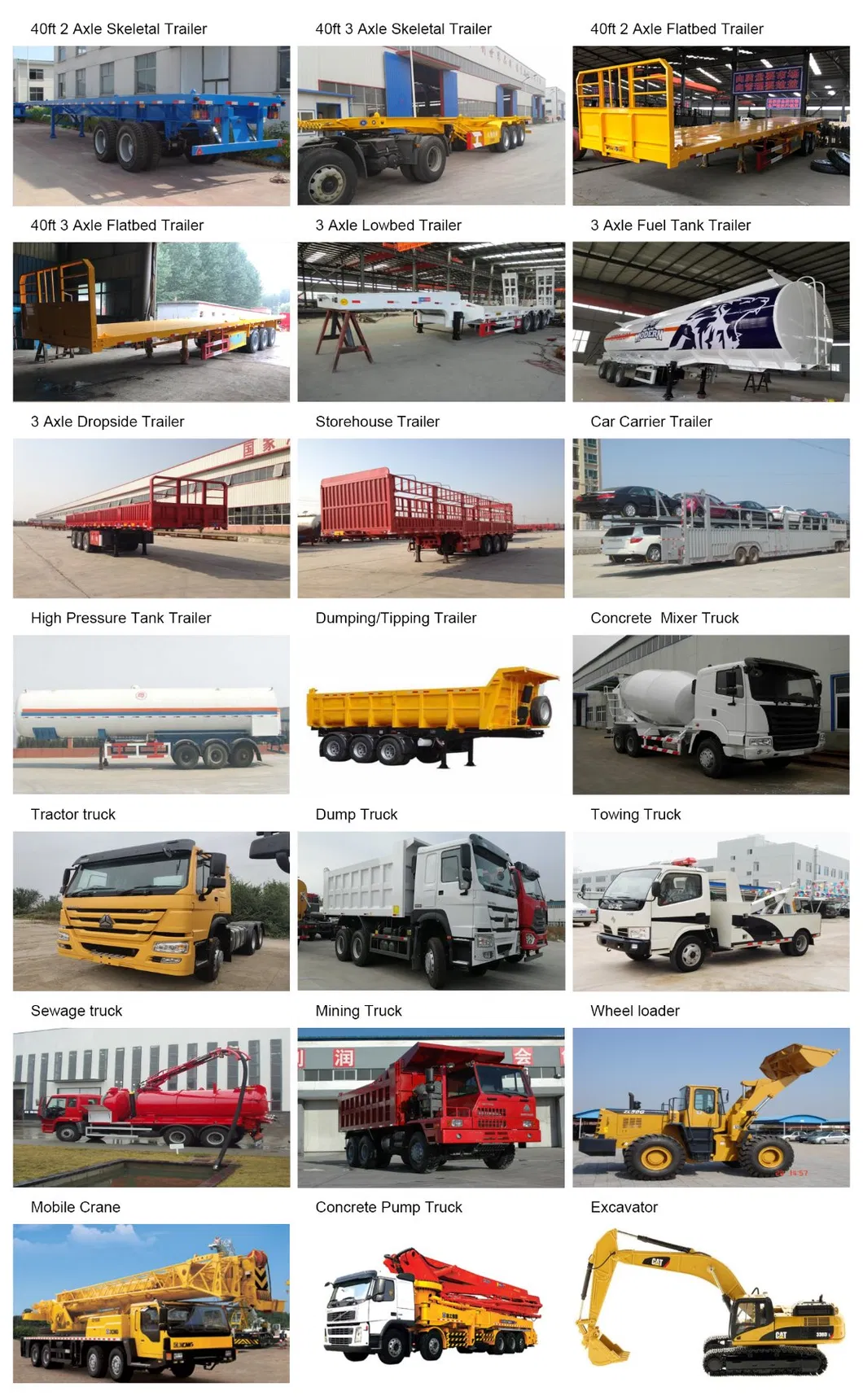

OUR PRODUCTS LIST:
70ton/80ton/90ton/100ton Lines Low Bed Semi Trailer with Good Payload

FAQ:
1. How about the quality of your products?Can I trust you?
We have 15 years of trucks and trailer production experience . Guarantee Quality and Delivery !Since our establishment, we have considered
"products quality first" as our principle.
2. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
3.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages.
4. How about your delivery time?
Generally, it will take 7 ~ 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What is your trailer warranty?
The trailer mainbeam is 12 months warranty,other parts are 6 months warranty.
