Product Description

Aluminum Tanker Trailer 36000L~42000L 3 Axle Transport Food Cooking Oil
CONTACT US

Website: tictrucks.en.made-in-china.com

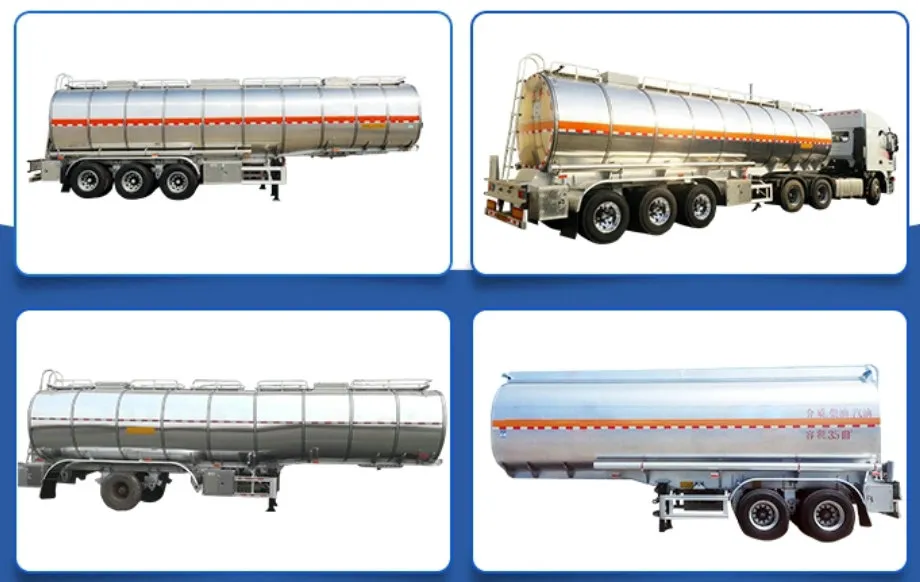

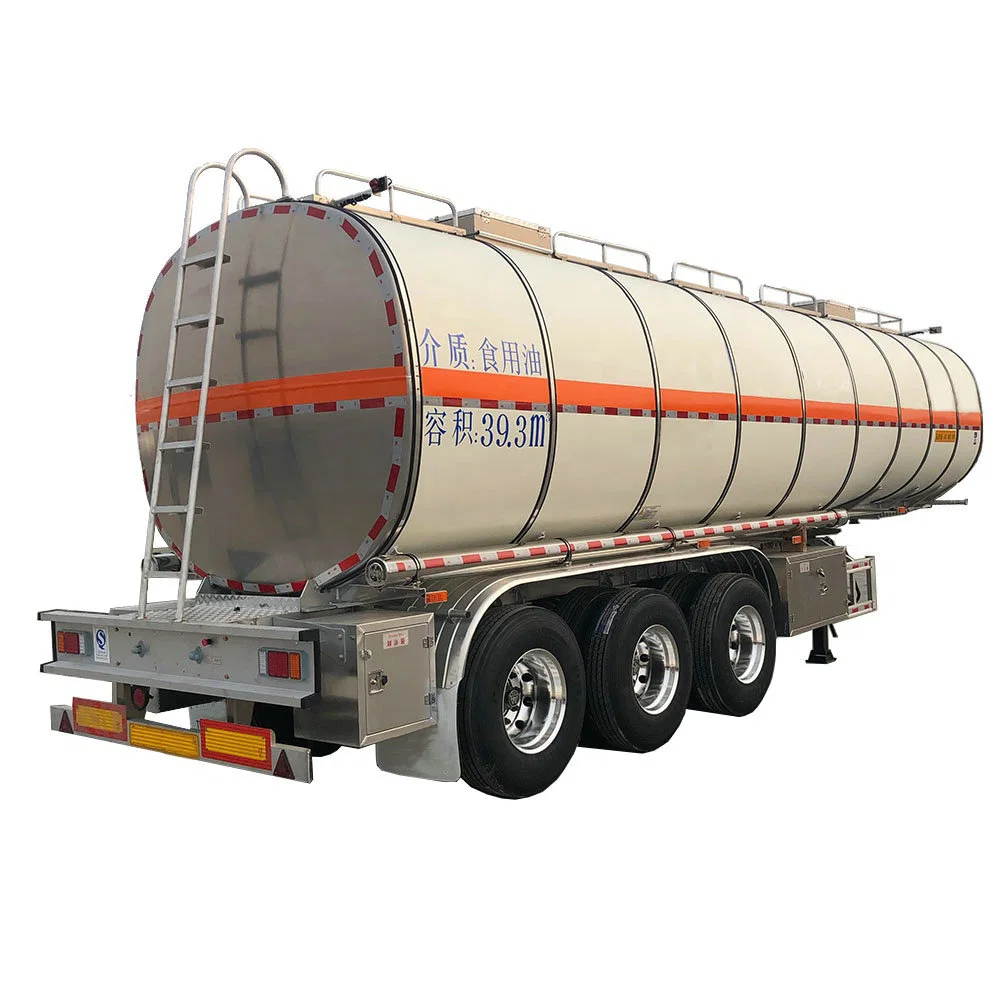

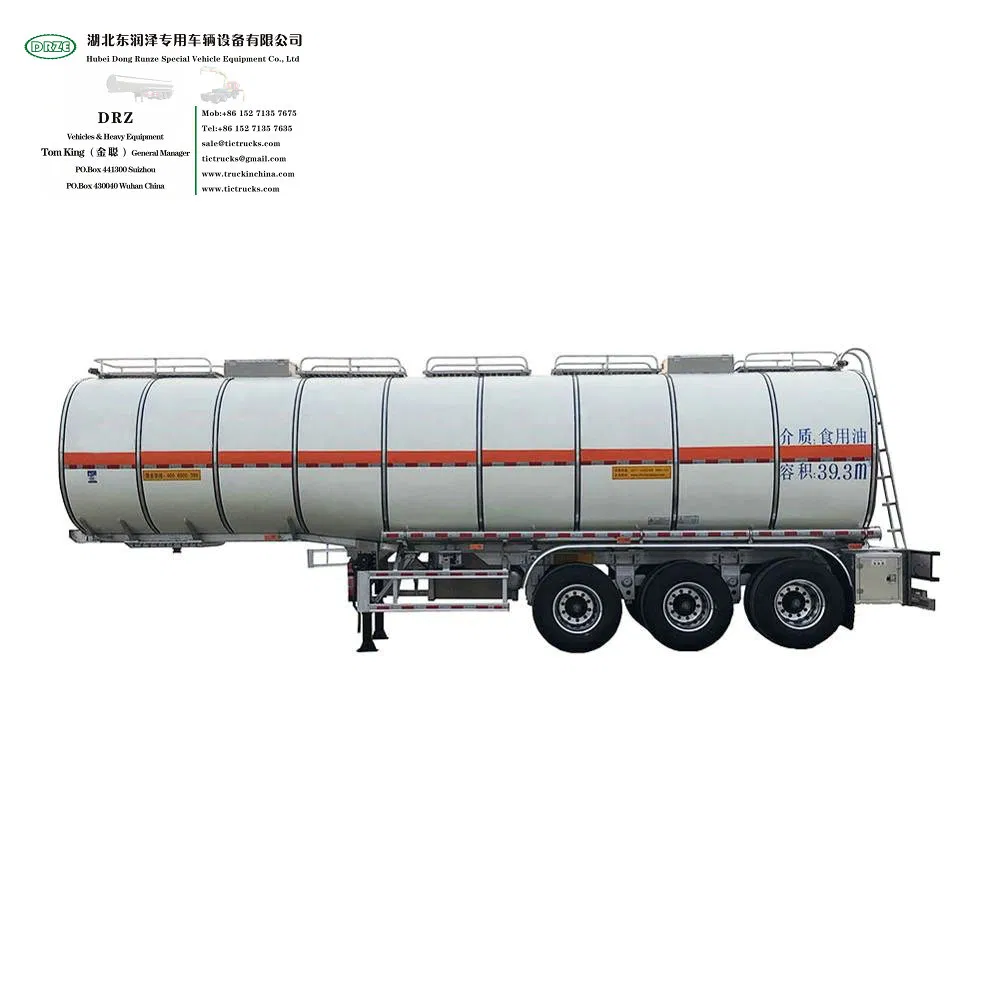

Aluminum Tanker Trailer 36000L~42000L 3 Axle Transport Food Cooking Oil Edible Oil

Aluminum Tanker Trailer 36000L~42000L 3 Axle Transport Food Cooking Oil Edible Oil

Vegetable Oil 40CBM 45CBM Alloy Tanker Semirailer

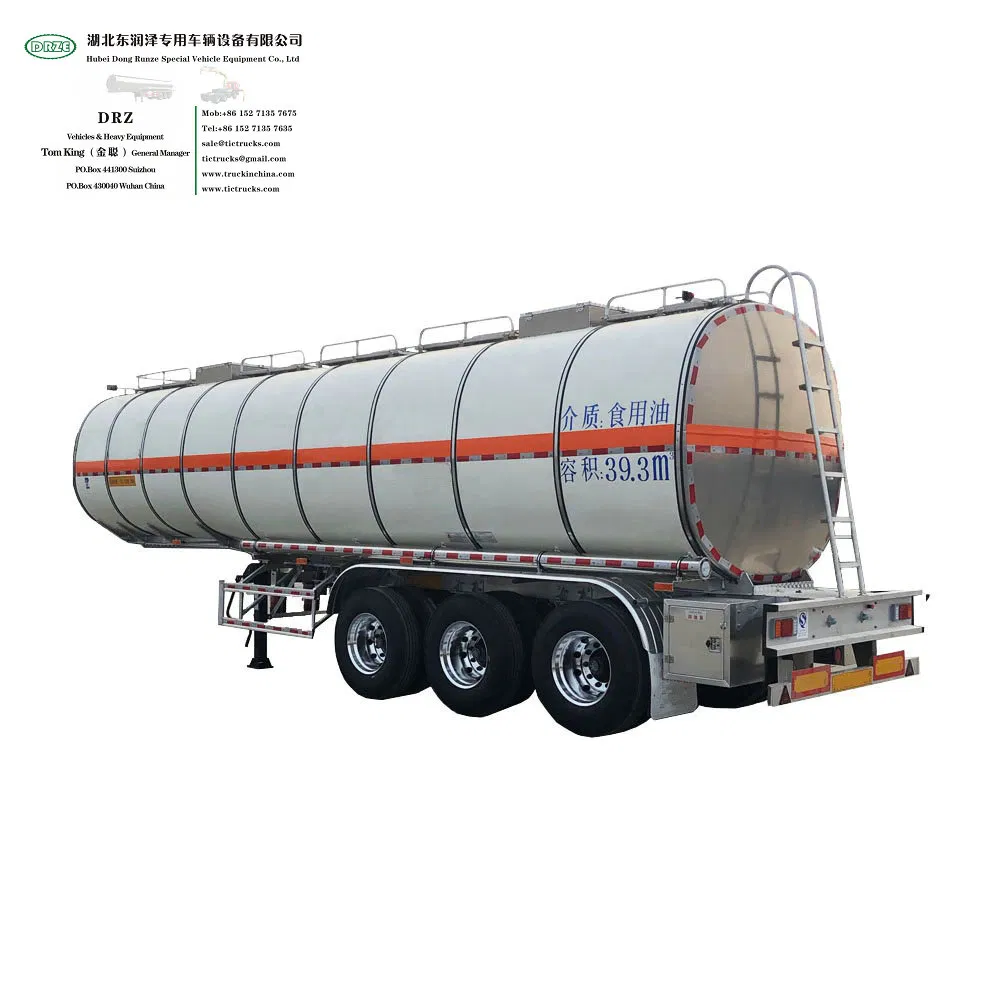

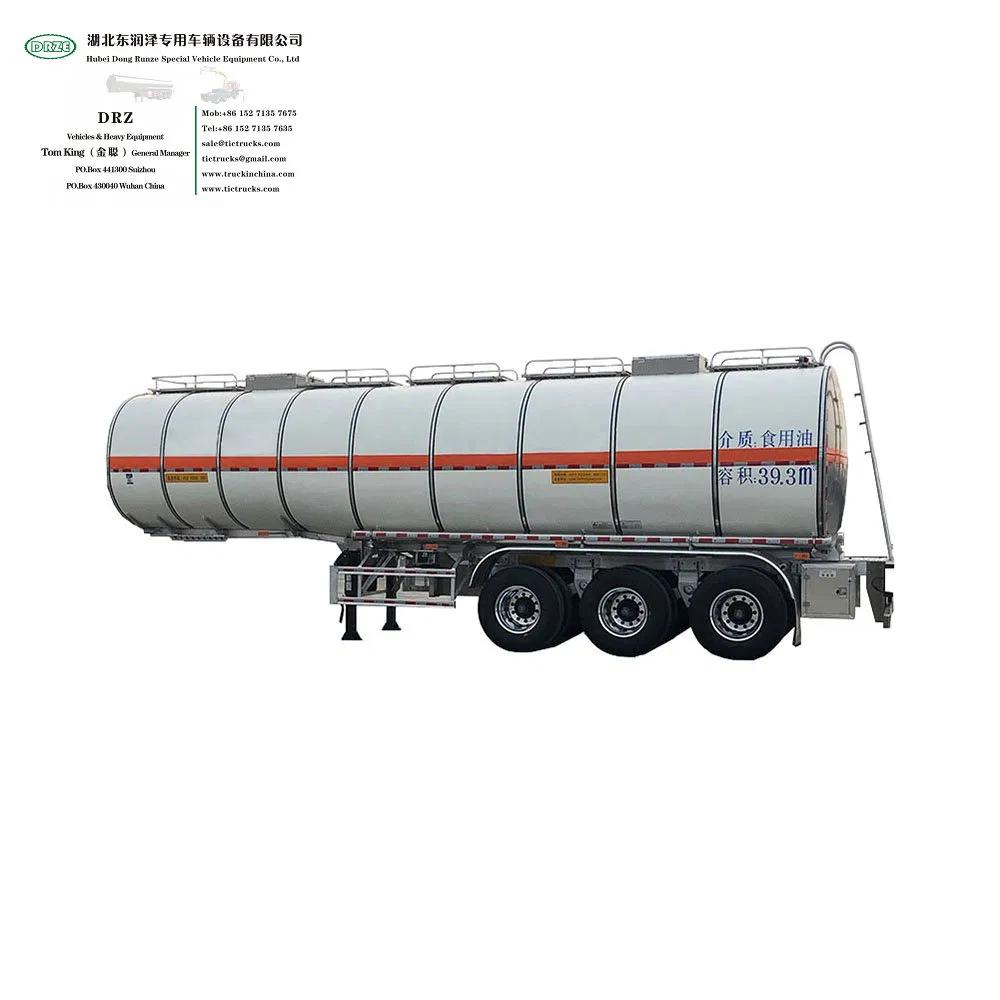

  Aluminum Tank Trailer Aluminum Fuel Tanker Semi-trailer 3 axles, 36000L to 42000L

Tanker
Material                  Aluminium
Thickness of shell     7mm
Thickness of dish      7mm
Inside baffles            5mm
Compartments          5 to 7 compartments
Volume                  36000L to 42000L+ 6% expansion
Tank Top Accessories

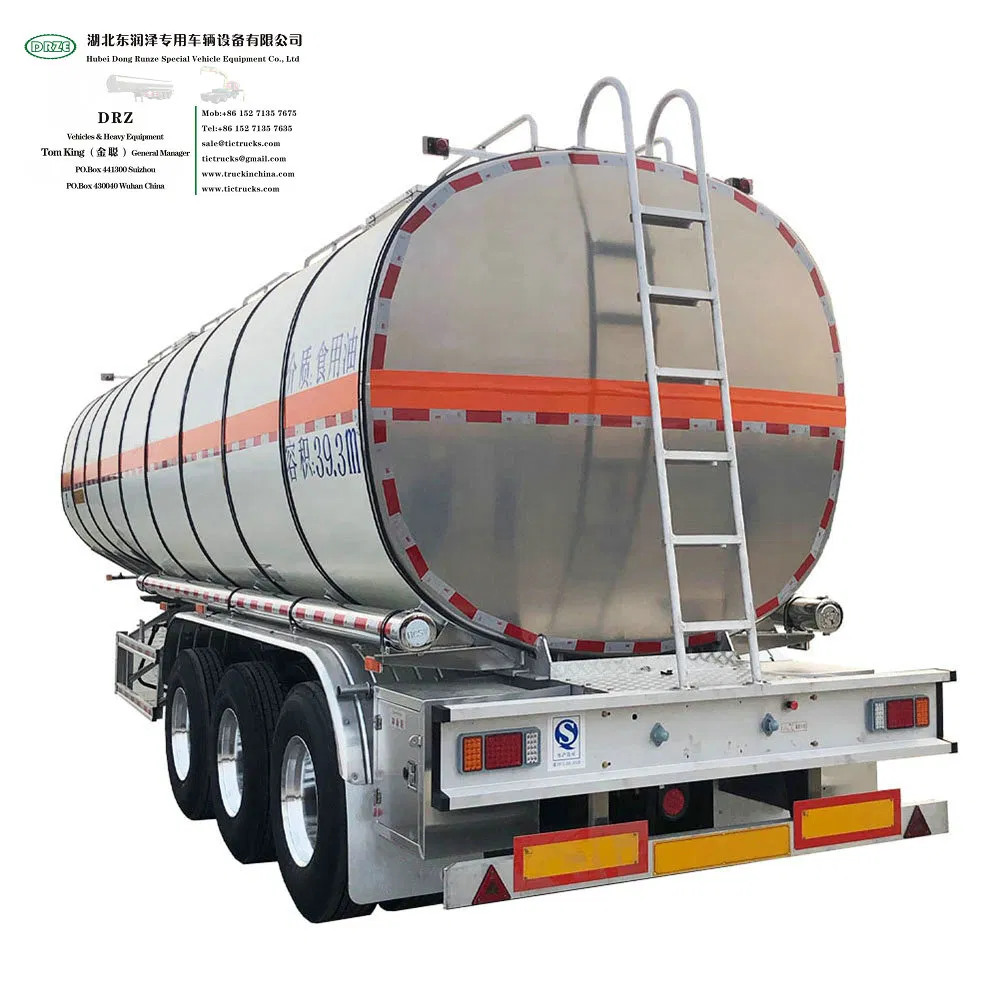

Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading.            Option: Bottom loading

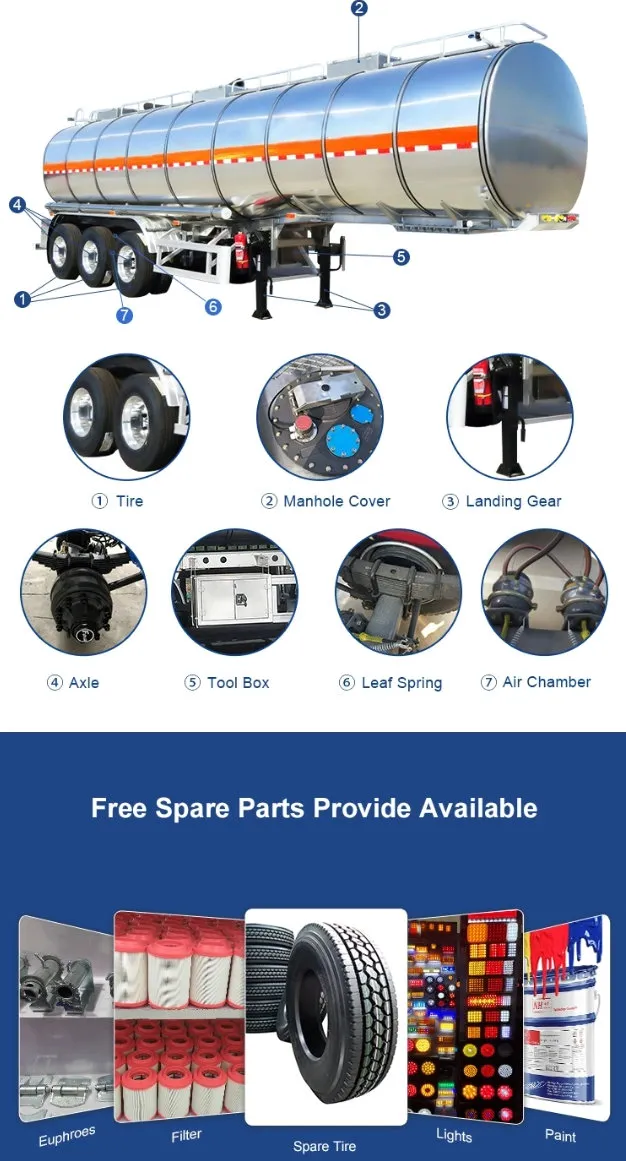

Running Gear
FUWA axle 13T*3                  Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
12+1 pcs tires 315/80R22.5 Tire  (9.0*R22.5 steel rims)
3.5" Jost kingpin                     Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting.
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools,  Heavy duty tail bumper

Weight Rating(kgs)	Curb Weight	about 7,000kg
	Payload	about 39,100kg
	Total Weight	about 46,100kg
Dimension(mm)	Trailer	11800mm2500mm3900mm( Exact size depends on the final design)
	Wheel base	1310mm
	Height of fifith wheel	1250mm
	Front overhang	1300mm
	Rear overhang	1400mm
Tanker Body Assembly
Shape	Square Round
Total Volume(m³)	46m³+2%
Material	Tank shell	AL5183/6mm
	Dish end	AL5183/7mm
	Baffle	AL5183/5mm
Spoil box	Standard
Manhole	20inch manhole
Manhole Cover	3 units of 500mm aluminium manhole cover
Bottom Valve	4" pneumatic aluminium valve
Piping System	3 sets of 4" aluminimum pipes under tank body
Discharging Valve	4" aluminium ball valve
Main Beam	Material:Q345 carbon steel
	Height 500mm,	Height 500mm,
	Upper Thickness 14~18mm,	Upper Thickness 14~18mm,
	Middle Thickness 8~12mm,	Middle Thickness 8~12mm,
	Down Thickness 16~20mm	Down Thickness 16~20mm
Landing Gear	28T one side Operation
King Pin	One unit of 50# JOST standard bolt type king pin
Running Gear
Suspension	Mechanical suspension or Air suspension
Axle	2 or 3 axles, BPW/FUWA brand(Optional)
Leaf Spring	90(W)mm×16(Thickness)mm×8(Layer)
Brake System	WABCO Valve with big chamber
Lights	Turning Light, Side Marker Light, Tail Light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Painting	Original aluminium
ABS	Optional
Accessories	One standard tool box, One anti-static tape,2 spare tire carrier, 2 units fire extinguisher

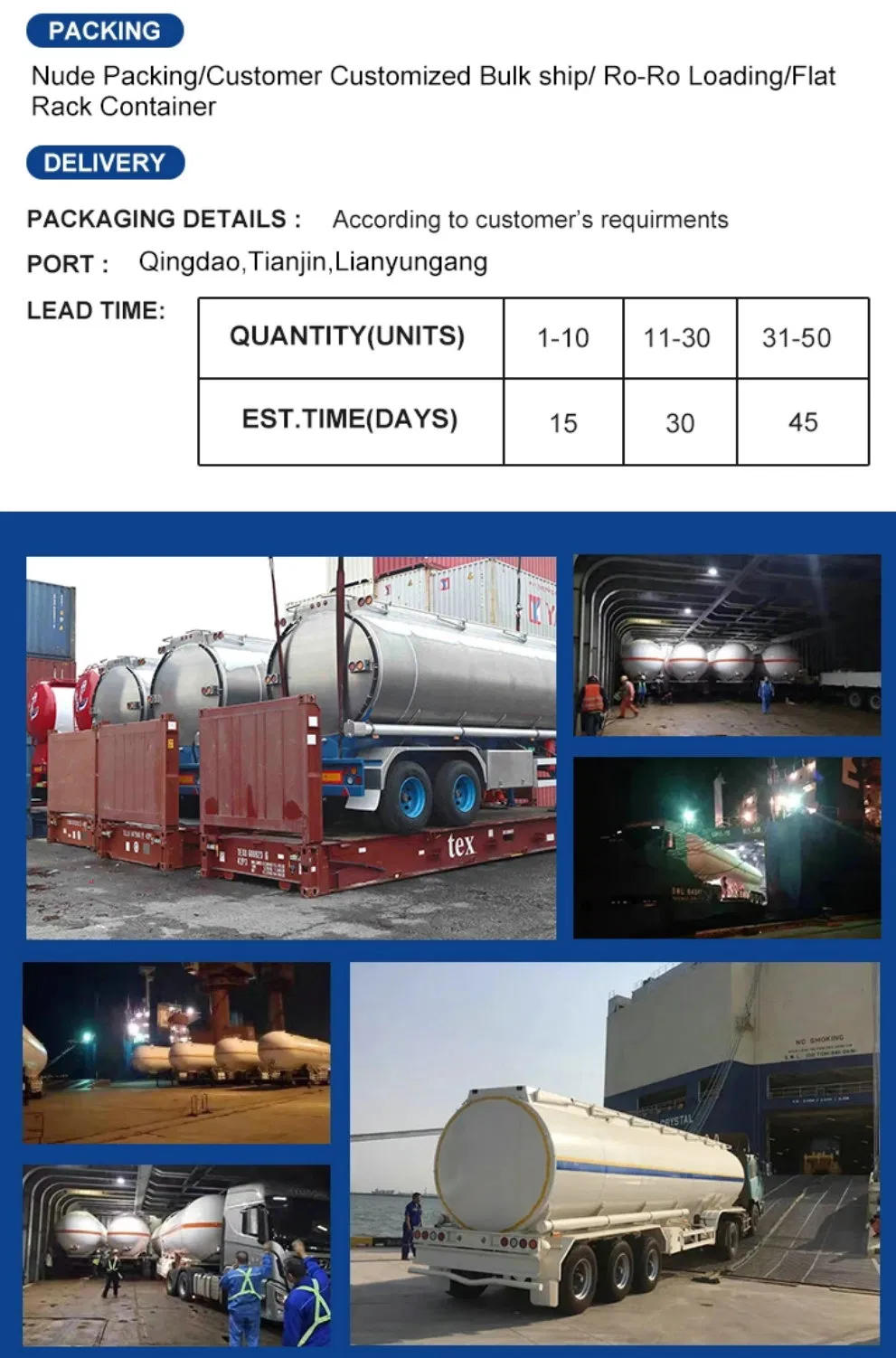

Shipping Terms	By Bulk Cargo Carrier, RORO
