American Type Axle Beam Assembly
Product DescriptionSemi Trailer 1840 Square beam German axle for saleTypeMAX CapacityA/B(mm)C(mm)E*F*T(mm)L3(mm)L2(mm)L1(mm)I(mm)Weight(Kg)ZBJZ-01113T88.9/88.9UNS3.48-12150*150*12390129616442108120ZBJZ-01213T95/85M85*2.5150*150*12354130016452104120ZBJZ-01314T88.9/88.9UNS3.48-12150*150*12350125816442......
Send Inquiry
Product Description
Product Description

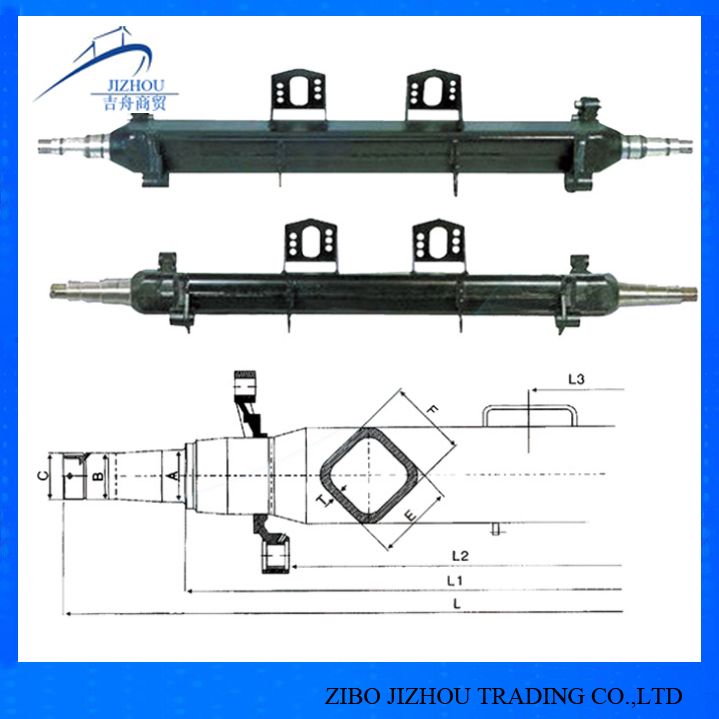

Semi Trailer 1840 Square beam German axle for sale
| Type | MAX Capacity | A/B(mm) | C(mm) | E*F*T(mm) | L3(mm) | L2(mm) | L1(mm) | I(mm) | Weight(Kg) |
| ZBJZ-011 | 13T | 88.9/88.9 | UNS3.48-12 | 150*150*12 | 390 | 1296 | 1644 | 2108 | 120 |
| ZBJZ-012 | 13T | 95/85 | M85*2.5 | 150*150*12 | 354 | 1300 | 1645 | 2104 | 120 |
| ZBJZ-013 | 14T | 88.9/88.9 | UNS3.48-12 | 150*150*12 | 350 | 1258 | 1644 | 2108 | 120 |
| ZBJZ-014 | 16T | 99.9/88.9 | UNS3.48-12 | 150*150*14 | 360 | 1266 | 1664 | 2128 | 140 |
| ZBJZ-015 | 20T | 110/88.9 | UNS3.48-12 | 150*150*16 | 360 | 1264 | 1700 | 2173 | 160 |

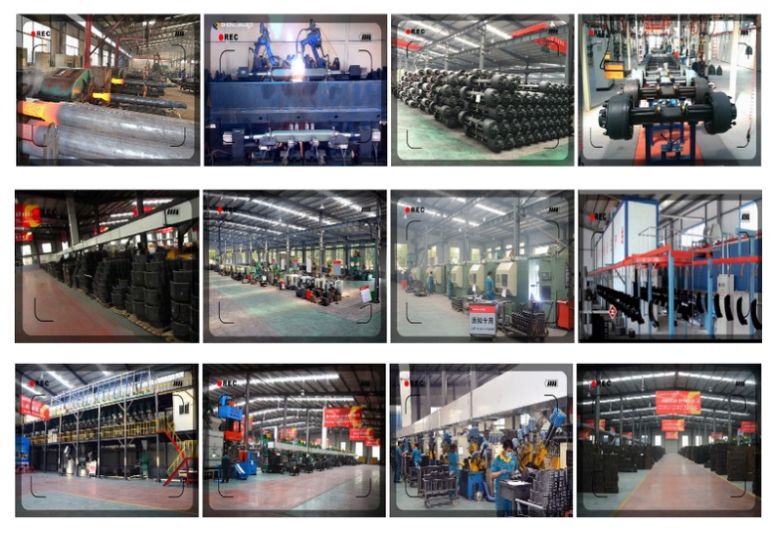

Our factory

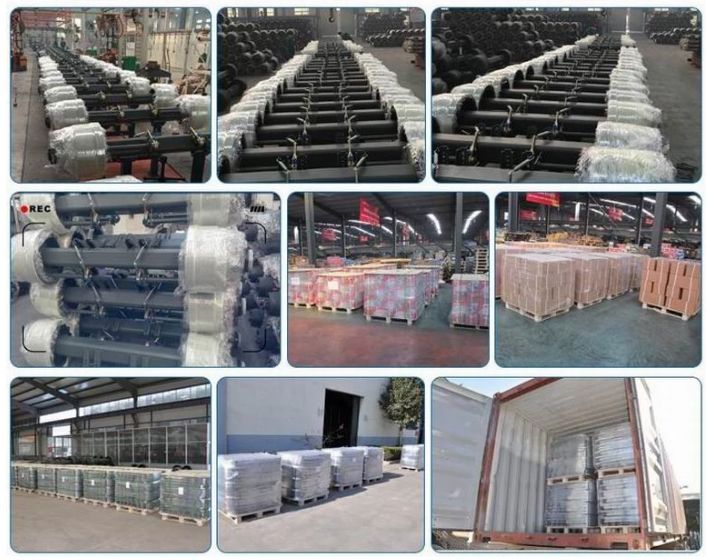

Loading
