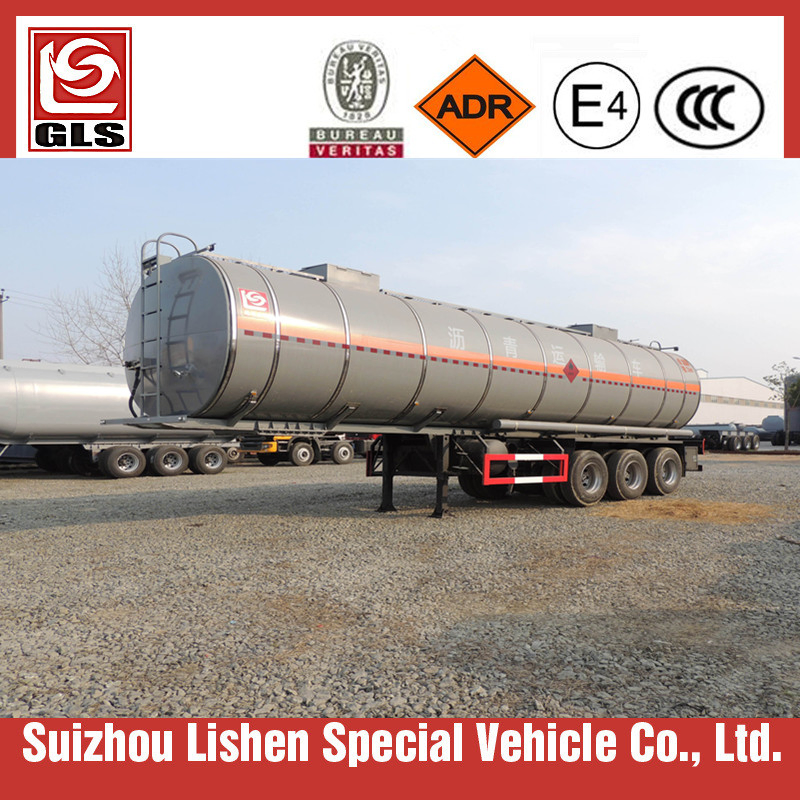

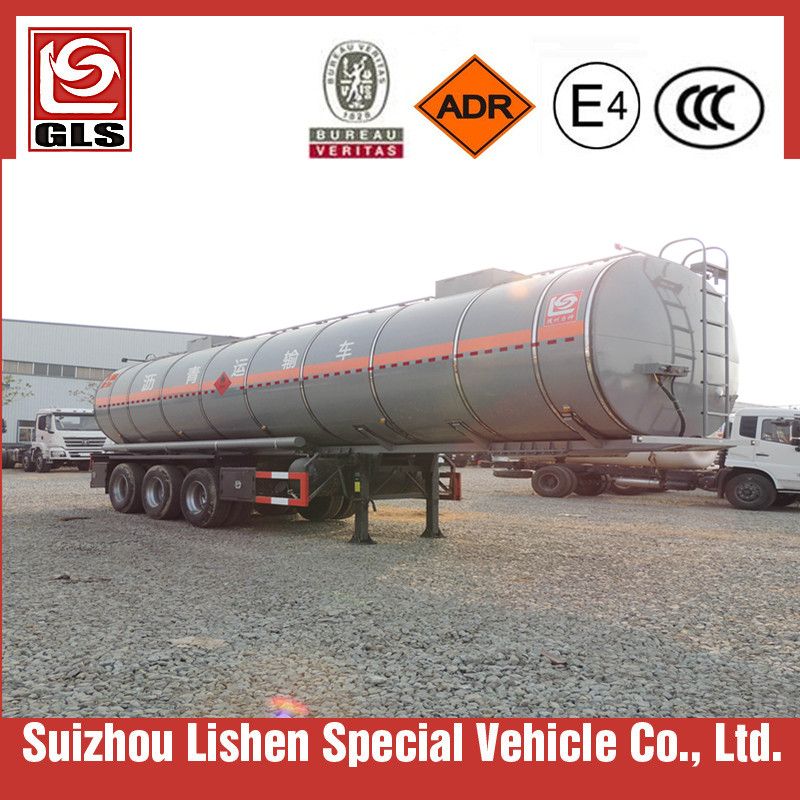

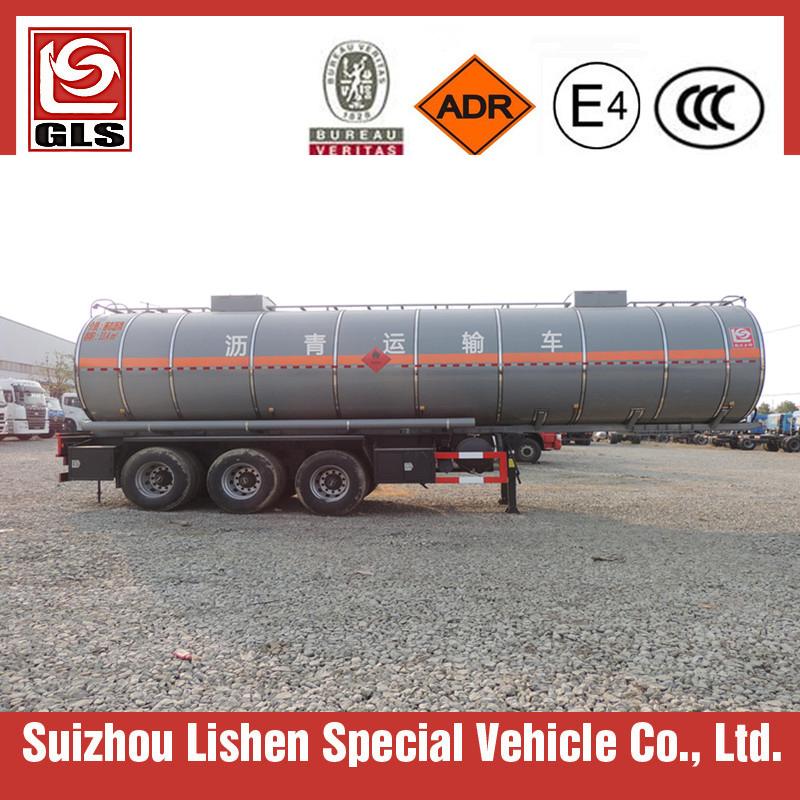

Bitumen Liquid Tanker Semi Trailer

Product Description

Bitumen Liquid Tanker Semi Trailer

Model	SLS9400GYY
Wheel Base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcs ISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2' and 3.5' interchangable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers' request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Tanker side thickness	5mm carbon steel
Net Weight	12 T
Oil tanker	1000 liters Round Shape
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
Heat Preservation System	Electrical or Diesel

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck

China Tank Truck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
