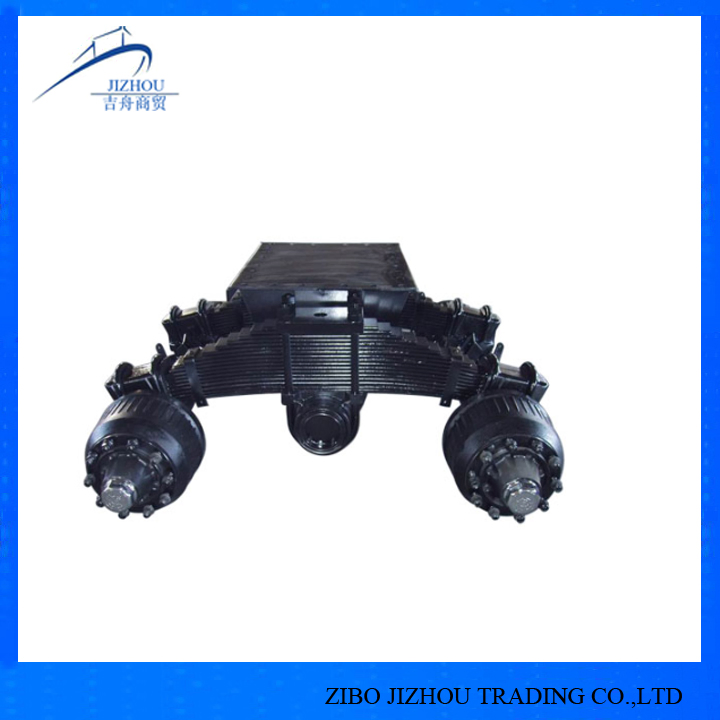

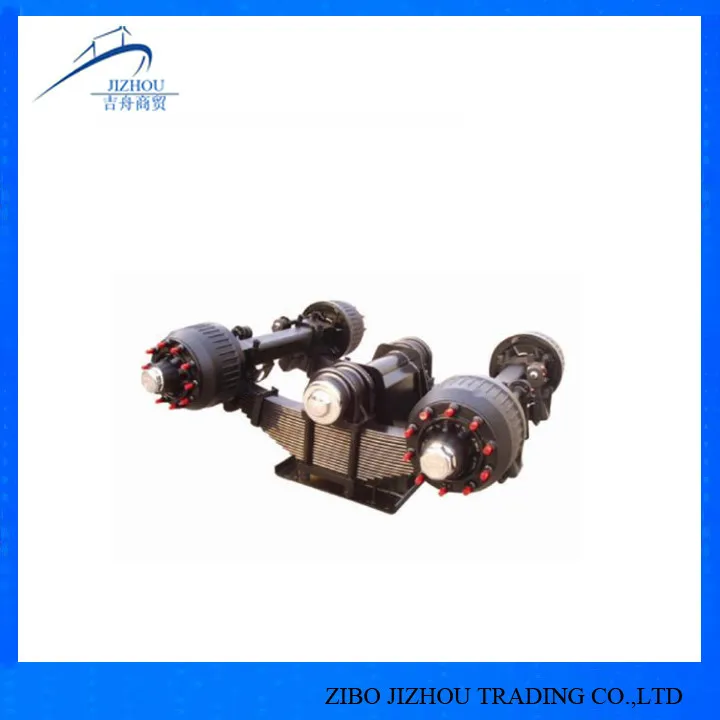

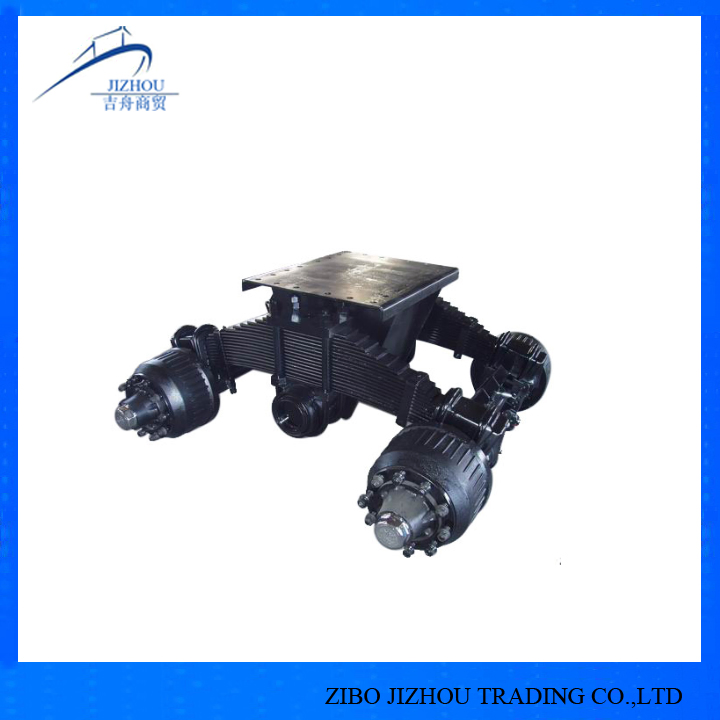

Bogie Suspension - 24t 28t 32t 10holes Bogie Manufacturer in China
Product DescriptionBogie Suspension - 24t 28t 32t 10holes Bogie Manufacturer in ChinaGermany style mechanical suspension specificationModelAxle typeHeightEmpty loadFull loadCapacityWeightThickness(mm) (mm) (mm) (mm)(T)(kg)(mm)ZBJZ-150-1150*15018047643116*11921.Hanger: 8mmZBJZ-150-2150*15018047643116......
Send Inquiry
Product Description
Product Description
Bogie Suspension - 24t 28t 32t 10holes Bogie Manufacturer in China
Germany style mechanical suspension specification
| Model | Axle type | Height | Empty load | Full load | Capacity | Weight | Thickness |
| (mm) | (mm) | (mm) | (mm) | (T) | (kg) | (mm) | |
| ZBJZ-150-1 | 150*150 | 180 | 476 | 431 | 16*1 | 192 | 1.Hanger: 8mm |
| ZBJZ-150-2 | 150*150 | 180 | 476 | 431 | 16*2 | 390 | 2.Equalizing beam: 10mm |
| ZBJZ-150-3 | 150*150 | 180 | 476 | 431 | 16*3 | 590 | |
| ZBJZ-150-4 | 150*150 | 180 | 476 | 431 | 16*4 | 785 |
| Model | Width | Thickness | Leaves | The longest leaf | Weight | Capacity (T) | |
| (mm) | (mm) | (mm) | (kg) | ||||
| Standard | 100 | 12 | 12 | 1200 | 83 | 16 | |
| 100 | 12 | 14 | 1200 | 98 | 16 | ||

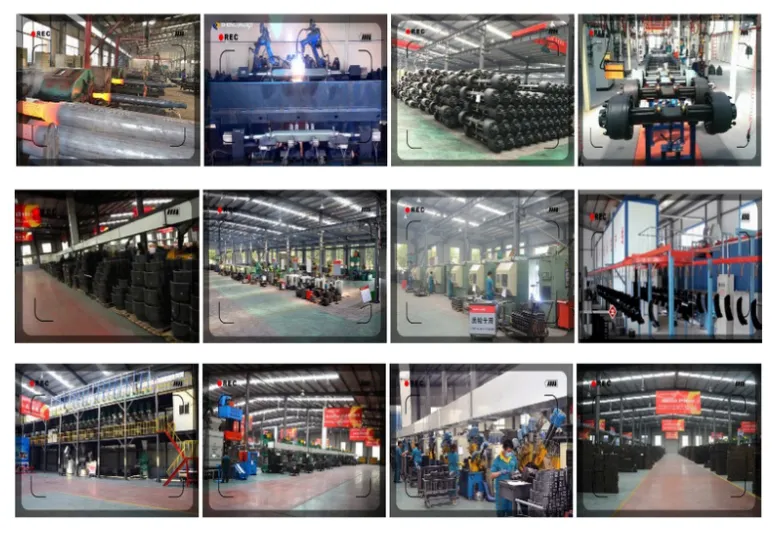

Our factory

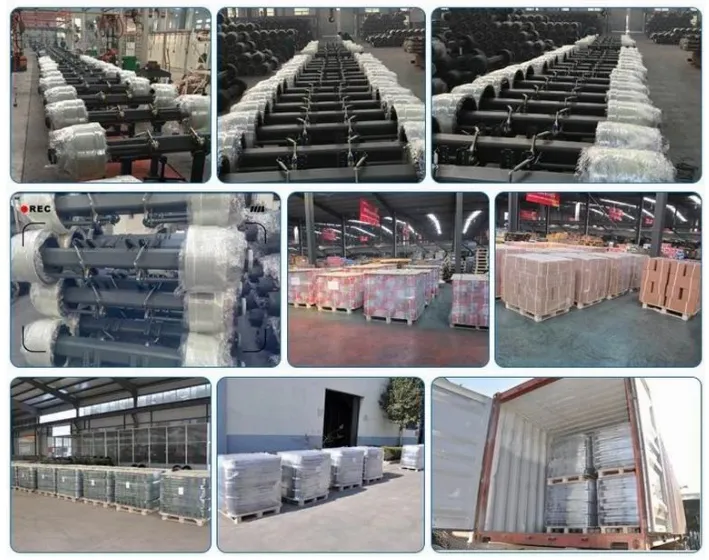

Loading
