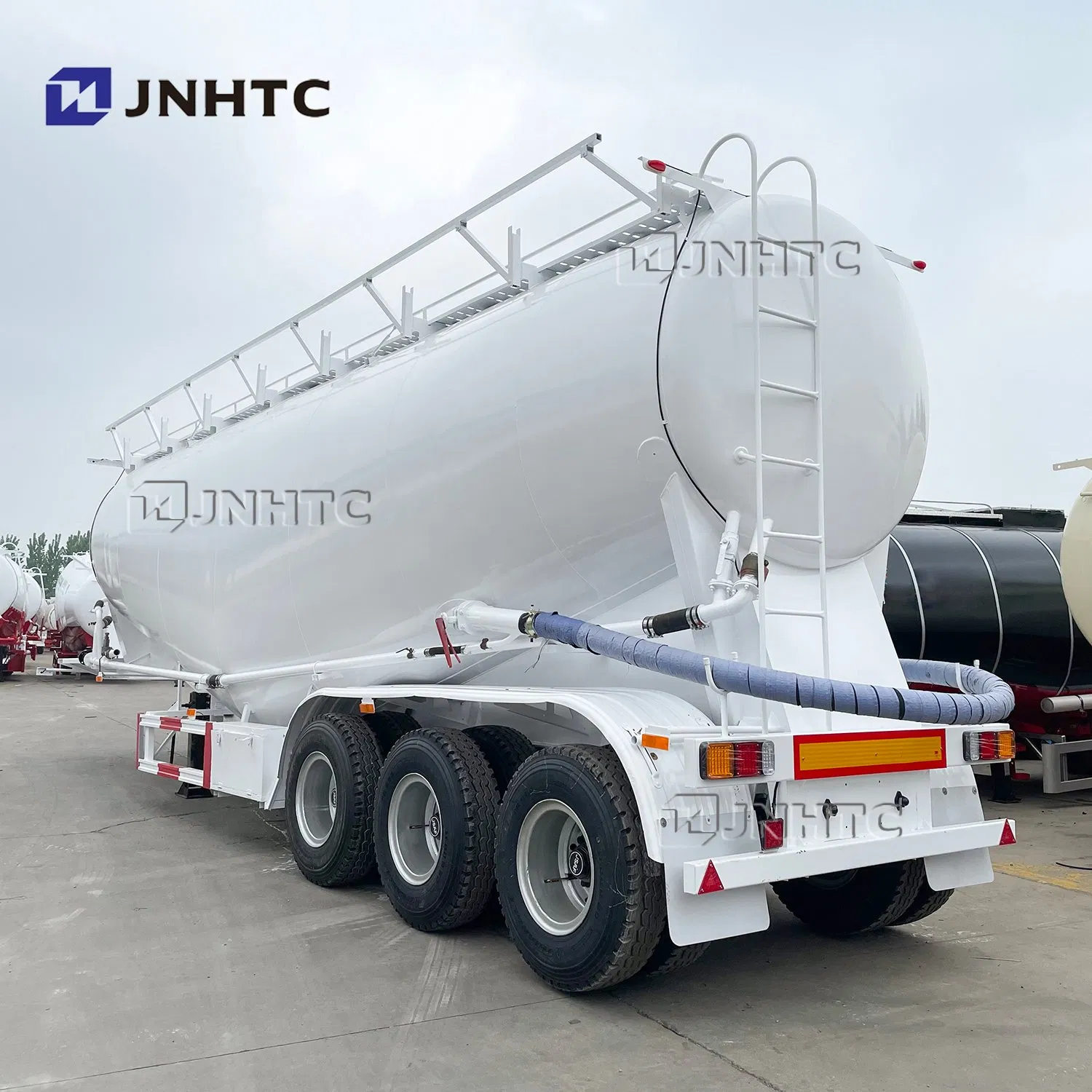

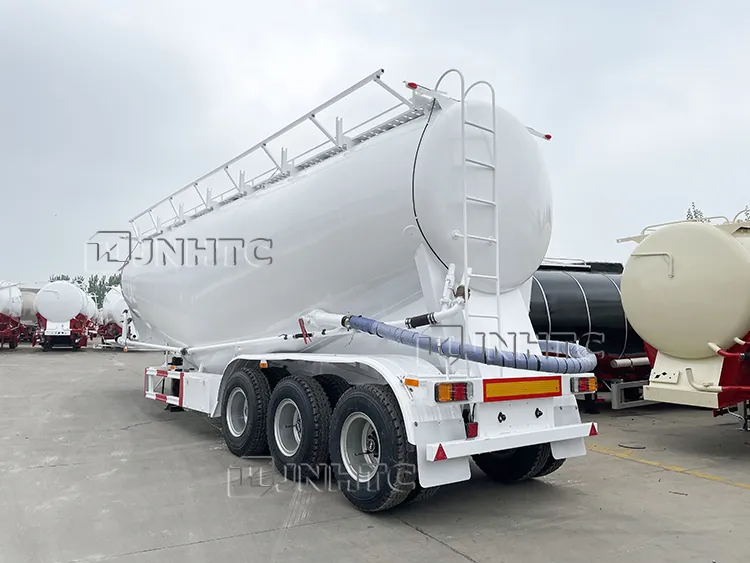

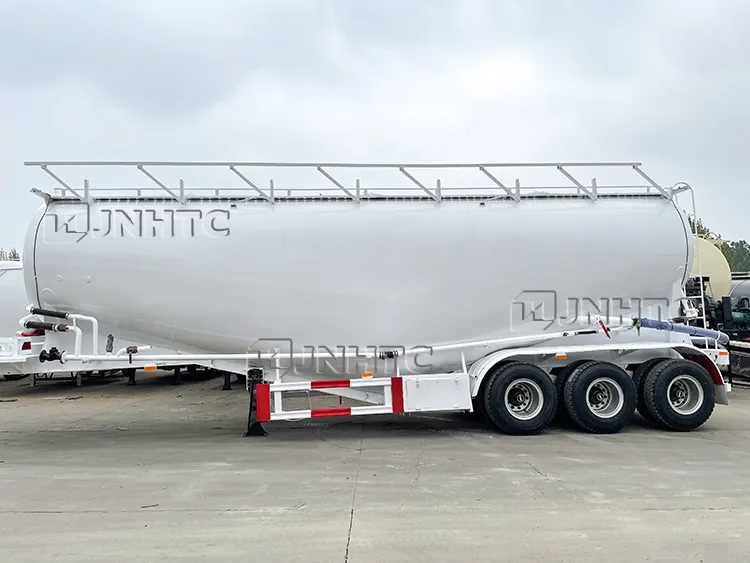

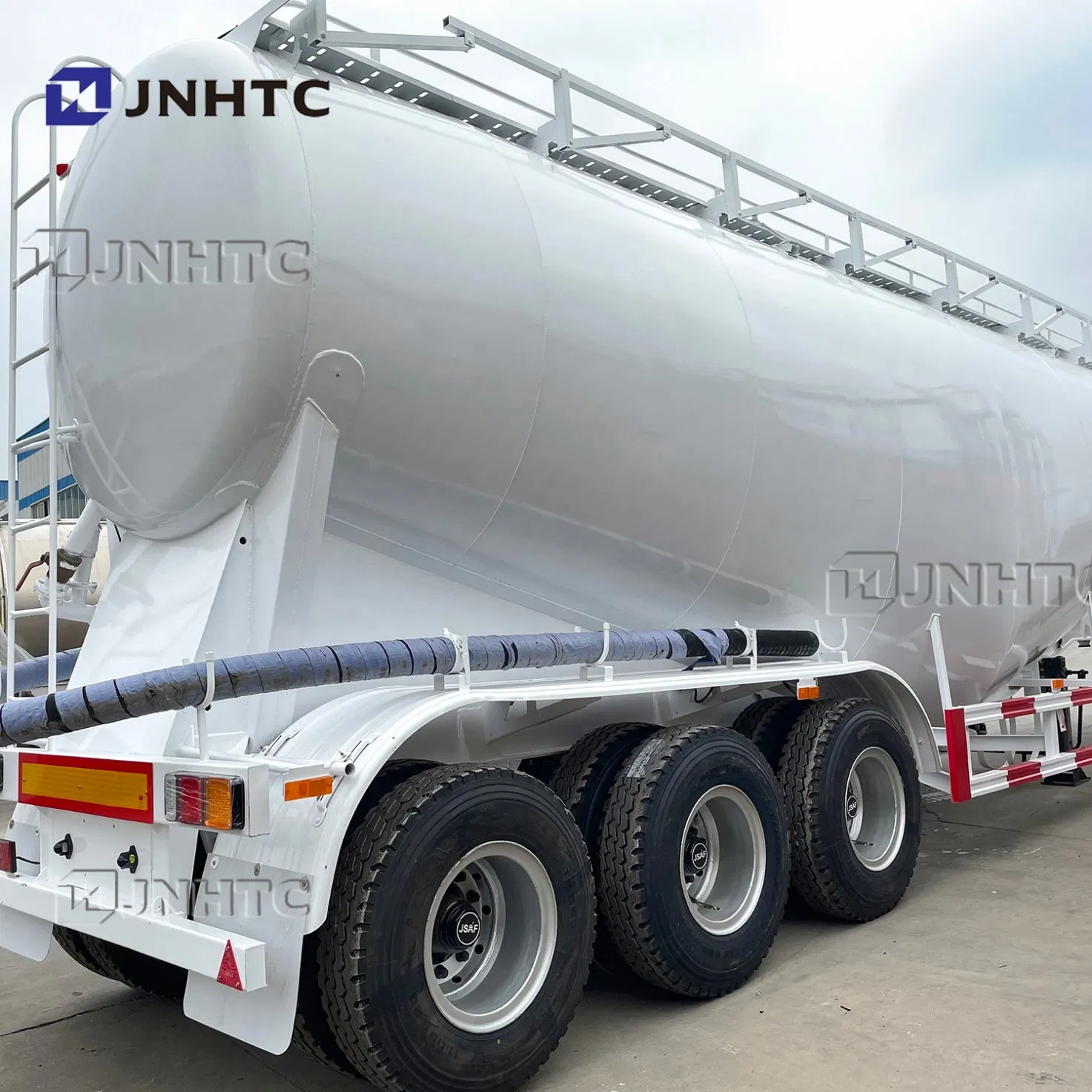

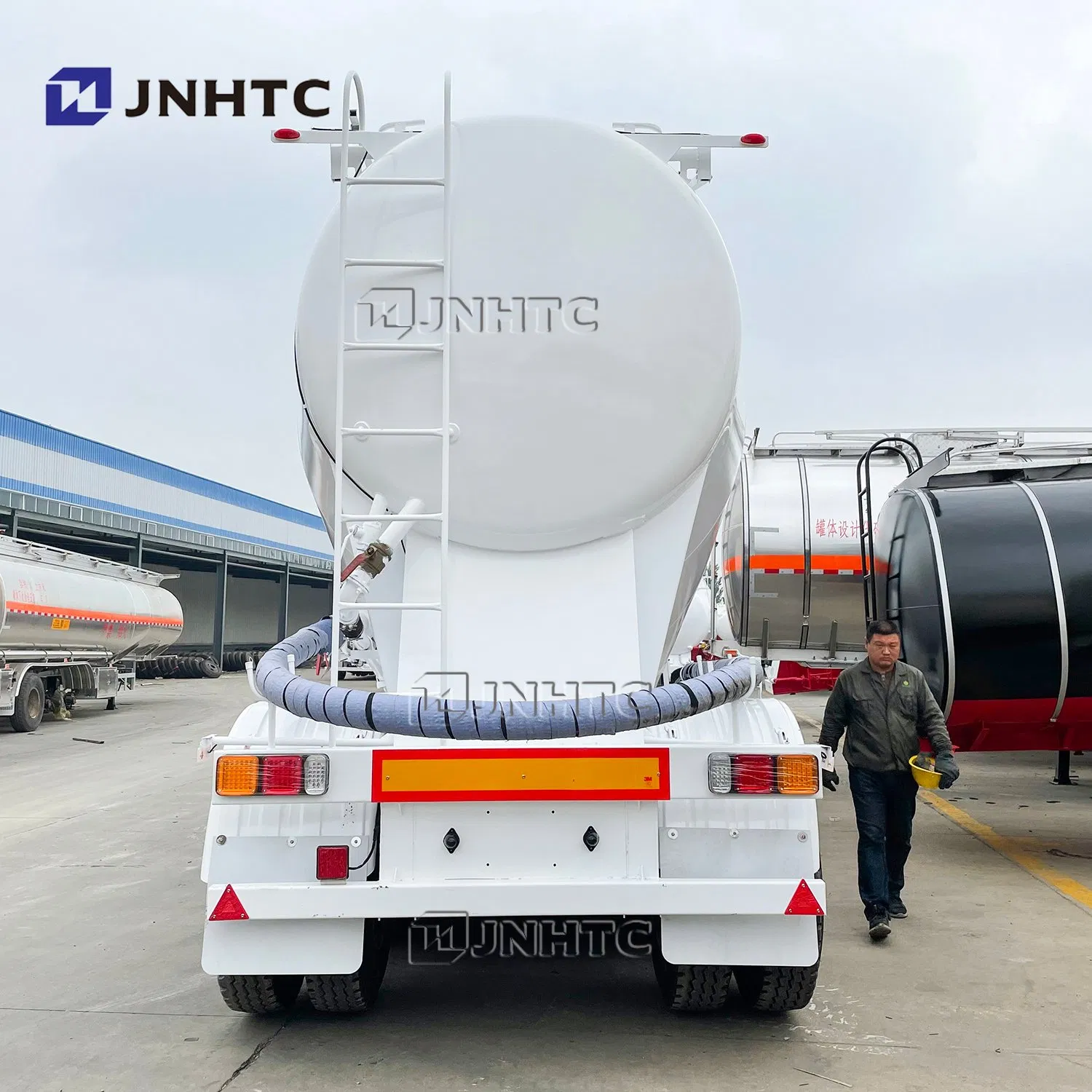

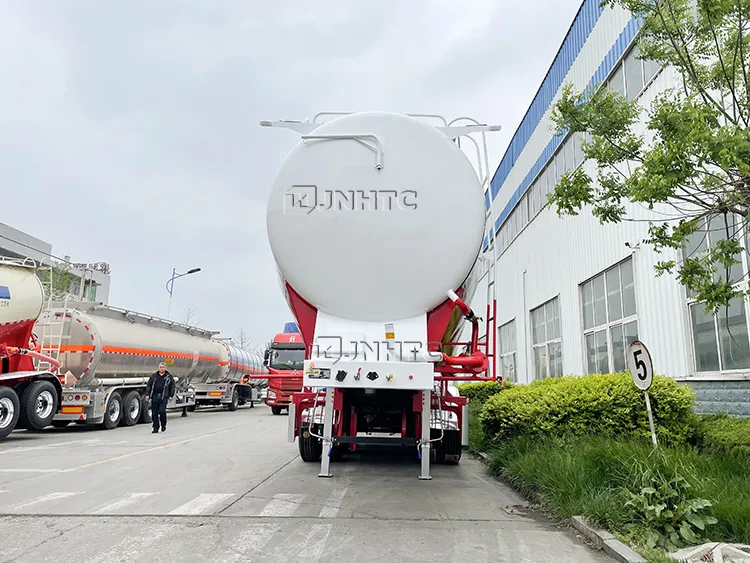

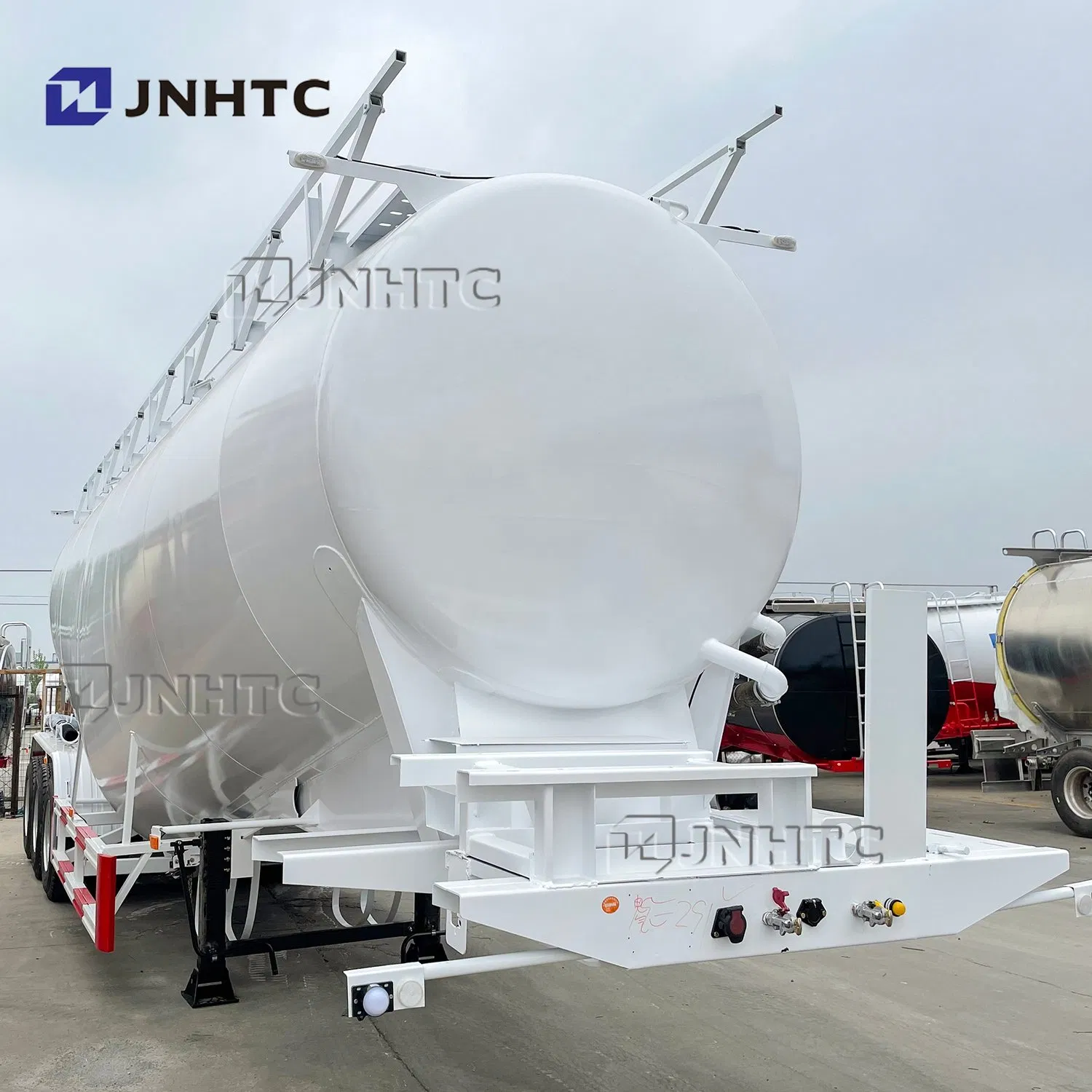

China Cement Truck Trailer Price 3 4 Alex Bulk Cement Trailer
Product DescriptionTypeBulk cement tanker trailerShapeRound or Square (Optional)Dimension9500-13500*2500*3900 (Exact size depends on the final design)Tare weightApprox. 8500kgs-11000kgsVolume23,000-120,000 cbmCapacity28-150 tonsTank body material5.5mm carbon steel/aluminum alloy/stainless steelEnd p......
Send Inquiry
Product Description
| Type | Bulk cement tanker trailer |
| Shape | Round or Square (Optional) |
| Dimension | 9500-13500*2500*3900 (Exact size depends on the final design) |
| Tare weight | Approx. 8500kgs-11000kgs |
| Volume | 23,000-120,000 cbm |
| Capacity | 28-150 tons |
| Tank body material | 5.5mm carbon steel/aluminum alloy/stainless steel |
| End plate | 6mm carbon steel |
| Manhole cover | diameter 500 mm 2 pieces, material aluminium |
| Ratedwork pressure | 0.2Mpa |
| Discharging valve | 3 or 4 inch ball valve / API valve |

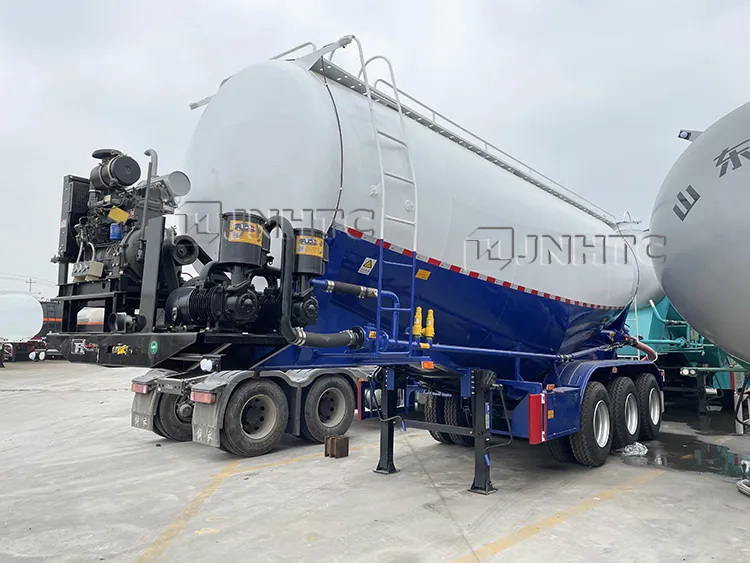

| Diesel Engine | PTO or 4102/4105 China weichai brand model |
| Compressor | 12 cbm |
| Compartments | Single |
| Discharging pipe | 3" or 4" rubber pipe, 1 piece, 6 m / each |
| Main beam | Extruded T shape aluminum alloy beam |
| Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
| King pin | Jost 2.0 or 3.5 inch bolted type |
| Suspension | Mechanical suspension / Germany type or America type / Air suspension |
| Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber, 2 pieces of 45L air tank |
| Wheel rim | 9.0*22.5 / 8.0-20 / 8.5-20 better brand 12pcs |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| ABS | Optional |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Air-charging system | 2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Fire extinguiser | Two pieces 4 kgs |
| Spare tire carrier | 2 pieces |
| Safety guard | With standard |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Color advised by customer |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Shipping terms | By bulk vessel or RORO or Flatrack container |
| Date of delivery | 20 days after we received 30% of contract value T/T down payment. |
