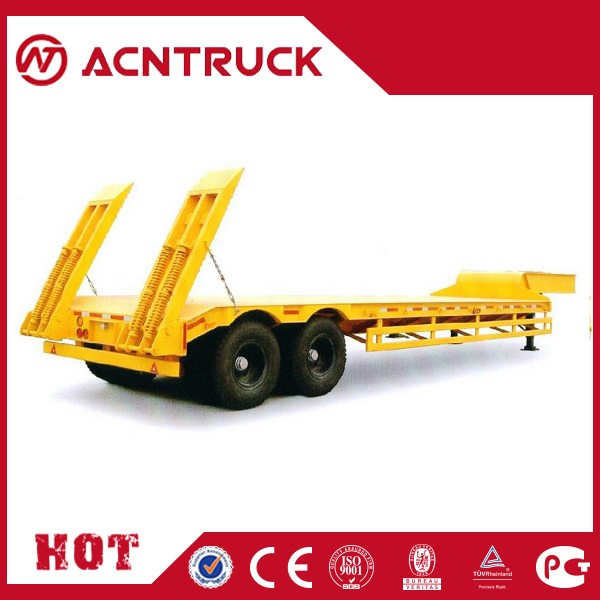

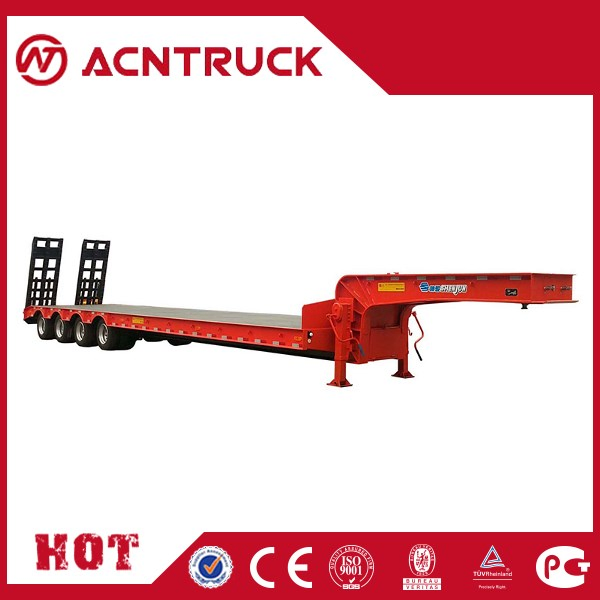

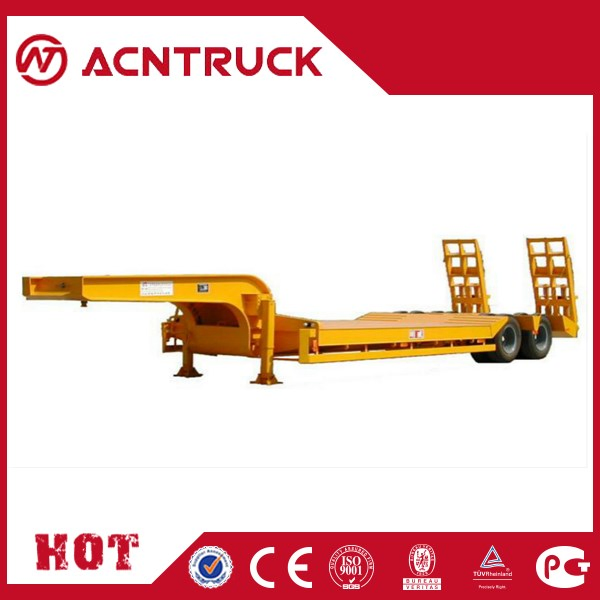

Cimc 12m Flat Platform Low-Bed Semi Trailers
CIMC low bed container semi-trailerProduct Description: 1.Advanced Technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint......
Send Inquiry
Product Description
Product Description:
1.Advanced Technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
2.Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
3.Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
4.Hot-Rolled Structural Steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
5.Tested And Proven Structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.
| Dimension and Weight | |
| Overall Dimension(mm) | (13000,12500,12000)x(2500,2550)x(1580,1680,2700,2900,3100) |
| Wheelbase(mm) | 6880+1310+1310 |
| Payload(kg) | 40,000 |
| Tare weight(kg) | 6,500 |
| Function | Transport container, mechanical equipment etc. |
| Material | T700 |
| Running System | |
| Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
| Side beam | 16# |
| Axle | 3x13Ton FUWA/BPW brand |
| Tire | 12R22.5, 12 pcs. |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10 leaf spring with 90mm(wide) *13mm(thickness) |
| Brake system | Dual line pneumatic brake, no ABS |
| Brake air chamber | 6 units (4 double 2 single) |
| King Pin | 2" and 3.5" JOST |
| Landing Gear | Built-in /external ,JOST |
| Accessories | |
| Tool box | 1pcs |
| Mud guard | Mud guard and front mudguard |
| Spare wheel carriers | 2 pcs |
| Bumper | Rear bumper with adjustable height |
| Packing | Nude, Polish with wax before shipping |
