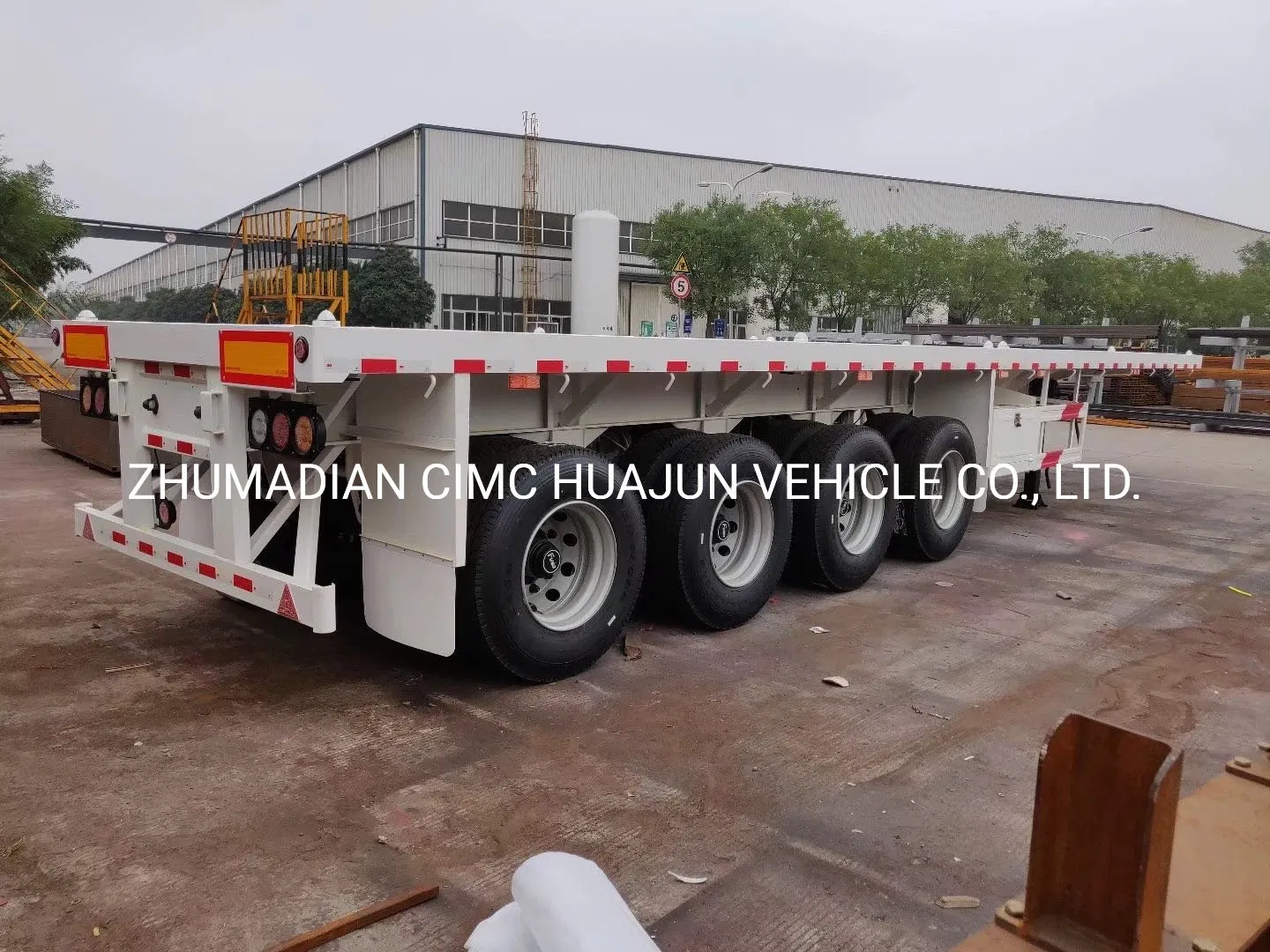

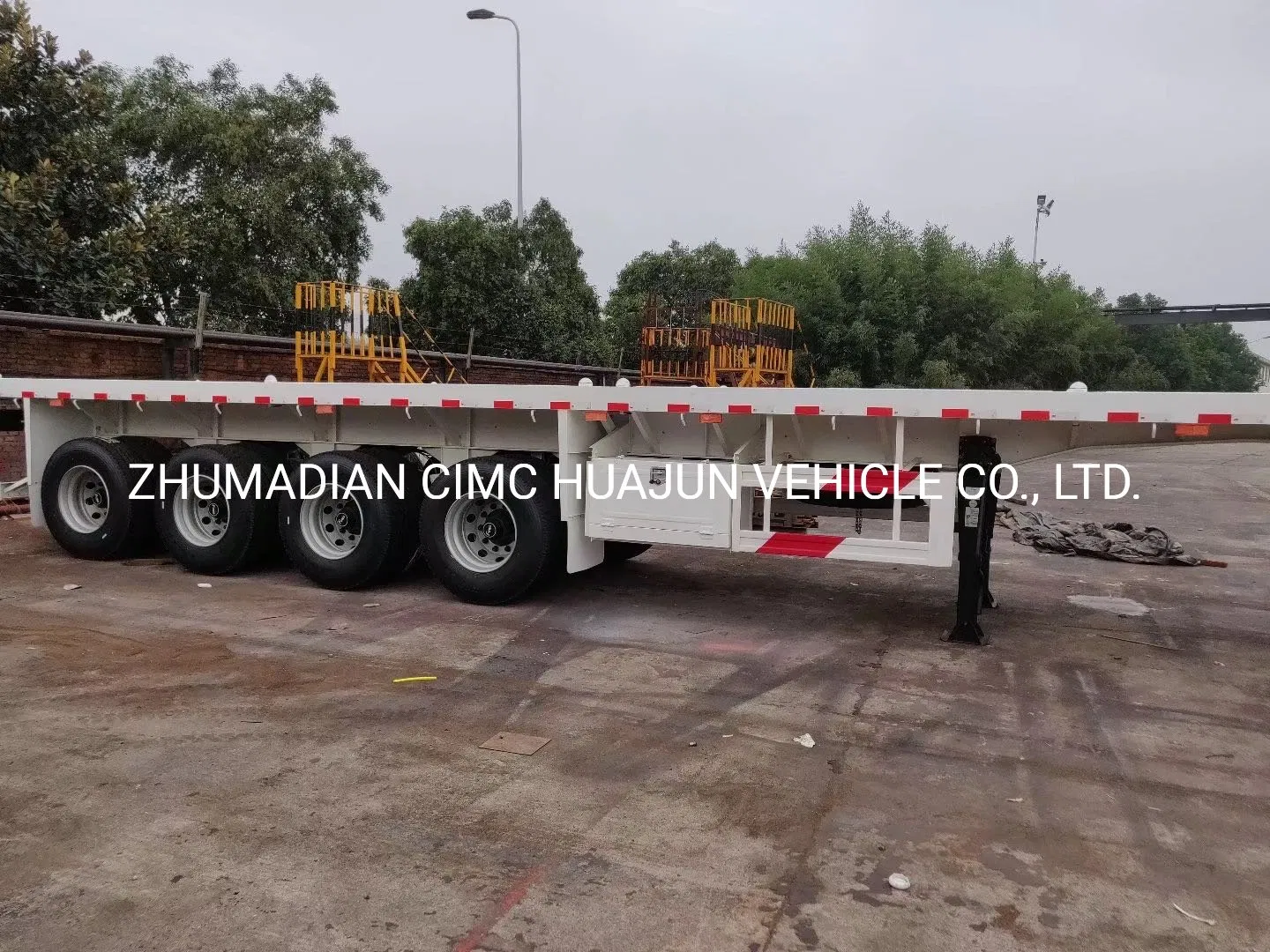

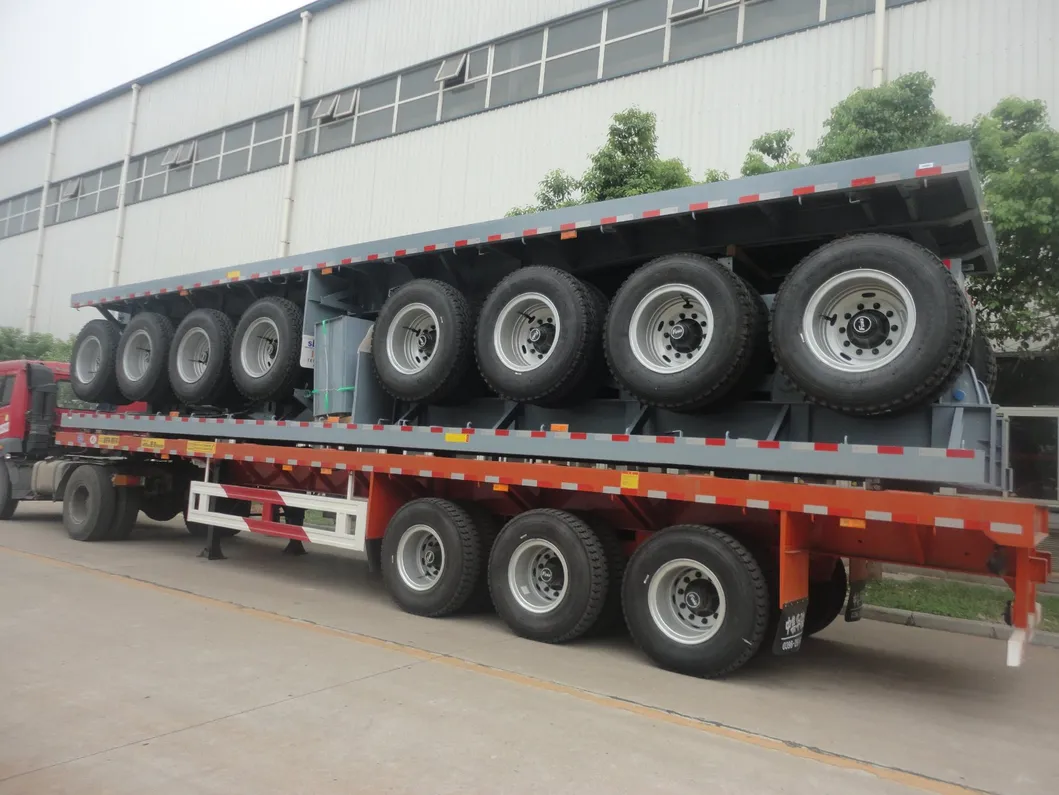

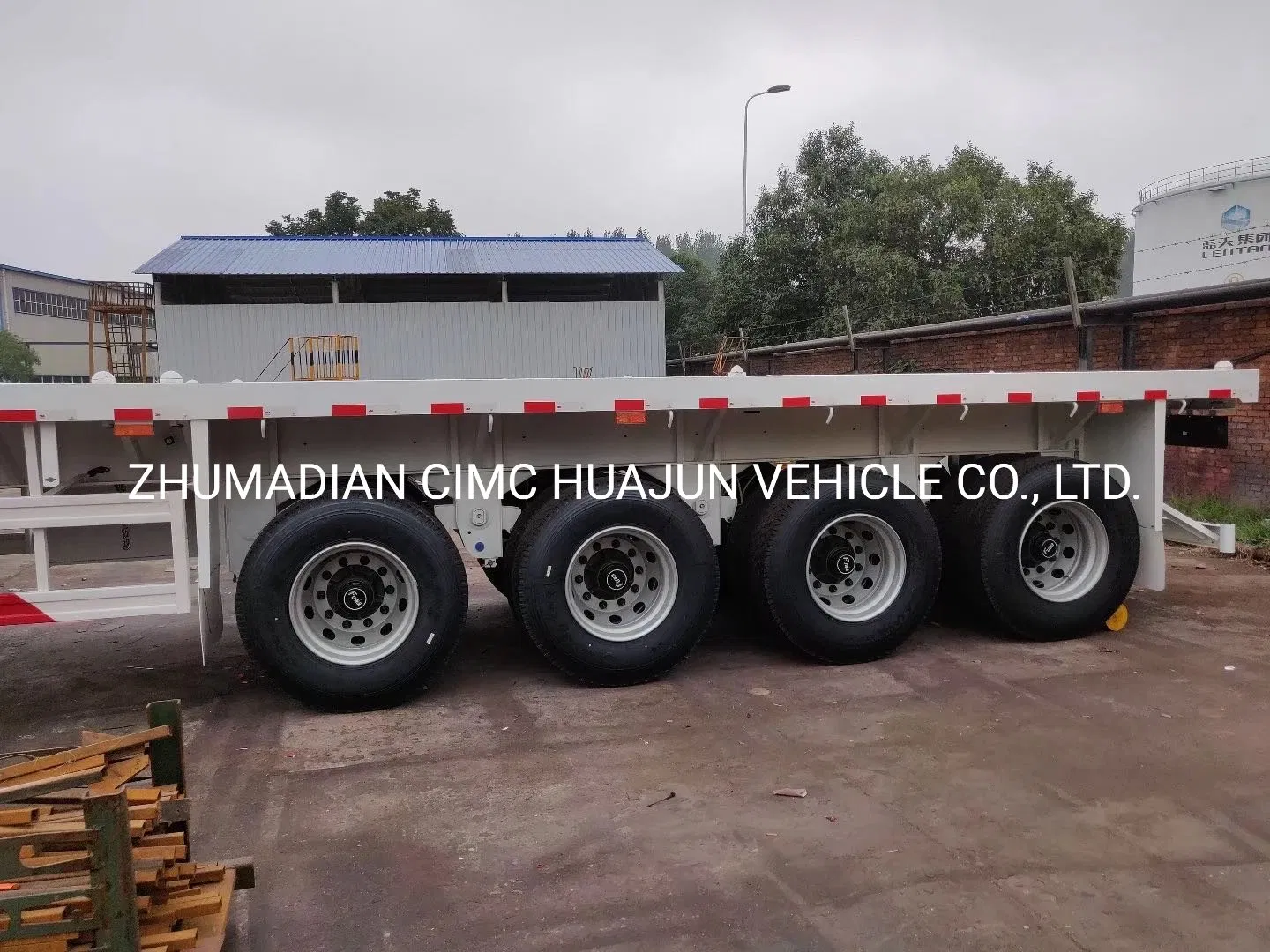

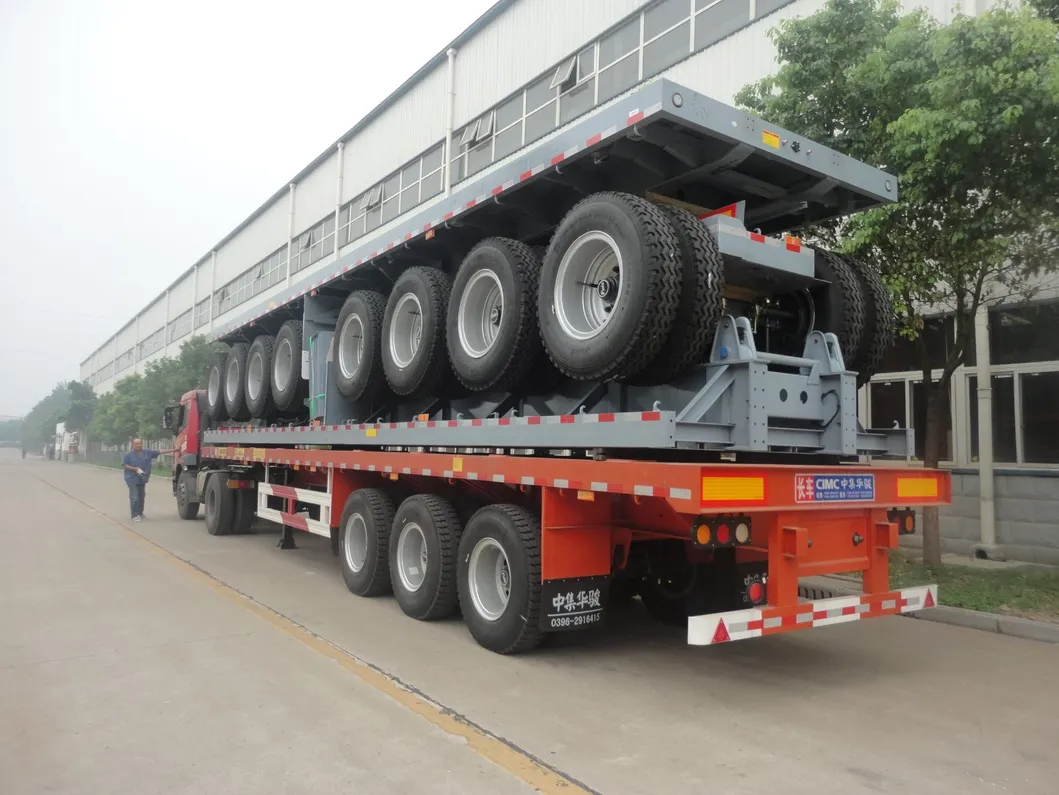

Cimc 4alxes Heavy Duty Flatbed Trailer with Front Axle Lifting for Container Transportation
Product Description:Dimension:L*W*H12400×2500×1540(mm)Kingpin setting800(mm)Kingpin plate height1203(mm)Axle Space7400mm+1310mmTare weight10500kgPayload80000kgG.V.W.R90500kgConfigration:Lanidng GearTwo speed manual operation typeKingpin3.5" welded typeBrake systemDual line p......
Send Inquiry
Product Description
Product Description:
Configration:
Company information:
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China
Contact information:
ZHUMADIAN CIMC HUAJUN VEHICLE Co., Ltd.
Xingye Avenue, Yicheng District, Zhumadian, Henan, China
Website:cimchj.en.made-in-china.com
| Dimension:L*W*H | 12400×2500×1540(mm) |
| Kingpin setting | 800(mm) |
| Kingpin plate height | 1203(mm) |
| Axle Space | 7400mm+1310mm |
| Tare weight | 10500kg |
| Payload | 80000kg |
| G.V.W.R | 90500kg |
Configration:

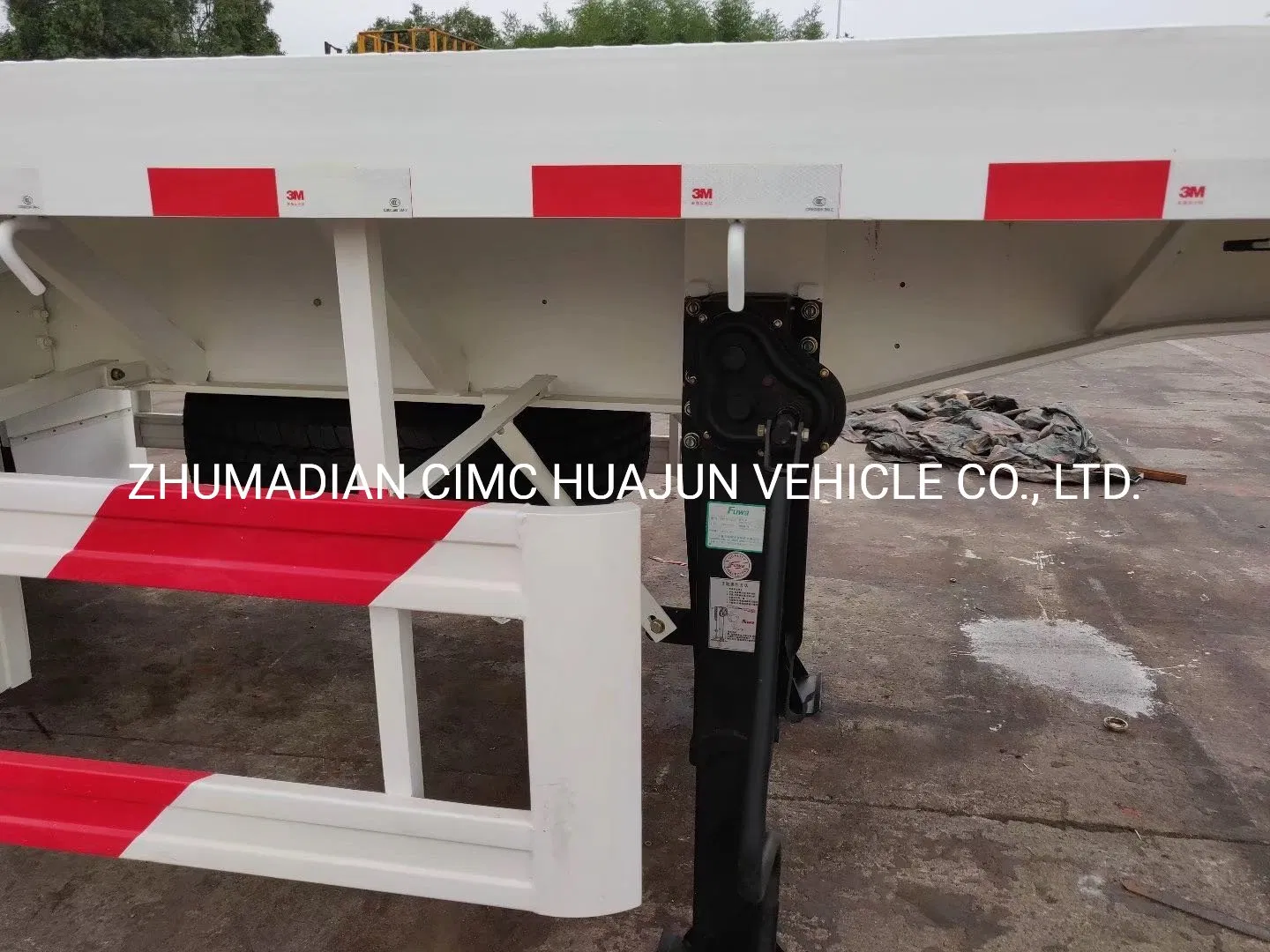

| Lanidng Gear | Two speed manual operation type |
| Kingpin | 3.5" welded type |
| Brake system | Dual line pneumatic brake system |
| ABS | YES |
| Brake Chamber | Type 30/30 spring brake system on all axles |
| Suspension | Tandem type |
| Axle | FUWA / BPW axle, 16 ton capacity/set,4PCS |
| Tire | 12.00R20, 16PCS |
| Rim | 8.5-20, 16PCS |
| Floor | 4mm checked plate |
| Twist Lock | 12 sets |
| Main Beam | 500/16/10/20 |
| Side Beam | 16# channel steel |
| Cross Beam | Square tube |
| Tool Box | 1 pcs |
| Spare Tire Carrier | 2 units |
| Paint | As customer's request |
Company information:
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China
Contact information:
ZHUMADIAN CIMC HUAJUN VEHICLE Co., Ltd.
Xingye Avenue, Yicheng District, Zhumadian, Henan, China
Website:cimchj.en.made-in-china.com
