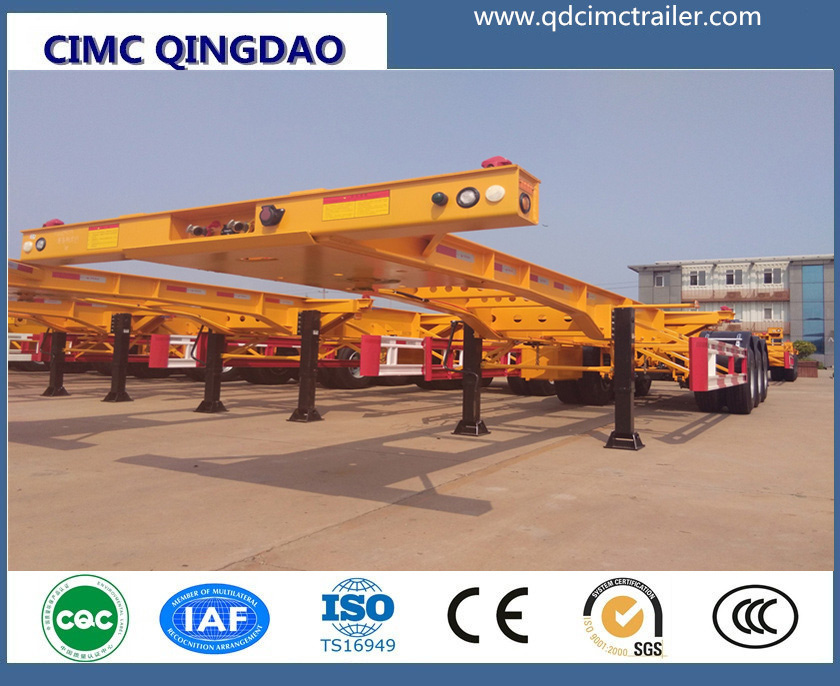

China Cimc Competitive 40FT 3 Axle 45ton Container Semi Truck Trailer Chassis

Product Description

The Lowbed trailer is designed for use in stevedoring and transporting 20ft and 40ft container..

type		40ft combo container chassis
Model		ZJV9408TJZ
Parameter	dimension(mm)	length×width×height:12240×2470×H
	king pin setting(mm)	1000
	fifth wheel height(mm)	1250
	axle space(mm)	6900+1310+1310
	tare weight(kg)	5,500
	payload (kg)	40,000

OEM	landing gear	JOST C200
	kingpin	2"JOST ,exchangeable
	brake system	Dual air brake system, WABCO brake valve,
	ABS	Optional
	suspension	Mechanical suspension with 8 leaf spring,4 pieces full length
	axle	13T ×3
	tire	11R22.5 ,equip 12 per chassis
	rim	8.25*22.5, equip 12 per chassis
	tool box	one set ,1m tool box
	spare tire carrier	equipped 1 set per chassis

Product Features

Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.
Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

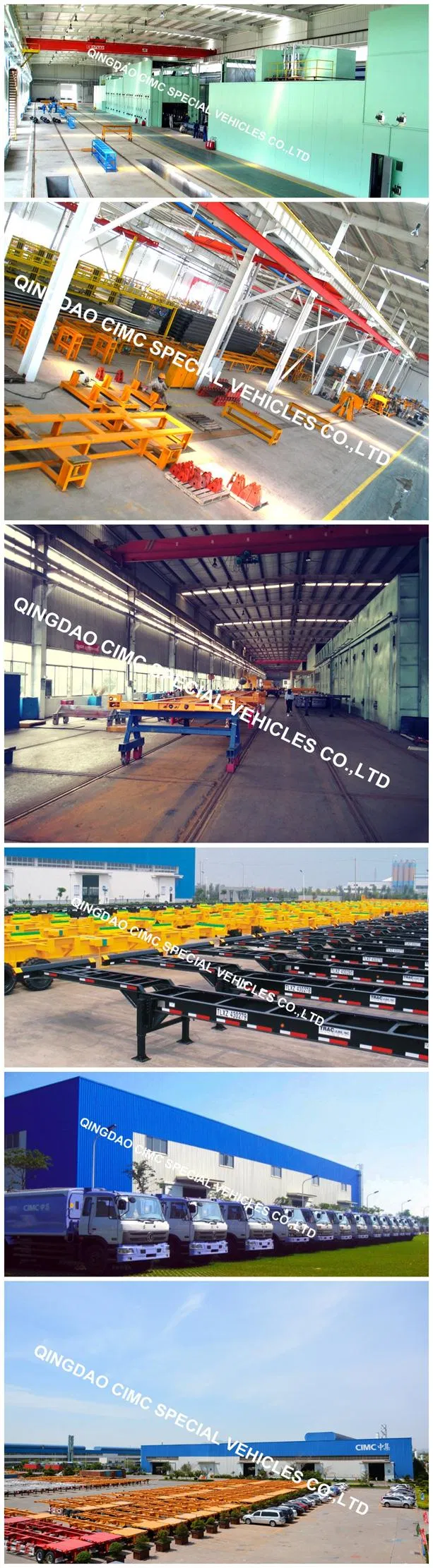

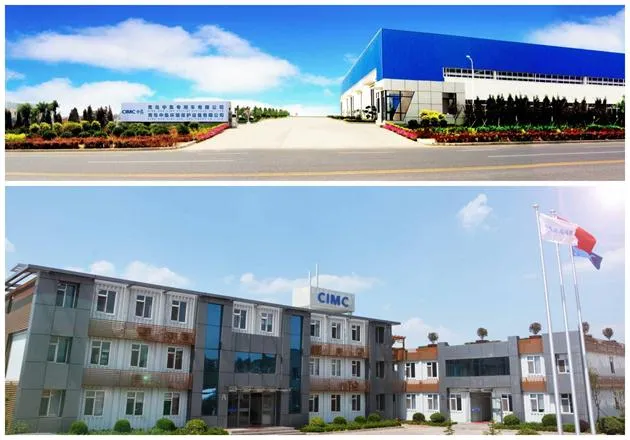

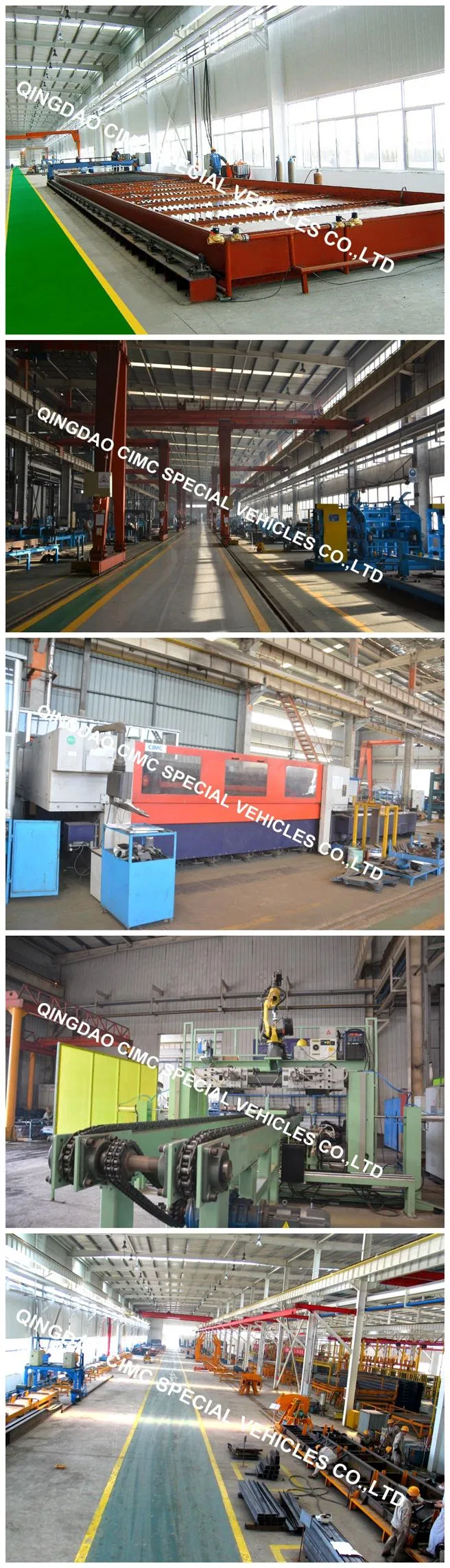

Factory Tour
Cimc Competitive 40FT 3 Axle 45ton Container Semi Truck Trailer Chassis

Order Process

Buyer send enquiry.
CIMC QINGDAO reply enquiry with specification within 24 hours.
Buyer gives specification confirmation to CIMC QINGDAO.
CIMC QINGDAO send quotation to buyer.
Buyer and CIMC QINGDAO sign sales contract.
Buyer makes deposit payment.
CIMC QINGDAO produce ordered products.
CIMC QINGDAO finishes order, send photos to buyers.
Buyer pays balance of Payment.
CIMC QINGDAO makes delivery.
CIMC QINGDAO offers after-sales service.

Why you choose us?
1. Complete production line, from trailer Design to Delivery.
2. Advanced equipments and rigorous quality control system
3. ISO 9001: 2008 and CCC quality certificate.
4. Use 100% famous brand spare parts in China for our products.
5. We have clients all over the world.
6. We accept 100% inspection, welcome to our factory at any time.
7. Competitive Price.
8. Fast delivery.
9. Perfect after-sales service.
10. Guarteed quality.

IF ANY REQUEST, YOU ARE VERY WELCOME TO VISIT OUR FACTORY OR SEND ENQUIRY ONLINE!
