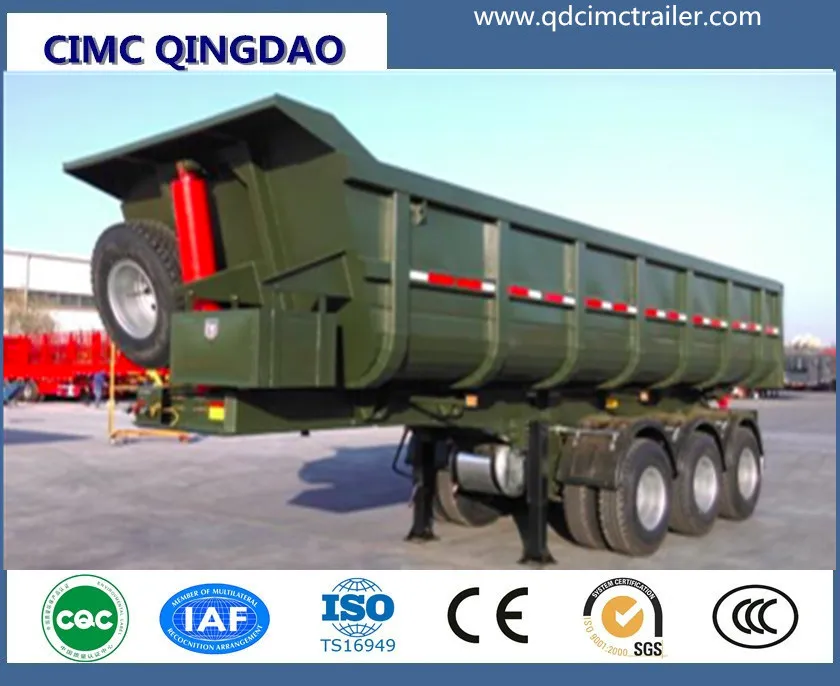

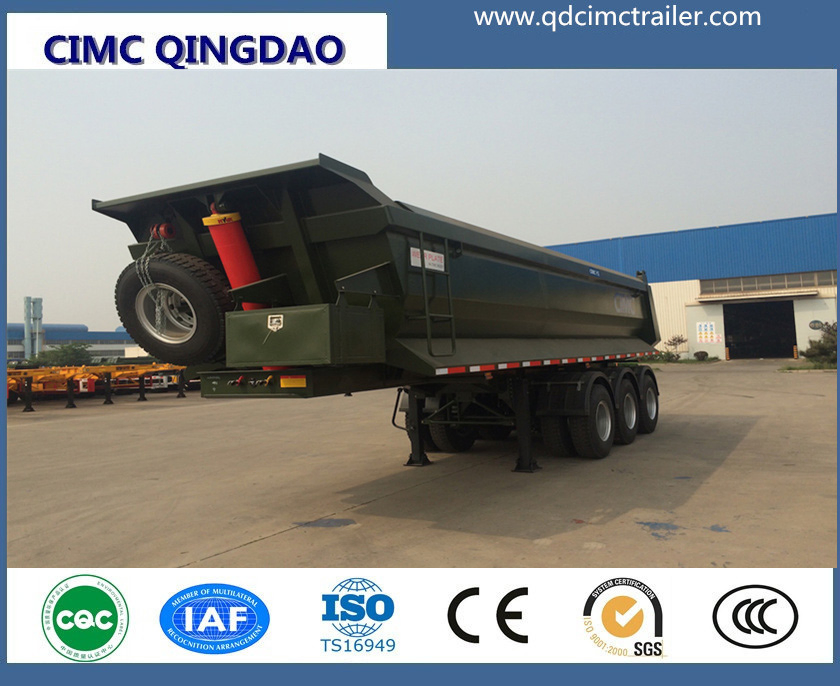

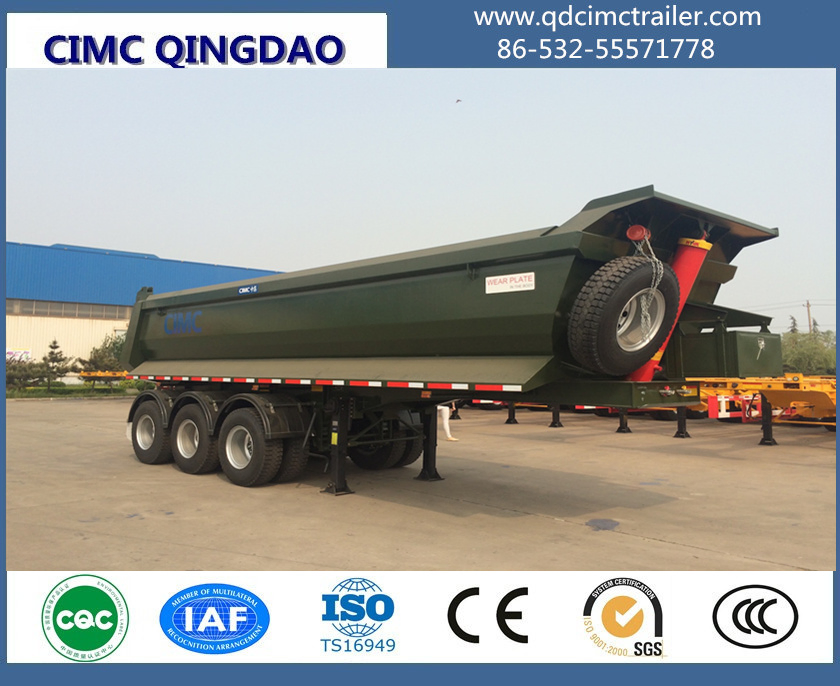

Cimc Three Axles 24cbm Dump Tipping Tipper Semi Truck Trailer Chassis

SPECIFICATIONS:

24CBM Dump Tipping Trailer with Three Axles

(Model: ZJV9394ZUX)

Dimension(Approx):

Length: Approx 8,850 mm

Width: Approx 2,480 mm(including mud guard)

Height: Approx 3,212mm @ unload

King Pin Location: Approx 1100mm from the front face of the front bolster

Axle spacer: Approx 3,280 mm+1,310mm+1,310mm

Landing Gear location: 2,250mm behind the king pin location

Fifth wheel (King Pin) Height: Approx 1,283mm with the chassis level

Capacity: 24 CBM

(The above dimension will be adjusted according to the tractor specification.)

Body:

Side wall: 4mm

Floor: 6mm

Inner dimension: Approx 8100mmx2300mmx1300mm

Material:High tensile steel choose by factory

Weight:

Tare Weight (Tolerance 0~-4%): Approx 9,200 kg

Max Payload: Approx 30,000 kg

Gross Vehicle Weight: Approx 39,200 kg

OEM Parts Configuration:

King Pin: 2" bolted king pin. Brand: JOST. Made in China.

Landing Gear: FUWA 28T 19''

Suspension: American type mechanical suspension with equalizers 8-leaf spring

Axles: 13 tons capacity × 3,  FUWA

Rims: 8.0-20./9.0*22.5

Tires: 11.00R20-18PR,Double star, HR168 / 12R22.5-18PR, Double star, HR168.

Brake System: Dual air brake system, WABCO or Haldex relay valve, without ABS

Brake chamber: Type 30/30 on the all axles.

Electrical System: 24volt lighting system, 7-way receptacle, ISO standard.

Hydraulic system: Brand & Type: HYVA FE 196 with all the hydraulic kits including the oil tanker, Valve, connecting pipe, But not provide the PTO. Customer needs modify the Truck tractor by themselves for whole vehicle operation.

Others:

Side guard: Optional

Tool Box: Yes

Marking: CIMC standard, Technical data plate including chassis no, dead weight , year of manufacturing etc. to be fitted

Painting: Army green RAL6121.

Water tank: 190L with pipe(could cool brake drum).

Note:

1) All the details not mentioned above should comply with Chinese regulations.

2) These specifications are given as information. CIMC reserves its right to change them without previous notice.

3)No matching Model No. In China
