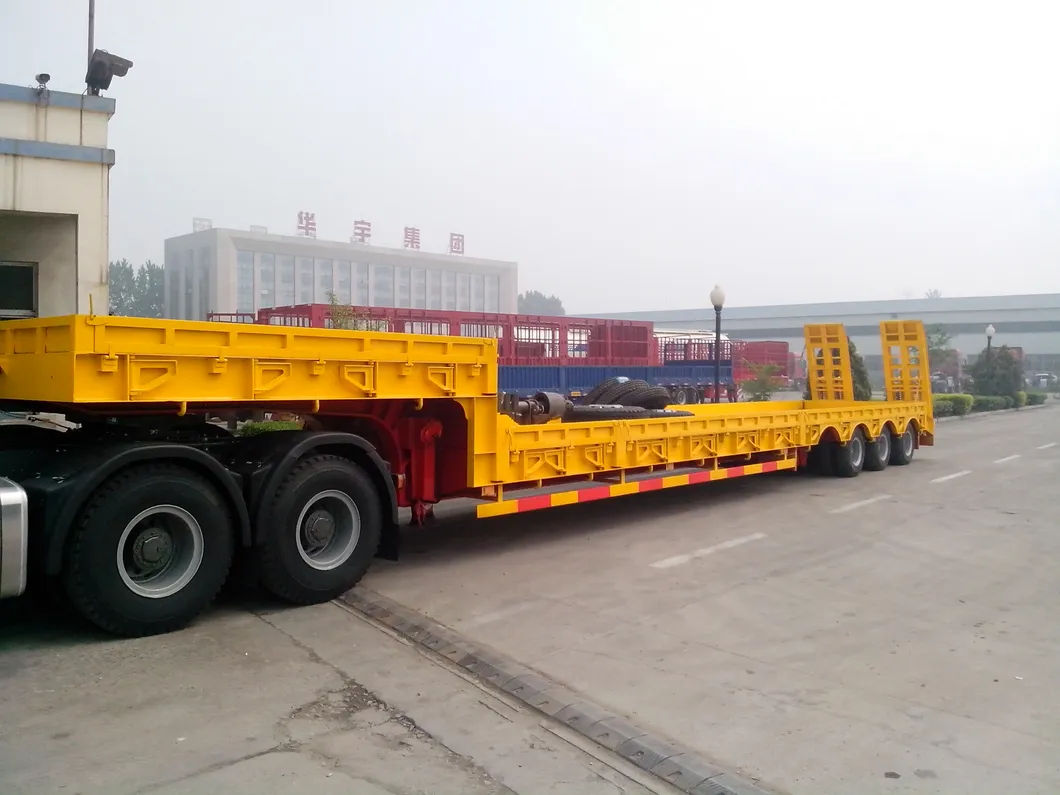

Container Trailer Truck Semi 3 Axles Lowboy Trailer Lowboy Semi Trailer

Product Description

Specification

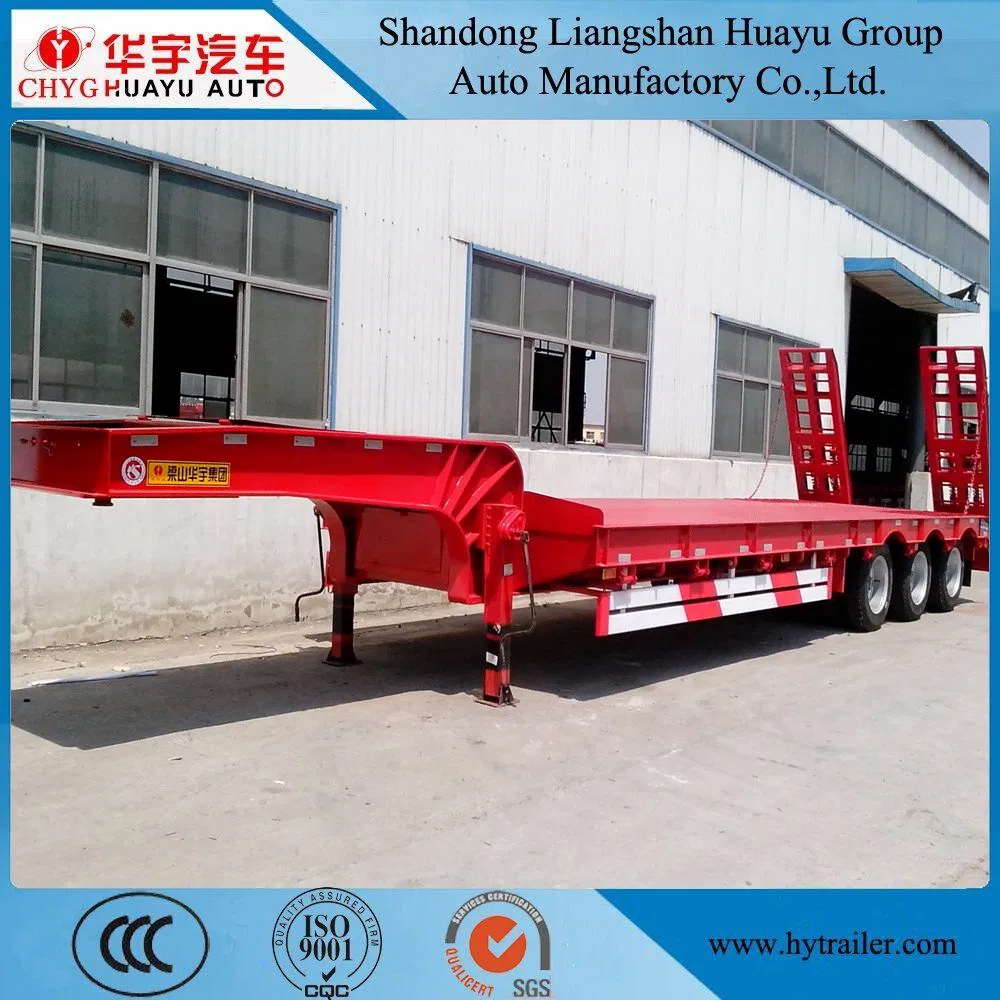

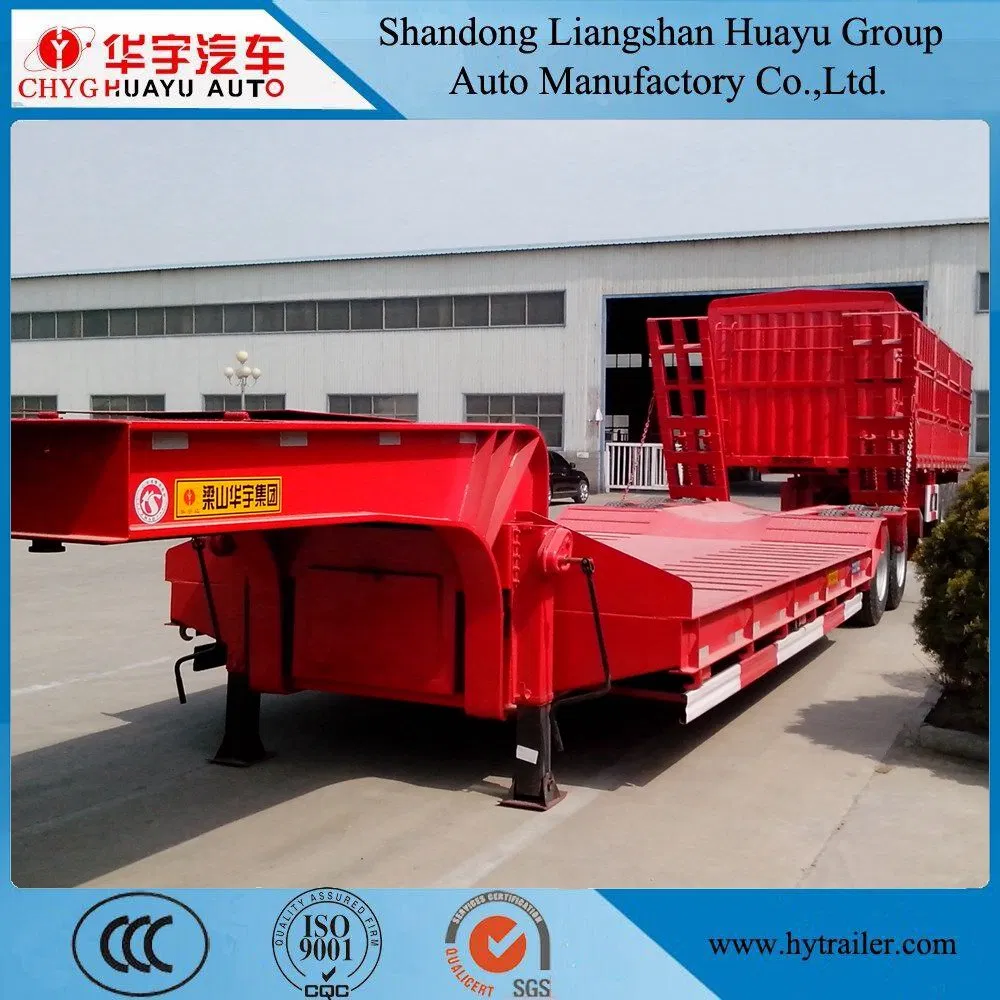

CHYG lowbed semi trailer
Function	Machine transporting
Overall demension	13000x3000x1250mm( platform height:from the top of the floor to the ground)
Loading capacity	60ton
Main beam (material :Q345)	Beam height :500mm Upper plate:20mm Down plate:25mm Middle plate:14mm
Side beam	250#/300# U shaped steel
Traction pin	2/3.5 inch

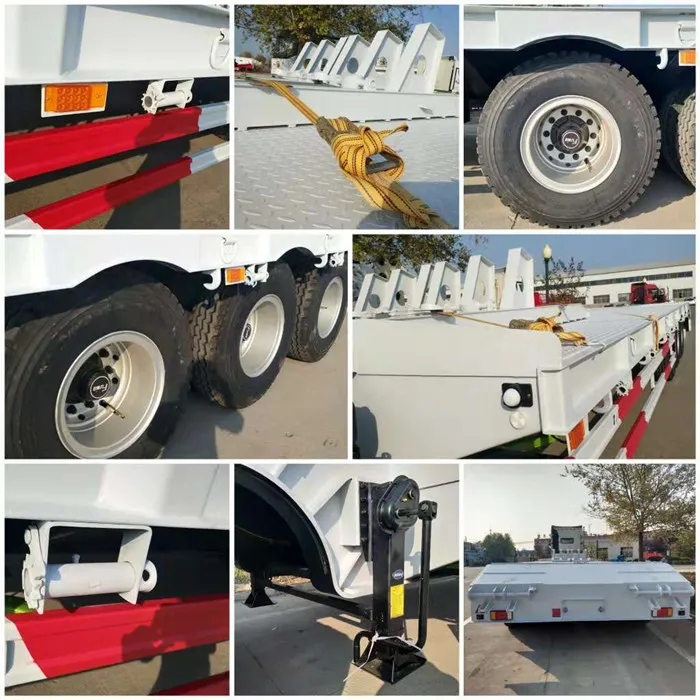

Landing gear	Jost /fuwa/ standard 28t two speed
Axle	Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional
Suspension type	Mechanical normal suspension
Leaf spring	10/10/10 (10X90X16mm)
Tire	Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional
Wheel rim	9.0-22.5 12pcs

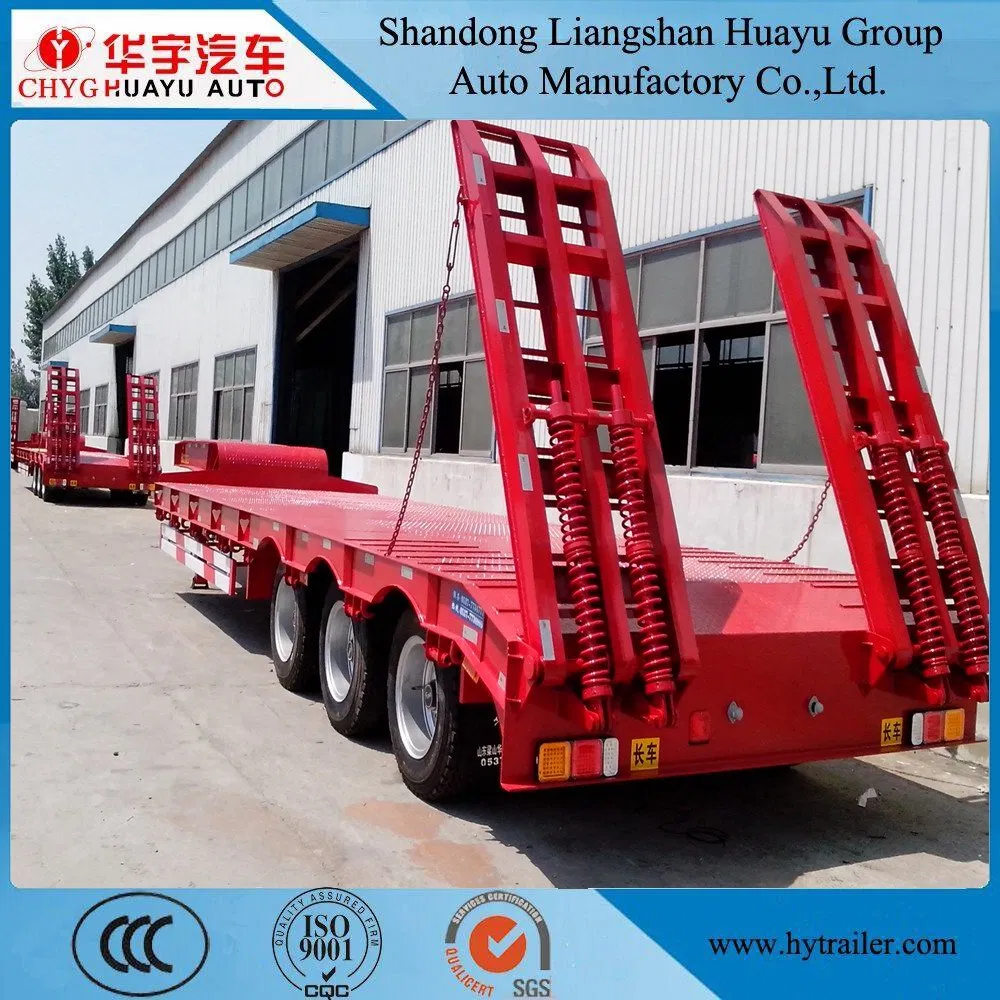

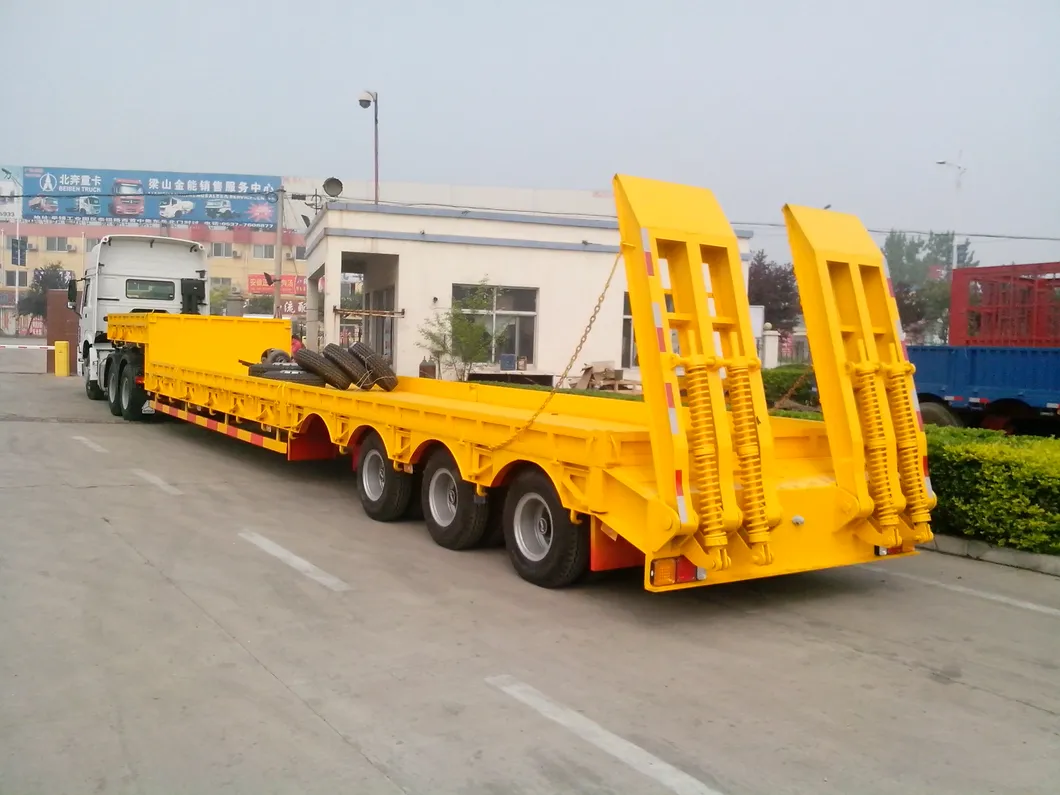

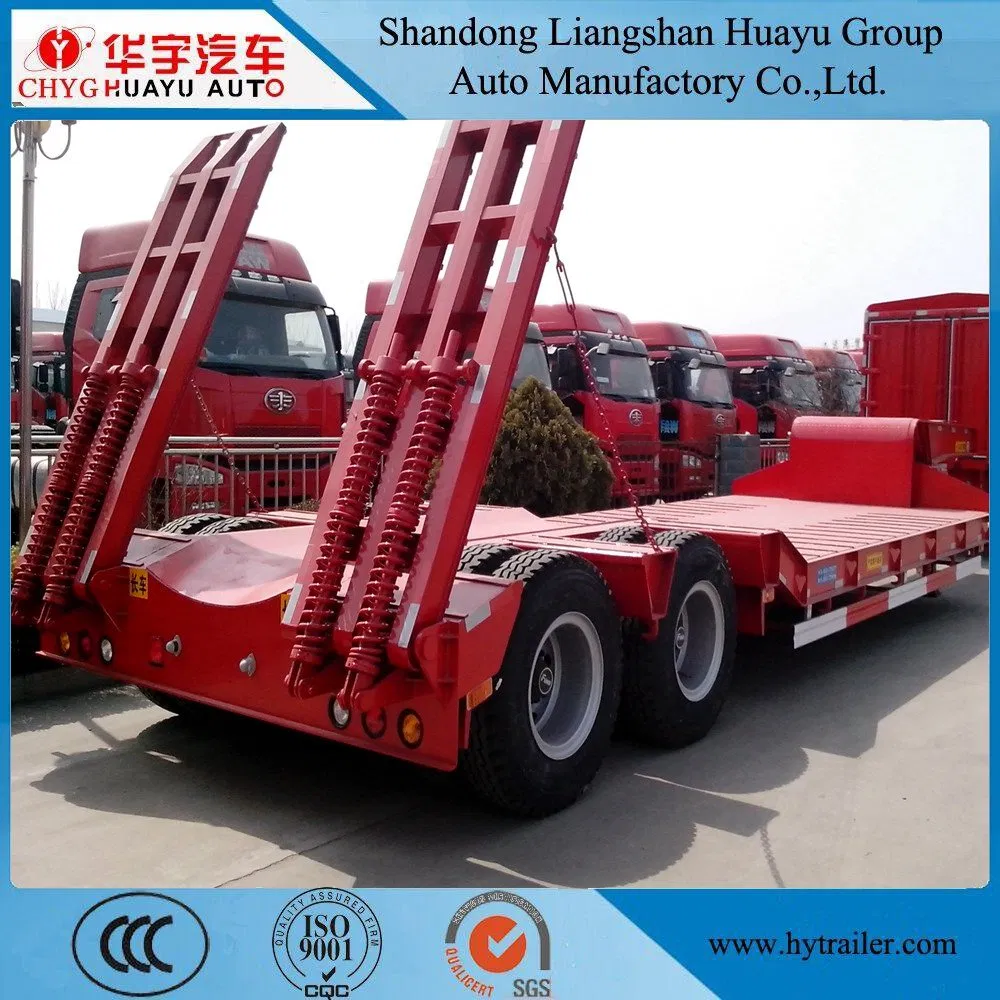

Ramp/ladder width	Mechanical ramp .width :700mm hydraulic pressure type ramp can be optional
Plateform thickness	5mm checkered plate
Brake chamber	4 double 2 single
Tool box	One
Spare tire carrier	2 pcs
Side marker lamp	LED lamp
Electrical system	Chinese stand 24v
Air line and relay valve	Double air line ;WABCO/kangjian relay valve
Receptacle	7 ways(7 wires harnesses)
Marking	As Customer requirment
Accessories	Head wrech ;spare wheel crank

China manufacturer low bed truck semi 3 axles lowboy trailer lowboy semi trailer
Container Trailer Truck Semi 3 Axles Lowboy Trailer Lowboy Semi Trailer

Container Trailer Truck Semi 3 Axles Lowboy Trailer Lowboy Semi Trailer

Competitive Advantages

1. It's our own factory, we have advanced equipment and rich experienced workers are applied during the whole producing process to ensure the quality of skeleton semi trailer
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.

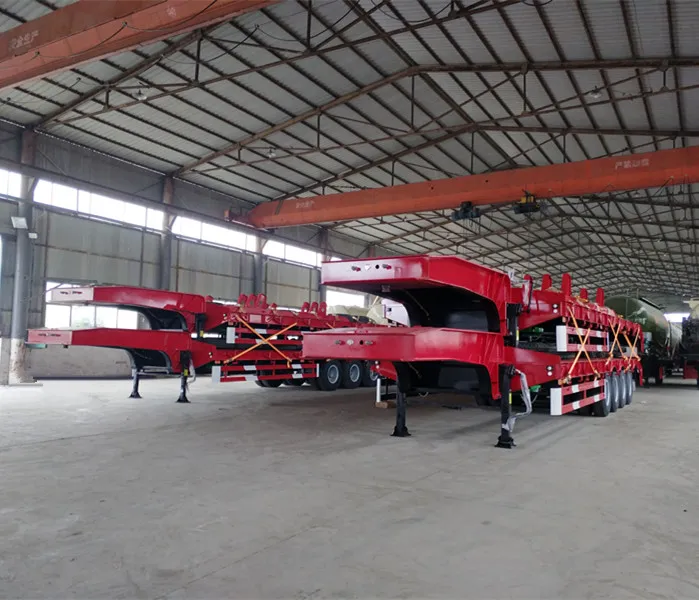

Delivery

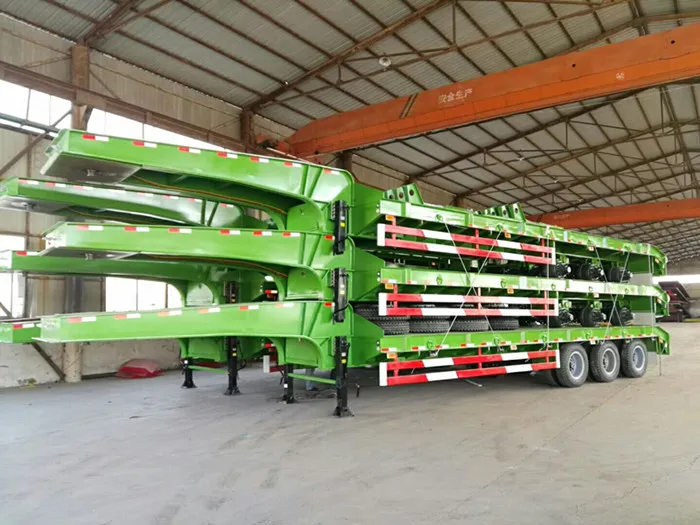

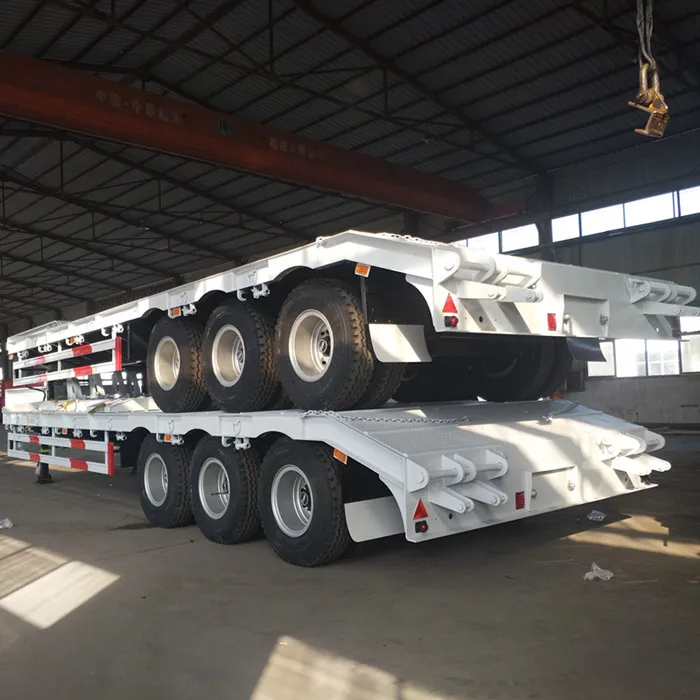

1. 3 sets stacked and the whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ
Container Trailer Truck Semi 3 Axles Lowboy Trailer Lowboy Semi Trailer

Our services
1. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
2. Strict quality inspection. For each trailer, we will do the testing and inspect the quality.
3. We have good after-sales service.

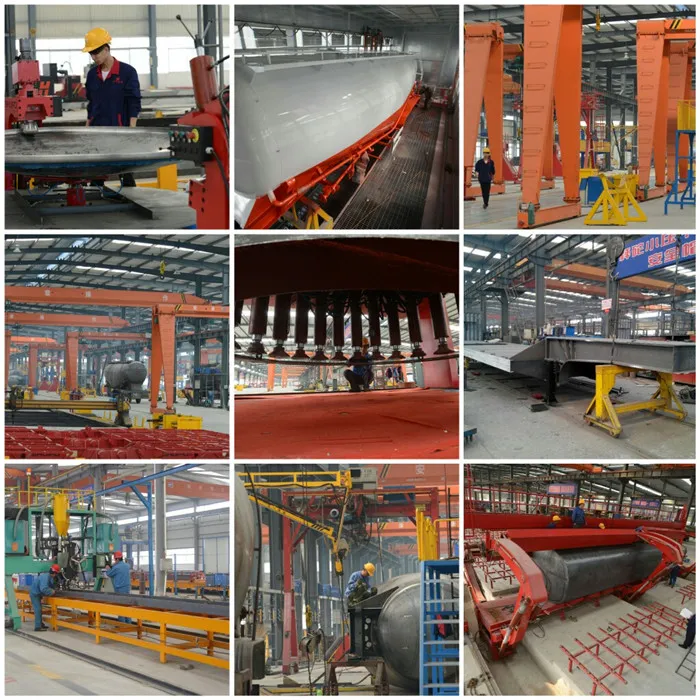

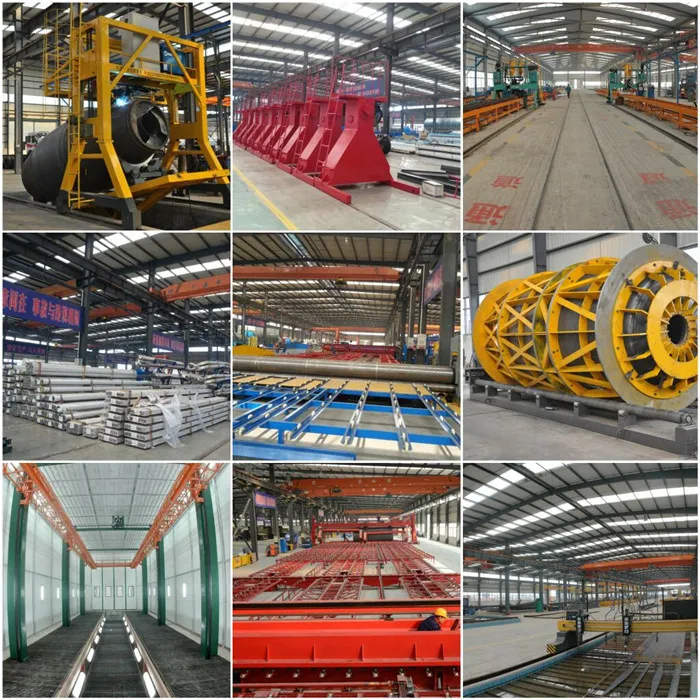

Our workshop

Thanks to the professional design and advanced manufacture technology, make our trailer trucks more and more popular all over the world. It's one of our best-selling product, come to Huayu, you can customize different trailer trucks you like.

Container Trailer Truck Semi 3 Axles Lowboy Trailer Lowboy Semi Trailer

FAQ

1. Does your company have your own factory?
Yes, we are manufacturer, we have been in this area for more than 20 years.
You are welcome to visit our factory at anytime!

2. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance.

3. What's your minimum quantity?
1 set.

4. What is your packing?

Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.

5. How about delivery time?

Generally speaking, 25 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
