Product Description

Specification

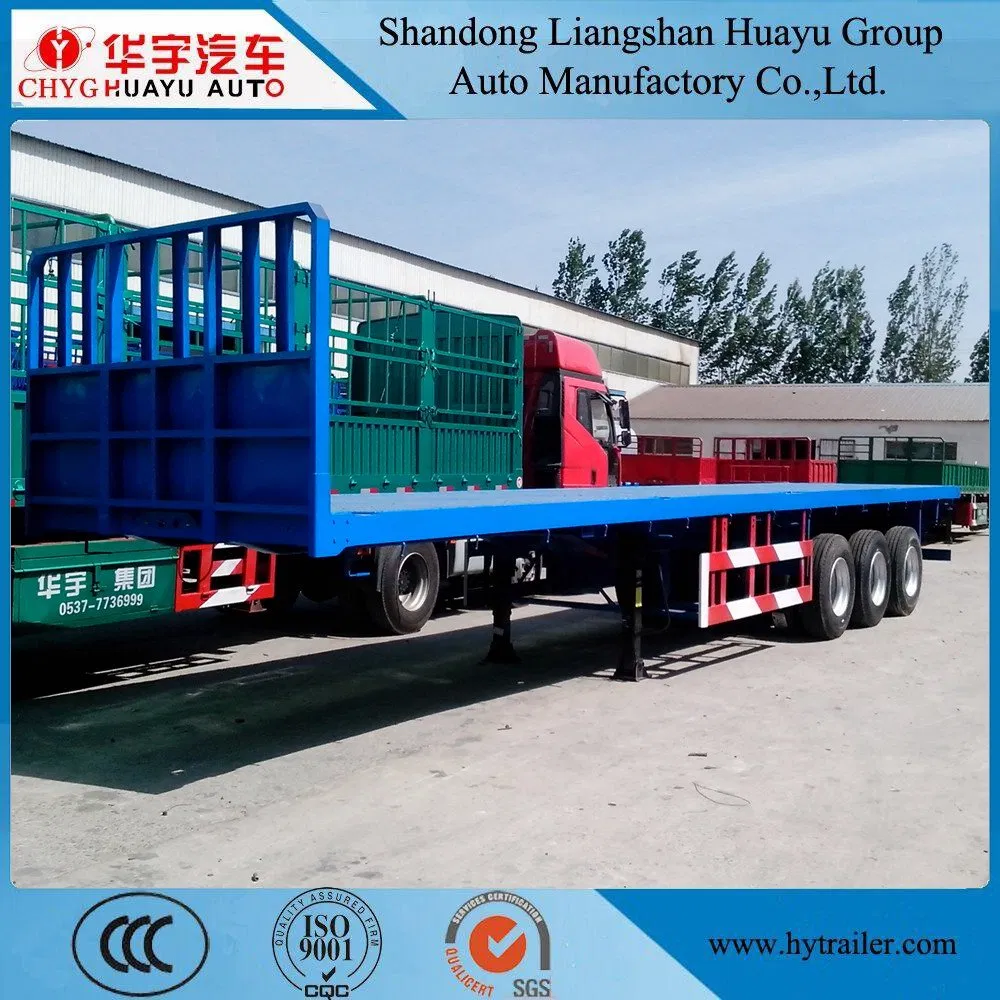

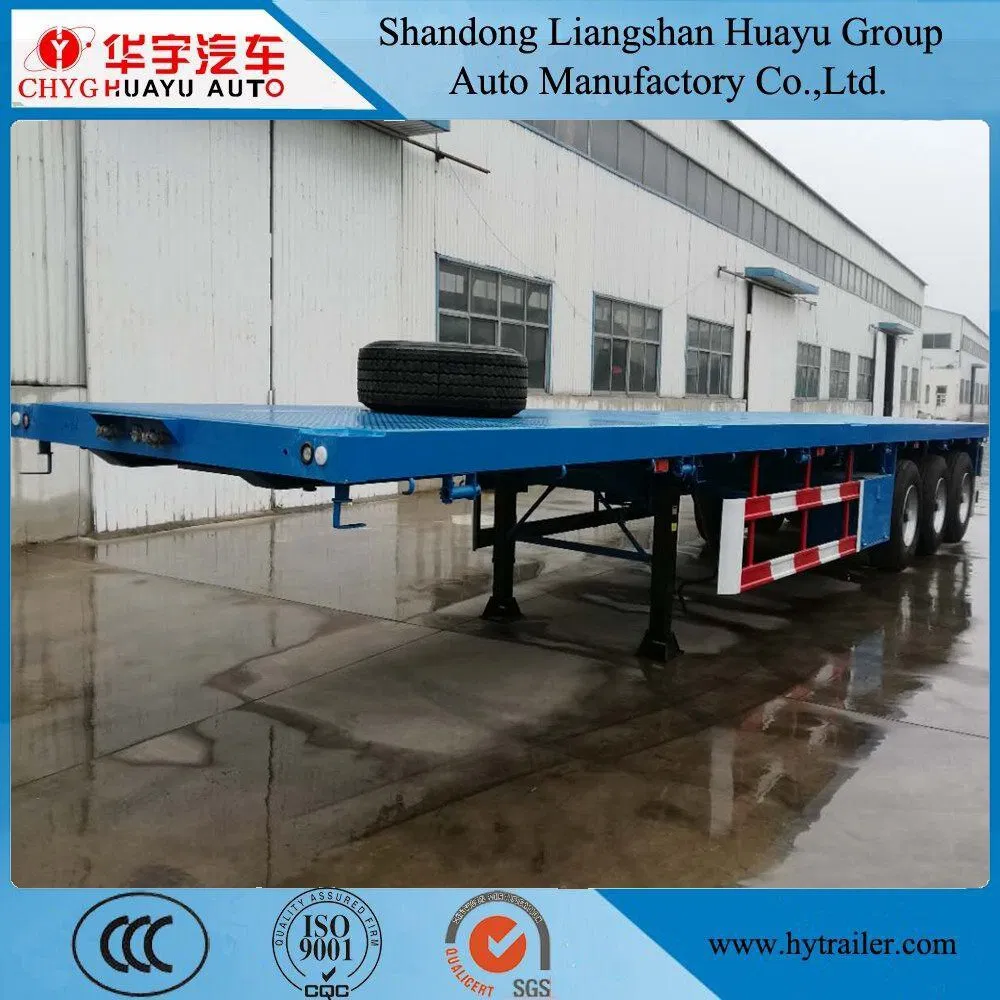

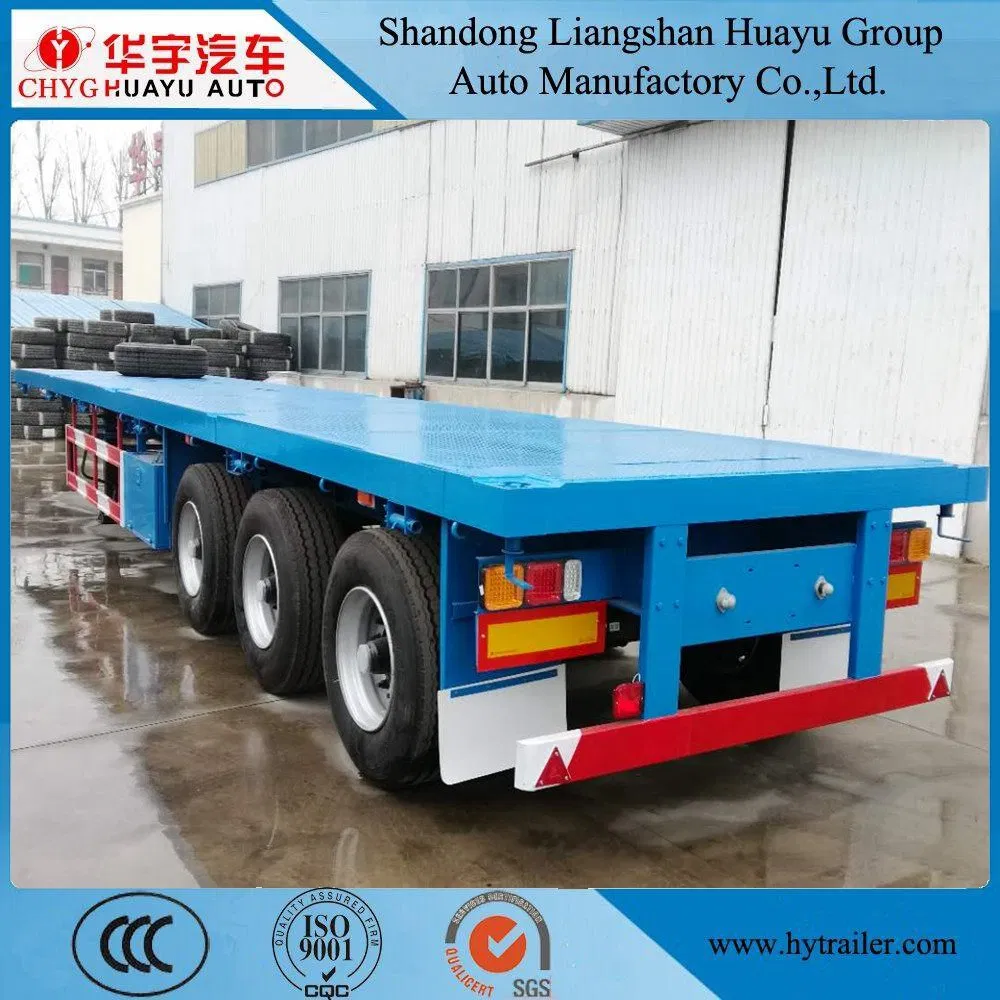

CHYG flatbed semi trailer
Function	Container transporting (1x40ft;2x20ft)
Overall demension	12400x2500x1550mm
Loading capacity	50ton
Main beam (material :Q345)	Beam height :500mm Upper plate:14mm Down plate:16mm Middle plate:8mm
Side beam	16# U shaped steel
Traction pin	2/3.5 inch
Landing gear	Jost /fuwa/ standard 28t two speed
Axle	Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional
Suspension type	Mechanical normal suspension
Leaf spring	10/10/10 (10X90X13mm)
Tire	Triangle/double star/chengshan/double coin/chaoyang 12R22.5 16PR 12pcs optional
Wheel rim	9.0-22.5 12pcs
Twist lock	12 pcs use for 1X40ft ;2x20ft container transport
Plateform thickness	3mm checkered plate
Brake chamber	4 double 2 single
Tool box	One
Spare tire carrier	2 pcs
Side marker lamp	LED lamp
Electrical system	Chinese stand 24v
Air line	Double air line
Receptacle	7 ways(7 wires harnesses)
Marking	As Customer requirment
Accessories	Head wrech ;spare wheel crank

Our Advantage

1. It's our own factory, advanced equipment and rich experienced workers are applied during the whole producing process to ensure the quality of semi trailers.

2. Optional trailer sizes and styles are available.

3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.

4. Small order quantity can be accepted. MOQ is 1 set.

5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.

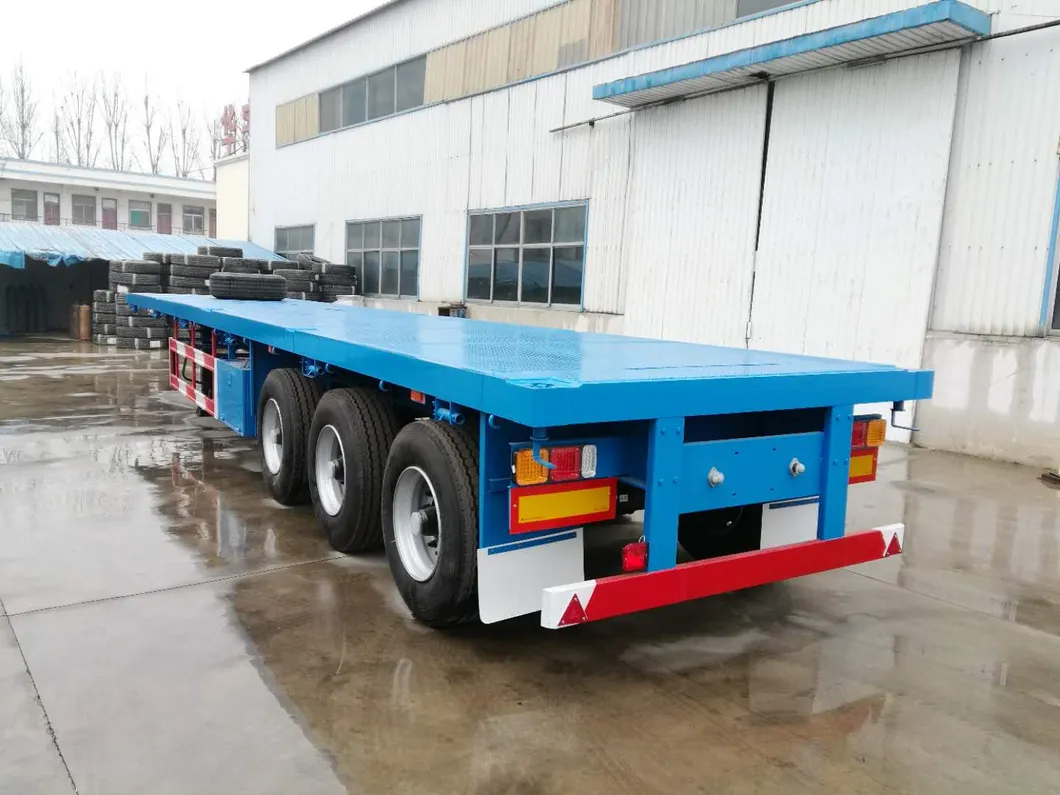

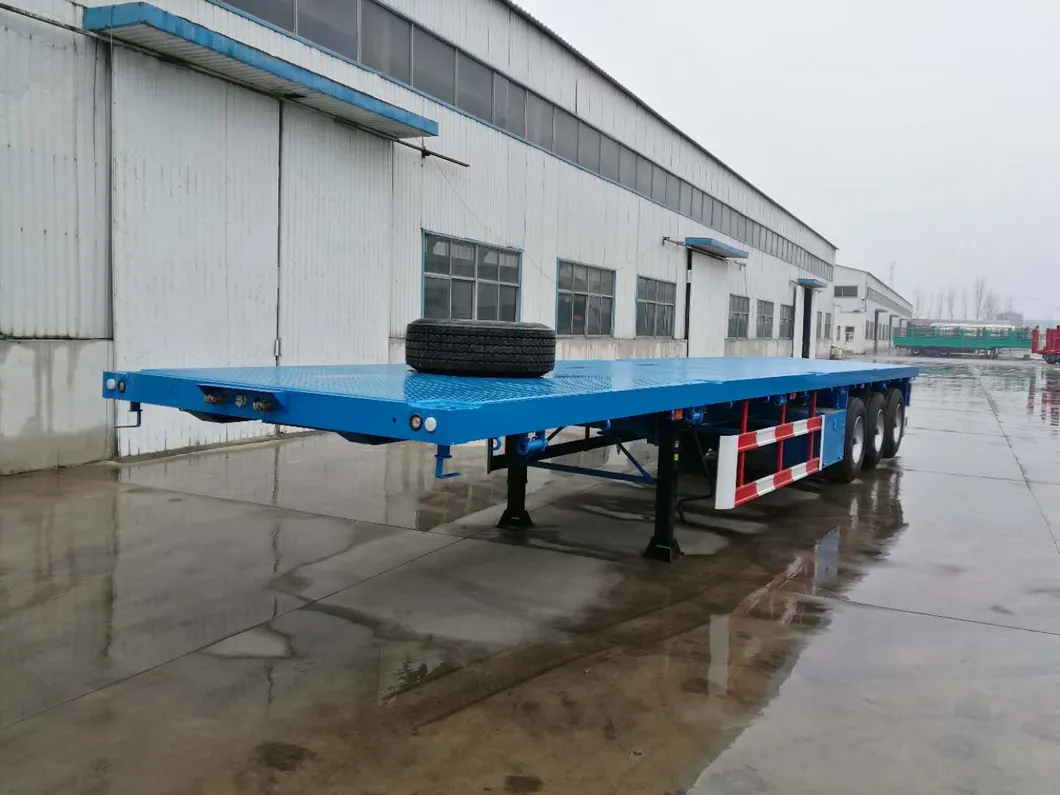

Flatbed Trailer Show
Factory Direct Sale Light Weight Low Flatbed Semi Trailer

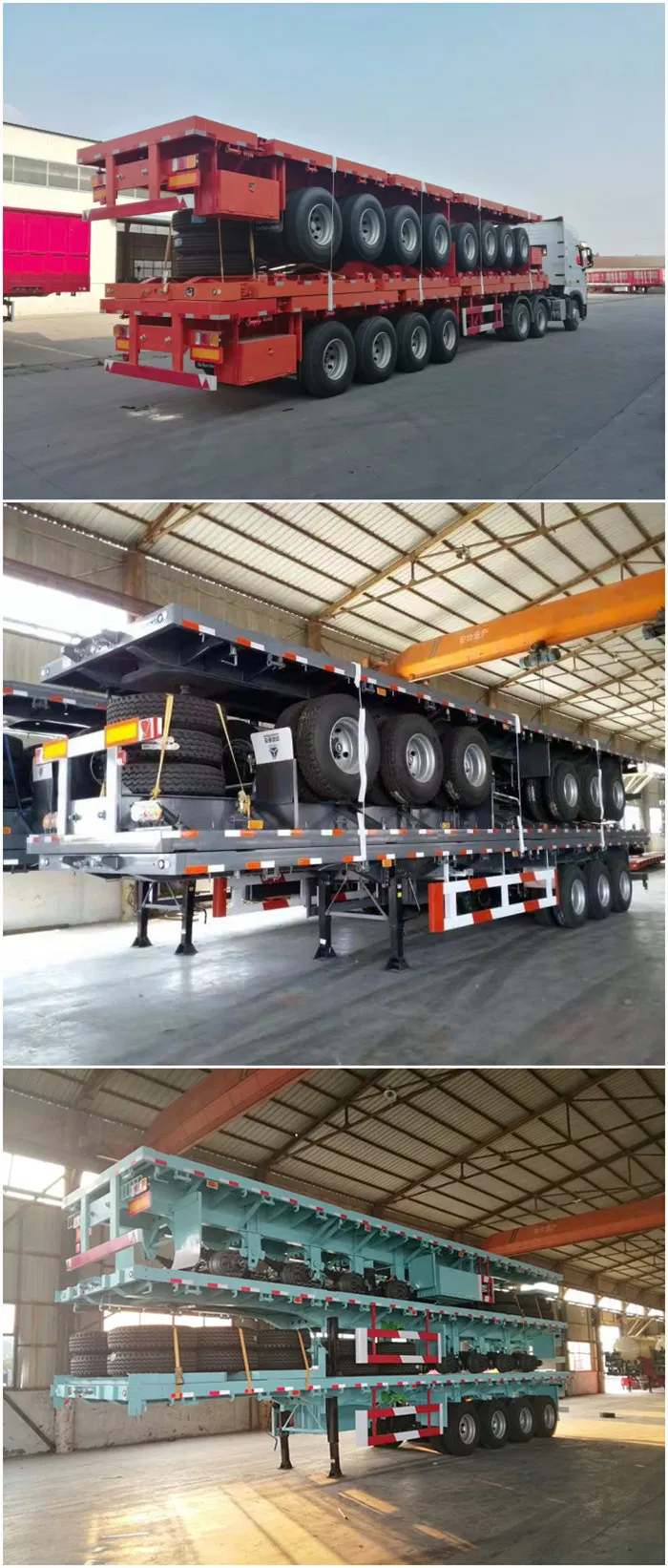

Packaging and shipping
1. 3 sets stacked and the whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ

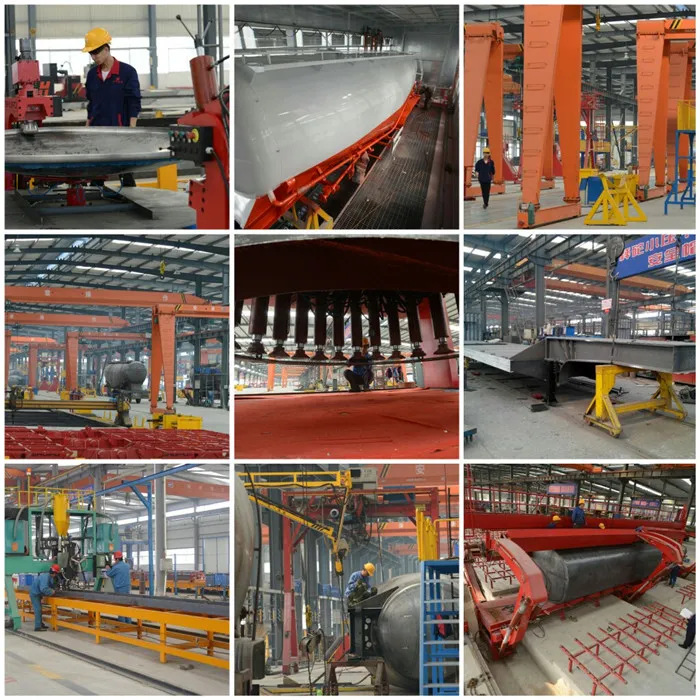

Company Information

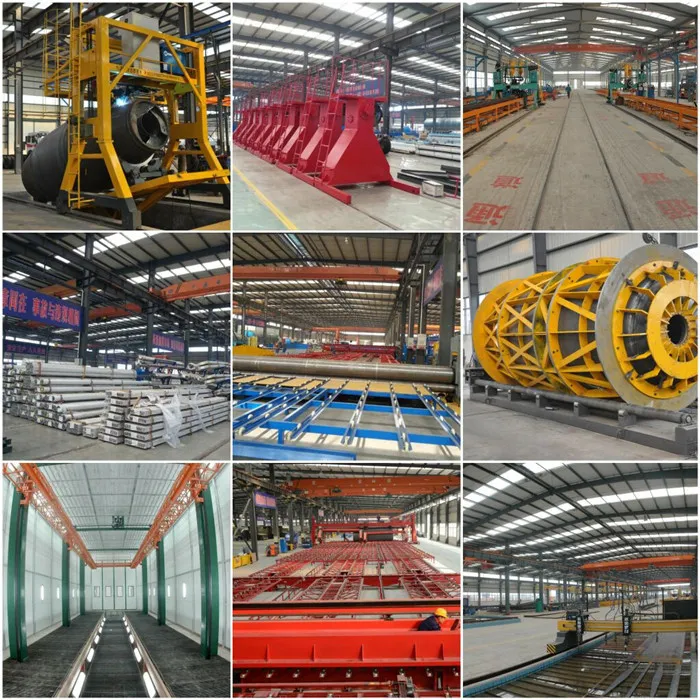

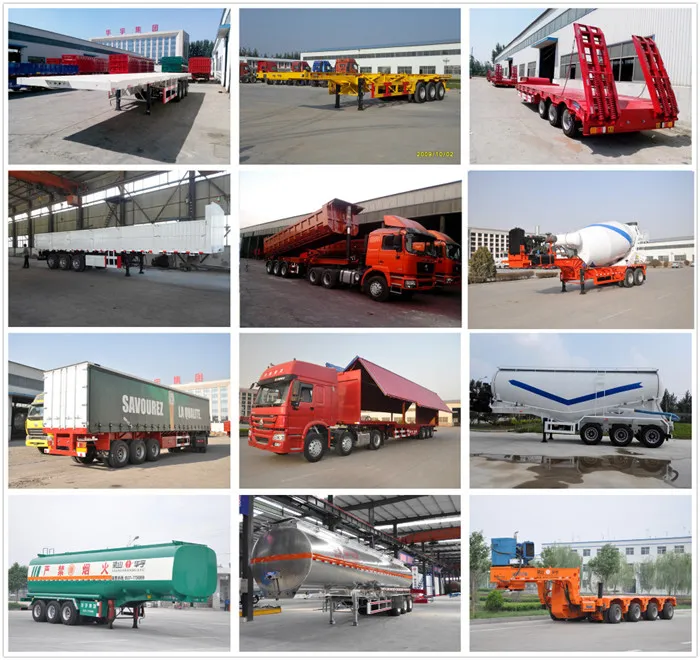

Shandong Liangshan Huayu Group Auto Manufactory Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement. The company engaged in designing, researching manufacturing and selling. The company covers above 800 acres, with total assets of RMB 560,000,000.00 Yuan and factory building areas of 236,000 square meters. Now there are more than 2000 staff, therein 180 senior technical engineers. The company mainly specializing in manufacturing special vehicles such as refitting vehicles, semi trailers, tippers, and oil tank trucks, bulk cement tank, concrete mixer trucks and special operations vehicle, with annual yield of above 10000 sets. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians. Our company is a special purpose motor vehicle manufacturing enterprise which has large scale of production, perfect Quality Management System in domestic. Products sold throughout the country, some products are exported to Russia, France, southeast Asia, Africa and so on more than 20 countries.
Factory Direct Sale Light Weight Low Flatbed Semi Trailer

Warranty period and after sale service

ITEM		WARRANTY TERM
Main Frame	Frame	1 year
	Kingpin	1 year
	Suspension	6 months
	Balance arm	3 months
	U-shaped bolt	3months
	Pull rod	6 months
	Leaf spring	3 months
	Landing gear	3 months
	Spare tire carrier	3 months
Running Gear	Axle	1 year
	Axle bearing	3 months
	Wheel rim	3 months
	Tire	3 months
Braking Device	Brake drum	3 months
	Relay valve	3 months
	Brake chamber diaphragm	3 months
	Spring brake chamber	3 months
	Brake shoe	3 months
	Air tank	3 months
