GLS Conveyor Dump Semi- Trailer 50 Ton

Product Description

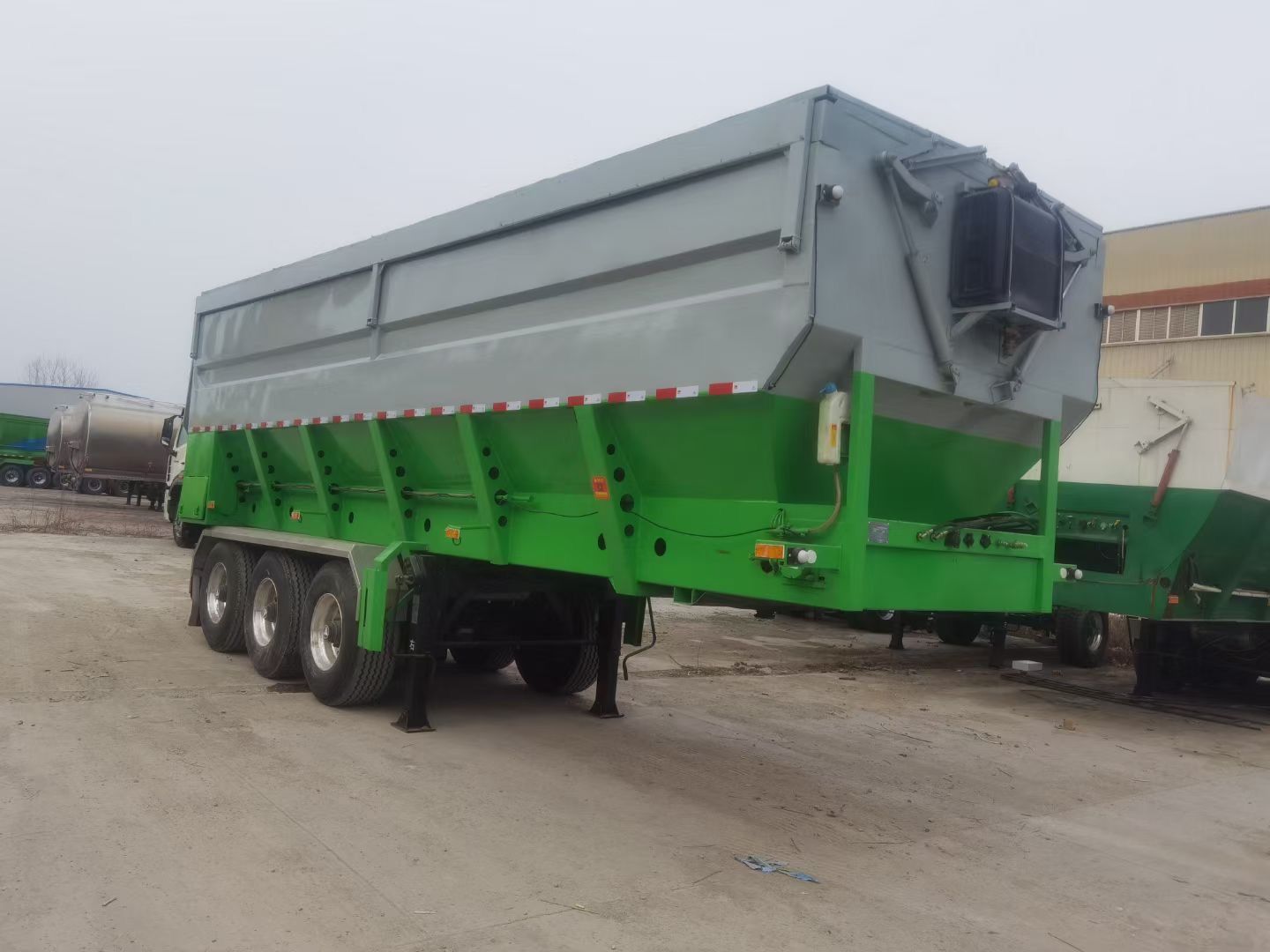

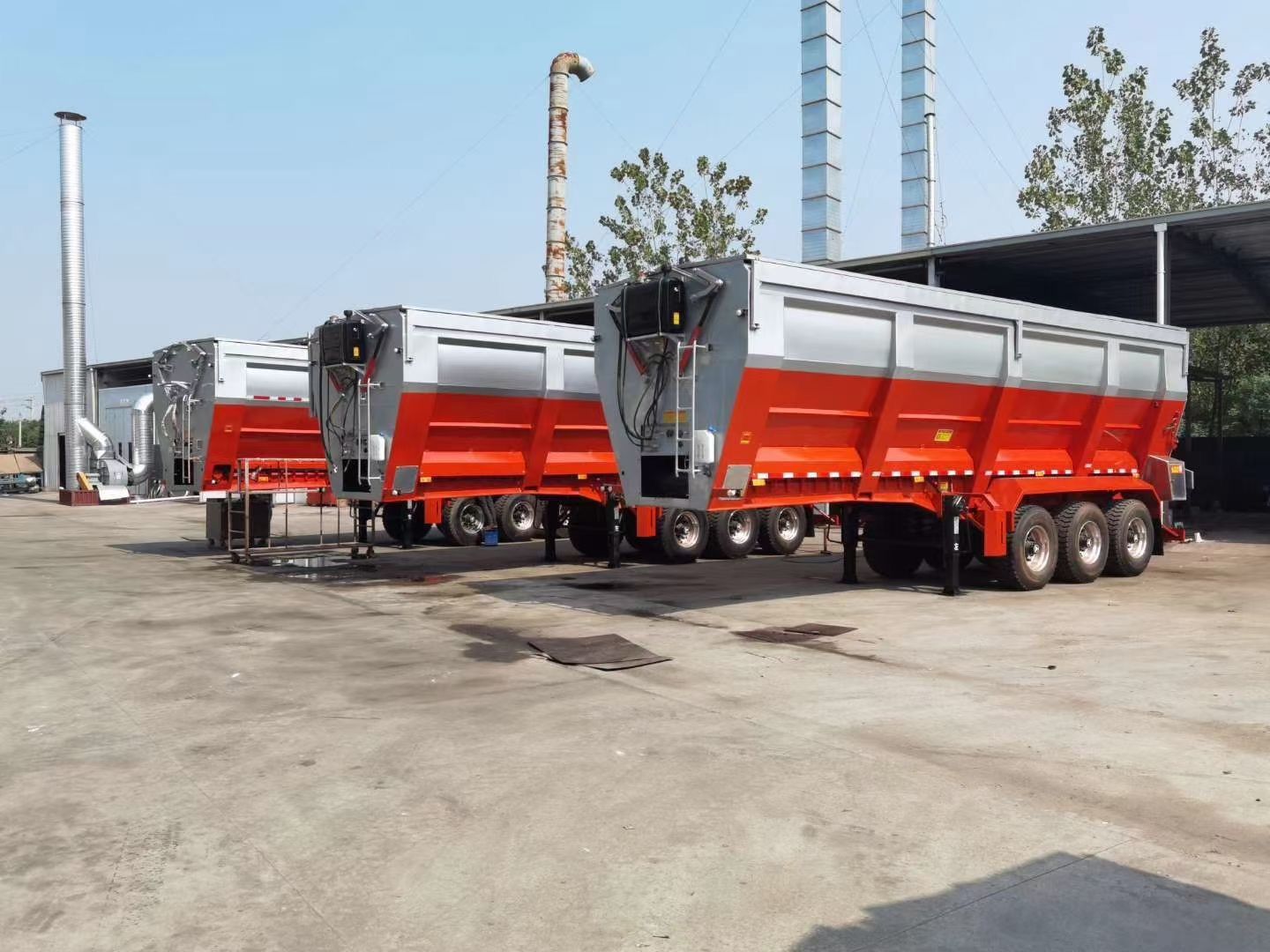

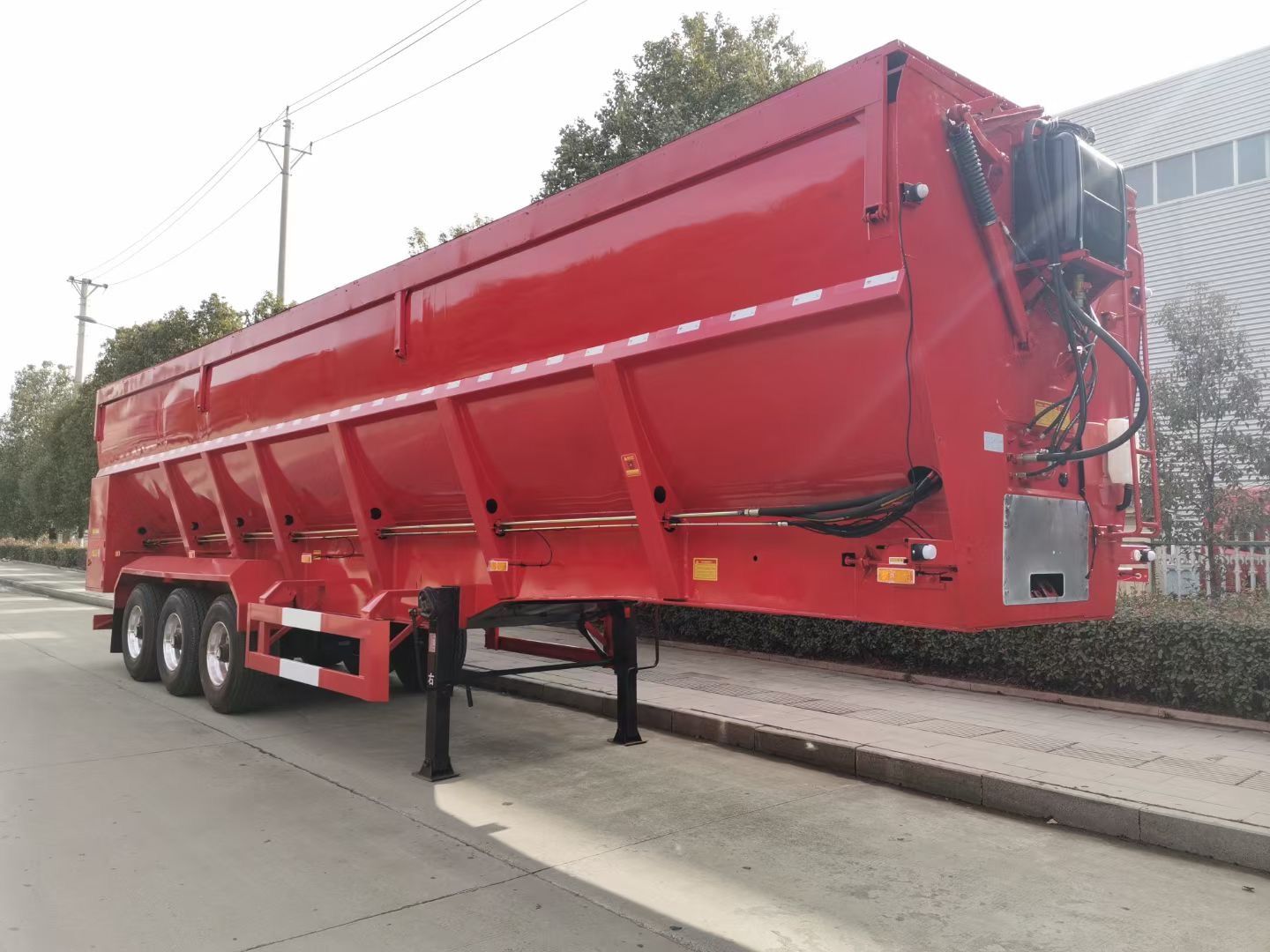

Conveyor type dump semi trailer

Product advantages and characteristics
Status of equipment transportation of dump vehicles
Conveyor belt type dump semi-trailer advantages and characteristics
Control without getting out of the car. Applicable to sand, coal, food, construction waste, clay, clinker and other bulk cargo transport. It is a perfect substitute for vehicle transportation such as rollover, rear rollover semi dump, flat container semi dump, dump tank truck, grille semi trailer and so on.
Bigger volume: effective volume 27.5-60 square meters, large loading capacity, to meet the real needs of various working conditions.
-, lighter dead weight: the whole vehicle adopts high strength steel, the light dead weight to 7 tons.
Three, more convenient operation: can be in the cab through the camera to observe the unloading situation and intelligent remote control operation, operation is more convenient, more efficient.
Five, the safety factor is higher: strong adaptability, not too high requirements for the site flatness. No operating height limit, suitable for different unloading environment, no rollover risk.
Six, more efficient, more environmental protection: the top adopts hard cover seal, unloading without opening the top cover, no dust, low noise. Hydraulic open tail door and top cover, without personnel outside the vehicle operation, can be unloaded while walking, high efficiency, vehicle unloading, can seamless docking yard, no need for two, three times of operation.
Seven, original factory, no modification: the size of the carriage is the size of the announcement, the square quantity is large, no need to increase, add modification. High quality accessories.

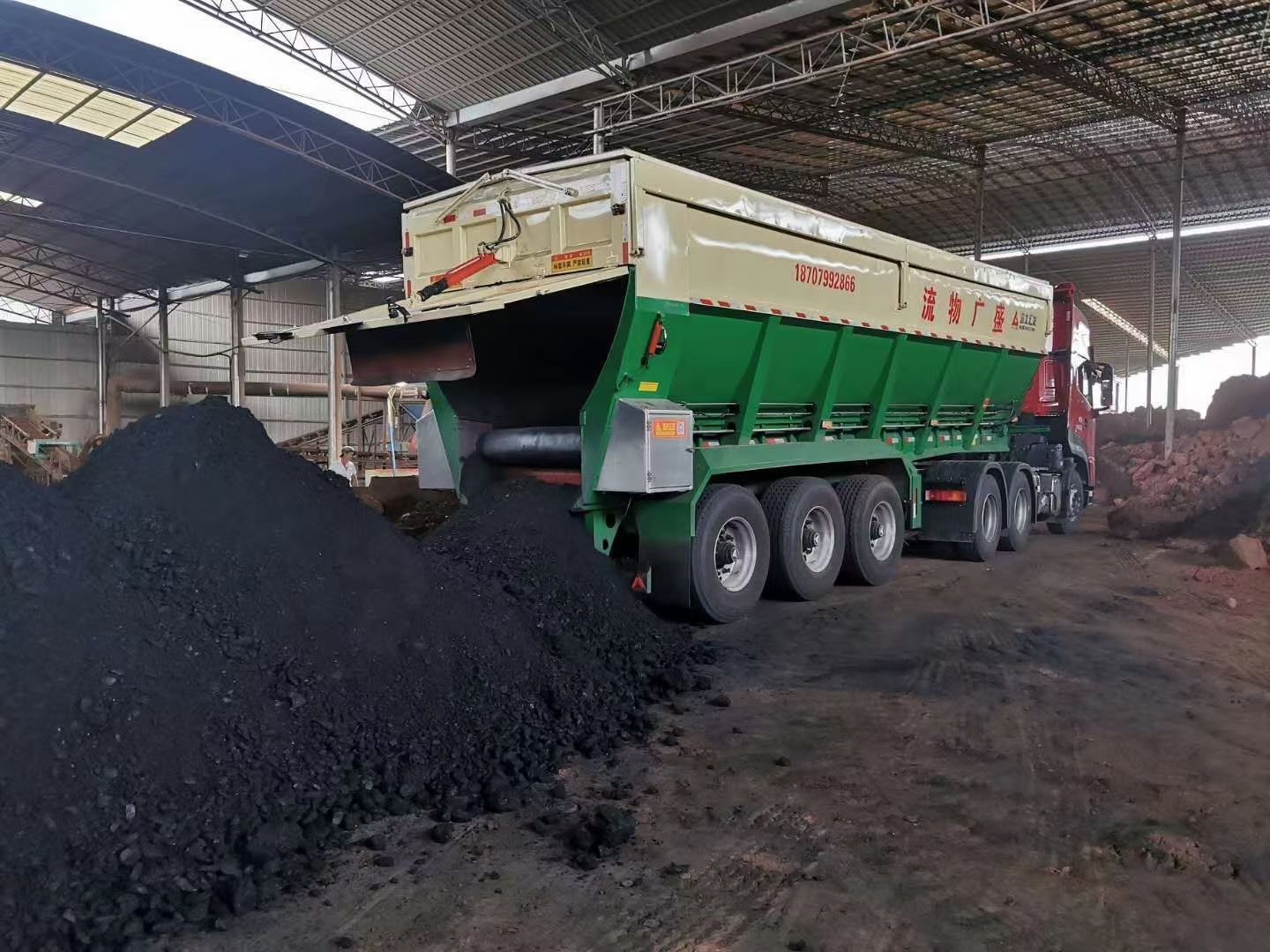

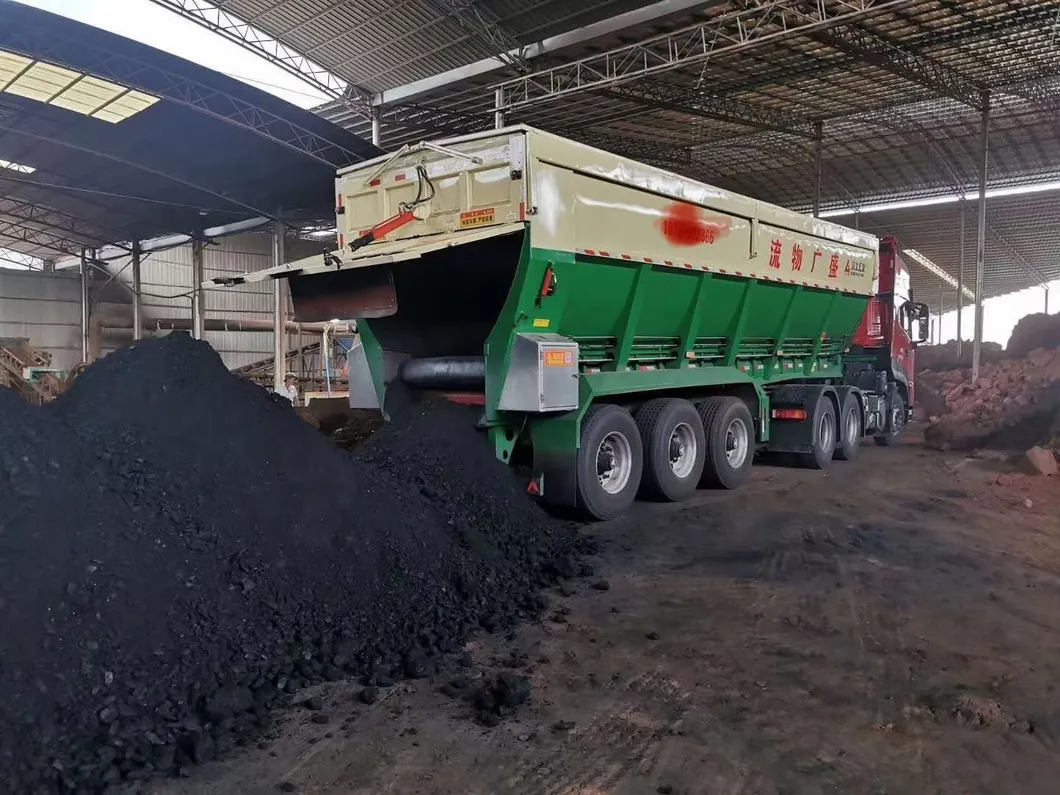

A wide range of applications,Soil material in the part material
Main Technical parameter

Product model	HLV9406ZLS
Type	Conveyor type dump semi trailer
Cargo Top cover	Wingspan, can be fully open
Cargo structure	UV/U type/6 column/Big Single tire 425/65 R22.5 OR 12R22.5
Overall size(MM)	Length: 12990 Width: 2550 Height: 3950
Cargo size(MM)	Length:11800 Width: 2400 Height:2250
Loading capacity(M3)	58
Wheelbase (mm)	6200+1310+1310
Tire	425/65R22.5 OR 385/65R22.5
axle	13T Axle,1/3 ABS
suspension	Steel spring type/ Airbag type
GVW (kg)	55000
Curb weight(kg)	10000
Payload (kg)	45000
Discharge type	Conveyor belt for dump materials
Wall thickness	3mm high strong carbon steel
Kingpin	50,90mm (2inch,3inch)
Landleg	Single move land leg
Conveyor belt width	1.35m
PTO	Add P.T.O.
Use widely	Soybeans, corn, rice, wheat, potatoes, canola, coke, and so on
