Home > Products > Trailer > Truck Trailer > GLS Liquid Asphalt Transport Tank Semi-Trailer, Heat Preservation Tank
GLS Liquid Asphalt Transport Tank Semi-Trailer, Heat Preservation Tank
GLS Liquid asphalt transport tank semi-trailer,heat preservation tank volume 33m³ MAIN TECHNICAL PARAMETERPRODUCT BRANDGLS BRANDAnnouncement number 331Product namedSLS9400GLY-asphalt tank semi-trailerNumber ZPYXS6FT01ZGVW(Kg)40000Tank capacity(m3)33Payload (Kg)29000Overall size (mm)11500&am......
Send Inquiry
Product Description
GLS Liquid asphalt transport tank semi-trailer,heat preservation tank volume 33m³
| MAIN TECHNICAL PARAMETER | |||
| PRODUCT BRAND | GLS BRAND | Announcement number | 331 |
| Product named | SLS9400GLY-asphalt tank semi-trailer | Number | ZPYXS6FT01Z |
| GVW(Kg) | 40000 | Tank capacity(m3) | 33 |
| Payload (Kg) | 29000 | Overall size (mm) | 11500×2500×3750,3950 |
| Curb weight (Kg) | 11000 | Tank size(mm) | 10810×2450×Front 1700/REAR 1850 |
| Approach /departure angle (°) | -/18 | Front /rear suspension(mm) | -/1580 |
| Axle number | 3 | wheelbase(mm) | 5600+1310+1310 |
| Tire number | 12 | Tire size | 12R22.5 12PR |
| Front wheel track(mm) | - | Rear wheel track(mm) | 1840/1840/1840 |
| Axle loading (Kg) | -/24000( Three-axle combination) | Max speed(Km/h) | |

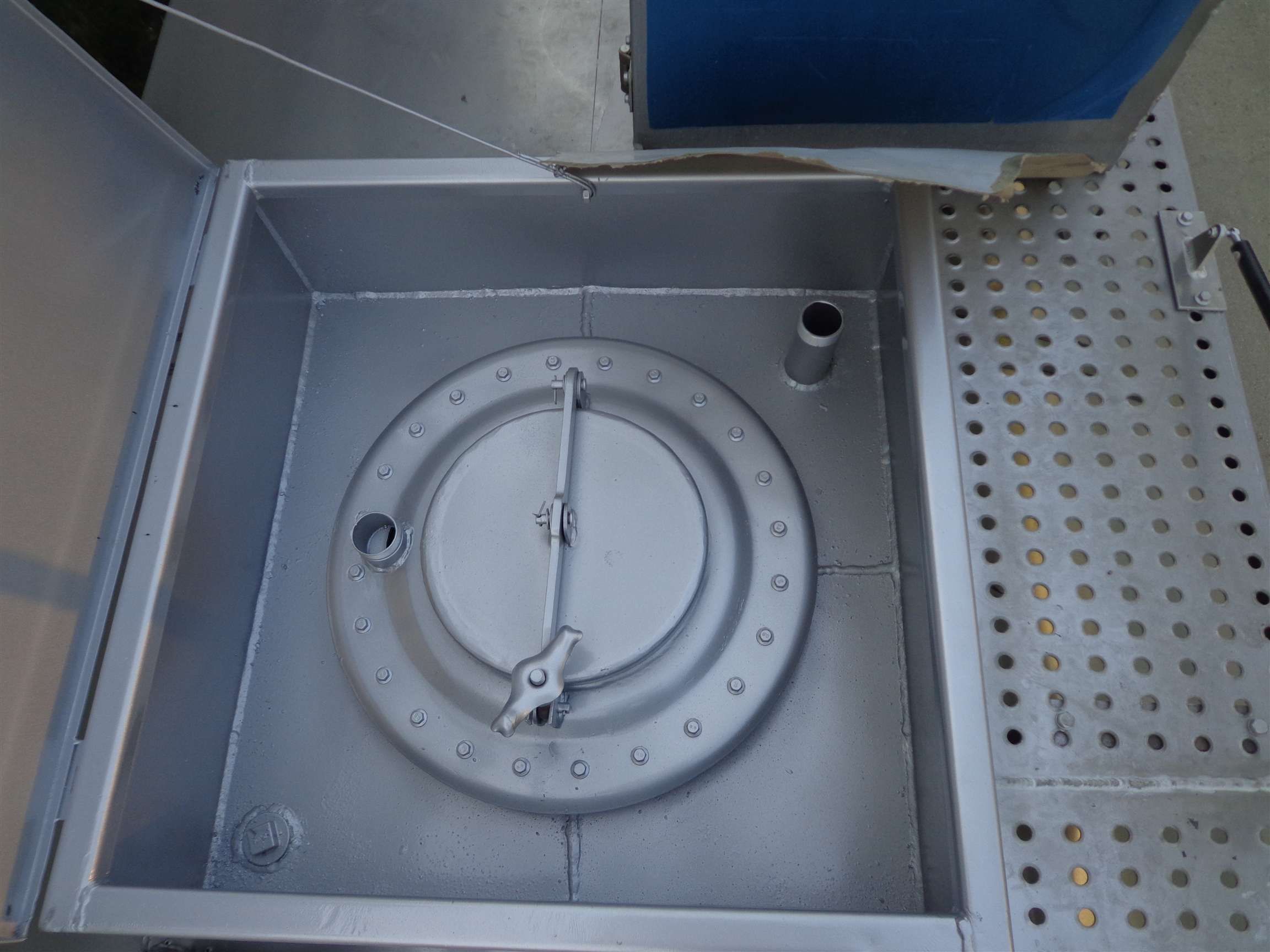

| CONFIGRATION DETAILS | Transport medium: liquid asphalt, tank square round shape, tank total volume 33m³, tank wall thickness 5mm;Wave: 6 pcs, material: Q235B, tank manhole 2 pc with protect slot, 80 mm thick glass fiber insulation layer, the outer skin of 0.6 mm cold rolled steel, one side of tank roof with a walkway and manual aluminum guardrail, tank has long 6 inches thick wall heating tube 1 root, at the bottom of the tail with 6 inch discharge pipe and 6 inch turbine butterfly valve outlet, the tail installation diesel combustion machine and electric control system, tank with semi-trailer frame to bolt connection. Fuwa 13T drum brake axle,4 steel plate suspension, two axles with domestic ABS, 12 sets of 12R22.5 tires with steel rim,50# traction pin, Fuwa 28 ton linkage leg, steel side protection and rear protection, fender and toolbox, LED lights, one spare tire frame, 2 8KG fire extinguishers, one electrostatic tow belt, | ||
