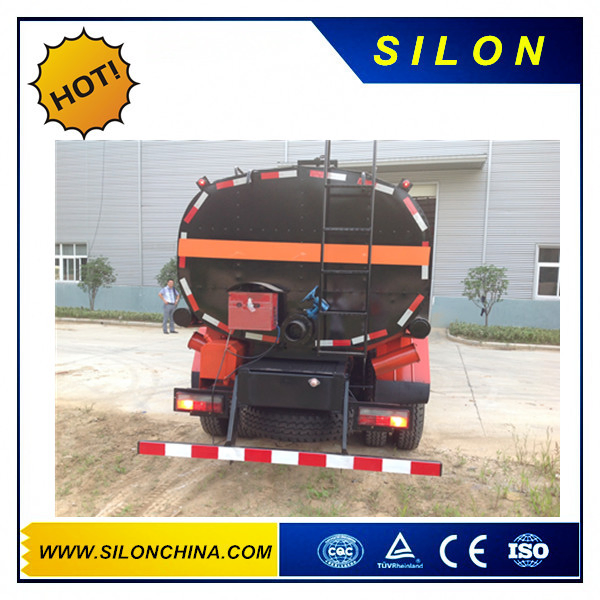

China Heated Bitumen Tanker/Asphalt Tank with Pump (HN1240P29E2M3J)

Product Description

FUNCTIONS

1. This series asphalt transportation tank semi trailer is tank-style designed, is suitable for the transportation of liquid products, and asphalt transportation with heat preservation systems, which can be manual or electrical.
2. The volume varies widely from 12 cube meters to 25 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker inside can be isolated compartments or single compartment by your needs.
6. The tanker shape can be round or other shape
7. The tanker body materials can be Q235B carbon steel

INTRODUCTION TO OUR FACTORY

LuoYang Silon Industrial Co,, Ltd is special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacture, our products are mainly exported toPhilippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries

SERVICE

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

Techncail Paramters

Main Technical Paramters
Truck Brand		CAMC
Product Name		CAMC Bitumen Tanker
Total Weight(Kg)		24000		Tanker Capacity(m3)			12
Rated Load Weight(Kg)		11900		Over all Dimension (mm)			10100×2495×3560
Curb Weight(Kg)		11905
The number of the cab allowed passenger		3
approach / departure angle(°)		25/20		Front suspension / rear suspension(mm)			1370/2160
Axle number		3		Wheel Base(mm)			5220+1350
Axle Load(Kg)		6500/17500(Double Rear Axle)		Max speed (Km/h)			90
Others		Transporation goods : asphalt ;;tanker capacity :12m3 ,protective material:Q235, connection model: welding ,Rear guard section size (wide×height )50×120(mm),Rear guard section height :540mm.
Truck Chassis Technical Paramters
Truck Model	HN1240P29E2M3J		Truck name			Bitumen Tanker Truck
Brand Name	HuaLing		Producer			Anhui HuaLing
Dimension(mm)	11000×3222×3930		Tyre Number			10
approach / departure angle	25/15		Tyre			11.00-20 16PR,11.00R20 16PR
Spring plate number	9/12		Front wheel base(mm)			2065
Fuel Model	Diesel		Rear wheel base (mm)			1860/1860
Emission	GB3847-2005,GB17691-2005 Chinese III
Engine Model	Engine Producer		Displacement (ml)		Power(Kw)
WP10.270E32	Weichai Engine Company		9726		199
Truck Chassis	Adopt CAMC chassis,HOWO engine for 270HP,flat-topped, one-bedroom cabin,11.00-20 tires ,with the direction of the booster, air conditioner
Special modified configuration	Modified configuration: effective tank volume of 12 cubic 5mm steel production of high quality carbon steel, with rock wool insulation (using high performance asbestos foam insulation materials insulation layer, light weight, blocking radiation, the insulation effect), with hearter ,pump ,and for the right hand drive insulation technologies such as aging on asphalt during transport, not bad, not coking solidification. Asphalt truck is a high-quality asphalt transportation equipment.
