Heavy Duty 3 Axles 50 Tons Side Dump Semi Tipper Truck Trailer (LAT9404D)
Rear dump or side dump with hydraulic cylindercan be put in 40ft container,10-60cbm optional30-60ton capacity2 or 3 axis fuwa brandJost landing gear Details of the trailer: View of factory ......
Send Inquiry
Product Description
Rear dump or side dump with hydraulic cylinder
can be put in 40ft container,10-60cbm optional
30-60ton capacity
2 or 3 axis fuwa brand
Jost landing gear
1, we can do the designs according to the customers' requirements
2,we can offer you the high quality and reasonable price
3,we can offer your a good after-sell service
4,we have strong prefessinal design team
5,prompt delivery.small order is welcome
AOTONG trailer,your wise choice.
can be put in 40ft container,10-60cbm optional
30-60ton capacity
2 or 3 axis fuwa brand
Jost landing gear

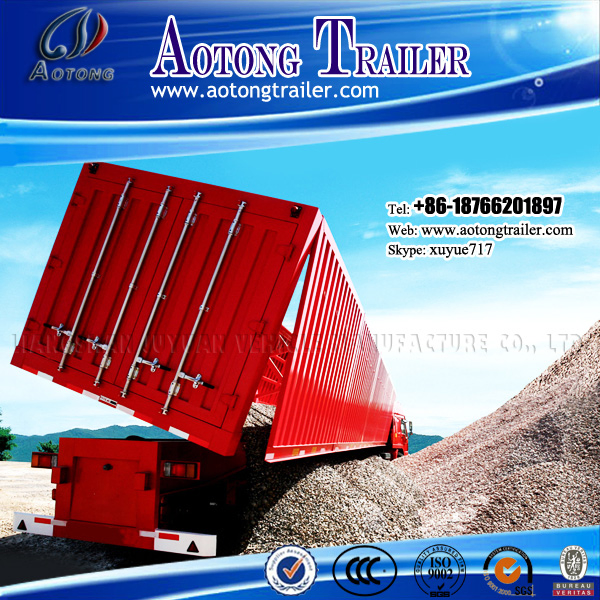

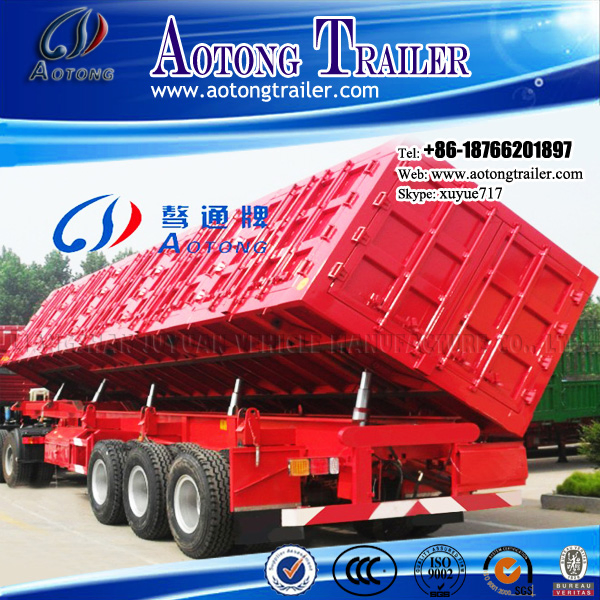

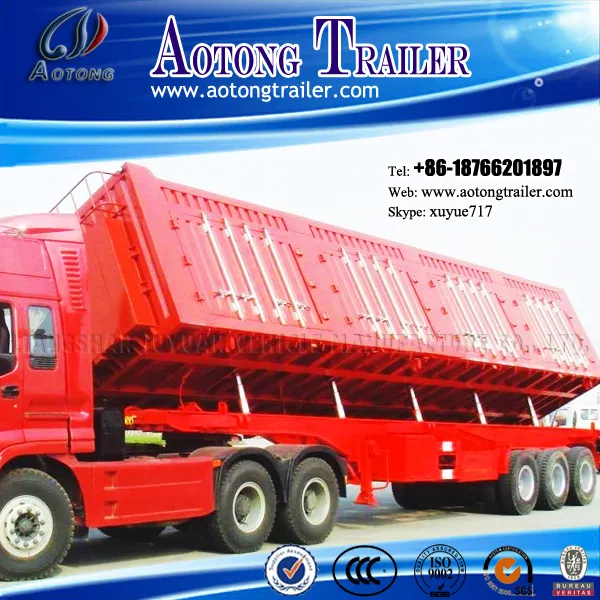

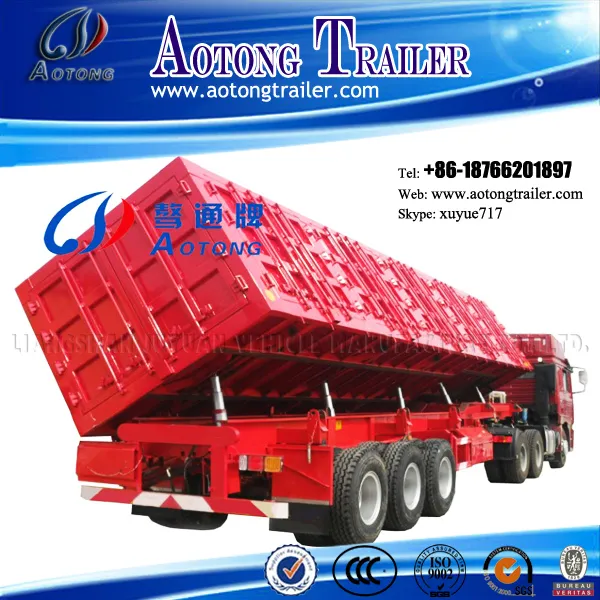

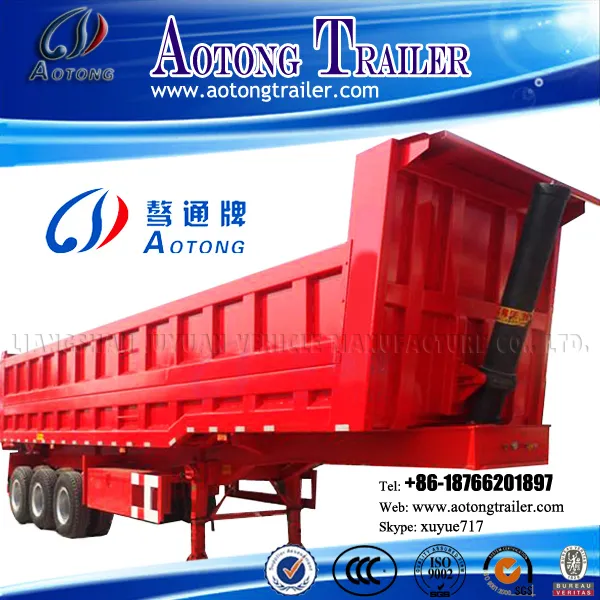

Details of the trailer:

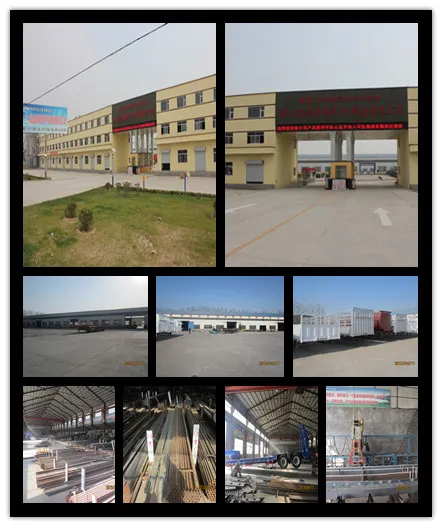

View of factory
Certificate:
1, we can do the designs according to the customers' requirements
2,we can offer you the high quality and reasonable price
3,we can offer your a good after-sell service
4,we have strong prefessinal design team
5,prompt delivery.small order is welcome
AOTONG trailer,your wise choice.
| Manufacturer Name | Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd. | ||
| Type | Side dumping trailer | ||
| Weight: | |||
| Tare Weight | 7.85T-8.5T | ||
| Payload | 30T-60T(25m3--37m3) | ||
| Axle Weight Load | 14T/16T/20T per axle | ||
| Specification: | |||
| Axle number | Two or Three | ||

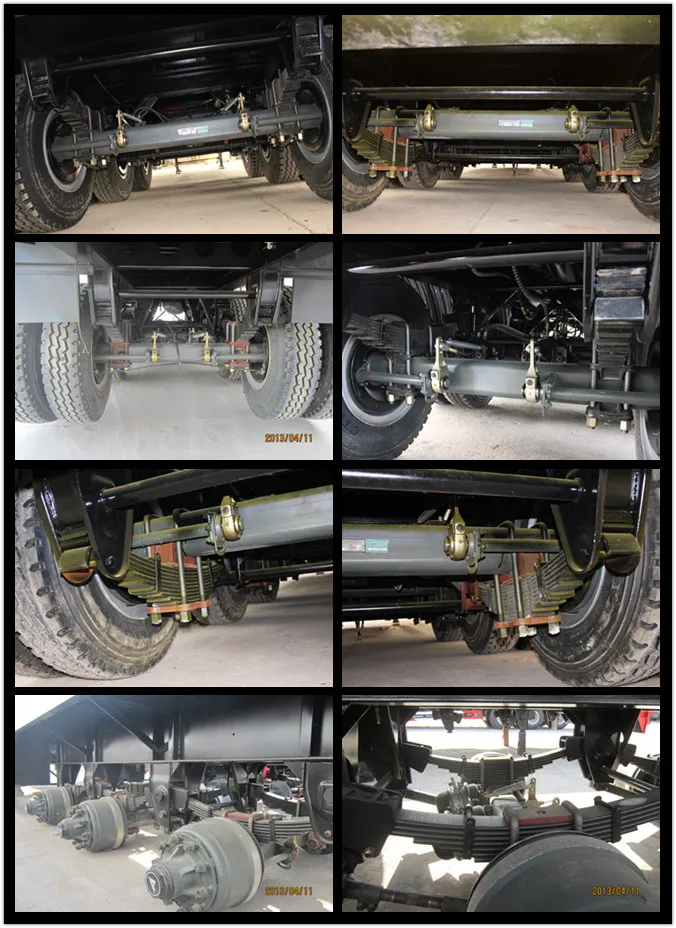

| Axle specs. | FUWA /BPW brand | ||
| Suspension | Mechnical suspensions | ||
| King Pin | 50#/90# | ||
| Dimensions (LxWxH) | 1000/11000/12000/13000× 2480/2500× 3040mm(Outside) 9800/10890/11800/12800× 2270/2300× 1500mm(Inner) | ||
| Rim | 9.00/8.00 | ||
| Lifting system | Four or five ø 125lifting cylinders, one piece of ø 140displacement cylinder | ||
| Steel Spring | 10pieces | ||
| Tire: | |||
| Tire specs. | 12R22.5-18/11.00R20-18 | ||
| Number of Tire | 8/12pieces | ||
| Spare Tire Carriers | 1/2 pieces | ||
| Frame: (specs. and materials) | Main frame is height 450/500mm , . | ||
| Frame Beam | Upper plate is 14mm, lower plate is14/16mm, middle is8/10mm side beam is 16# U-steel. left side: 3 or 4 pcs French door; Right side: 3 or 4 pcs hanging door. With19 pcs lock bar. | ||
| Frame Floor | The Thickness is 3mm flat bed | ||
| Brake: | Two double and three double chamber | ||
| Electrical: | 24V 7 ways(7 wire harness) | ||
| Light color: | |||
| Side marker lamp | Orange | ||
| Rear lamp | Red | ||
| Turn signal lamp | Orange | ||
| Landing Leg support: | 28T | ||
| Miscellaneous: | |||
| Painting | Accordingly | ||
| Tools box | One pieces or According to the buyer | ||
