Heavy Duty 80t 100t Gooseneck Lowboy Lowbed Semi Trailer

Product Description

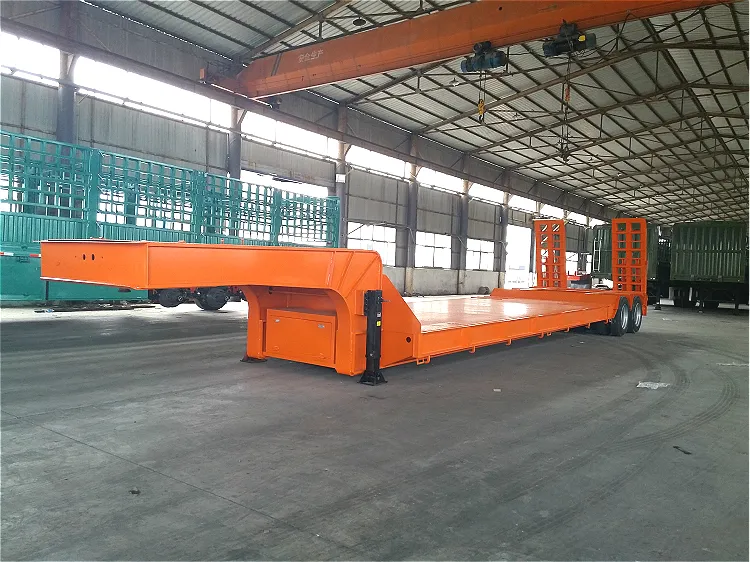

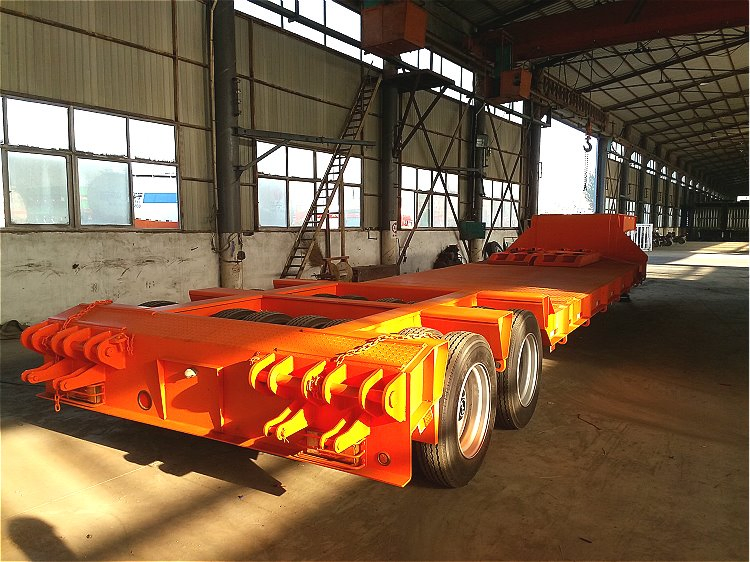

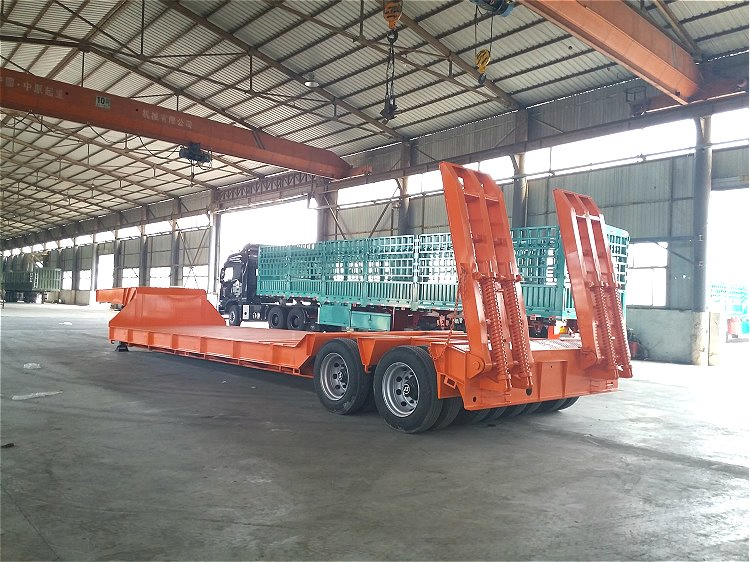

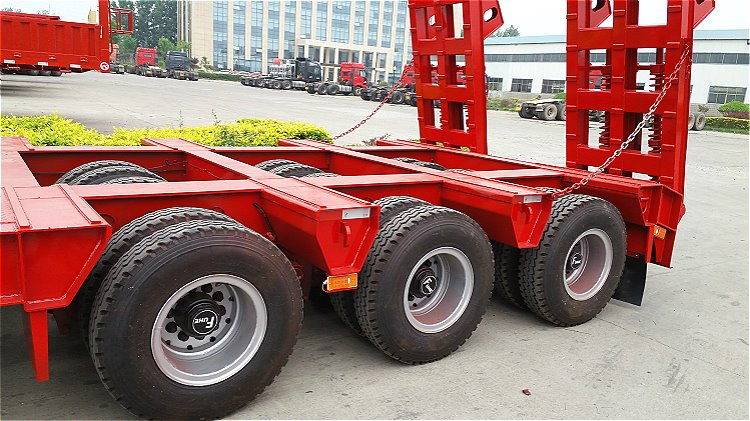

100t Gooseneck Lowboy Lowbed Semi Trailer
--------------------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--24 hours After Sales Service !*

I. Description of Heavy Duty 80T 100T Gooseneck Lowboy Lowbed Semi Trailer
Low loader trailer is applicable to the transportation of various kinds of steel products for various mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and machines.

II. Details of Heavy Duty 80T 100T Gooseneck Lowboy Lowbed Semi Trailer

100T Front Loader Detachable Gooseneck Lowbed Trailer
Loading Capacity	80-100Tons
Dimension	14680x3300x2960mm
Chassis (I beam)	Top flange plate		Q345B, 25mm
	Bottom flange plate		Q345B, 25mm
	Middle flange plate		Q345B, 14mm, 520mm
	Side beam height		250# U steel
Board height	from the rear top of floor to the ground		1130mm
Floor	Material		Carbon steel Q460
	Thickness		6mm
	Floor type		Checkered plate
Ladder	Type		Mechanical
	Width		800mm
Running mechanism	Brake system	Axle	2-lines 4-axles
		Suspension	Spring Type
	Spring Leaft	Leaf width	100mm
		Leaf thickness	16mm
		Layer/set	12 layers
	Tire	TRIANGLE 825R20, 16pcs
	Kingpin	Type	bolts type
		Diameter	3.5 inch
	Brake chamber	4double spring brake chamber
	Air tank	45L air tanks
	ABS	Without, optional
Accessories	Spare tire carrier, LED light, 24V light, 7 ways(7wire harness)and quick change type Receptacle, tool box, Painting( Polyurethane paint&anti-rust primer & sand blasting
