Product Description

Best Sell 3 Axle Low Flat Bed Semi Truck Trailer/Cargo Trailer Lowboy Semi Trailer

1.15 years experience manufactory
2.CCC,ISO,SGS,BV agree
3.Well designed ,small order accept.
4.Manufacture according to your detail requirements
5.After-sale-support;6 month guarantee term

Trailer,semi trailer,lowbed trailer,low bed trailer,truck trailer,trailers,cargo truck trailer,semi trailer retractable low bed,flat pack trailers

•Sales Manager: Danielle Xu

•Phone: +86 18363992361

•Website:HTTP://juyuanguoji.en.made-in-china.com

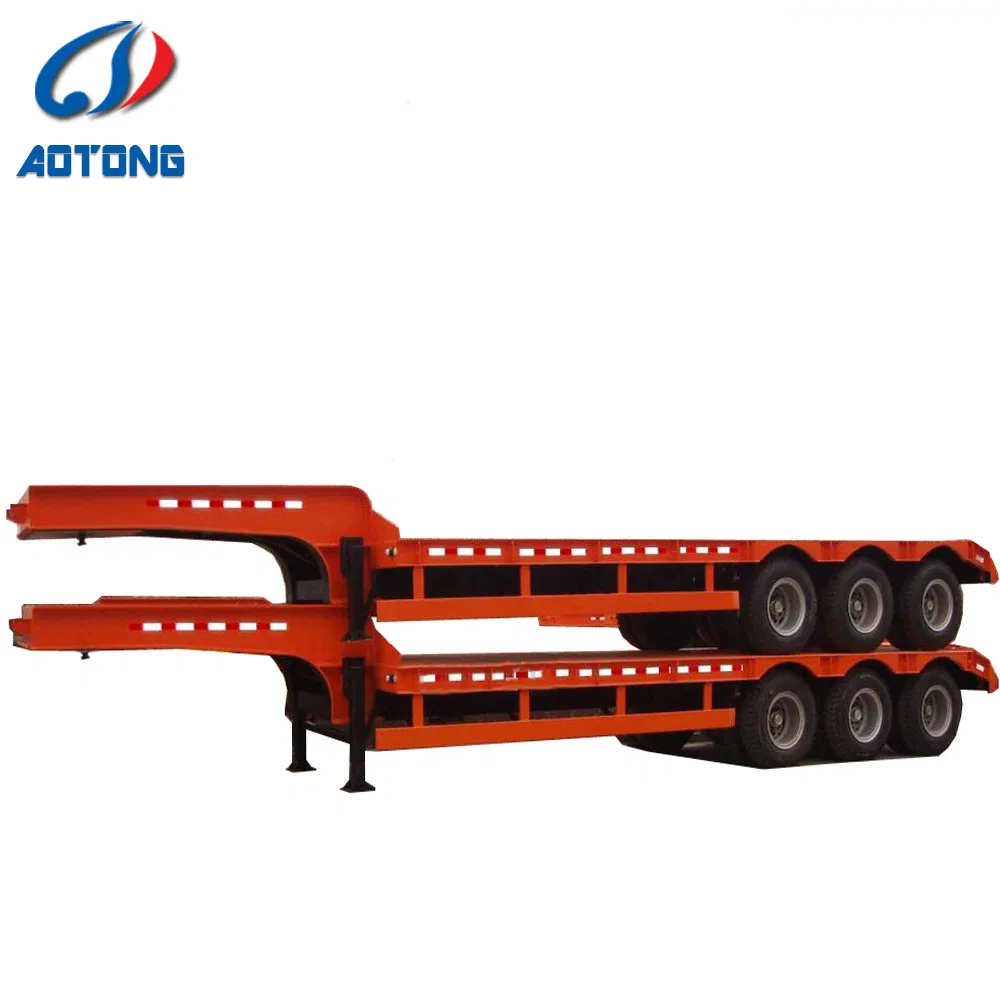

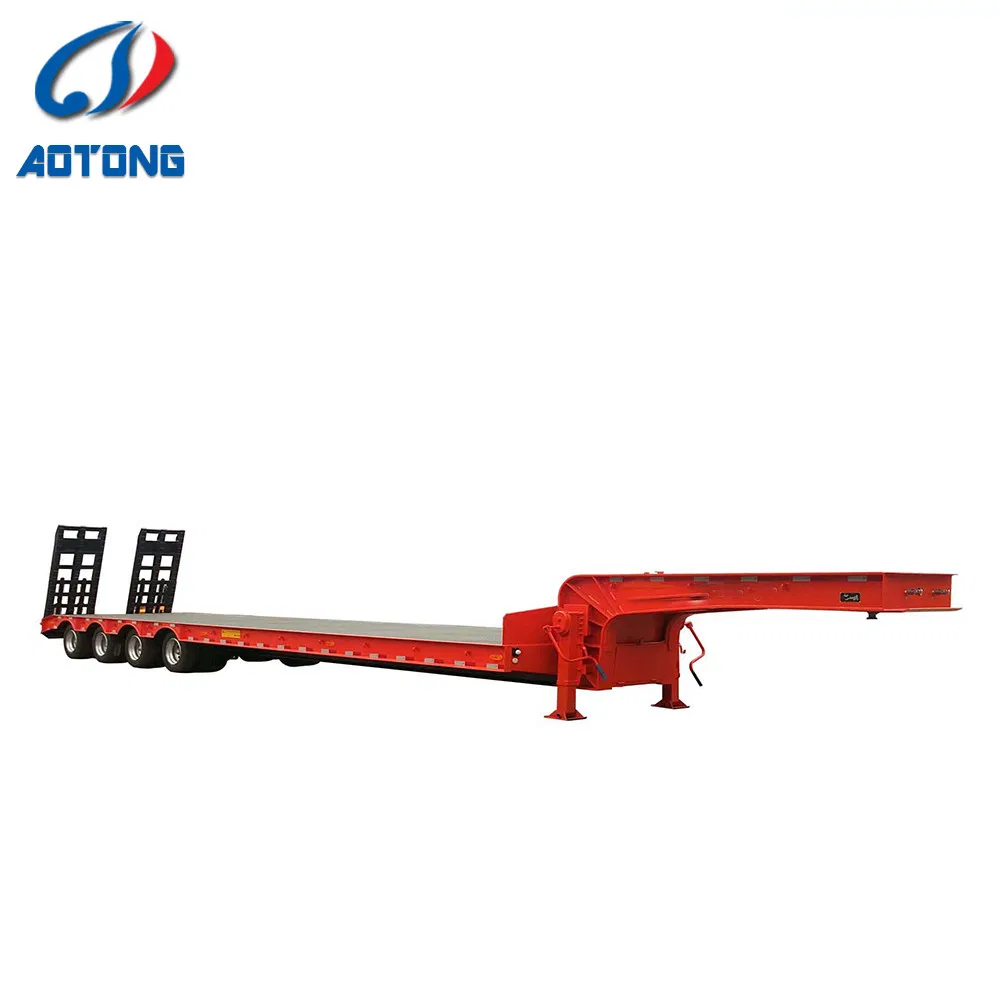

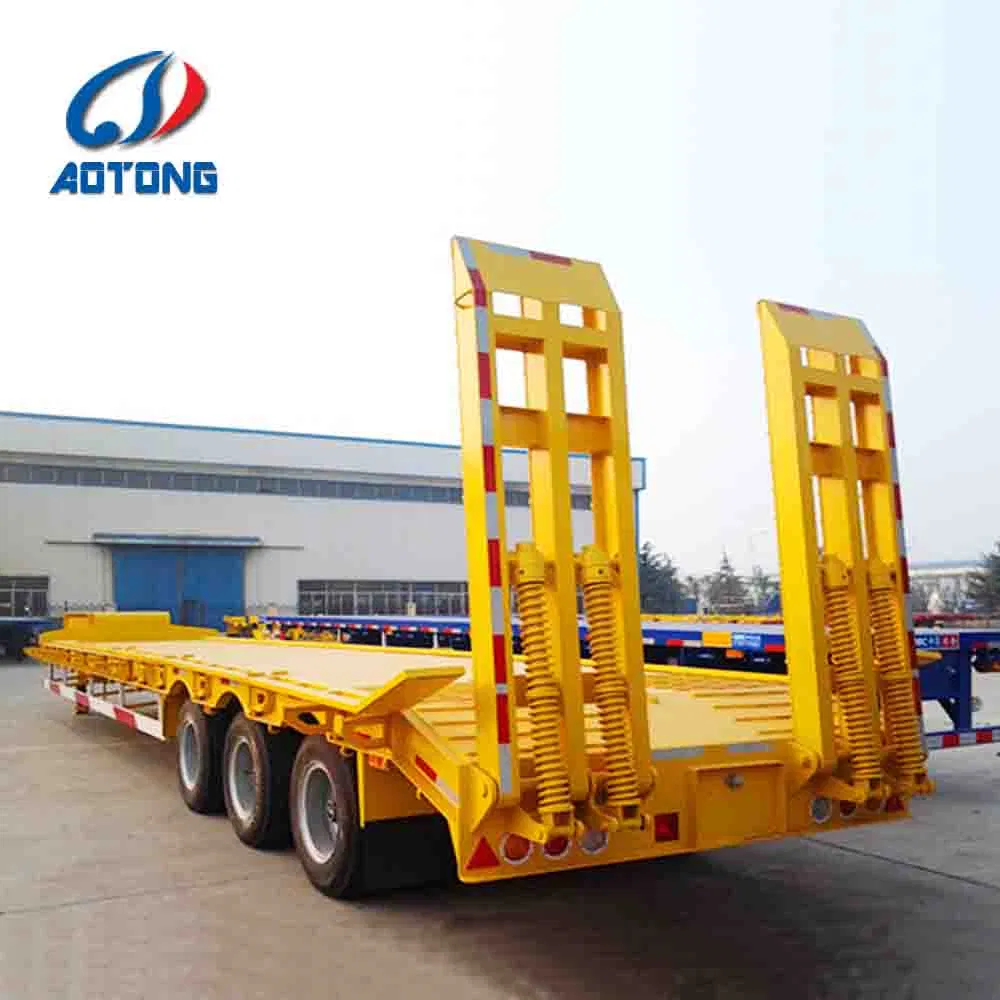

Low bed semi trailer

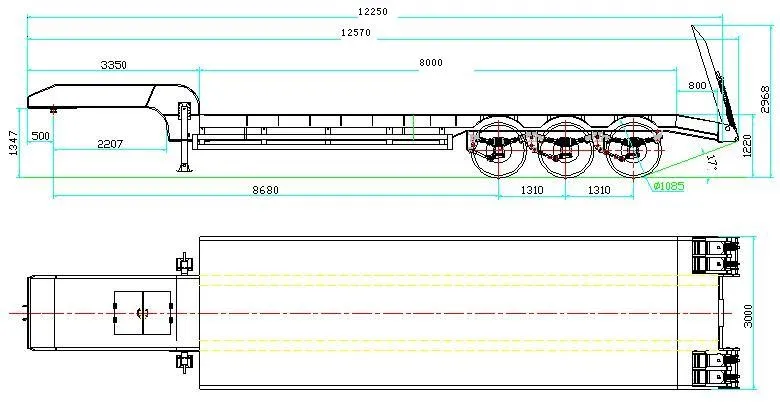

Heavy Duty 80ton 3 Axles Low Bed Semi Trailer for Sale

PRODUCT SPECIFICATIONS:

Model	Axle NO	Rated Load (kg)	Outside Dimension	Tyre No	leaf-spring Pcs

LAT9405TDP	3	50000	13000X3000X3150	12	10
Manufacture	Liangshan Juyuan special vehicle manufacturing Co., Ltd.
Axle Brand	FUWA
Suspension	Leaf spring suspension, Leaf spring rigid suspension as Germany style
King Pin	2" or 3.5"
Landing Gear	28 T
Colors	Any colors available
Tare weight	9-12 Tons
Main Beam Material	Q345B carbon steel, automatic submerged arc welded
Brake System	Dual line braking system
Brake Air Chamber	Double air chambers
Tyre specifications	11.00R20,12R22.5,315,385
Floor	4mm carbon steel plate or manganese plate
Other Specifications	The cargo loading deck is extendable from 3m width to 3.5 width, 2.5m on each side. The cargo' s carrying platform is 910mm high from the ground. The height of rear guard settings is 420mm from the ground.
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.

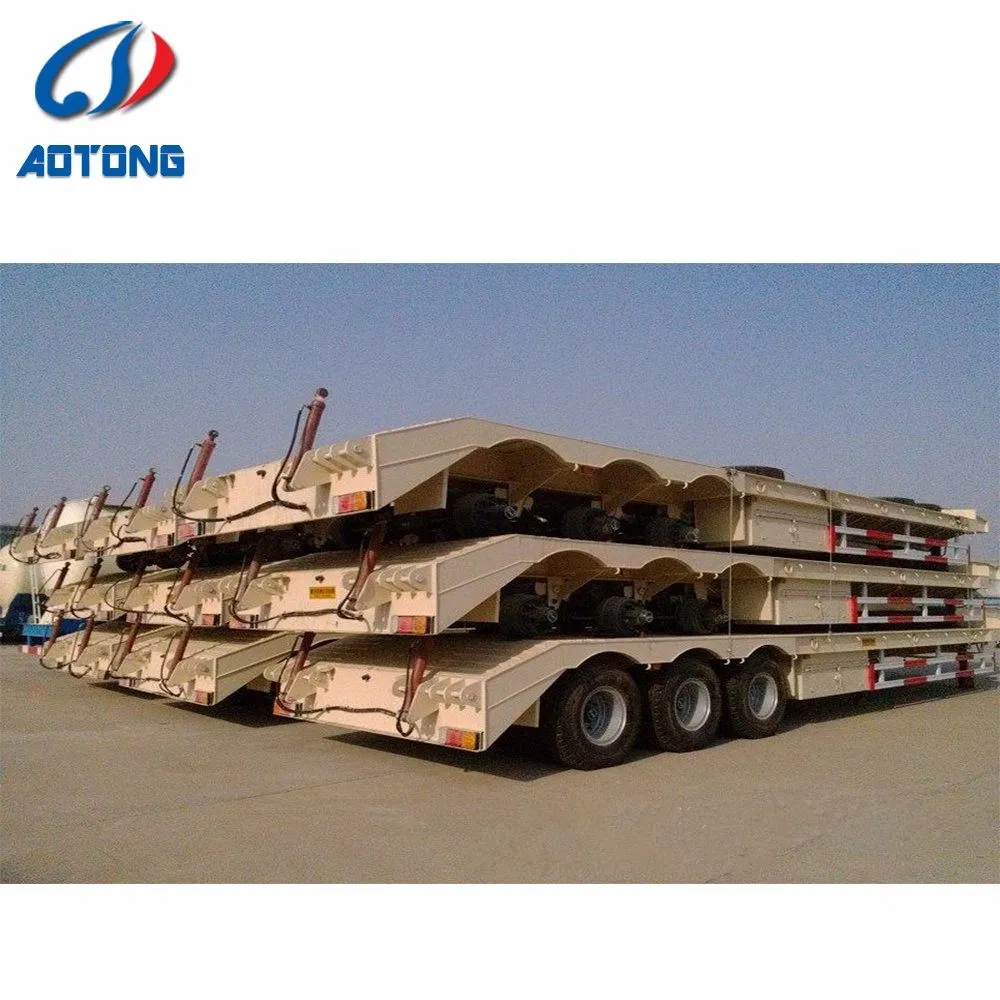

Heavy Duty 80ton 3 Axles Low Bed Semi Trailer for Sale

PACKAGING & SHIPPING

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

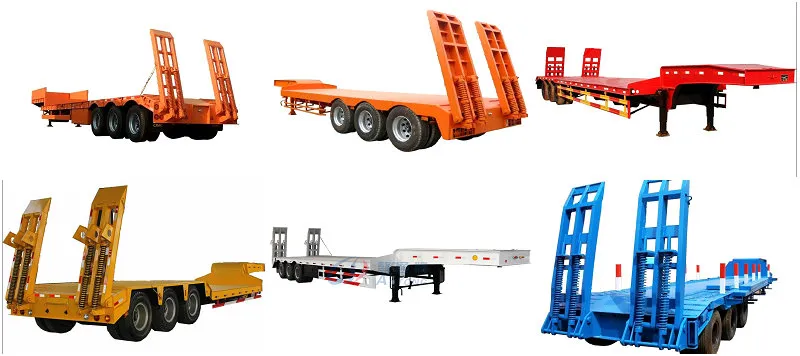

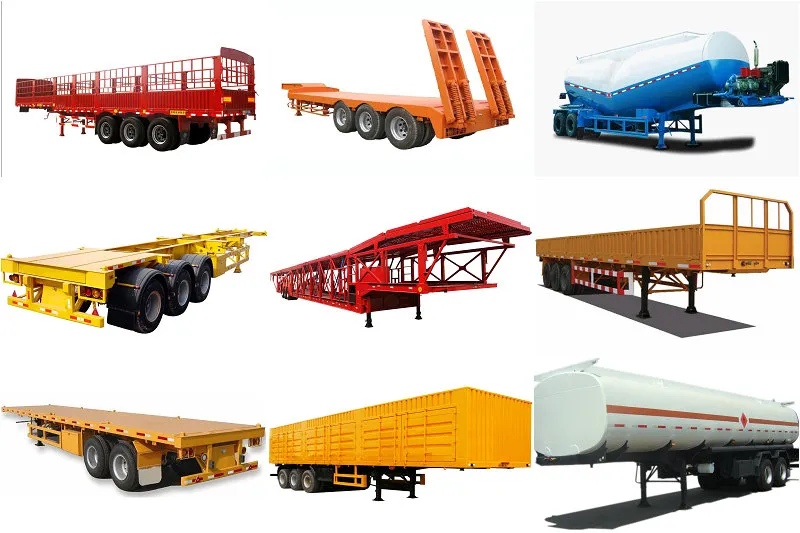

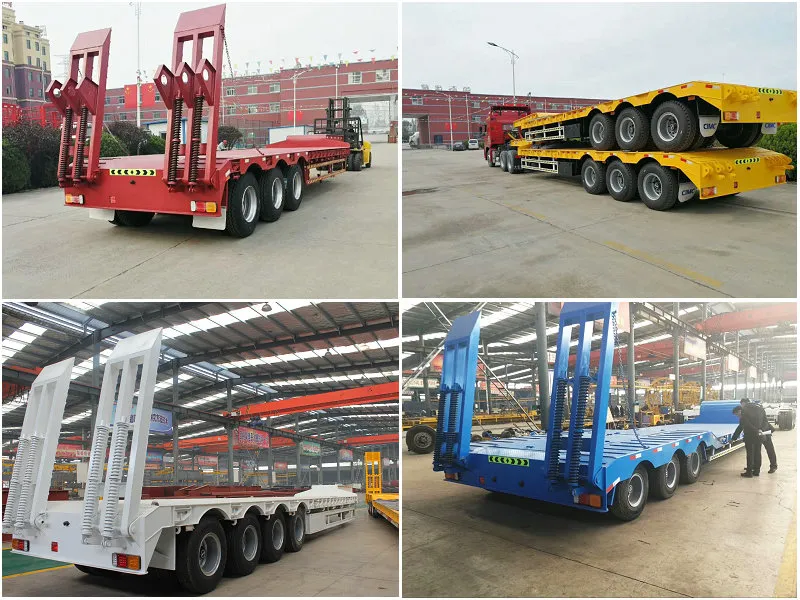

FACTORY & PRODUCTS

Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, with the factory, Shandong Juyuan Automobile Technology Co., Ltd.
Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001,SGS,BV certificate.
