Heavy Duty Tipping Trailer for Sand

Product Description

Heavy Duty Tipping Trailer for Sand

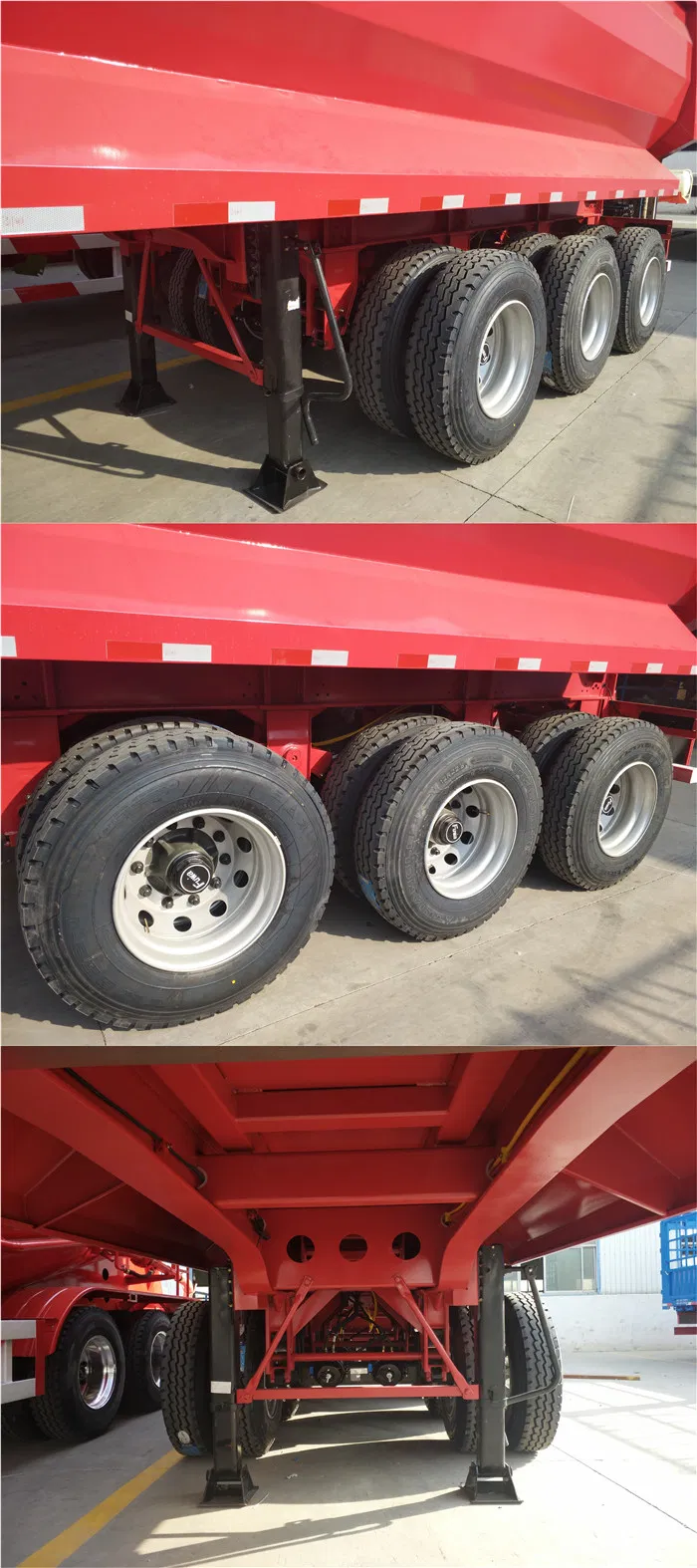

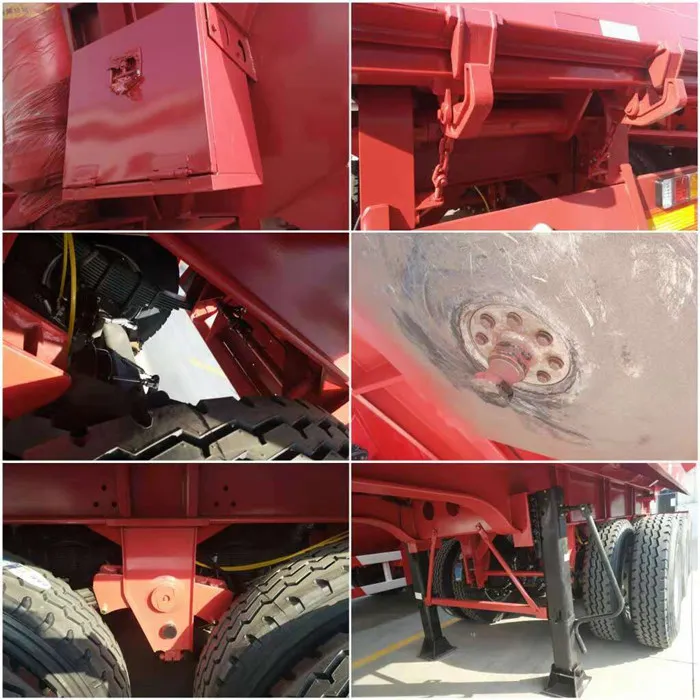

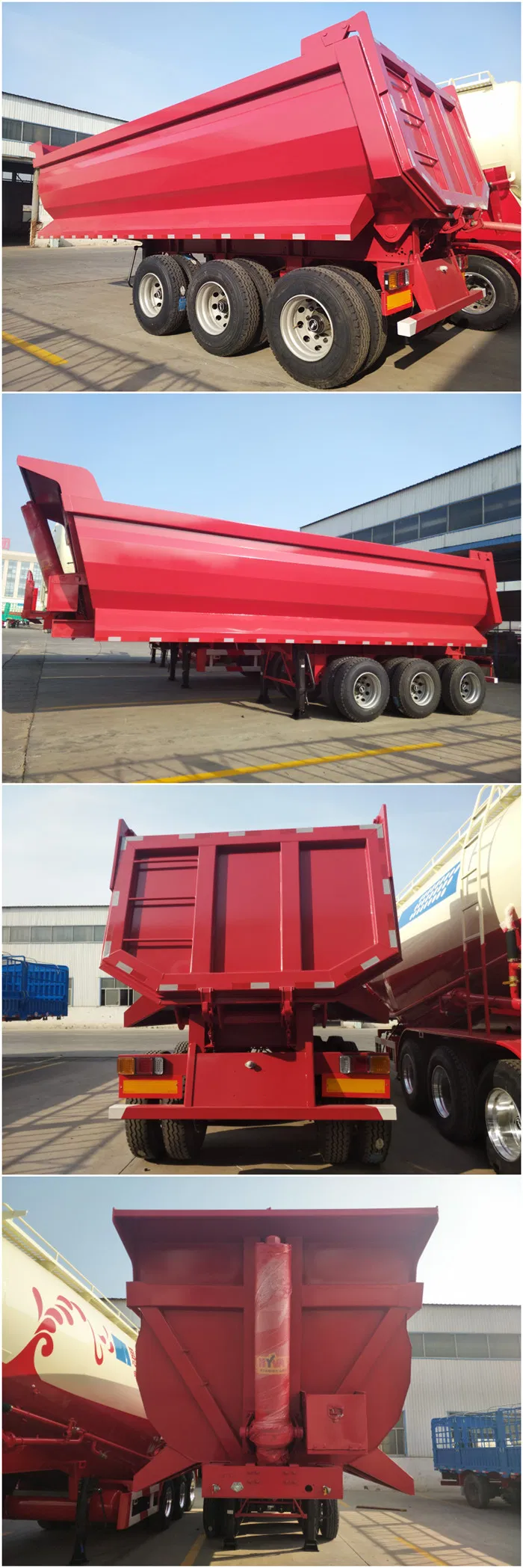

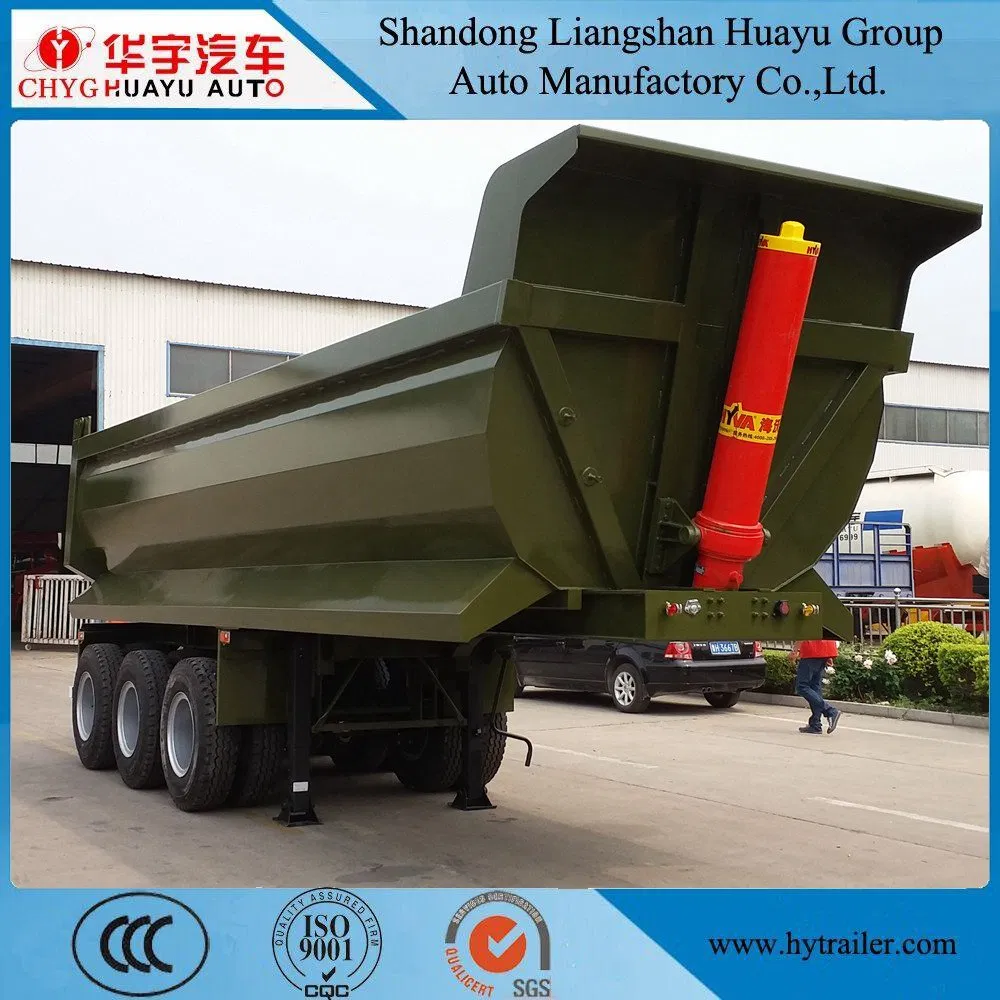

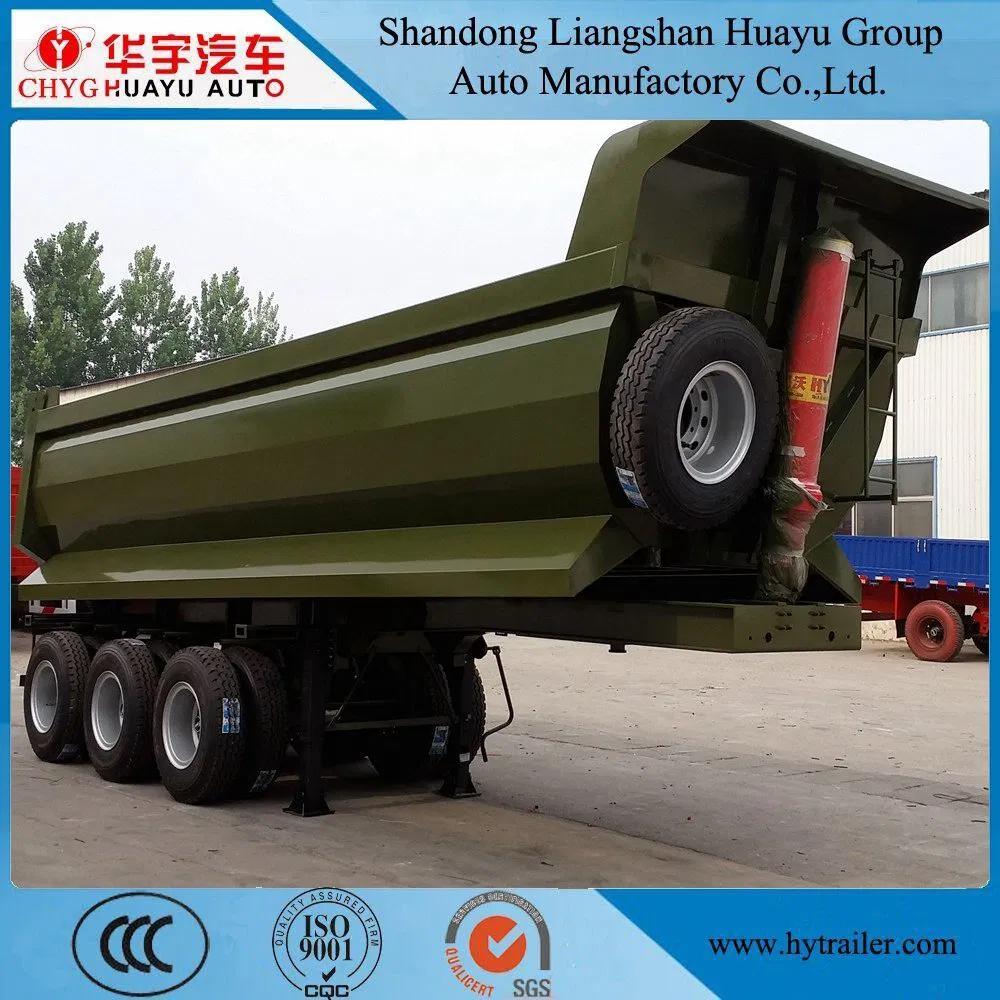

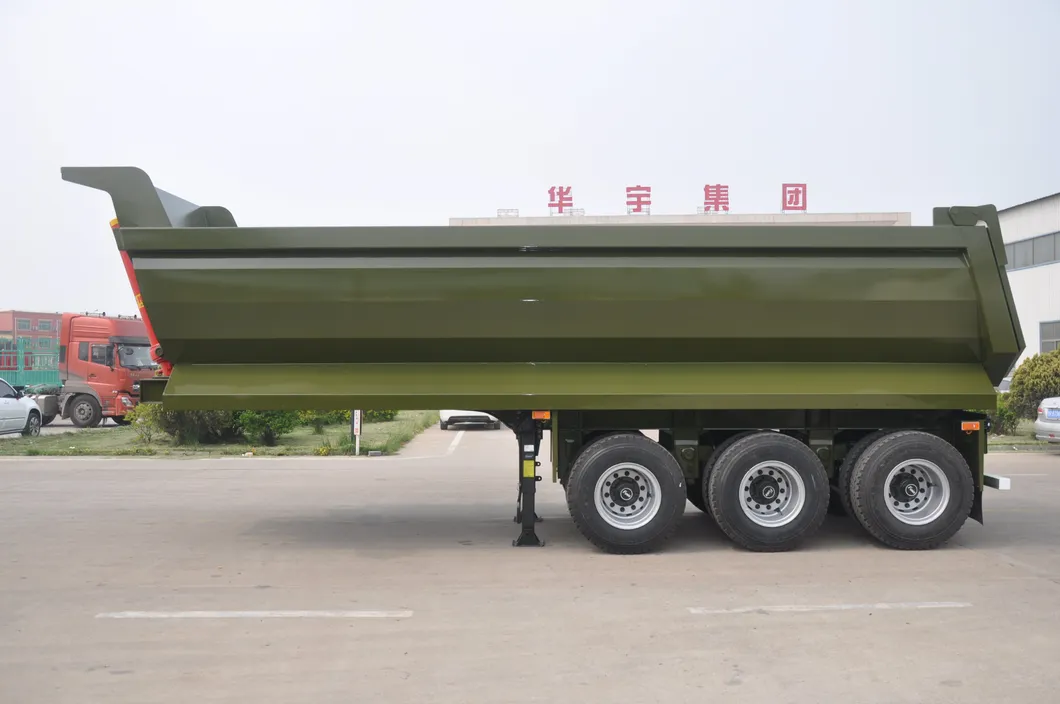

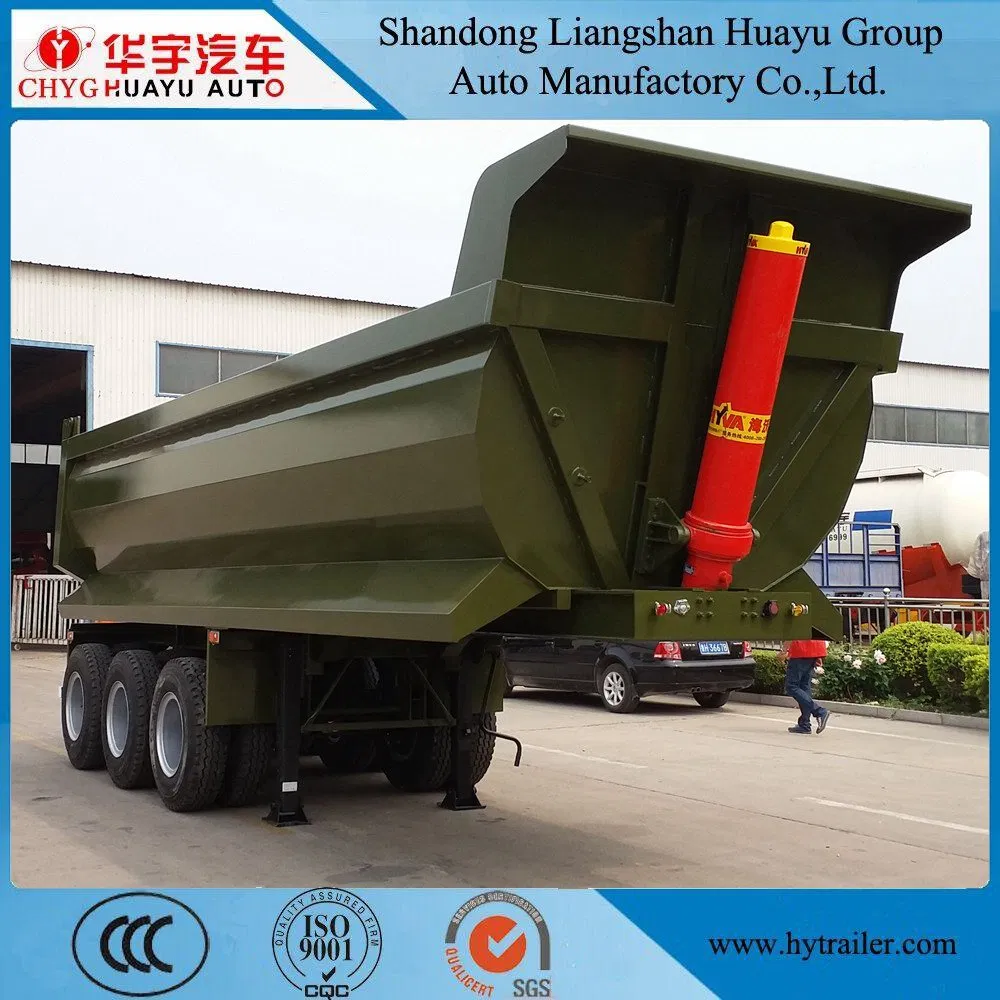

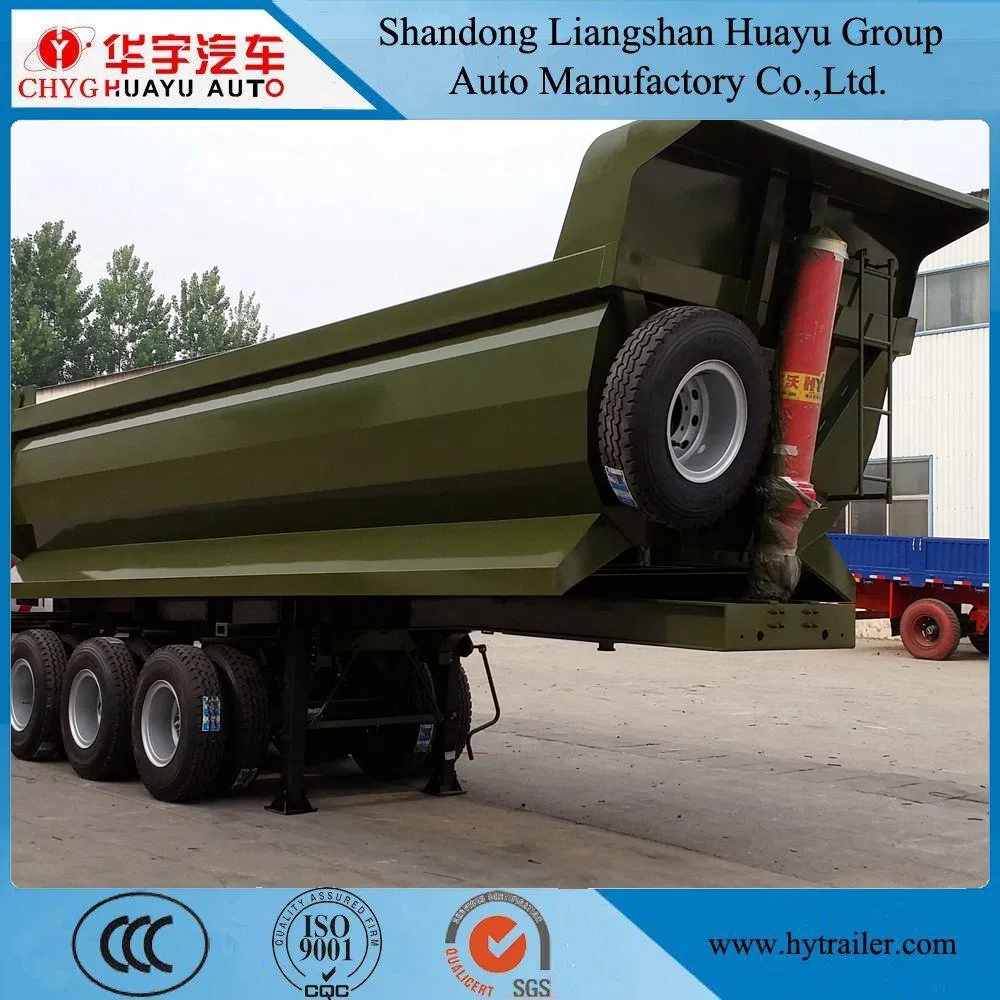

Trailer Details show:

Specifacition

Tare weight	9000kg
Size	9000mm2500mm3800mm
Payload	50T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	no
Cross member	channel steel
Floor	4-8mm
Side wall	4-6mm
Axle	3 axle FUWA brand 13T
Suspension	Mechanical suspension
Leafspring	10pcs16mm90mm
Tire	12.00R20 double star brand 12pcs
Wheel rim	8.5-20 jingu brand 12pcs
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Cylinder	HYVA brand or china famouse brand
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

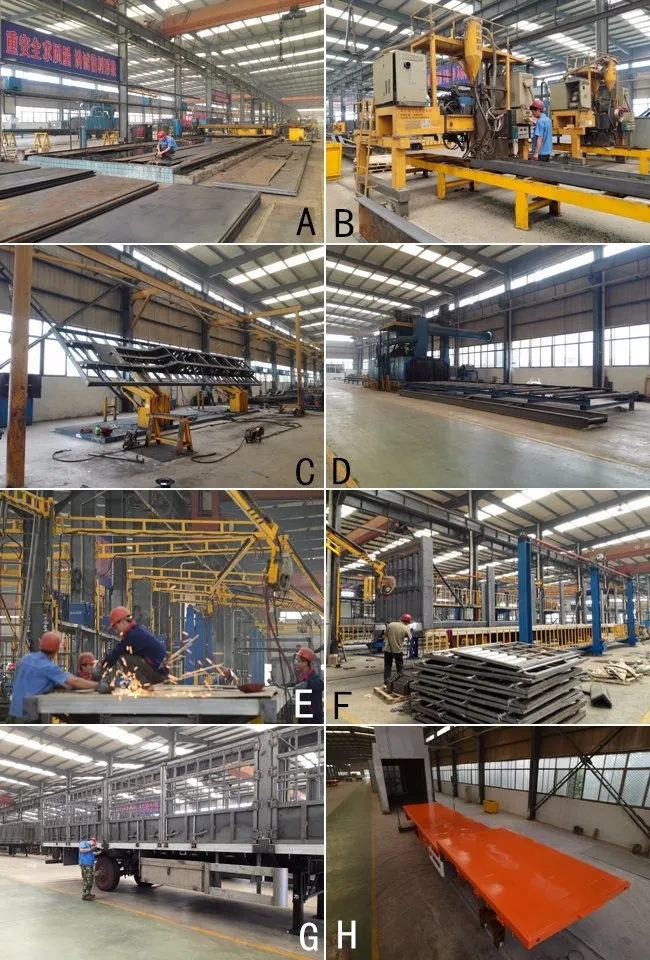

Introduction of production proces
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line

Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

Delivery
Wax spray

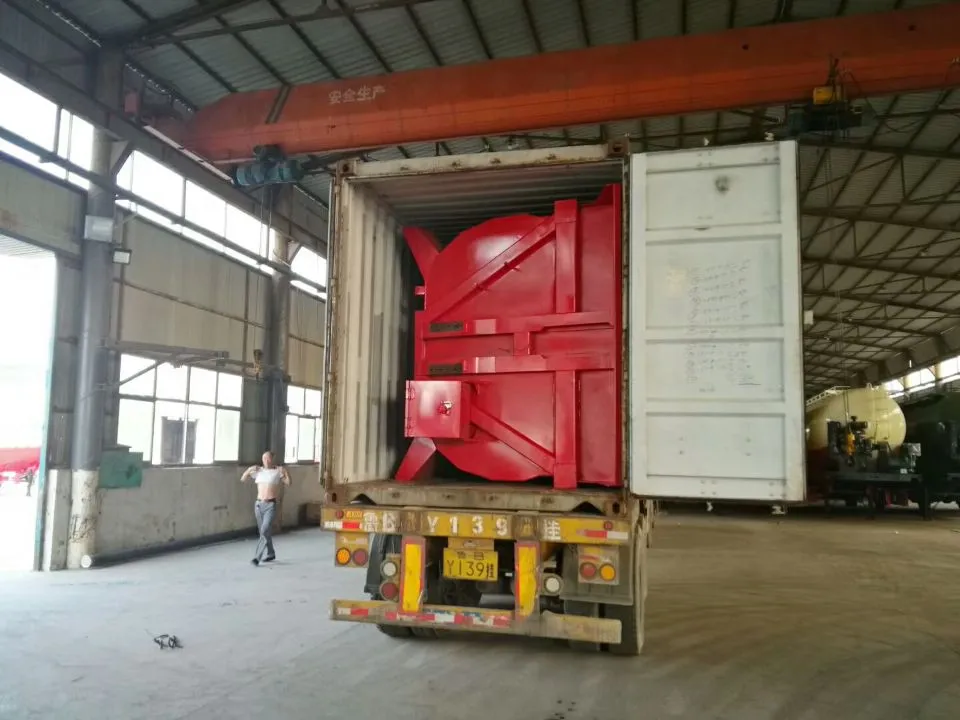

Take apart and load in 40HQ

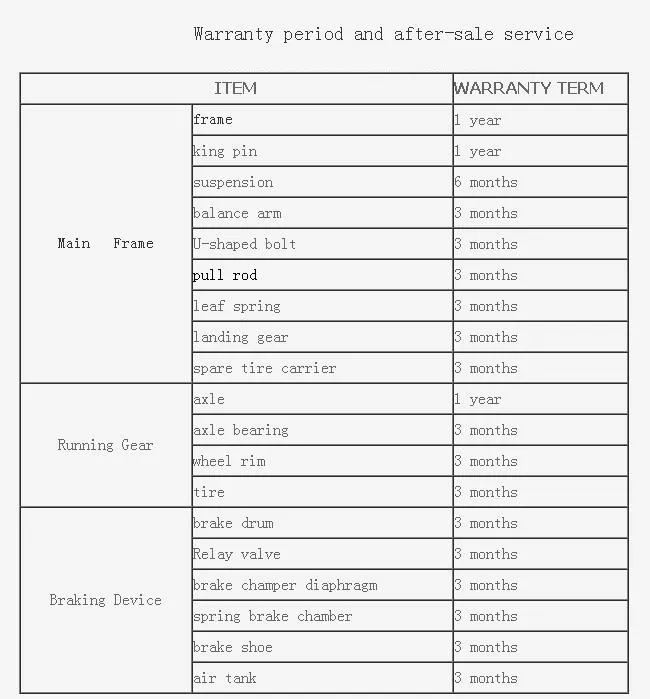

Warranty period and after sale service
Heavy Duty Tipping Trailer for Sand

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
