Product Description

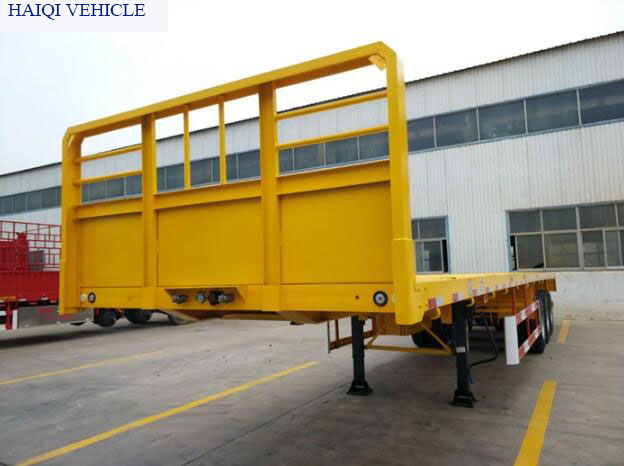

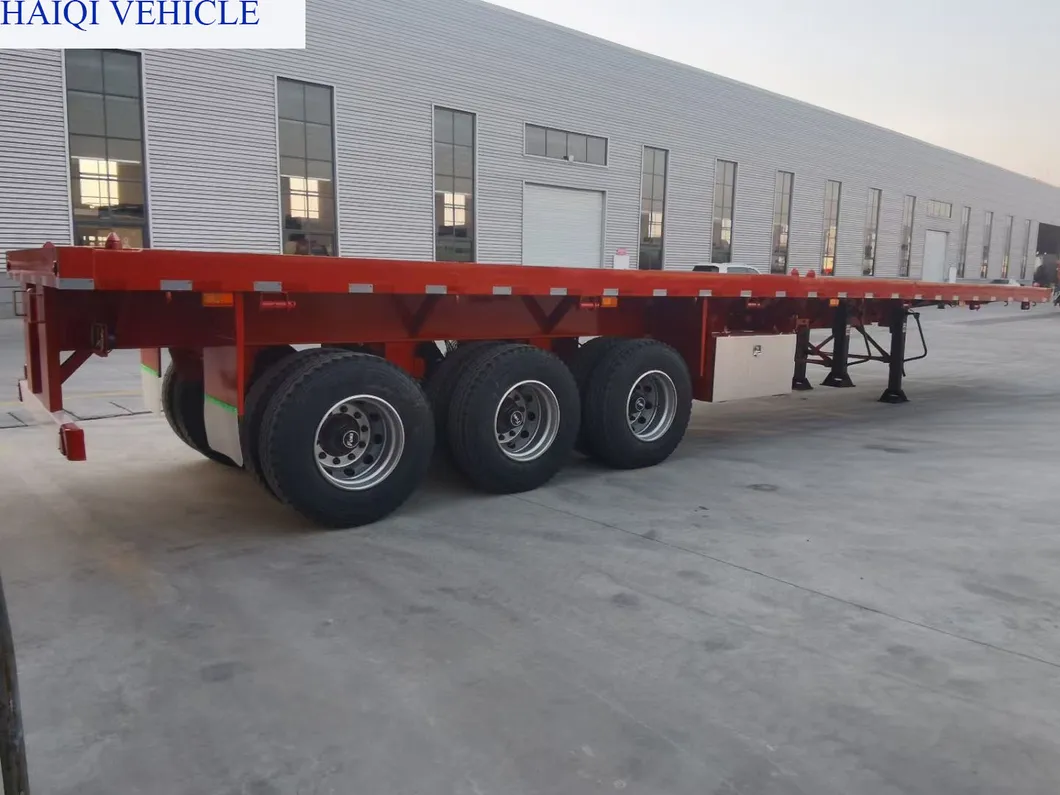

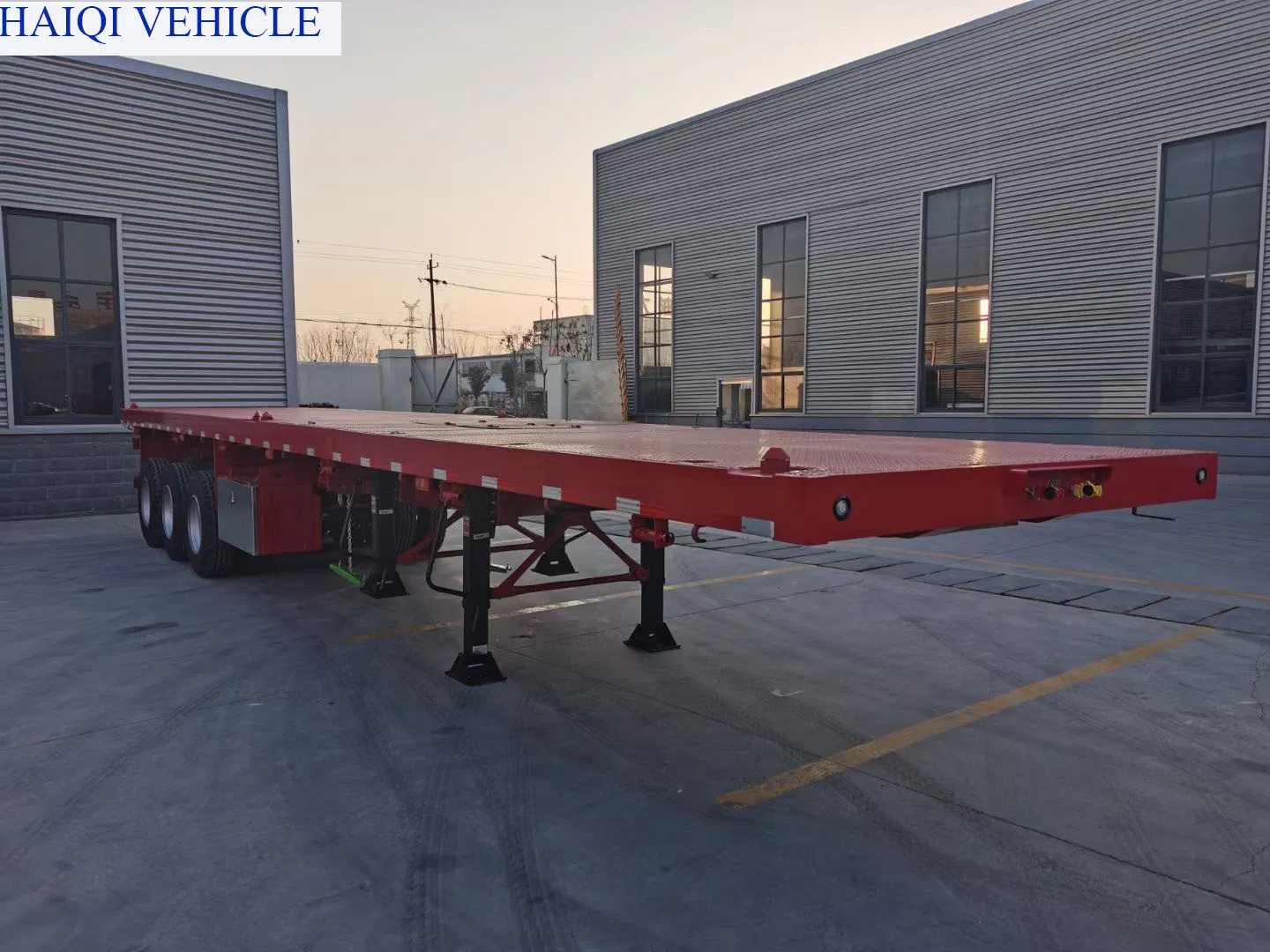

40FT 3 Axle Container Flatbed Semi-Trailer Specification

DIMENSIONS
Tare Weight	7000kg
Payload	60000kg
Total Weight	67000kg
Overall Length	12500mm
Overall Width	2490mm
Overall Height	1600mm
Wheel Track	1840mm
Wheelbase	6250mm+1800mm+1800mm/7500mm+1310mm+1310mm
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 14/16/18mm,width 140mm; Middle Flange 6/8/10mm ; Bottom Flange 16/18/20mm,width 140mm,Side Channel 14#/16#/18#/20# height.
Floor	Checkered plate 3/5mm thickness
Axle	Three Units of factory brand/FUWA/BPW brand 13/16 Ton Axle
Suspension	One couple of Tri-axle Mechanical Suspension
Leaf Spring	Six sets of 10-pieces 13/16X90mm Leaf Spring
King Pin	One unit of 2'/3.5' SAE standard bolted in Kingpin
Landing Gear	Two-speed , manual operating, 28 ton heavy duty factory brand/Fuwa/JOST Landing Gear
Wheel Rim	12+1 units of 8.5-20/9.0-22.5 Wheel Rim
Tyre	12+1 units of 12.00R20/12R22.5 factory brand/Triangle brand Radial Tyre
Twist Lock	Twelve nos. of ISO standard twist lock for 1x20ft;2x20ft;1x40ft container, the central locks can be laid down.
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Pneumatic Braking System	A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of RE 6 relay valve; Six units of T30/30 spring brake chamber; two units of 45L air tanks; two units of standard copper air-connector.
Electrical System	One unit of 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable.
Painting	Sand blasting processing on rust - proof protection. One coat of anticorrosive primer Two coats of finish urethane paint Color as customer choice
Accessory	One standard tool box
Water tank	100 liters water tank with tap
Cable winch	Total 16 pcs cable winches
Front chest	With one pc of front board

Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

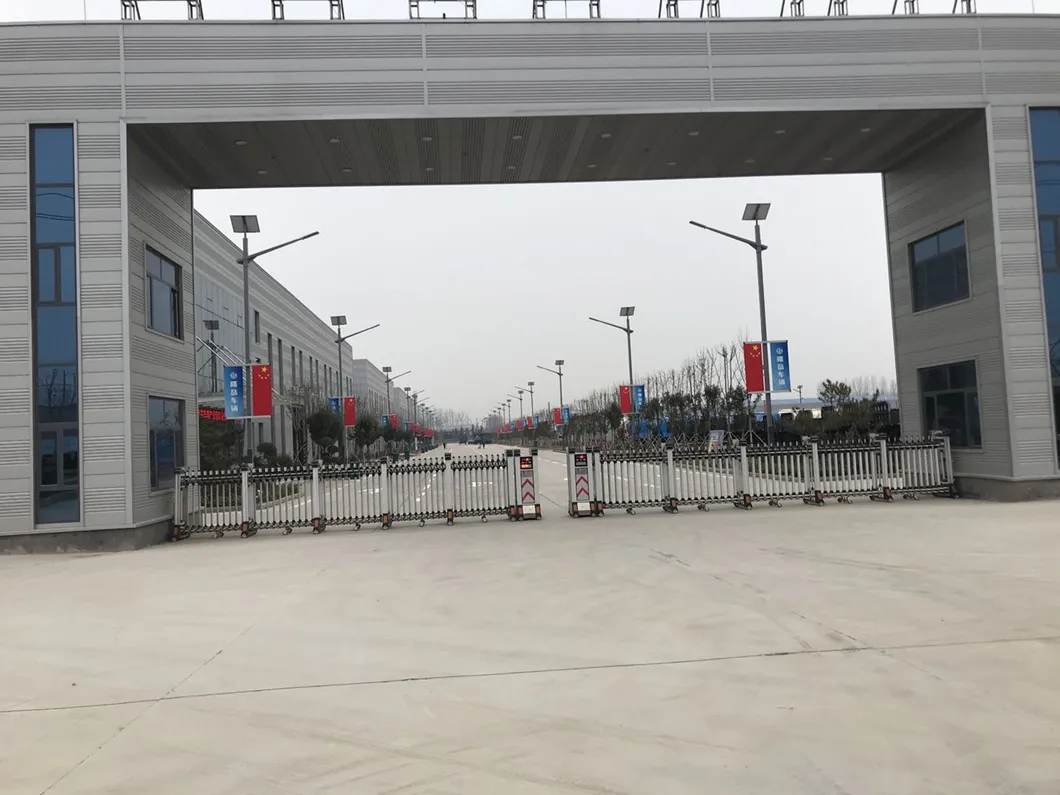

Shandong Haiqi Vehicle sales Co., Ltd was found in 2004; We are TRUCKS and SEMI TRAILERS manufacturing factory and we specialized in domestic and export all types of semi trailers production. Our factory locates in Liangshan industry zone which is called Max. Scale Semi Trailer Manufacturing Base in China.
We have modernized workshops which installed with series of perfect semi trailer production lines and manufacturing equipment. We sincerely cooperate with friends to create brilliance.

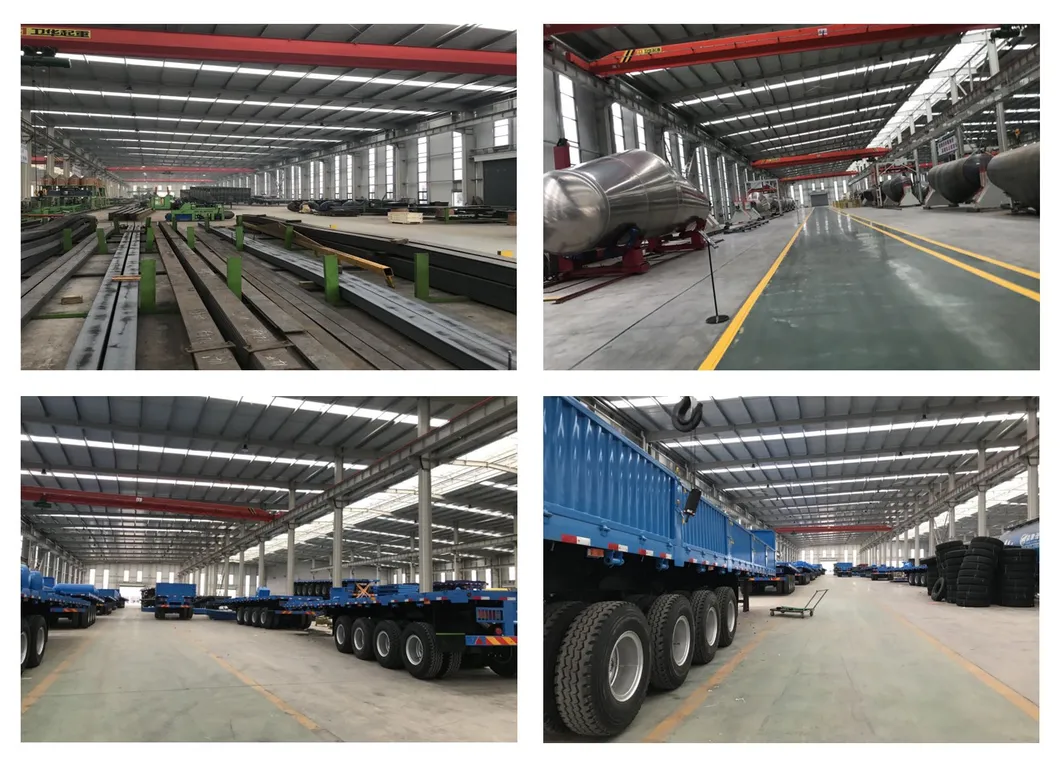

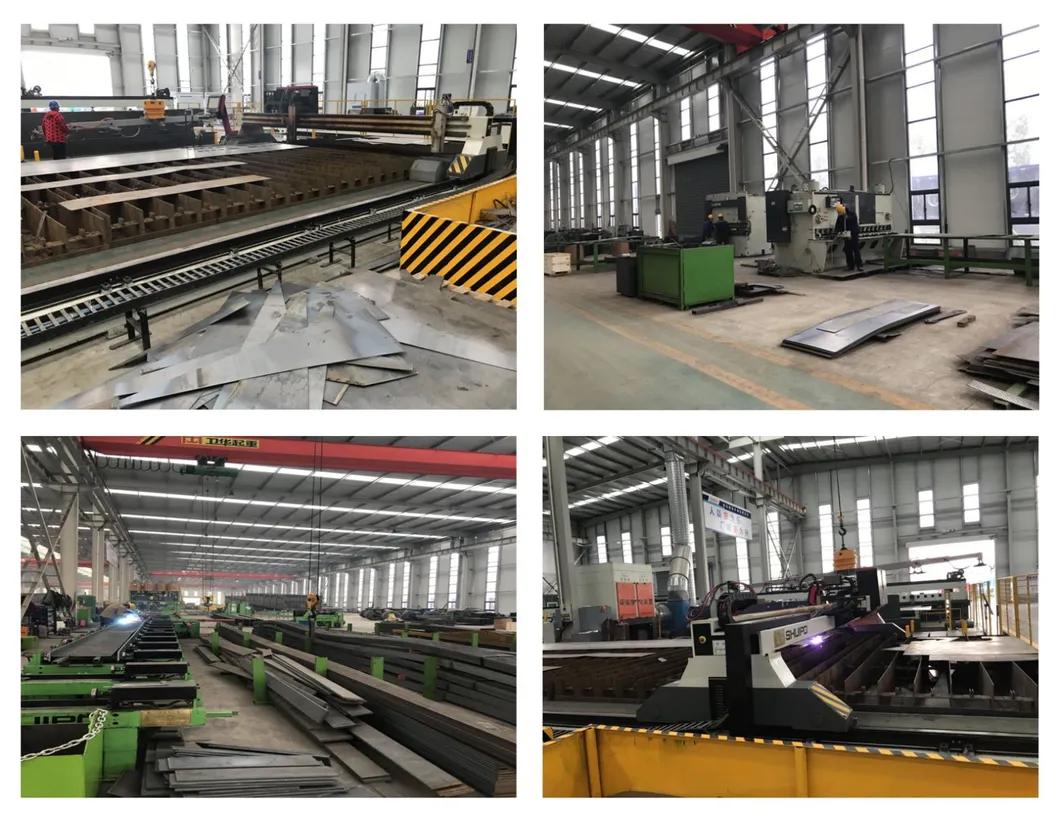

FACTORY WORKSHOPS:

Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

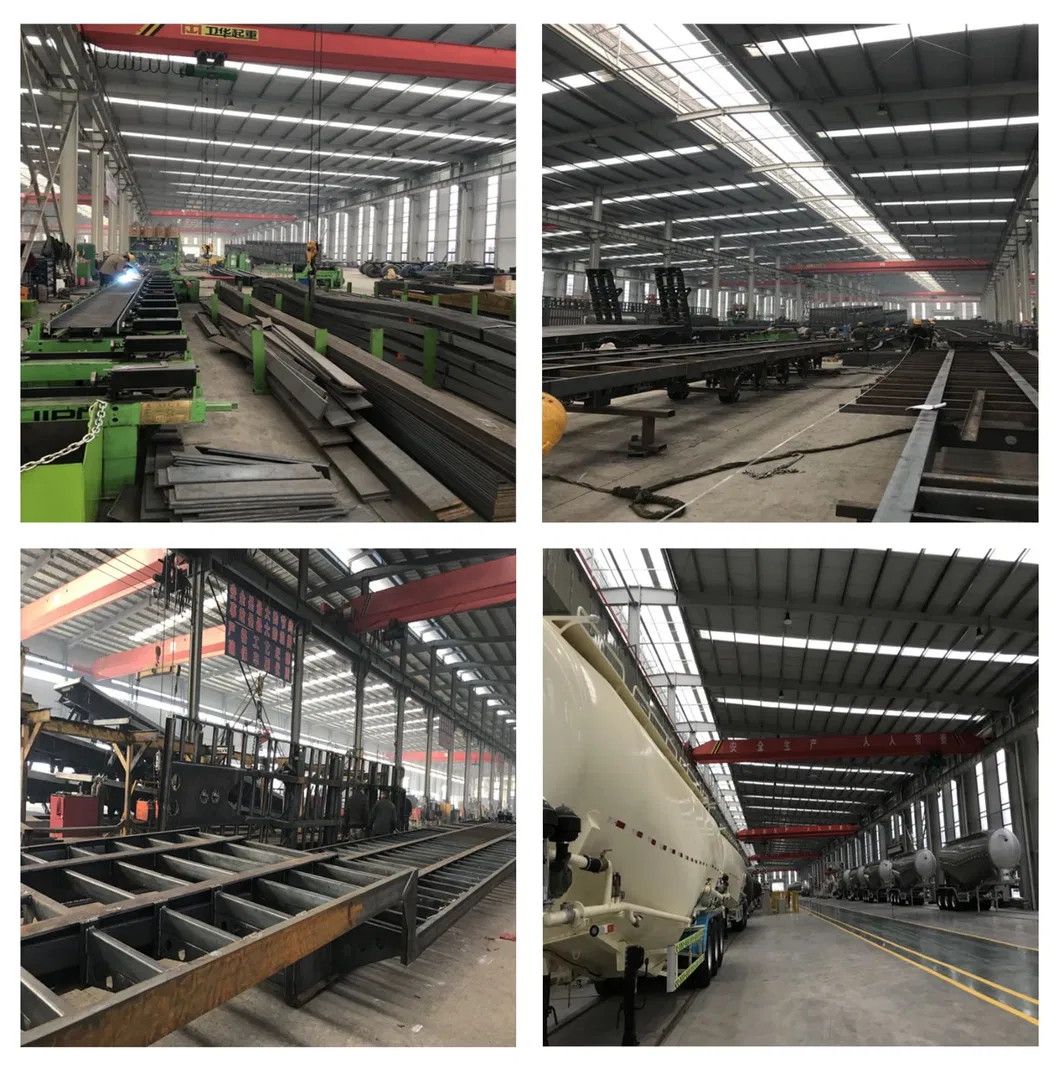

INTRODUCTION OF PRODUCTION PROCESS
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F,G.Welding by experienced worker
H.Dust-free painting line
Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

PRODUCTS LINE EQUIPMENTS:
A.PLASMA CUTTING
B.HYDRAULIC BENDING MACHINE
C.MAINBEAM ASSEMBLY PLATFORM
D.PLATE ROLLING WELDING MACHINE
Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

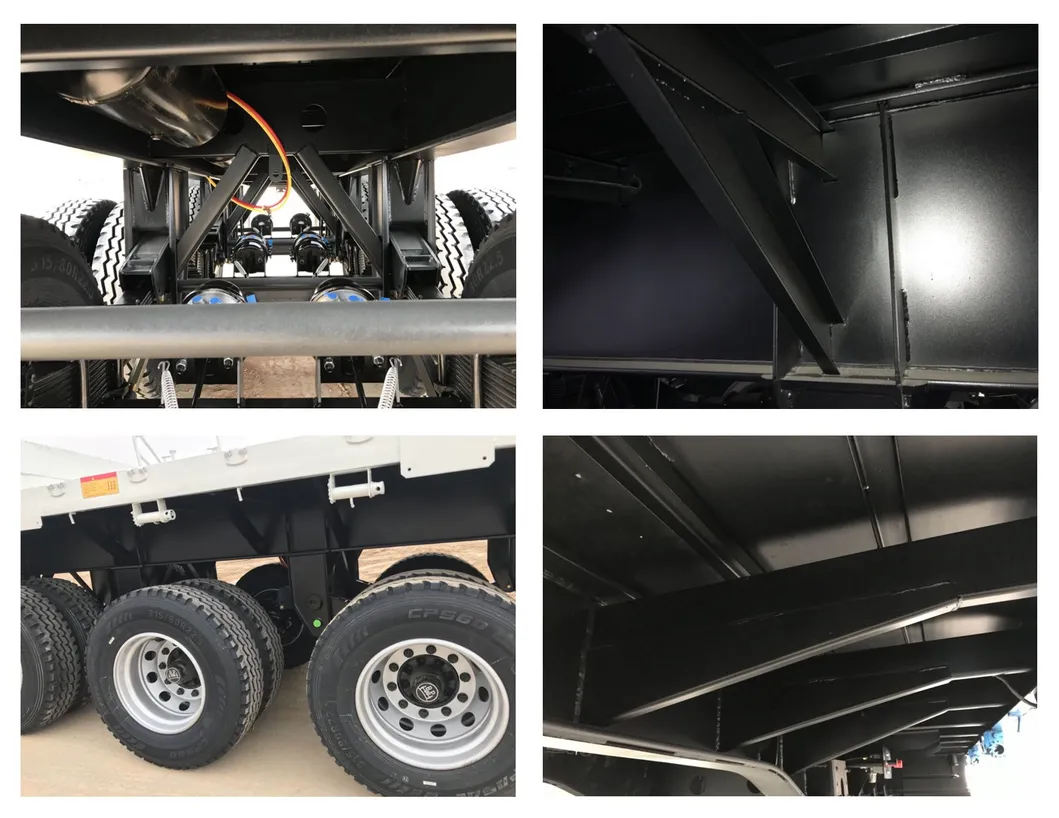

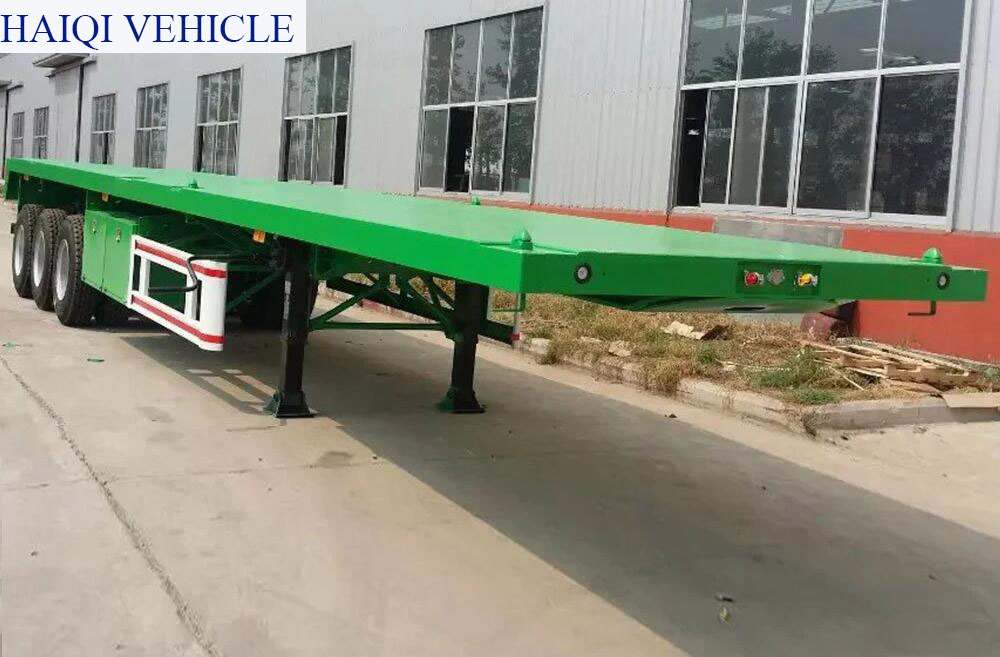

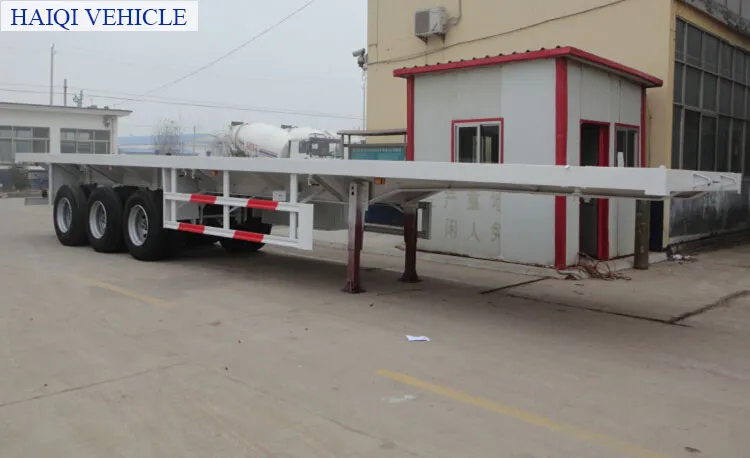

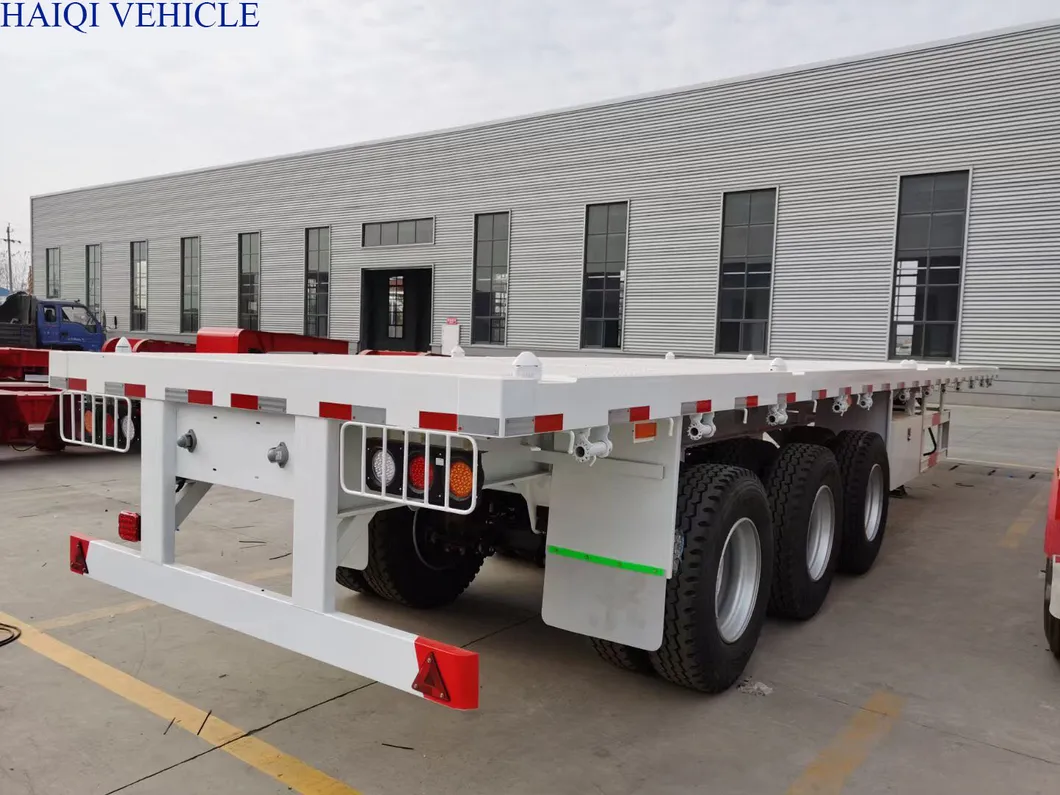

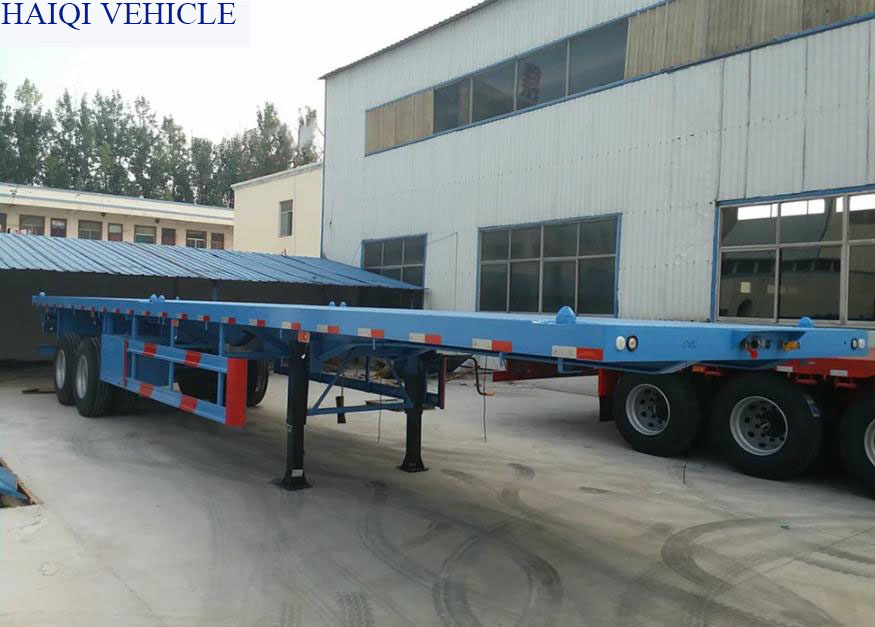

PRODUCTON DETAILS: Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

Trailer advantages description
· More than 15 years professional design and production experience.
· Design and produce according to your requirements
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is using submerged arc welding process.
· Famous brand trailer parts used, like bpw/fuwa axle, triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
CUSTOMERS VISIT:
Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

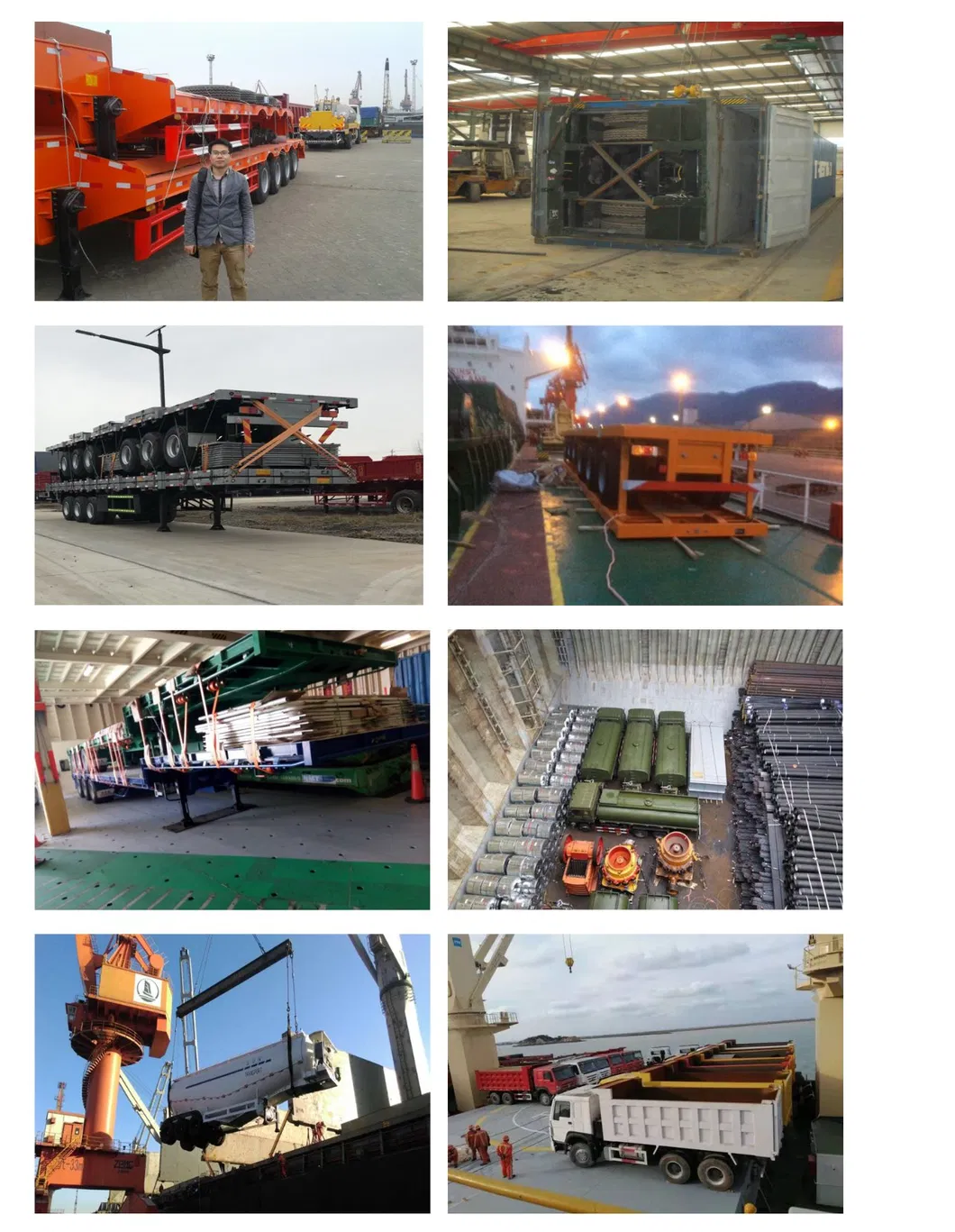

TRAILER &TRUCKS EXPORT AND DELIVERY:
Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

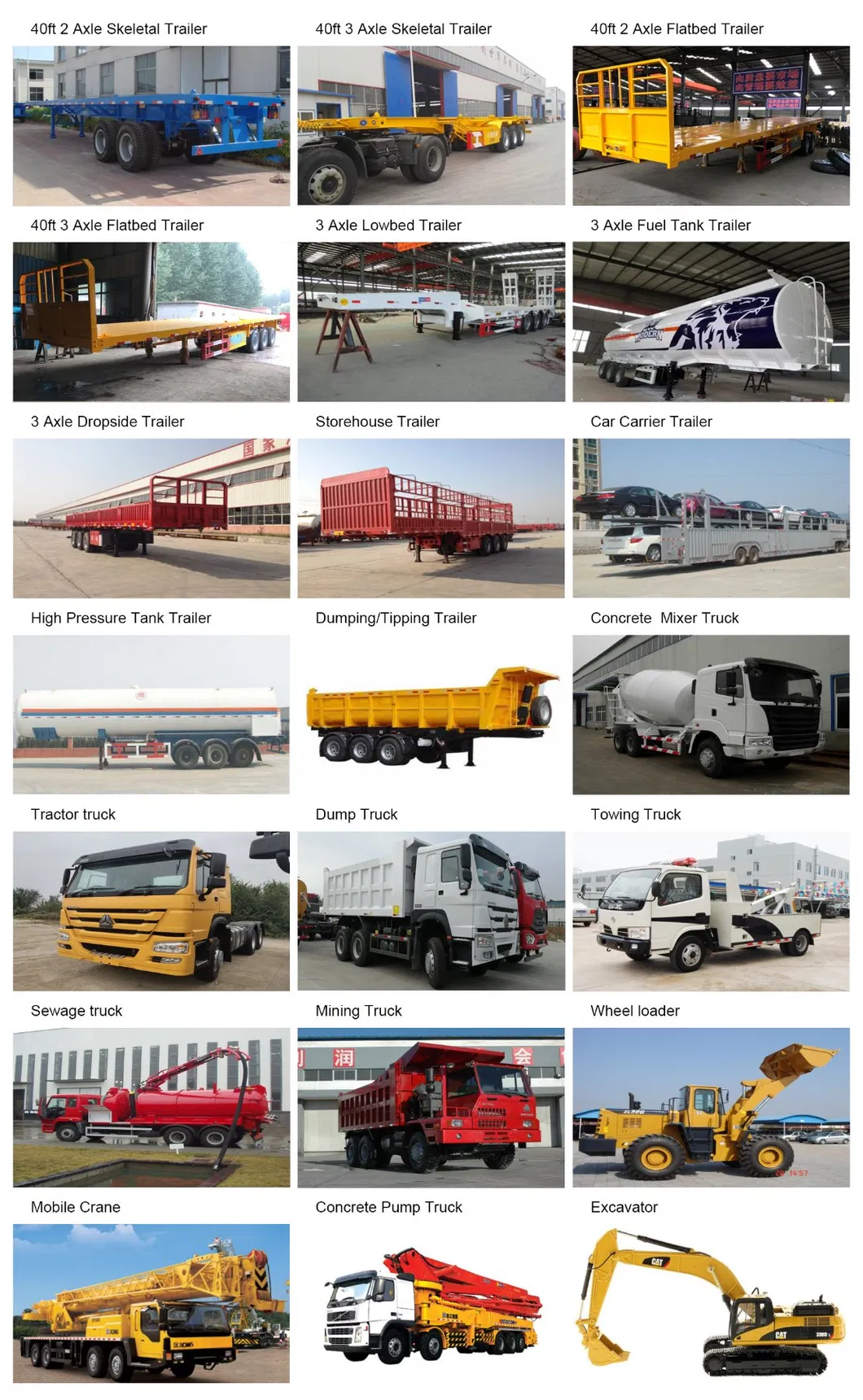

OUR PRODUCTS LIST:
Heavy Load 40FT 3 Axle Bulk Cargo Flatdeck Truck Trailer for Goods Transportation

FAQ:
1. How about the quality of your products?Can I trust you?
We have 15 years of trucks and trailer production experience . Guarantee Quality and Delivery !Since our establishment, we have considered
"products quality first" as our principle.
2. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
3.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages.
4. How about your delivery time?
Generally, it will take 7 ~ 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What is your trailer warranty?
The trailer mainbeam is 12 months warranty,other parts are 6 months warranty.
