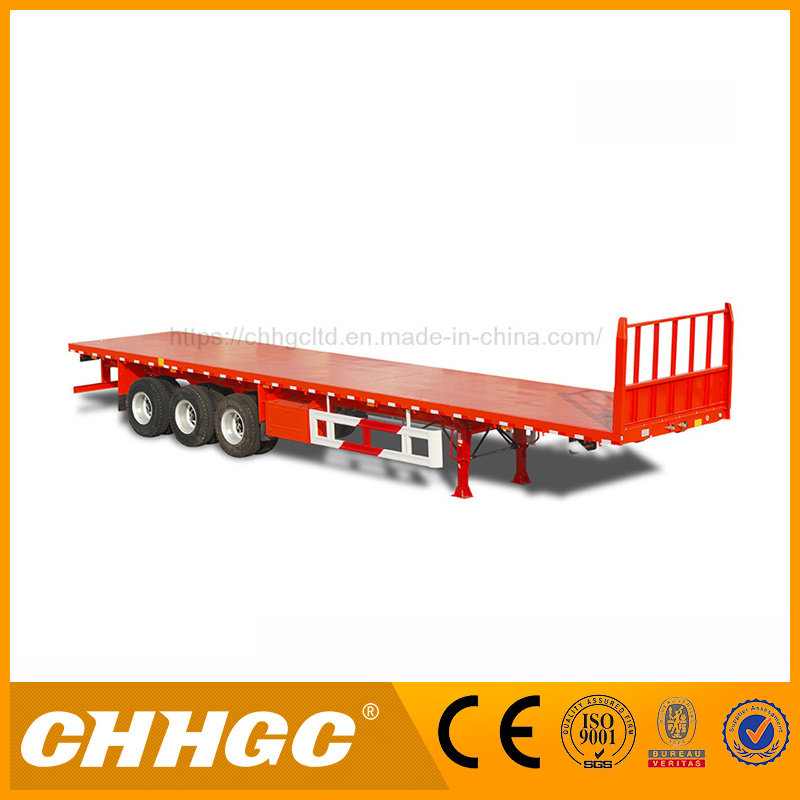

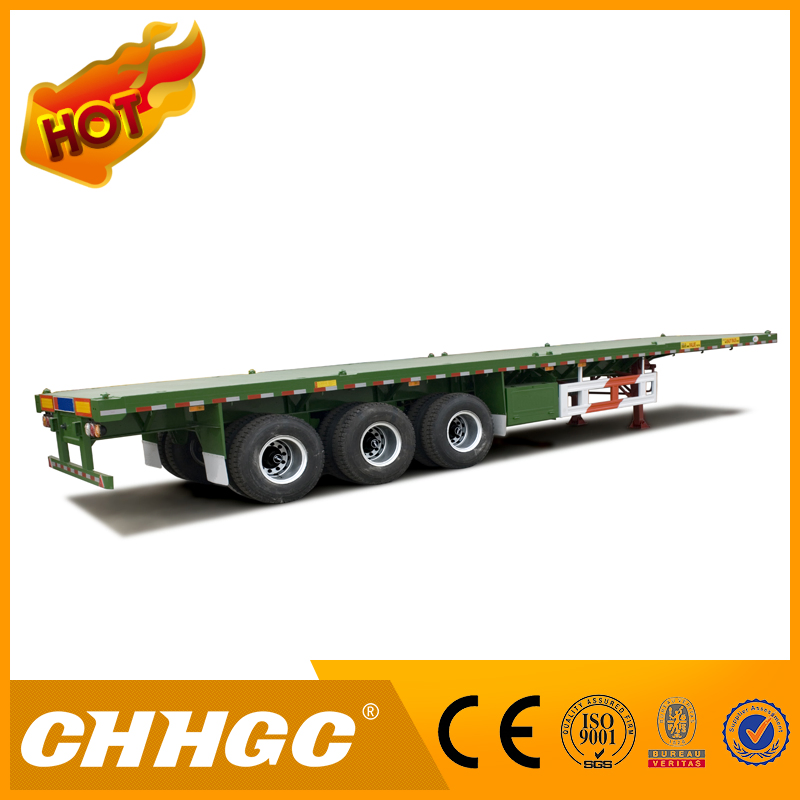

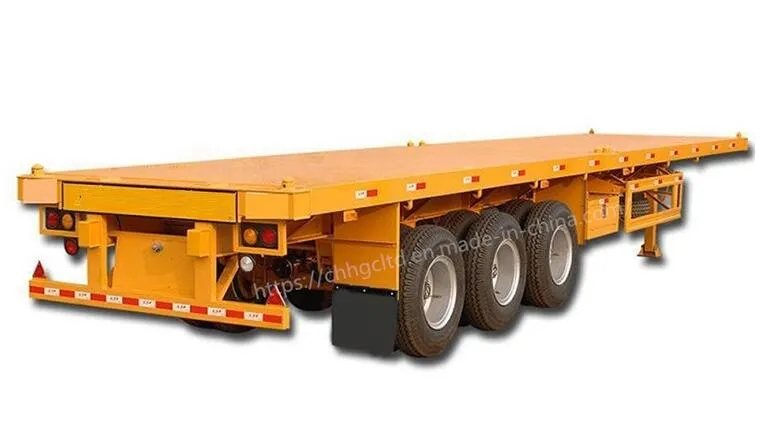

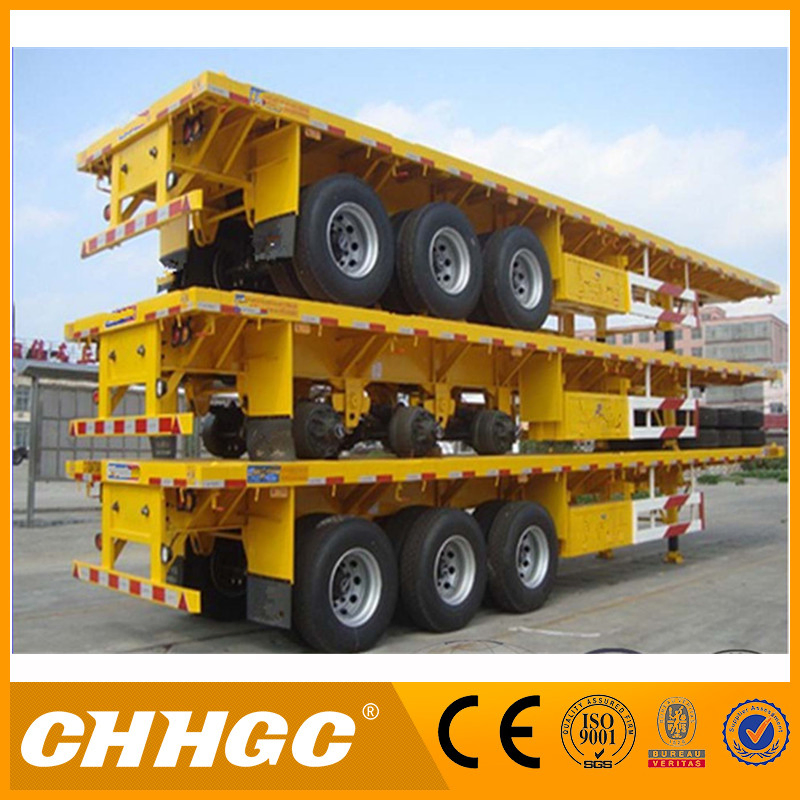

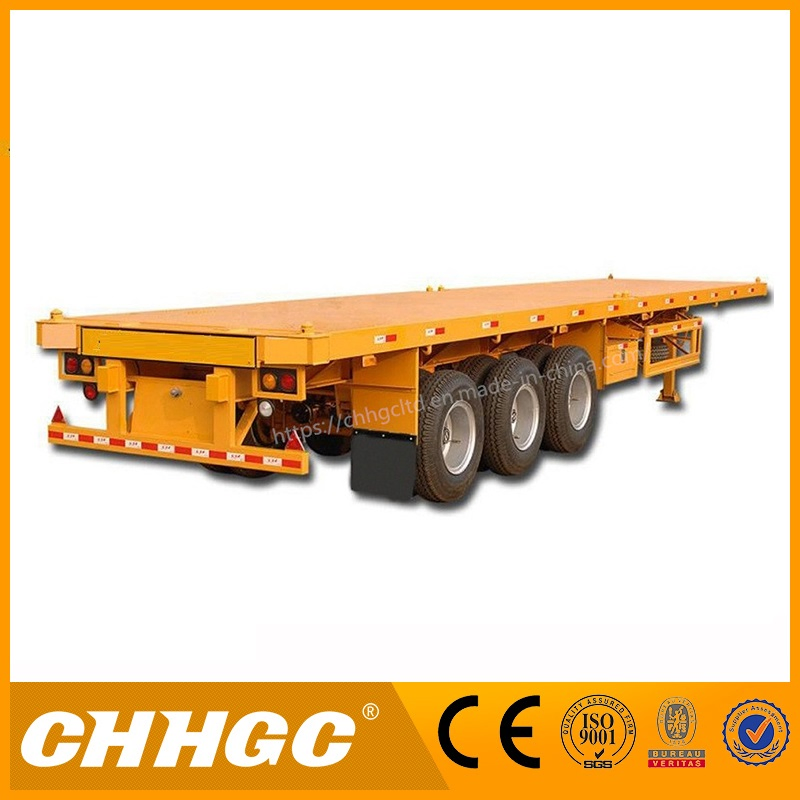

Hot Sale 20FT/40FT Container Cargo Delivery Flatbed Truck Semi Trailer

Product Description

Overall Dimension 12340mm*2490mm*1600mm
Tare Weight 7630kg Pay Load 40ton
King Pin Setting 1240mm Rear Overhang 1690mm
Track 1840mm Wheel base 6800mm+1305mm+1305mm
Running Gear
Suspension Tri-axle 11-pcs leaf spring suspension with equalizer beam
Tires 11.00R20, 12units
Axles CNHTC axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; Parking brake
Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235
King Pin Size: 50# (2'') or 90#(3.5''); Type: Welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Twist Locks 12 lock positions with 8 twist locks
Flatbed Floor Checkered sheet, thickness 2.5mm
Toolbox 1 tool box, length 1.5m
Electrical & Paint
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket
Paint Color upon request

Overall Dimension		12340mm2490mm1600mm
Tare Weight		7630kg	Pay Load	40ton
King Pin Setting		1240mm	Rear Overhang	1690mm
Track		1840mm	Wheel base	6800mm+1305mm+1305mm
Running Gear
Suspension	Tri-axle 11-pcs leaf spring suspension with equalizer beam
Tires	11.00R20, 12units
Axles	3 axle, 13T capacity each
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam	Mild Alloy Q235
King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 30Ton
Twist Locks	12 lock positions with 8 twist locks
Flatbed Floor	Checkered sheet, thickness 2.5mm
Toolbox	1 tool box, length 1.5m
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Color upon request

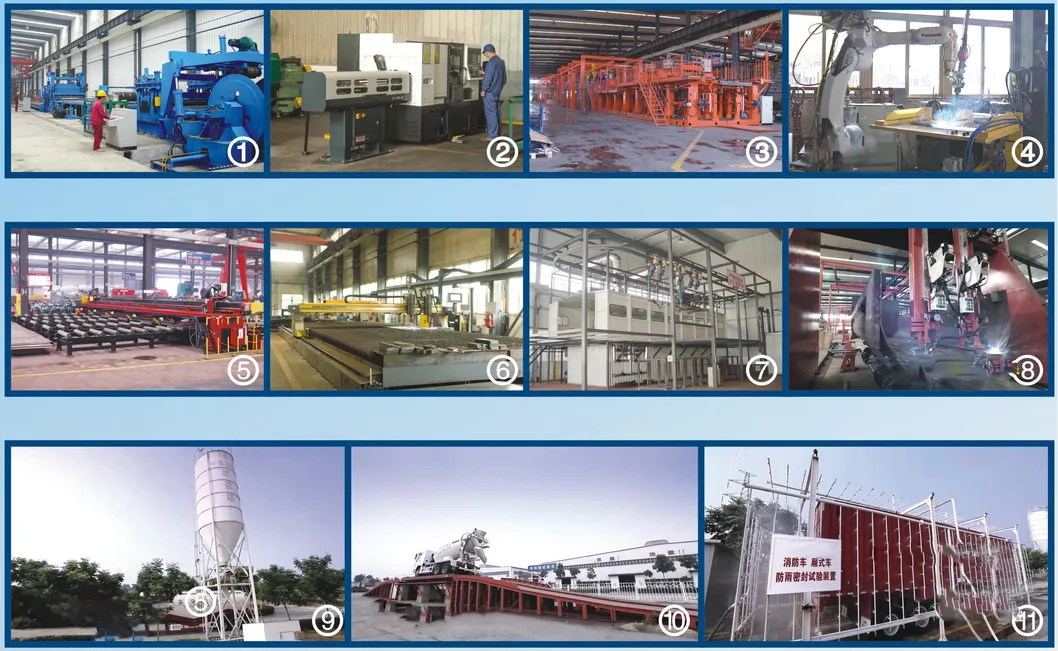

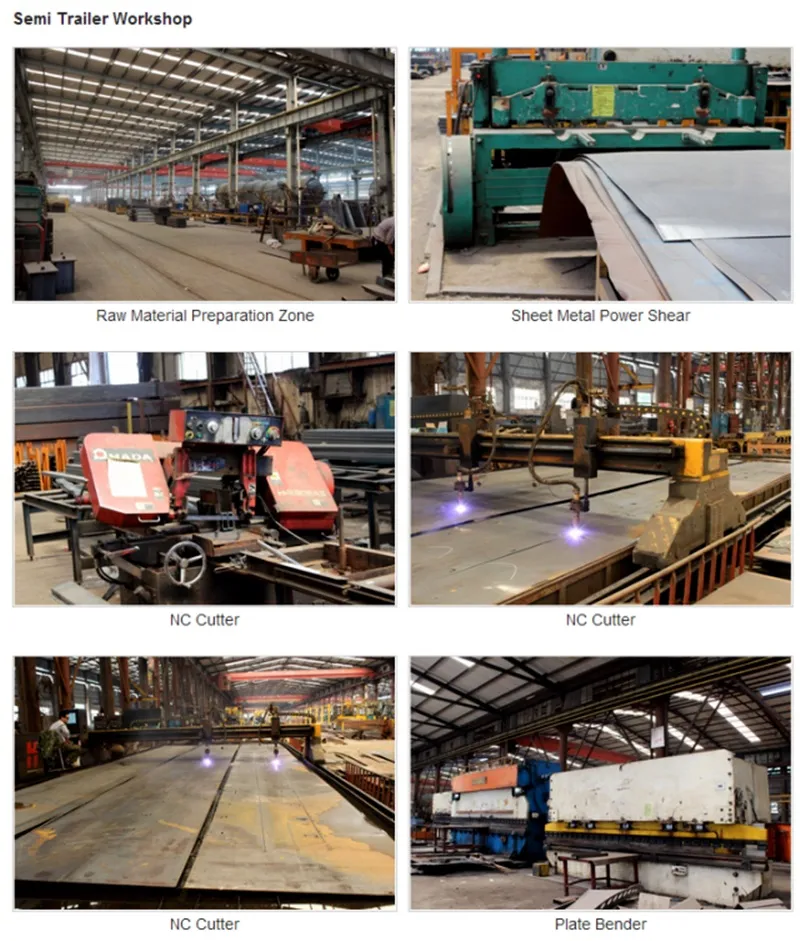

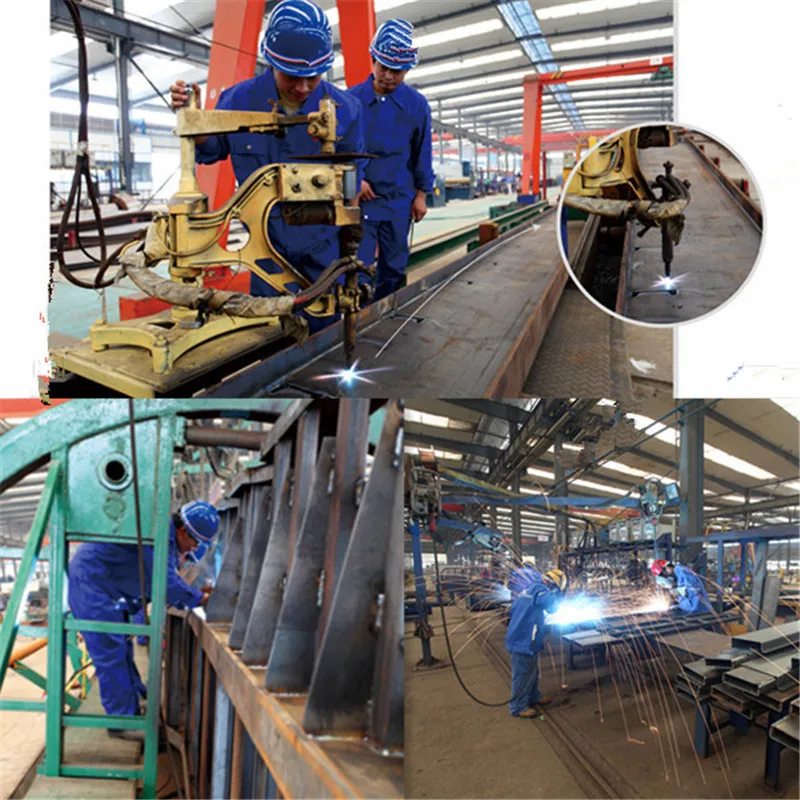

Factory Show:
Hot Sale 20FT/40FT Container Cargo Delivery Flatbed Truck Semi Trailer

--Company information

Henan Haiheng Import and Export Co., Ltd has been Established in 2004, We are able to supply
construction and mining equipment and various Semi-trailers ( Stake semi-trailer train , Skeletal
container trailer, Flatbed container semi trailer, Terminal trailer, Semi-trailer with side wall, Stake
semi-trailer, Stake semi-trailer with goose neck, Stake semi-trailer with long/short locks, special
semi-trailer for carrying coal, Curtain type semi-trailer ), tank trailer series ( Concrete mixer , Bulk
grain semi-trailer, Bulk cement truck , Bulk cement semi-trailer , Chemical liquid semi trailer , oil
tank semitrailer with heating heating device , stainless fuel tank semi-trailer Aluminum fuel tank
semitrailer,Oil transport trailer train),dump truck series,Special purpose semi-trailer(Stake tipper
trailer , side dumping semi trailer , Front-mounted dumping semi trailer , Tipper semi-trailer with
front mounted cylinder,Coiled sheet transportation semi trailer,farm tractor with farm implements.
