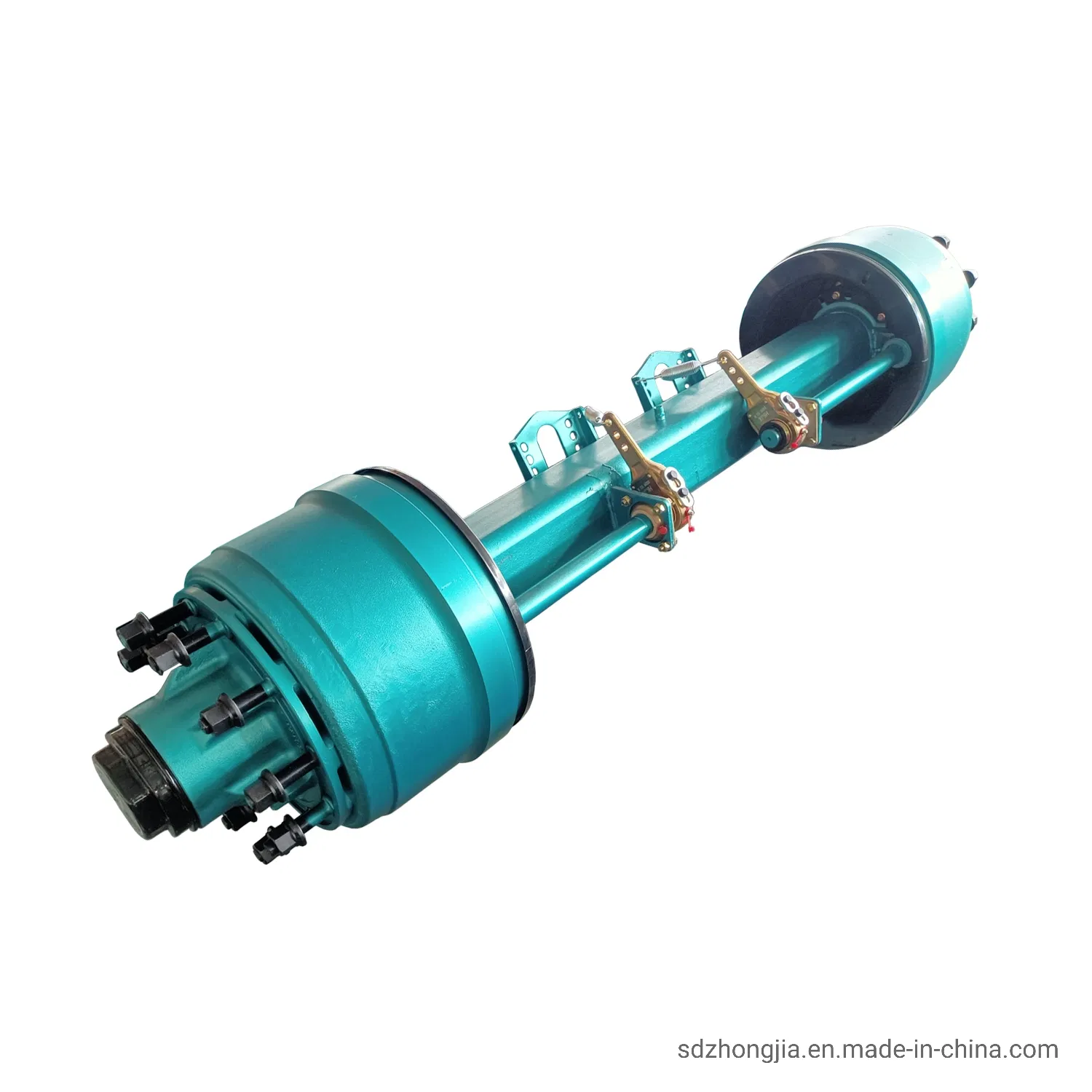

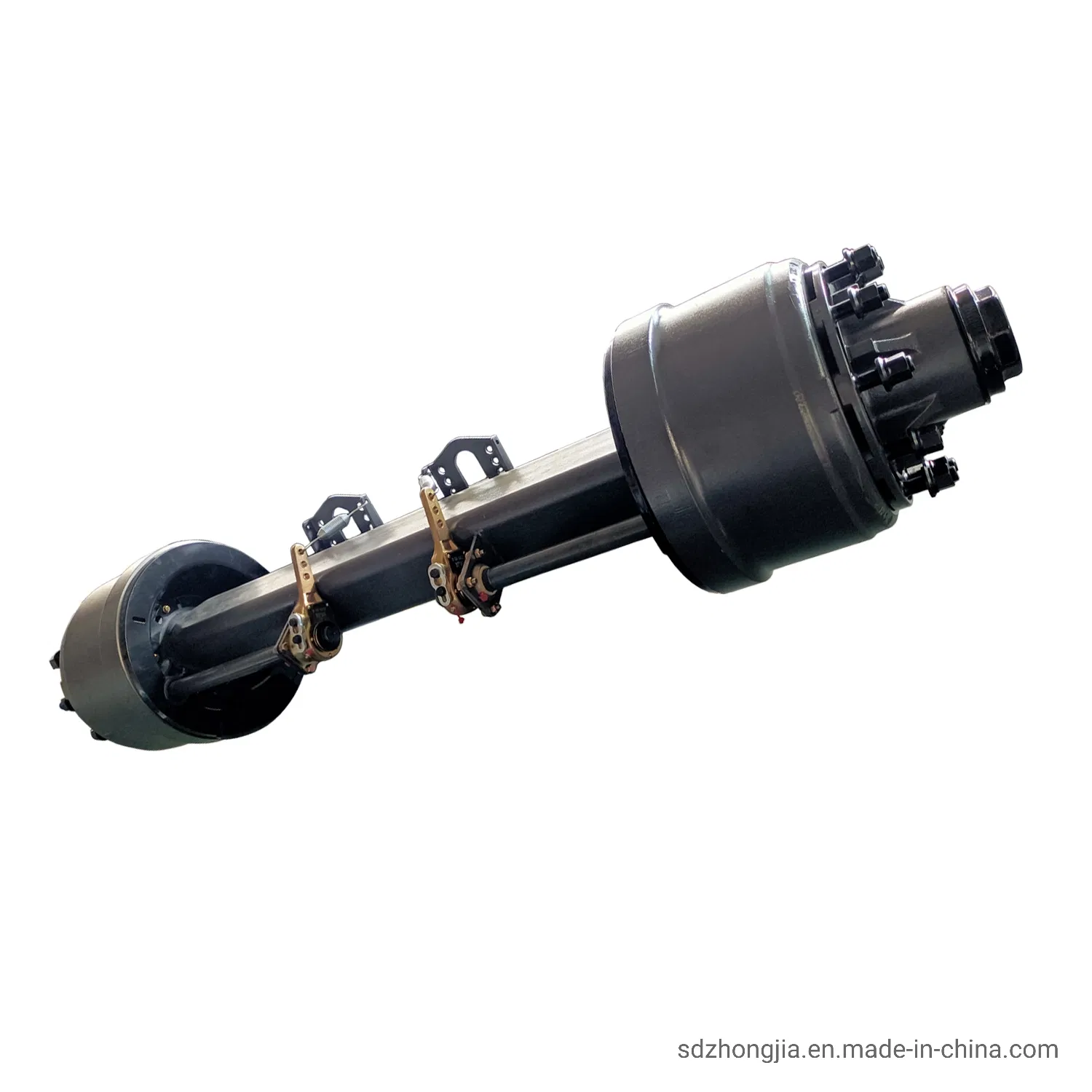

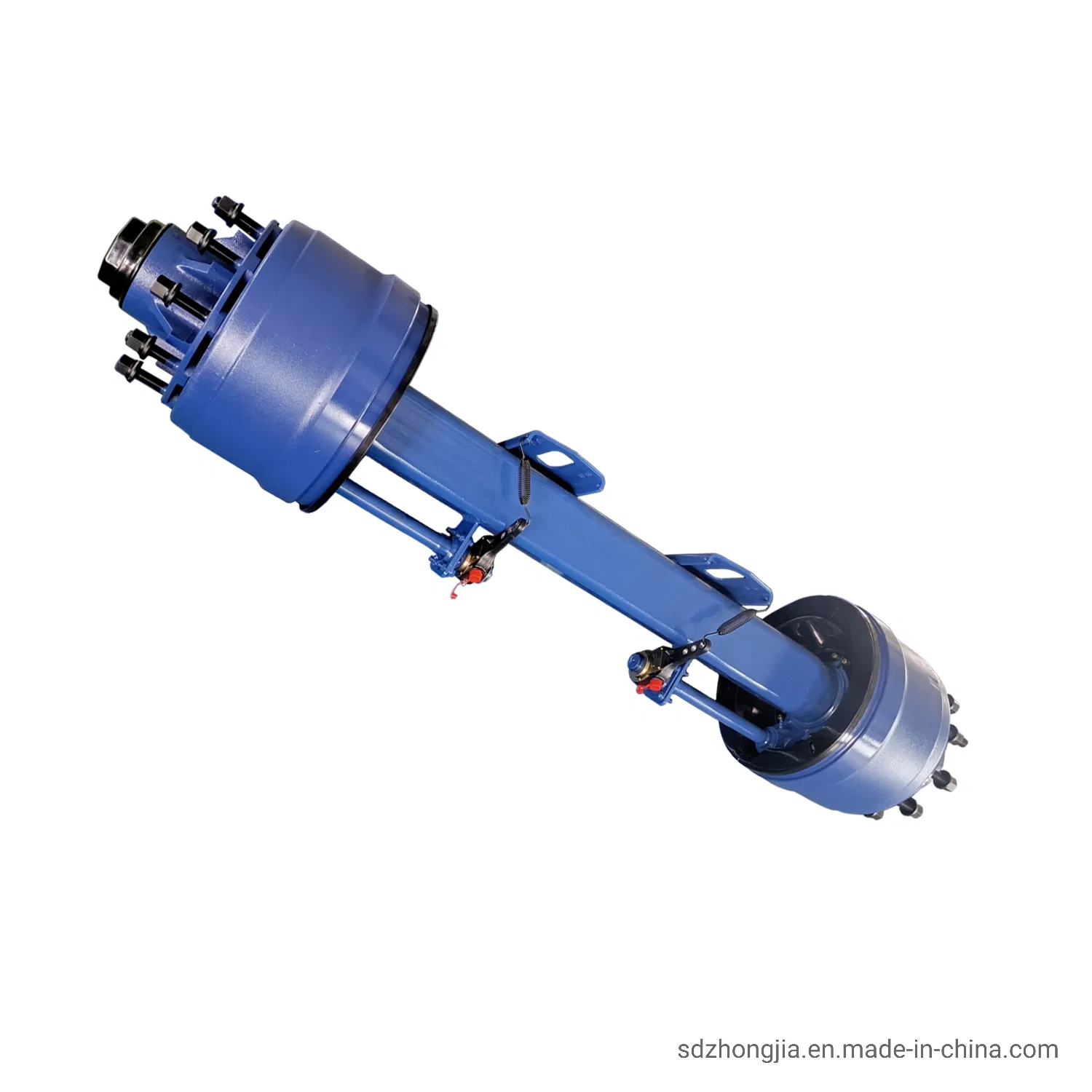

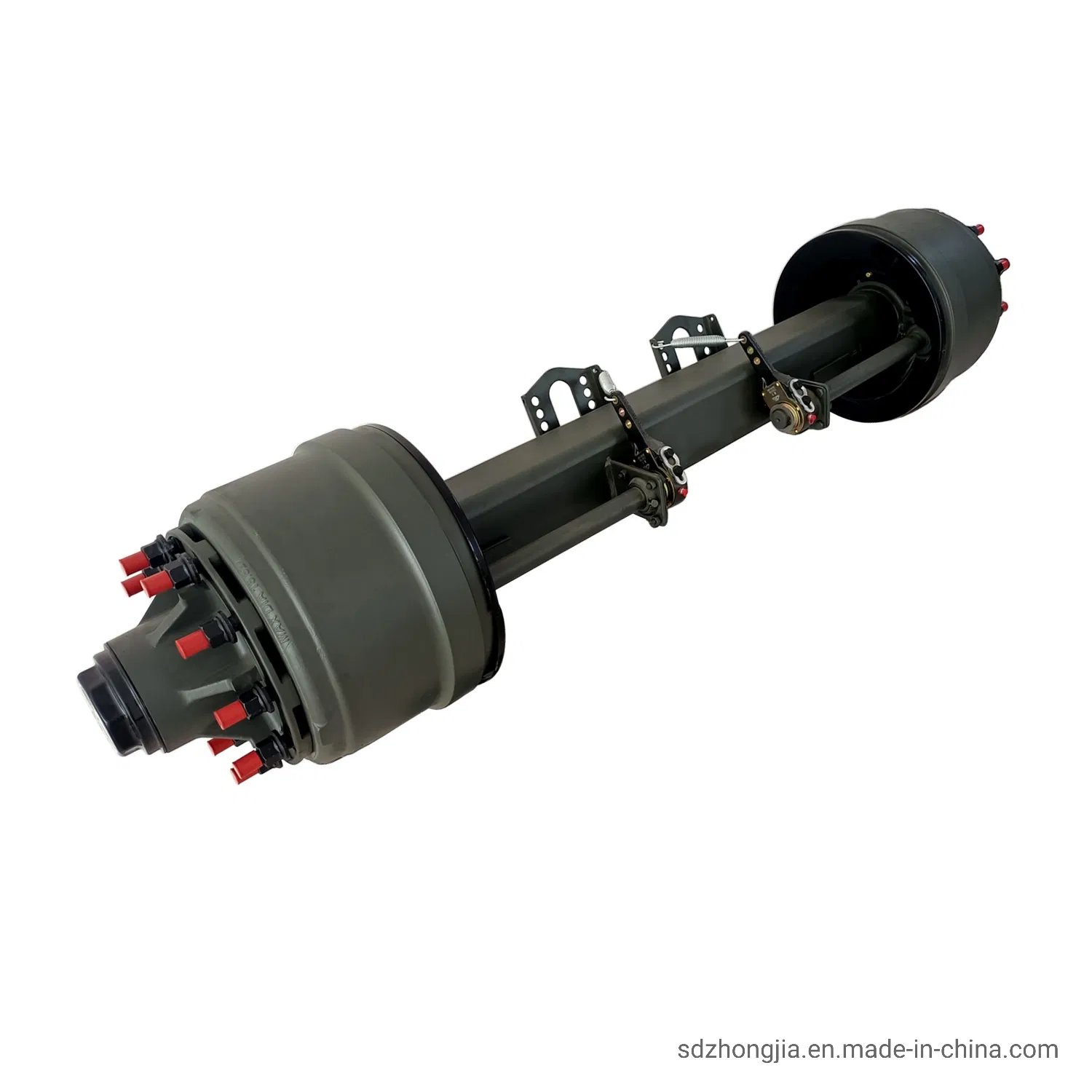

Inboard Fuwa Axle 13t 15t for Auto Spare Parts and Truck Spare Parts
Product Description:1) Axle Type: American type, Germany type, Fuwa type etc2) Axle Beam: Round or Square Beam (150*150mm or 127*127mm)3) Application: Trailer, Semi-trailer, Low-bed trailers, Lorry, Heavy duty trucks4) Max Capacity: 11T/12T/13T/16T/20T5) Track: 1820/1840/1850 (sizes are optional)6) ......
Send Inquiry
Product Description
Product Description:
1) Axle Type: American type, Germany type, Fuwa type etc
2) Axle Beam: Round or Square Beam (150*150mm or 127*127mm)
3) Application: Trailer, Semi-trailer, Low-bed trailers, Lorry, Heavy duty trucks
4) Max Capacity: 11T/12T/13T/16T/20T
5) Track: 1820/1840/1850 (sizes are optional)
6) Brake: 420*180/420*220 (sizes are optional)
7) ABS brake can be installed
8) Customized semi-trailer axles are available
Product Specification:
1) Axle Type: American type, Germany type, Fuwa type etc
2) Axle Beam: Round or Square Beam (150*150mm or 127*127mm)
3) Application: Trailer, Semi-trailer, Low-bed trailers, Lorry, Heavy duty trucks
4) Max Capacity: 11T/12T/13T/16T/20T
5) Track: 1820/1840/1850 (sizes are optional)
6) Brake: 420*180/420*220 (sizes are optional)
7) ABS brake can be installed
8) Customized semi-trailer axles are available
Product Specification:
| Max capacity(T) | Track (mm) | Brake size (mm) | Center distance of spring seat (mm) | Axle Tube(mm) | Center distance of brake chamber (mm) | Wheel Fixing | Total length (mm) | Recommended wheel rim | Weight(kgs) | Bearing | ||
| Studs | P.C.D (mm) | Hole diameter (mm) | ||||||||||
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 10-M22x1.5 ISO | 335 | 281 | 2185 | 7.5v-20 | 340 | Outer 518445/10 Inner 518445/10 |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 10-M22x1.5 ISO | 285.75 | 221 | 2185 | 7.5v-20 | 340 | |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 8-M20x1.5 JAP | 285 | 221 | 2185 | 7.5v-20 | 340 | |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 | 8-M30x2 ISO | 285.75 | 221 | 2185 | 7.5v-20 | 358 | |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 | 10-M22x1.5 ISO | 335 | 281 | 2185 | 7.5v-20 | 358 | |
| 15 | 1850 | Φ420*180 | ≥940 | 150*150*14 | 400 | 10-M22x1.5 ISO | 335 | 281 | 2205 | 8.0v-20 | 398 | Outer 518445/10 Inner 220149/10 |
| 16 | 1850 | Φ420*220 | ≥940 | 150*150*14 | 360 | 10-M22x1.5 ISO | 335 | 281 | 2205 | 8.0v-20 | 398 | |
| 20 | 1850 | Φ420*220 | ≥940 | 150*150*16 | 360 | 10-M24x1.5 ISO | 335 | 281 | 2270 | 8.0v-20 | 430 | Outer 518445/10 Inner 32222/10 |
