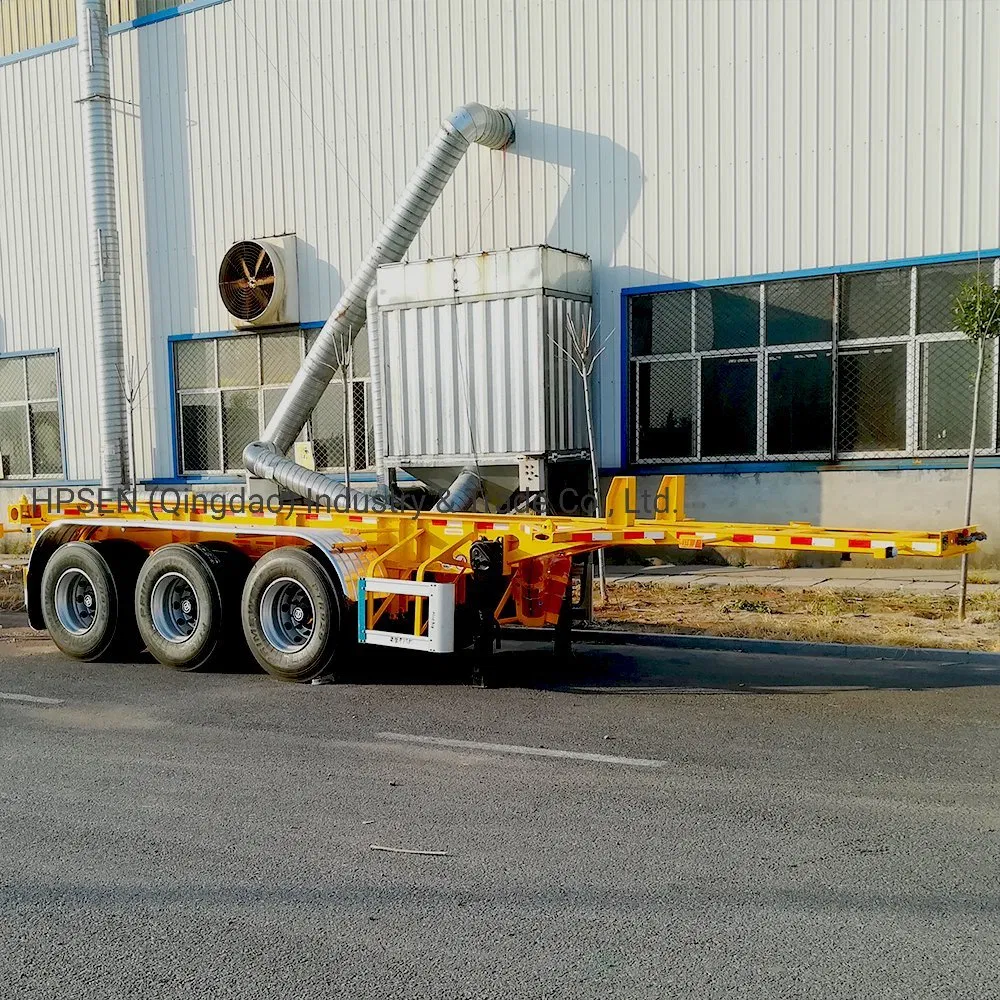

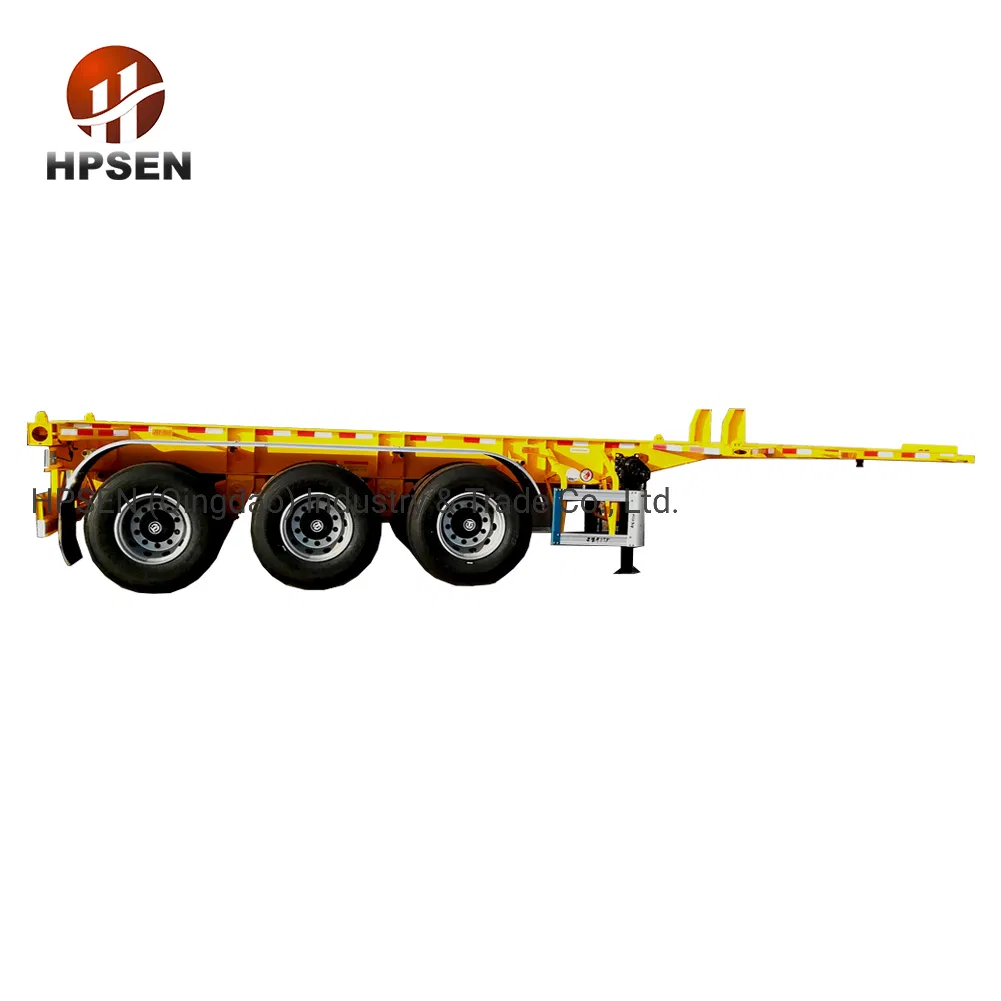

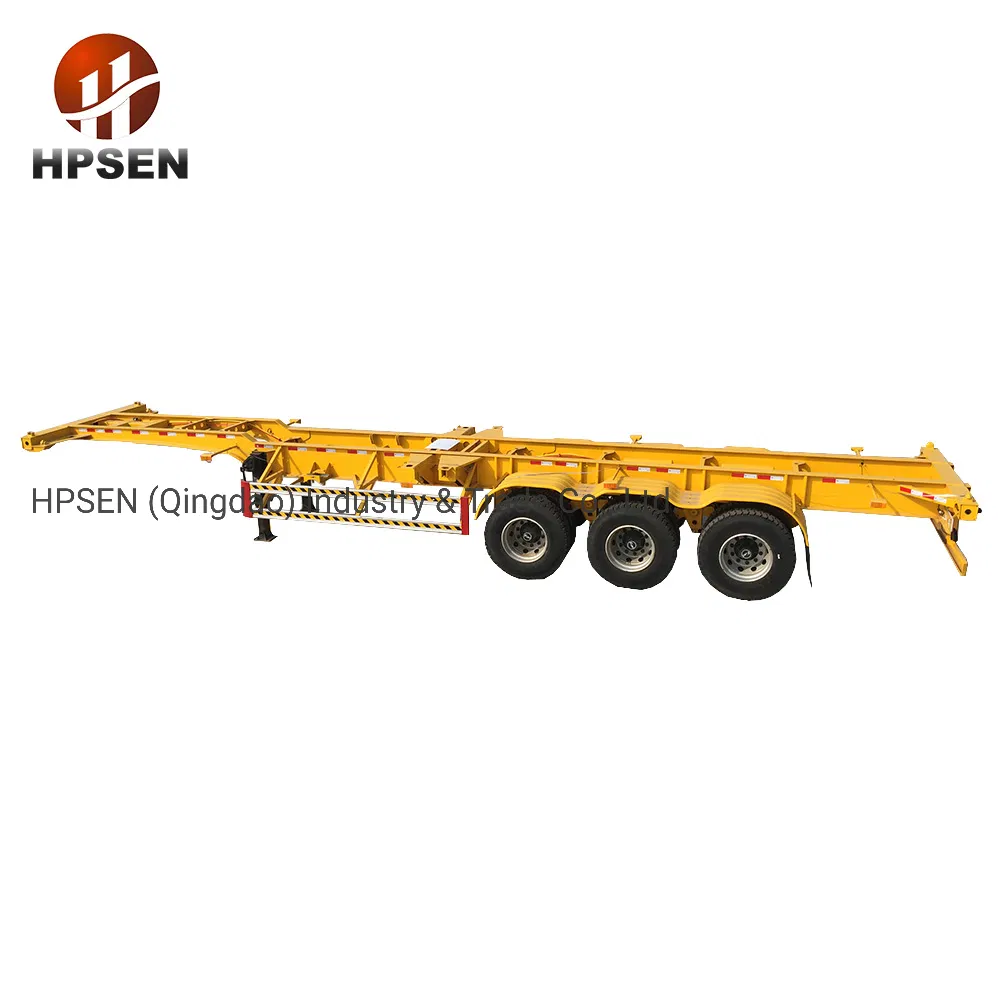

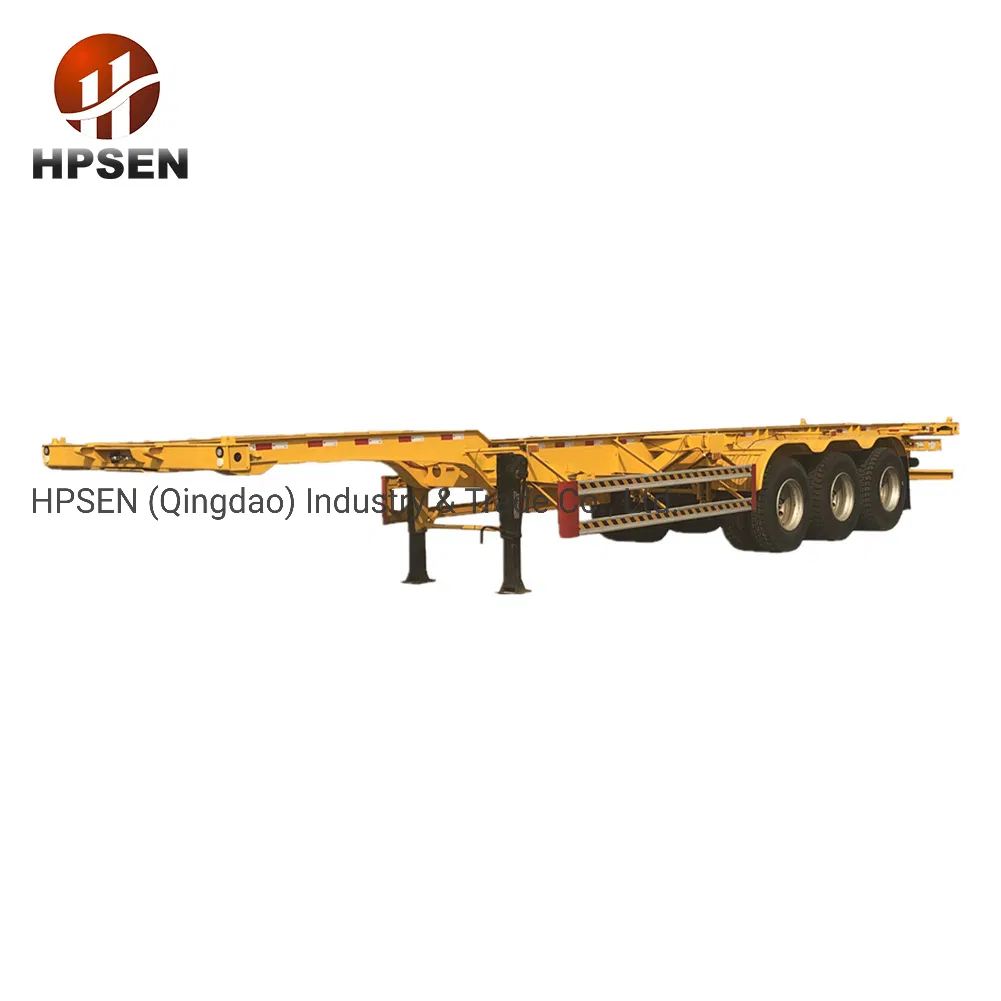

Low Price 20fr 40fr 45hc Truck Chassis Container Semi Trailer for Philippines
Trailer ModelSkeleton Semi TrailerFunctionCarry40ft/2x20ft container or other stuffOverall Dimension(Lx W x H)(mm)12500*2500*1550Tare Weight(KG)6550Loading Weight( KG)40000Total Weight(KG)50000Axle Brand13TON Fuwa axles brand Axle Number3Wheelbase(mm)2300+1310+1310 Suspension systemCommon Mechani......
Send Inquiry
Product Description

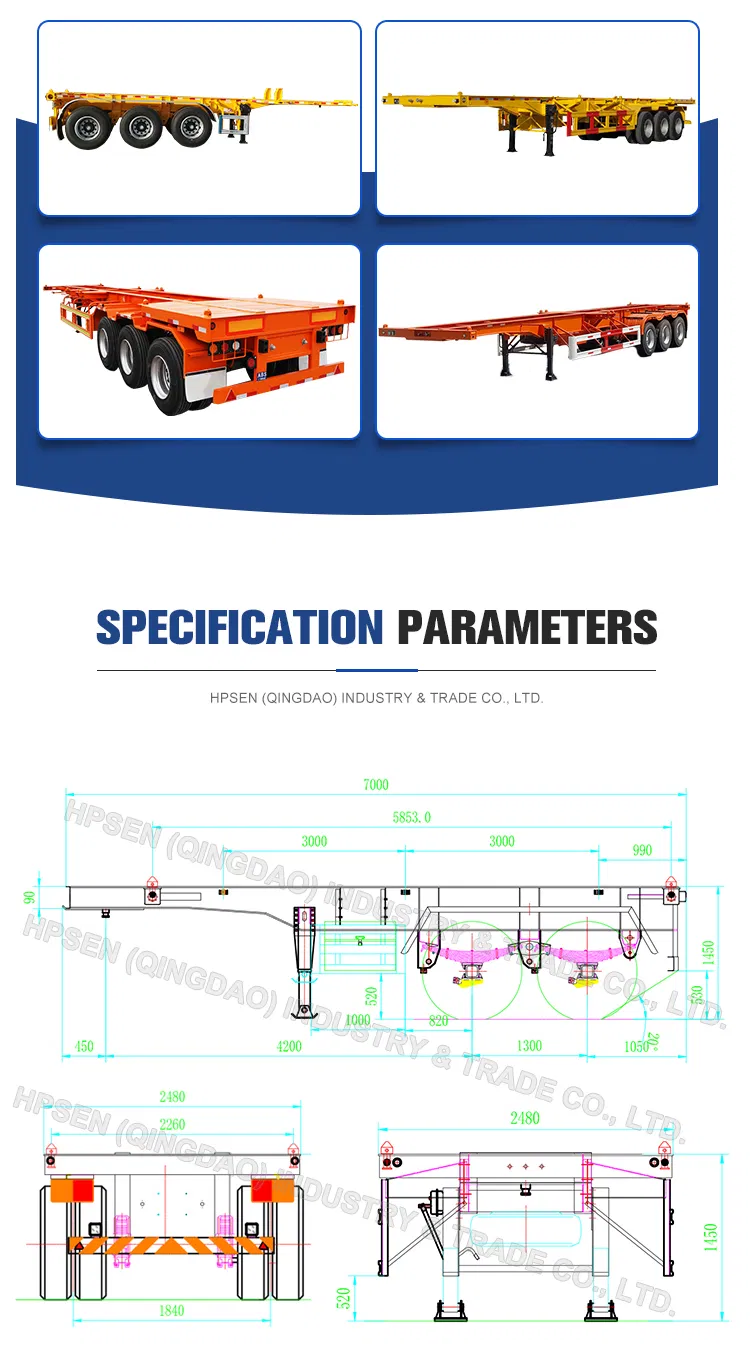

| Trailer Model | Skeleton Semi Trailer |

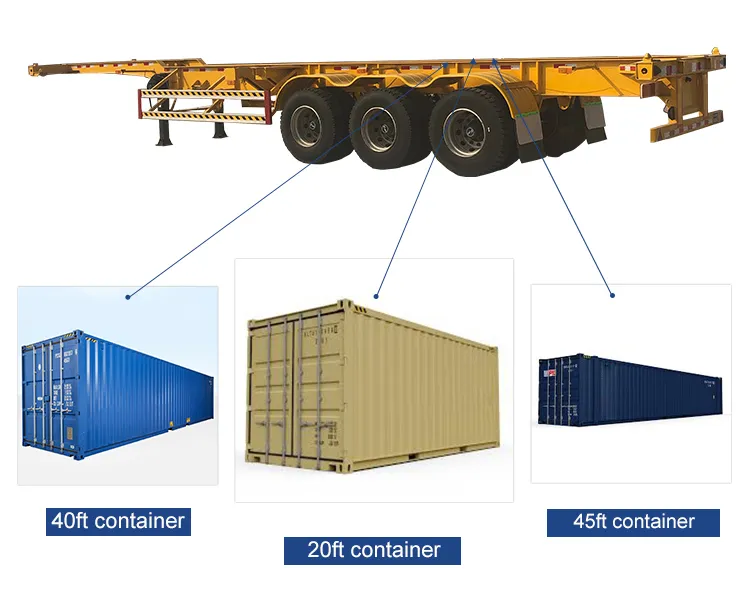

| Function | Carry40ft/2x20ft container or other stuff |
| Overall Dimension(Lx W x H)(mm) | 12500*2500*1550 |
| Tare Weight(KG) | 6550 |
| Loading Weight( KG) | 40000 |
| Total Weight(KG) | 50000 |

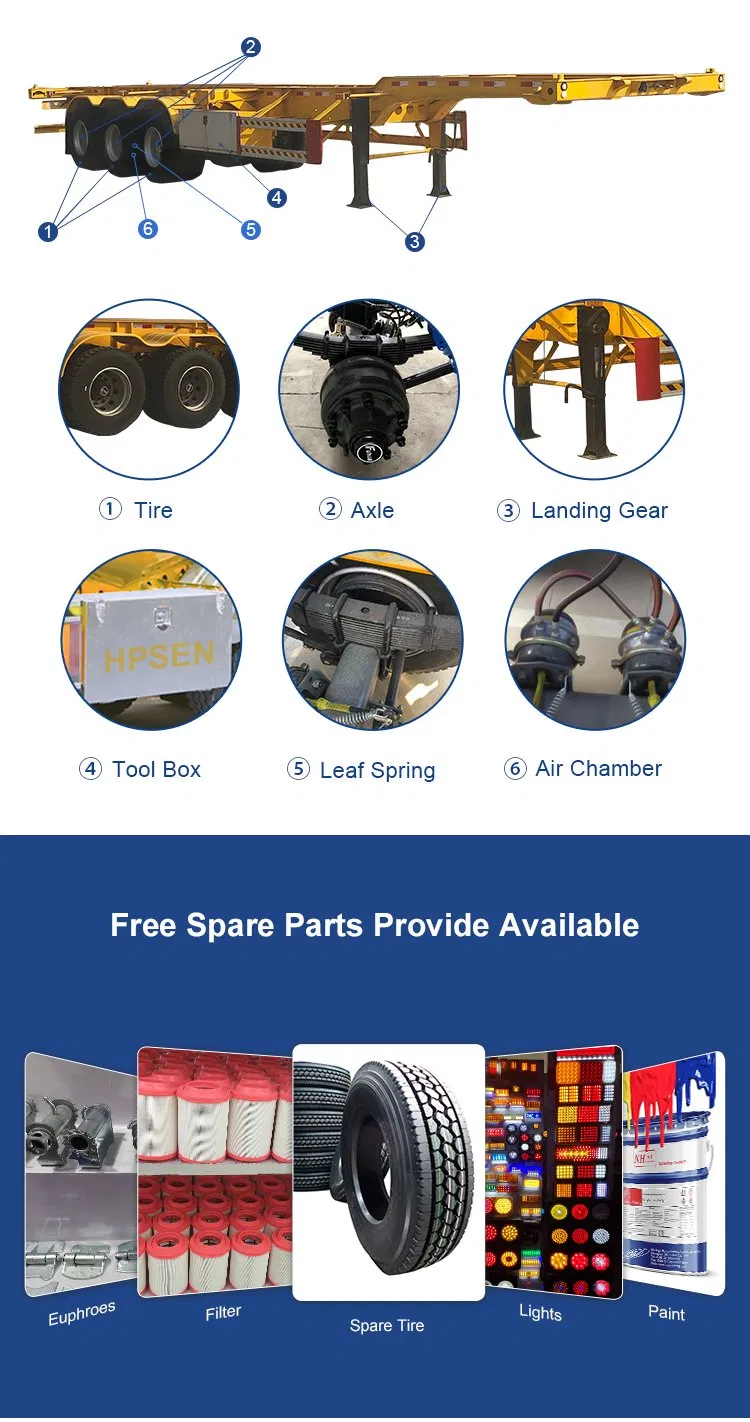

| Axle Brand | 13TON Fuwa axles brand |
| Axle Number | 3 |
| Wheelbase(mm) | 2300+1310+1310 |
| Suspension system | Common Mechanical suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. |
| Container Twist Locker | 12pcs container lock |
| Tire Type and quantity | 12R22.5 tyres, triangle brand |
| Spare Wheel Bracket | 1 pieces |
| Tool Box | 1 Standard |
| Landing Gear | Chinese standard 28ton |
| Brake system | Dual Line braking system |
| Brake air chamber | Two double and two single chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Side Guard | According to customer's requirement |
| Painting | Color as customer's requirement |

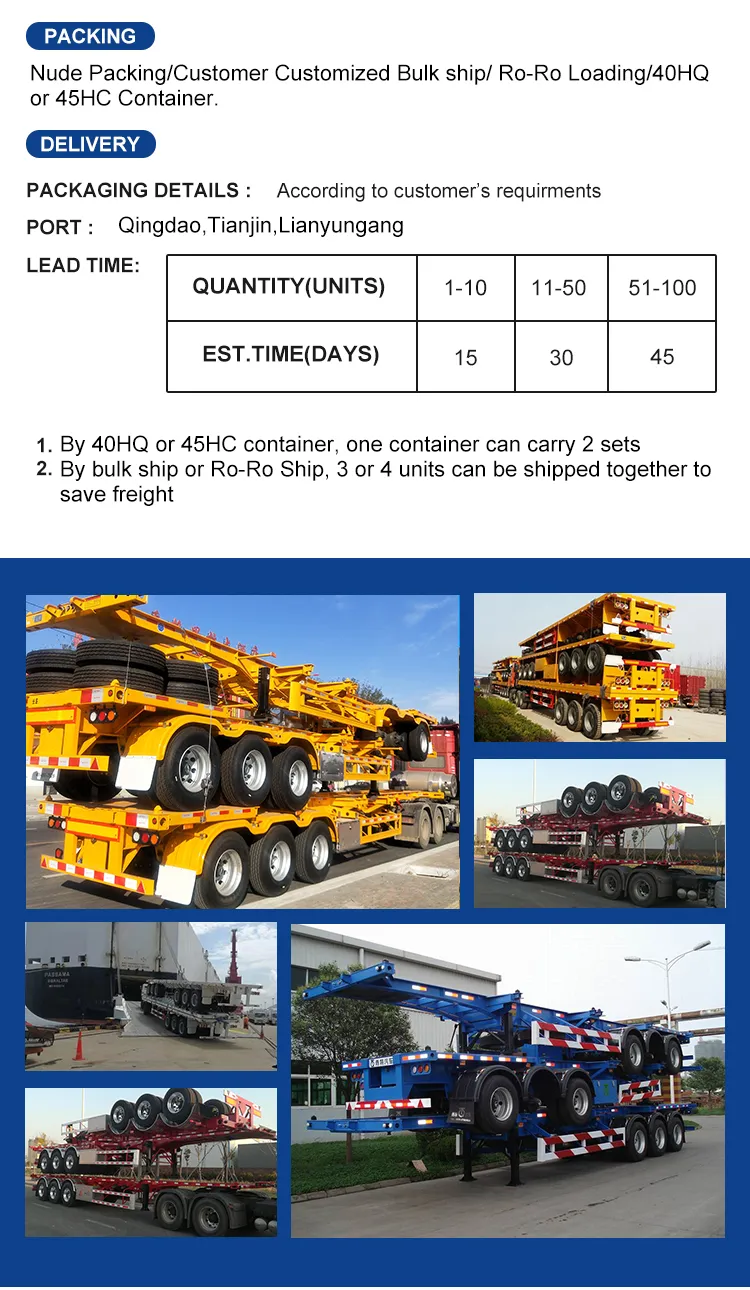

| Packing | NUDE, Polish with wax before shipping |
1. Q:What's your MOQ?
A:One unit.
2. Q: Are you a factory or trading company?
A: We are a 15 years manufacturer with our own factory in Shandong. With independent R&D and global sales experience, we ensure you the best one-stop solution for 70 kinds of trailers and auto accessories.
3. Q:What's your payment terms?
A: We accept both T/T and L/C.
4. Q: Is OEM available?
A: Yes, we offer customized service according to your requests. Our R&D team would give you CAD solution according to your request and free logo design.
5. Q: Do you offer free spare parts?
A: Yes, different gifts are given according to the value of the goods you buy. Such as free spare tyres, filters, paint and lights etc.
