Low Price 6 Compartments Oil Tanker Semi Trailer 45000L
Low Price 6 Compartments 45000L Oil Tanker Semi Trailer1. Tank capacity: 45000L2. Overall dimension:12500x2500x3700mm3. Tank dimension:12000X2490X1950mm4. Tank shape: ellipsoid5. Brake system: the WABCO brand ABS or EBS brake system 6. Front axle lifting: front shaft lifting system remote controlled......
Send Inquiry
Product Description

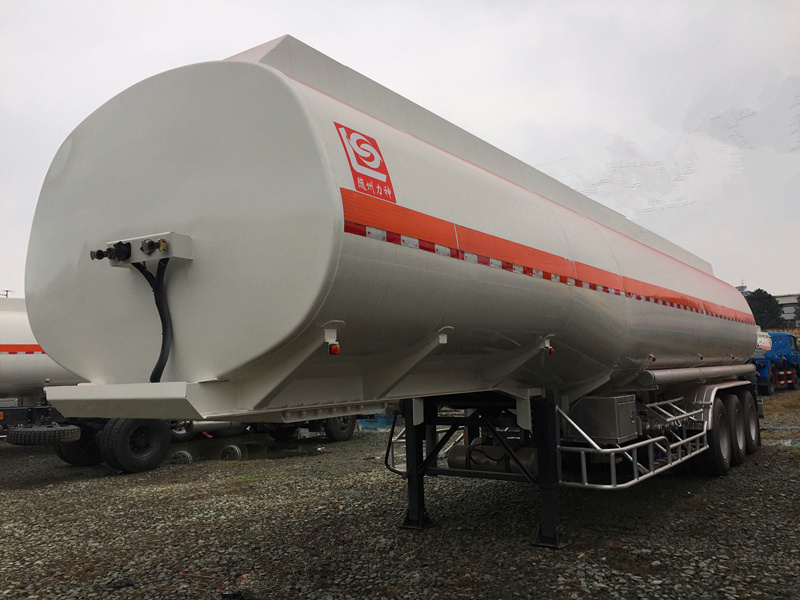

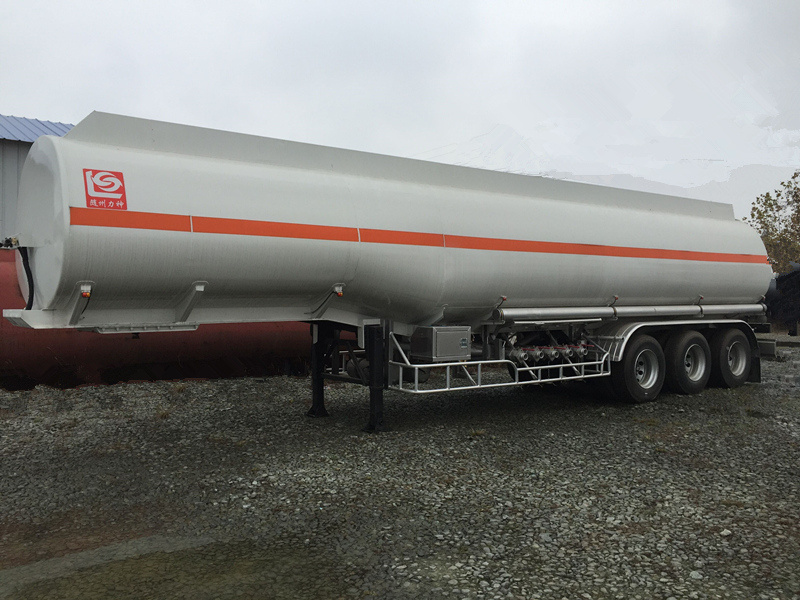

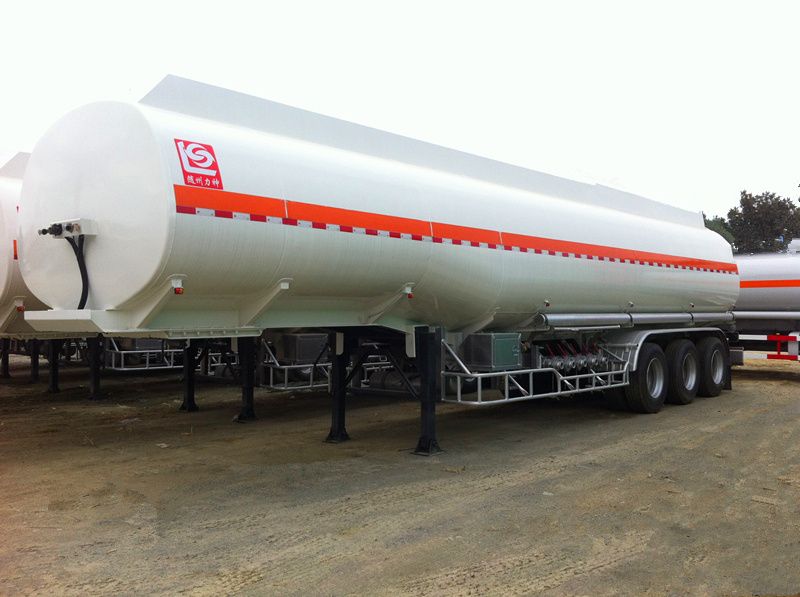

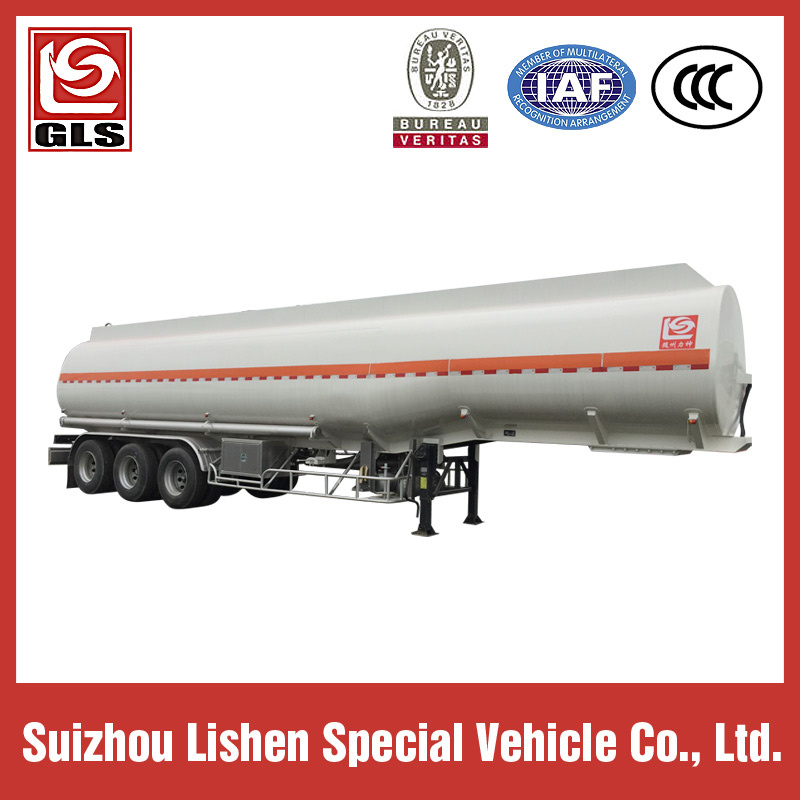

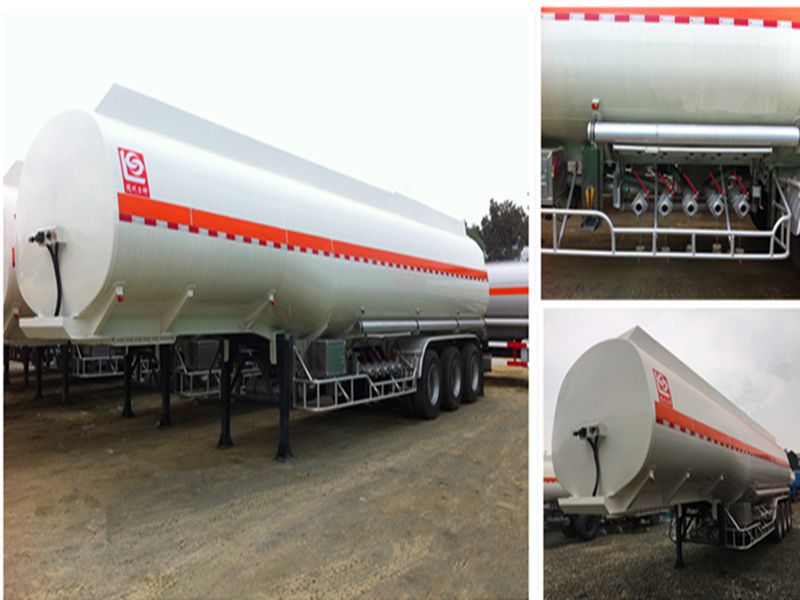

Low Price 6 Compartments 45000L Oil Tanker Semi Trailer
1. Tank capacity: 45000L
2. Overall dimension:12500x2500x3700mm
3. Tank dimension:12000X2490X1950mm
4. Tank shape: ellipsoid
5. Brake system: the WABCO brand ABS or EBS brake system
6. Front axle lifting: front shaft lifting system remote controlled from the driver's seat.
7. Landing gear: double cycle telescopic legs
Product Specification

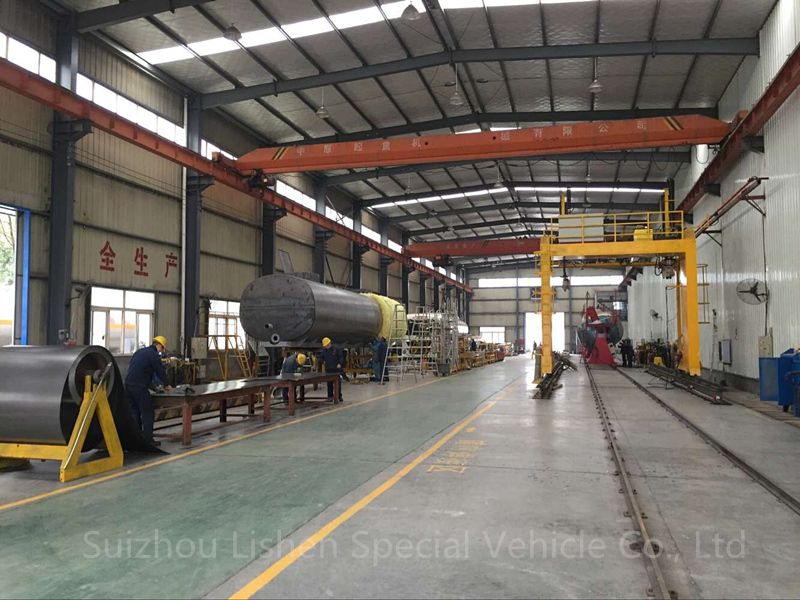

Factory view
China Tanker Semi Trailer Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
Welcome to visit our factory.
1. Tank capacity: 45000L
2. Overall dimension:12500x2500x3700mm
3. Tank dimension:12000X2490X1950mm
4. Tank shape: ellipsoid
5. Brake system: the WABCO brand ABS or EBS brake system
6. Front axle lifting: front shaft lifting system remote controlled from the driver's seat.
7. Landing gear: double cycle telescopic legs
Product Specification
| Model Number | SLS9405GYYA |
| Rated Load | 33300 kg |
| Tare Weight | 10800 kg |
| Outside Dimensions (L x W x H) | 12500x2500x3700mm |
| Tank Dimension | 12000X2490X1950mm |
| Wheel Base | 6300+1350+1350 |
| Tyre Specifications | 11R22.5 12PR,11.00R20 12PR,12R22.5 12PR |
| Tyre No. | 6 |
| Axle Brand | FUWA (BPW optional) |
| Axles No. | 3 |
| King Pin | 50#/90# |
| Pieces of leaf-spring | 8 |
| Suspension | Air suspension |
| Departure Angle | 18 |
| Front/Rear Overhang | 1630 |
| Material of the Main Beam | Carbon steel |
| Brake System | Dual line braking system/ABS |
| Brake Air Chamber | Six double chamber |
| Electrical | 24V 7 ways(7 wire harness) |

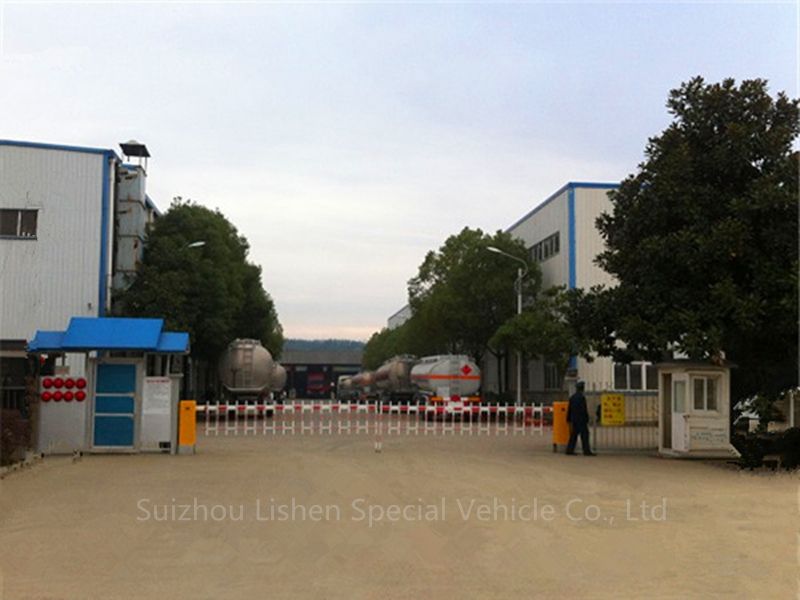

Factory view
China Tanker Semi Trailer Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
Welcome to visit our factory.
