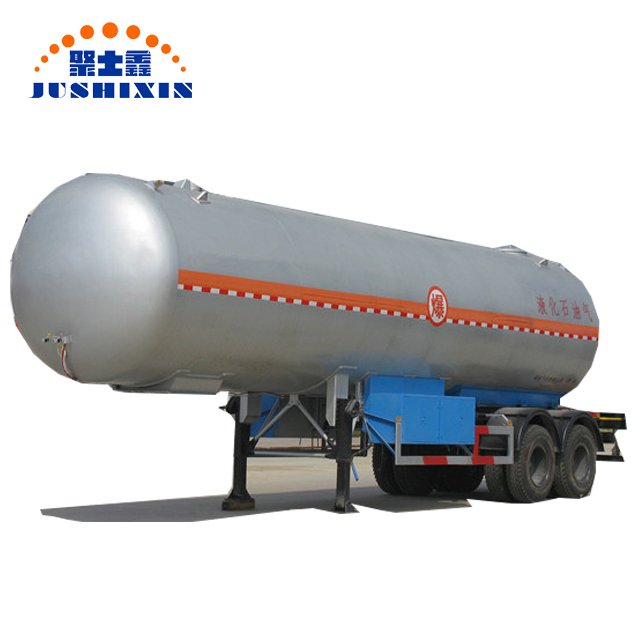

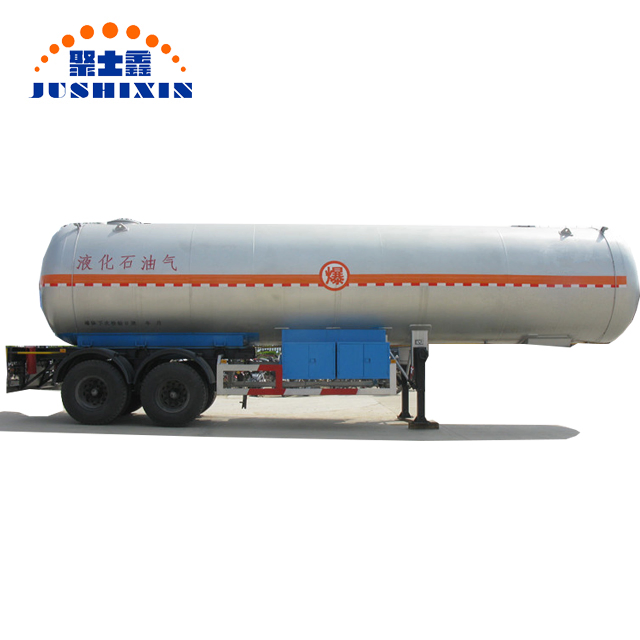

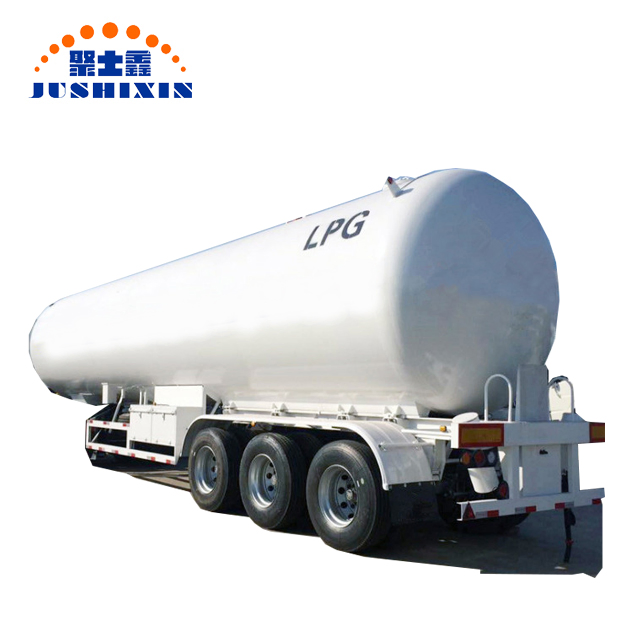

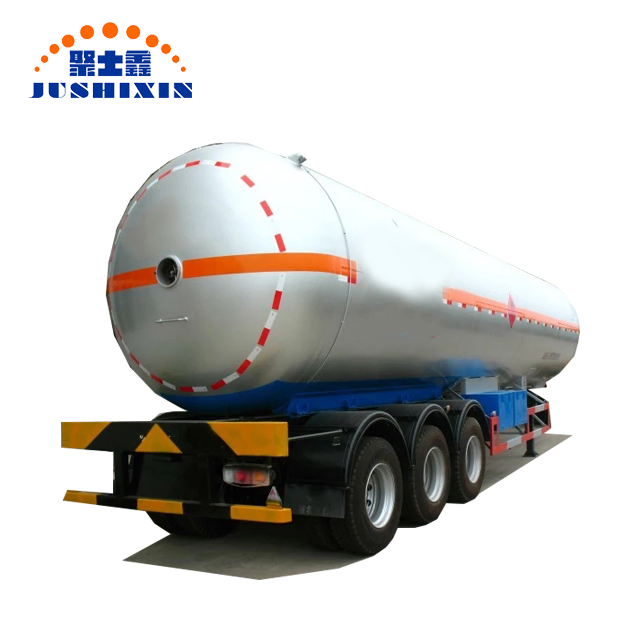

LPG Transport Truck 56m3 LPG Truck Semi Trailer LPG Truck Trailer for Sale
new designed 3 axle lpg semi trailer 56CBM 20-22t lpg gas semi trailer for saleTechnical Parameter: All specification and design can be customized ! We can provide main LPG/LNG products as below:LPG/LNG storage tank volume from 5m3 to 200m3LPG/LNG semi trailer from 24m3 to 60m3LPG/LNG transportati......
Send Inquiry
Product Description
new designed 3 axle lpg semi trailer 56CBM 20-22t lpg gas semi trailer for sale
Technical Parameter:
All specification and design can be customized !
We can provide main LPG/LNG products as below:
LPG/LNG storage tank volume from 5m3 to 200m3
LPG/LNG semi trailer from 24m3 to 60m3
LPG/LNG transportation truck from 5.5m3 to 35.5m
LPG /LNG Skid Station:20m3 to 60m3
LPG Tank Semi Trailer Function:
The LPG Tank Trailers are used to transport LPG specially.Our company have been in this field several years. with the advantages of reasonable design, proven technology, safe and reliable.The design, manufacturing and inspection of our products are in accordance with the national standards: GB150, GB1589, it is equal to international standards.
LPG Tank Semi Trailer Specification:
We can design different size LPG Tank trailers for users to correspond with local vehicles loaded weight standard. Here attached 56CBM(52600Liters) LPG Tank Trailer Specification for your review.
· We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, Propylene , propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide
· According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability
· Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified
· Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology
Looking forward to your inquiry about LNG tank semi trailer, we are of service at 24hours!
Technical Parameter:
All specification and design can be customized !
We can provide main LPG/LNG products as below:
LPG/LNG storage tank volume from 5m3 to 200m3
LPG/LNG semi trailer from 24m3 to 60m3
LPG/LNG transportation truck from 5.5m3 to 35.5m
LPG /LNG Skid Station:20m3 to 60m3
LPG Tank Semi Trailer Function:
The LPG Tank Trailers are used to transport LPG specially.Our company have been in this field several years. with the advantages of reasonable design, proven technology, safe and reliable.The design, manufacturing and inspection of our products are in accordance with the national standards: GB150, GB1589, it is equal to international standards.
LPG Tank Semi Trailer Specification:
We can design different size LPG Tank trailers for users to correspond with local vehicles loaded weight standard. Here attached 56CBM(52600Liters) LPG Tank Trailer Specification for your review.
| 56M3 LPG tanker semi trailer | |
| Model | JSXT |
| Transport medium | Liquefied petroleum gas (propane) |
| Capacity | 56m3 |
| Dimensions (mm) | 12700*2500*3965 |
| Tank size (mm) | 12330*2450 |
| Self weight (kg) | 15480 |
| Load(kg) | 23520 |
| Tank material | Q370R |
| Cylinder: 11.5MnDR, head: 11.5MnDR | |
| Girder material | Q370R |
| shape | Round shape |
| Load mass(kg) | 23520 |
| Propane density: 420KG/M3 | |
| Curing quality (kg) | 15480 |
| Total mass(kg) | 39000 |
| Head thickness | 11.5mm |
| Tank thickness | 11.5mm |
| design standards | GB150-2011 "Pressure Vessel", GB/T19905-2005 "liquefied gas transport vehicle" |
| Hazard category | 2.1 |
| UN number | UN1075 |
| Design life | 15 years |
| Safety valve form | Built-in full-open |
| Safety valve model | A411F-25P-15 |
| Safety valve pressure | 1.94MPa |
| Safety valve rated discharge pressure | Less than or equal to 2.16MPa |
| Safety valve return pressure | Greater than or equal to 1.75MPa |
| Safety valve seat throat | 50mm |
| Emergency shut-off device gas phase model | QGQJ43F-25P |
| Emergency shut-off device liquid phase model | QGQJ43F-25P |
| Emergency shut-off device operation | Manual mechanical control |
| Pressure gauge model | YN-100Z |
| Operating temperature | Negative 40 to 55 |
| Hydrostatic test pressure | 2.34MPa |
| Air tightness test pressure | 1.8MPa |
| Level gauge model | UQZ-2.5P |
| Level gauge form | Magnetic float |
| Unloading device nominal diameter | DN50 |
| Thermometer model | WSS-412 |
| Thermometer accuracy | Level 1.5 |
| Barrel corrosion allowance | 1.0mm |
| Cylinder design pressure | 1.61MPa |
| Wheelbase (mm) | 6865+1310+1310 |
| Front overhang / rear overhang (mm) | front: -, rear: 1540 |
| Track (mm) | 1860/1860/1860 |
| Suspension | Leaf spring |
| Axle | Fuwa 13-ton bridge, three-axis |
| Tire model and quantity | 12R22.5/12 |
· We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, Propylene , propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide
· According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability
· Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified
· Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology

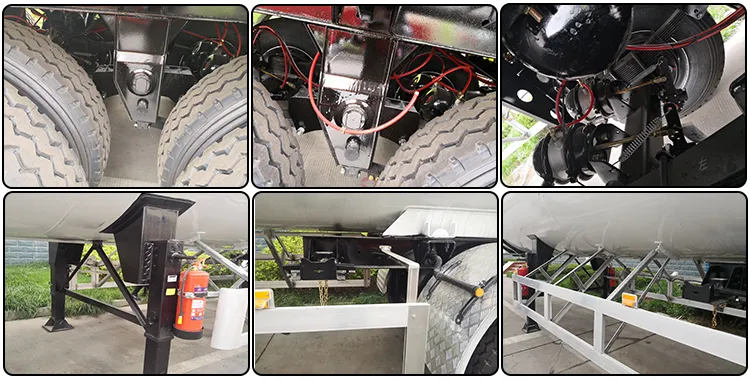

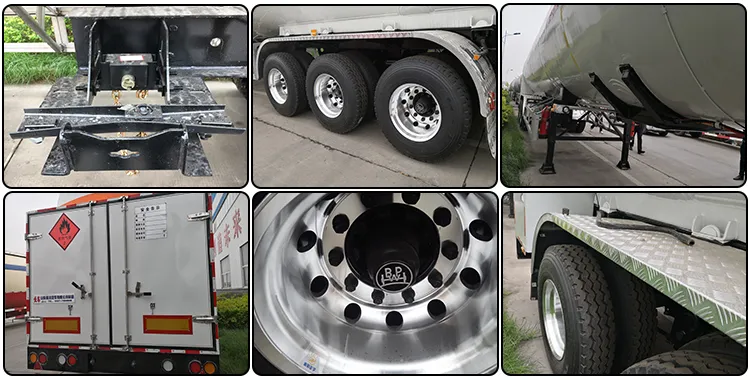

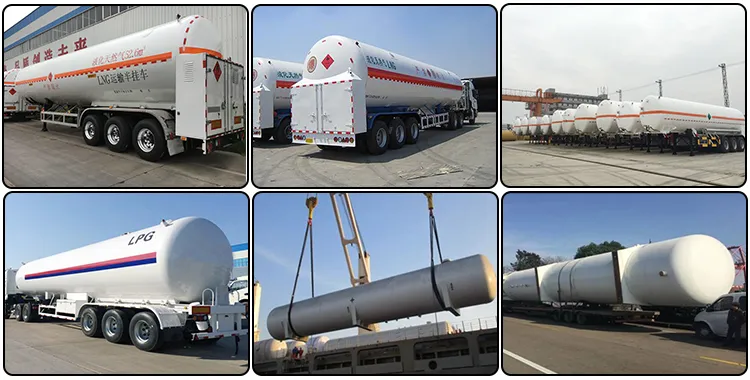

LPG Tank Semi Trailer Detailed Photos:
LPG tank semi trailer past CCC and ISO/TS16949 organization:
Our LPG tank trailers are approved by CCC and ISO/TS16949 organization. I think the reports issued by 3rd party could better clarify the quality for our LNG tank trailers. Pls feel free to contact us if any interested in our LNG tank trailer.
Looking forward to your inquiry about LNG tank semi trailer, we are of service at 24hours!
