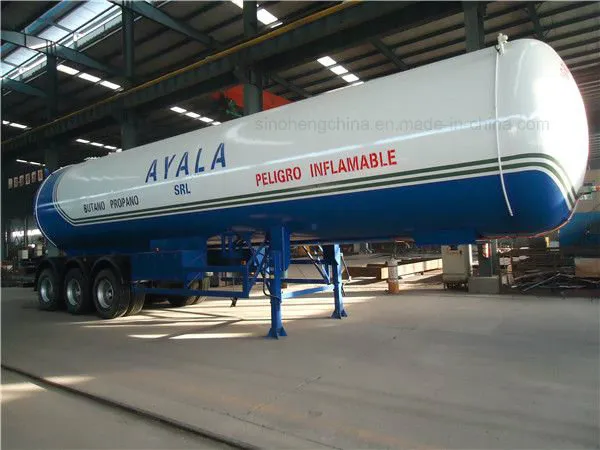

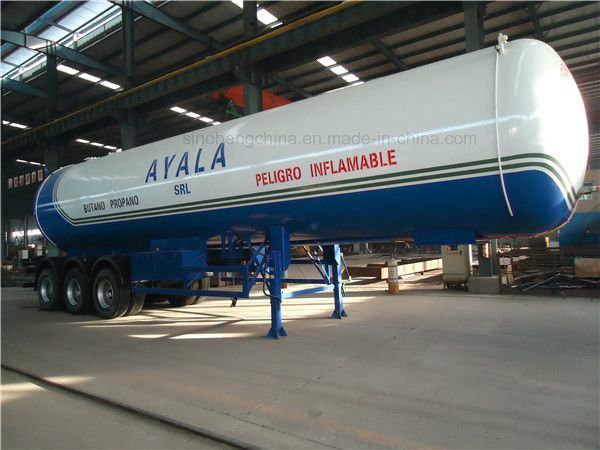

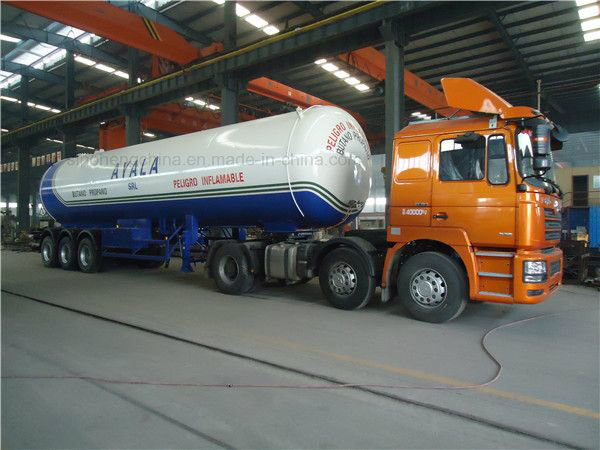

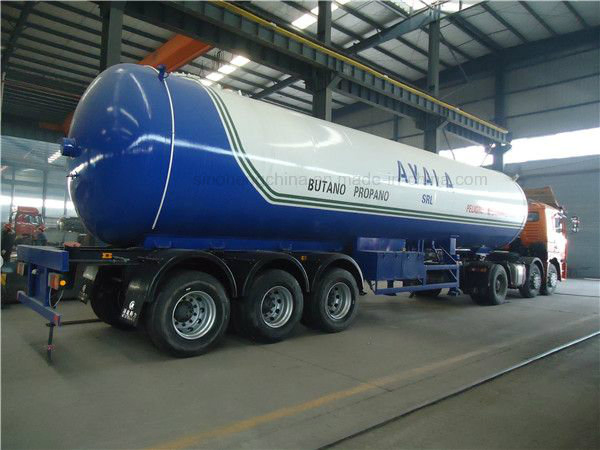

Made-in-China LPG Tank Semi-Trailer for Sale
Item UnitParameters Product name LPG Tank Semi-trailer(CLW9390GYQ)Fact Volume M356Loading capacitykg23520 GVW 39000Mass in working order15480Overall dimensionsmm12700×2500×3975Number of axles3Wheel base6865+1310+1310Track baseFront -Rear 1840F/R overhang mm-/......
Send Inquiry
Product Description
| Item | Unit | Parameters | ||
| Product name | LPG Tank Semi-trailer(CLW9390GYQ) | |||
| Fact Volume | M3 | 56 | ||
| Loading capacity | kg | 23520 | ||
| GVW | 39000 | |||
| Mass in working order | 15480 | |||
| Overall dimensions | mm | 12700×2500×3975 | ||
| Number of axles | 3 | |||
| Wheel base | 6865+1310+1310 | |||
| Track base | Front | - | ||
| Rear | 1840 | |||
| F/R overhang | mm | -/1450 | ||
| Tire specification | 12R22.5 12PR | |||
| Special configuration | Tank material | Q370R | ||
| Standard configuration | 12 tons BPW axle, Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, JOST leg, JOST drawing pin, fire bottle, static adhesive tape, plastic fender. | |||
| Others | Filling medium: LPG; Design pressure 1.77 Mpa, the design temperature of 50 ºC, filling ratio: 0.42 t/m3, corrosion allowance: 1 mm; The shape of tank size: 12340×2473 mm | |||
| Manufacturing standards | GB150 "pressure vessel" and "the transportable pressure vessel safety technology supervision regulation". | |||
| FOB SHANGHAI | USD | |||
