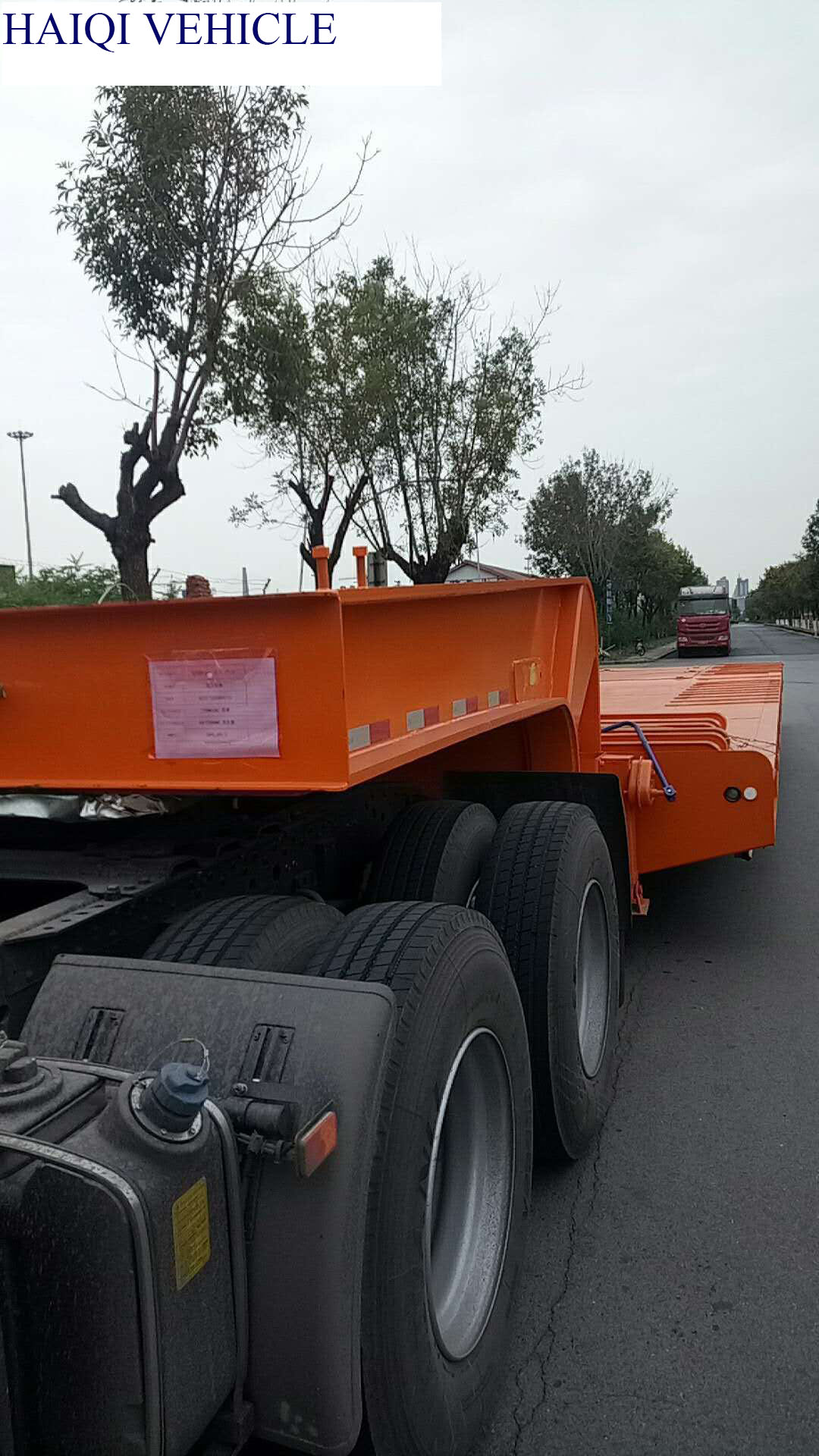

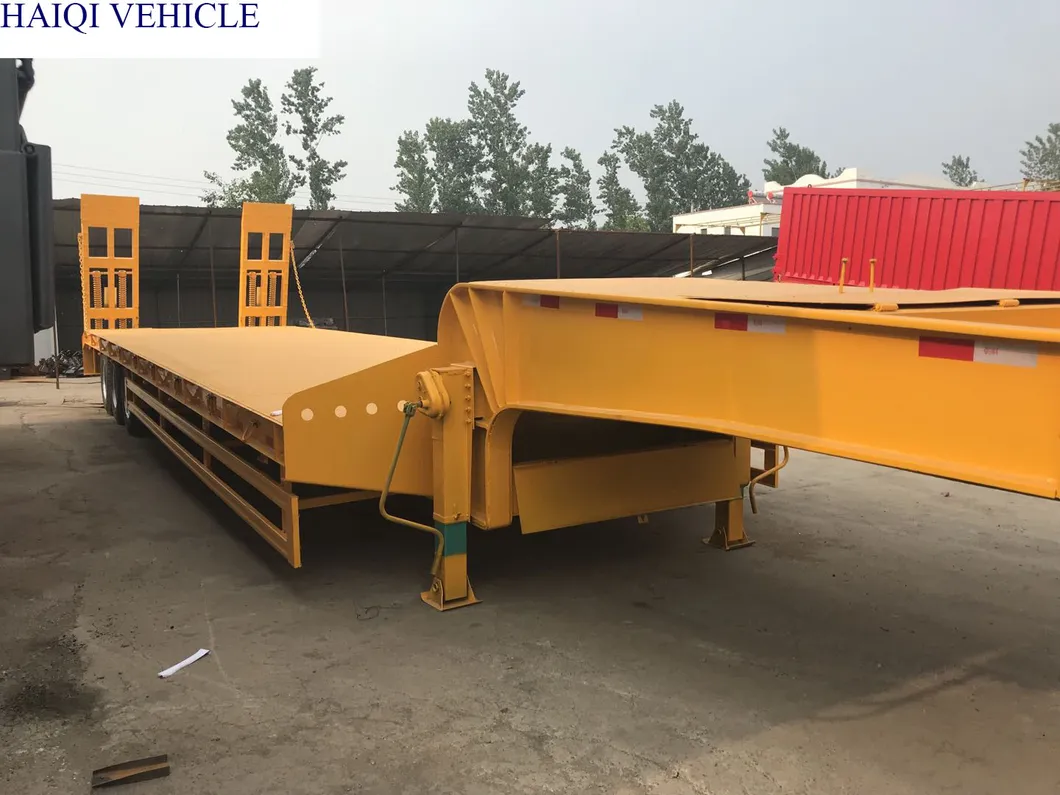

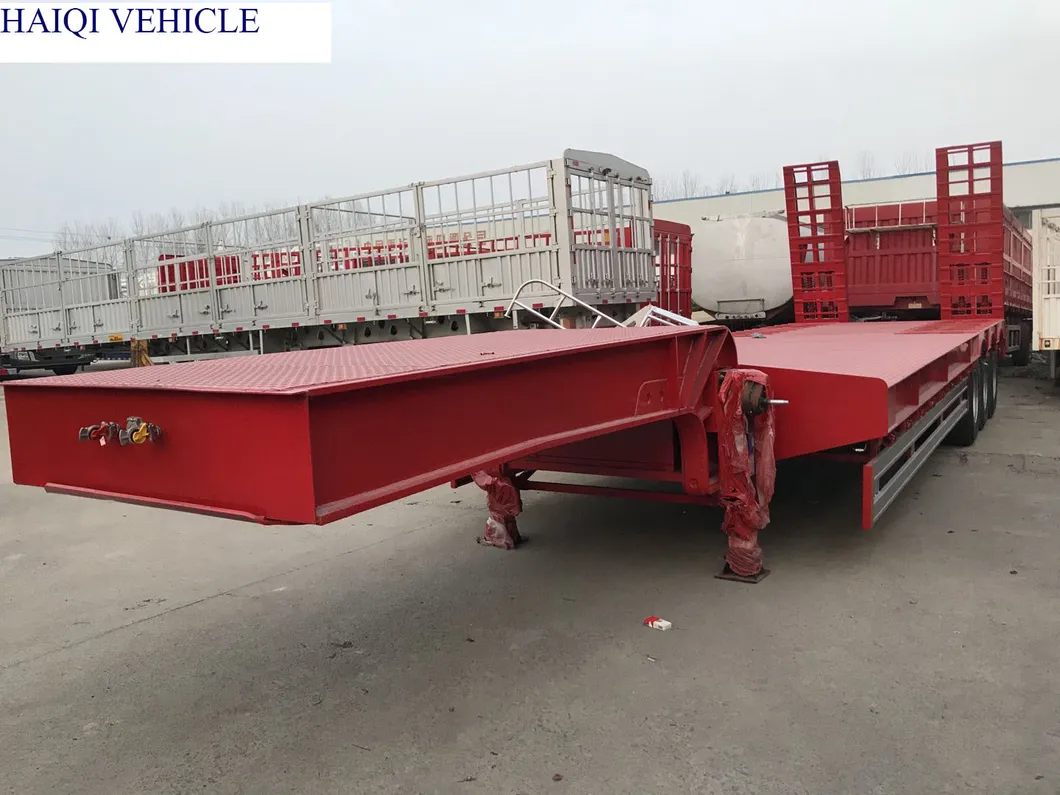

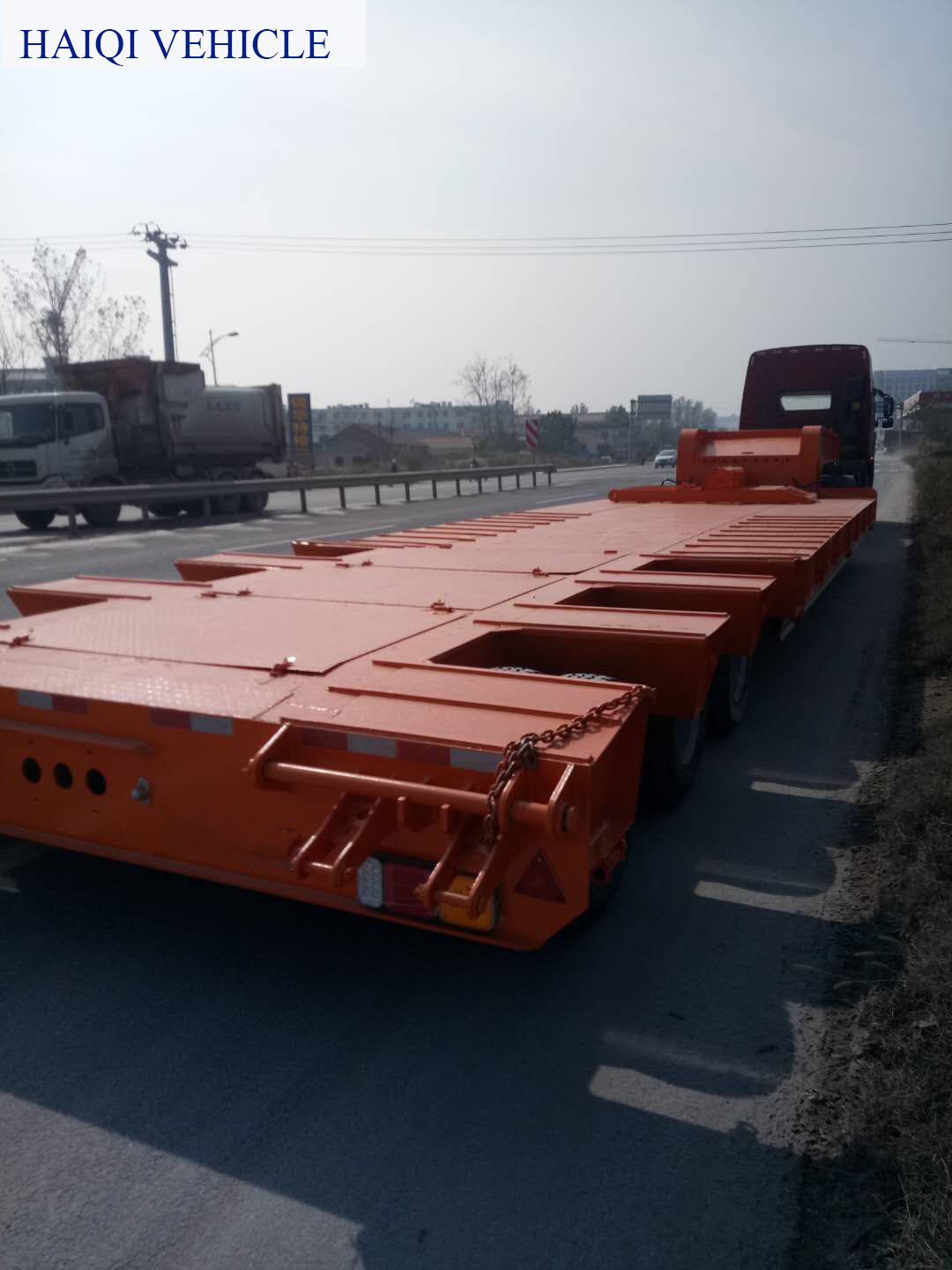

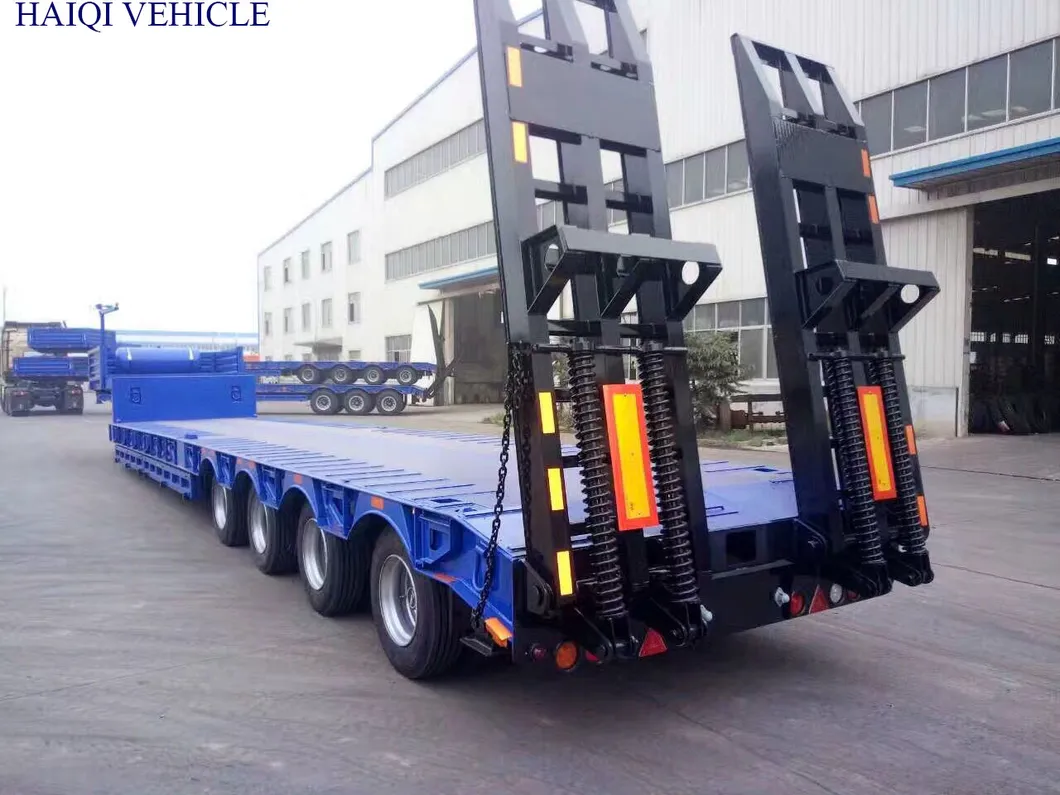

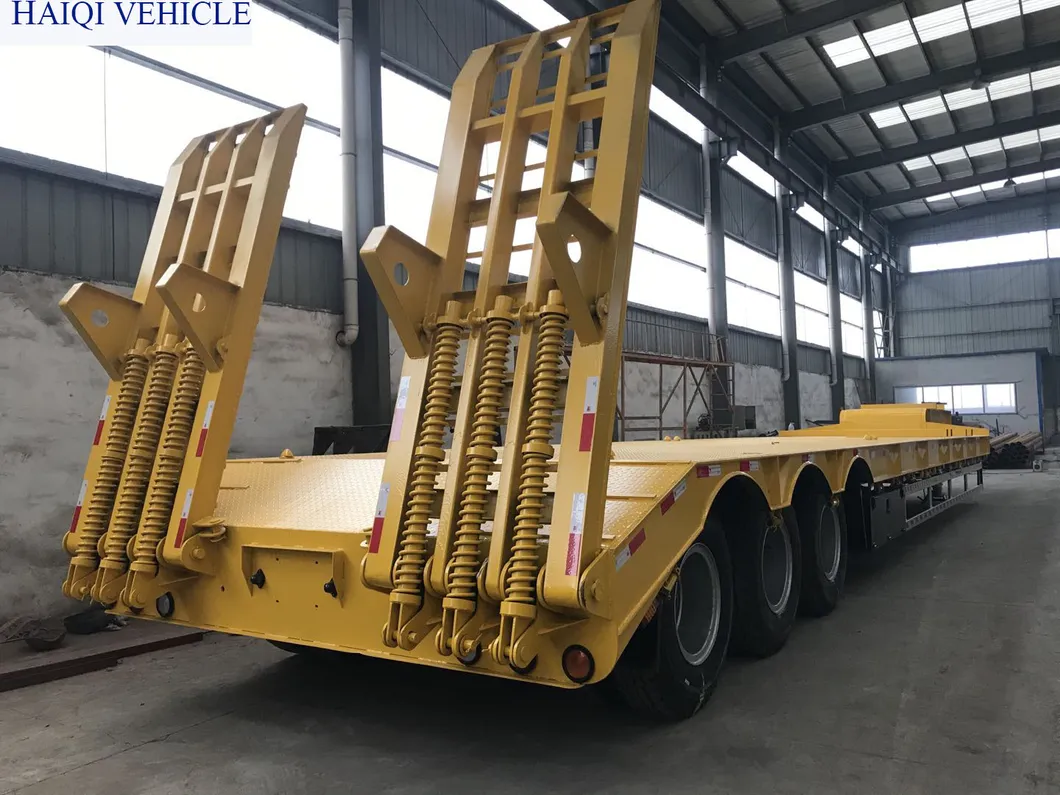

Mechanic Loading Ramps 60tons Low Bed Semi Trailer

Product Description

16.5 meter 3 Axle lowbed Semi-Trailer Specification

DIMENSIONS
Tare Weight	13500kg
Payload	80000kg
Total Weight	93500kg
Overall Length	16500mm
Overall Width	3000mm
Overall Height	1150mm
Wheel Track	2240mm
Wheelbase	11500mm+1310mm+1310mm
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 20/25mm,width 140mm; Middle Flange 12/14/16mm ; Bottom Flange 20/25mm,width 140mm,Side Channel 20# 25#height.
Floor	Checkered plate 5/8/10mm thickness
Axle	Three/Four/five Units of factory brand/FUWA/BPW brand 13/16Ton Axle
Suspension	One couple of Tri-axle Mechanical/airbag Suspension
Leaf Spring	Six sets of 10-pieces 16X90mm Leaf Spring
King Pin	One unit of 2'/3.5' SAE standard welded/bolted in Kingpin
Landing Gear	Two-speed , manual operating, 35 ton heavy duty Landing Gear
Wheel Rim	12+1 units of 6.5-20 Wheel Rim(with one spare rim)
Tyre	12+1 units of 8.25R20 factory brand/ Triangle brand Radial Tyre (with one spare tyre)
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Pneumatic Braking System	A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of RE 6 relay valve; Six units of T30/30 spring brake chamber; two units of 45L air tanks; two units of standard copper air-connector.
Electrical System	One unit of 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable.
Painting	Sand blasting processing on rust - proof protection. One coat of anti-corrosive primer Two coats of finish urethane paint Color as customer choice
Accessory	One standard tool box and standard trailer tools

Mechanic Loading Ramps 60tons Low Bed Semi Trailer

Shandong Haiqi Vehicle sales Co., Ltd was found in 2004; We are TRUCKS and SEMI TRAILERS manufacturing factory and we specialized in domestic and export all types of semi trailers production. Our factory locates in Liangshan industry zone which is called Max. Scale Semi Trailer Manufacturing Base in China.
We have modernized workshops which installed with series of perfect semi trailer production lines and manufacturing equipment. We sincerely cooperate with friends to create brilliance.

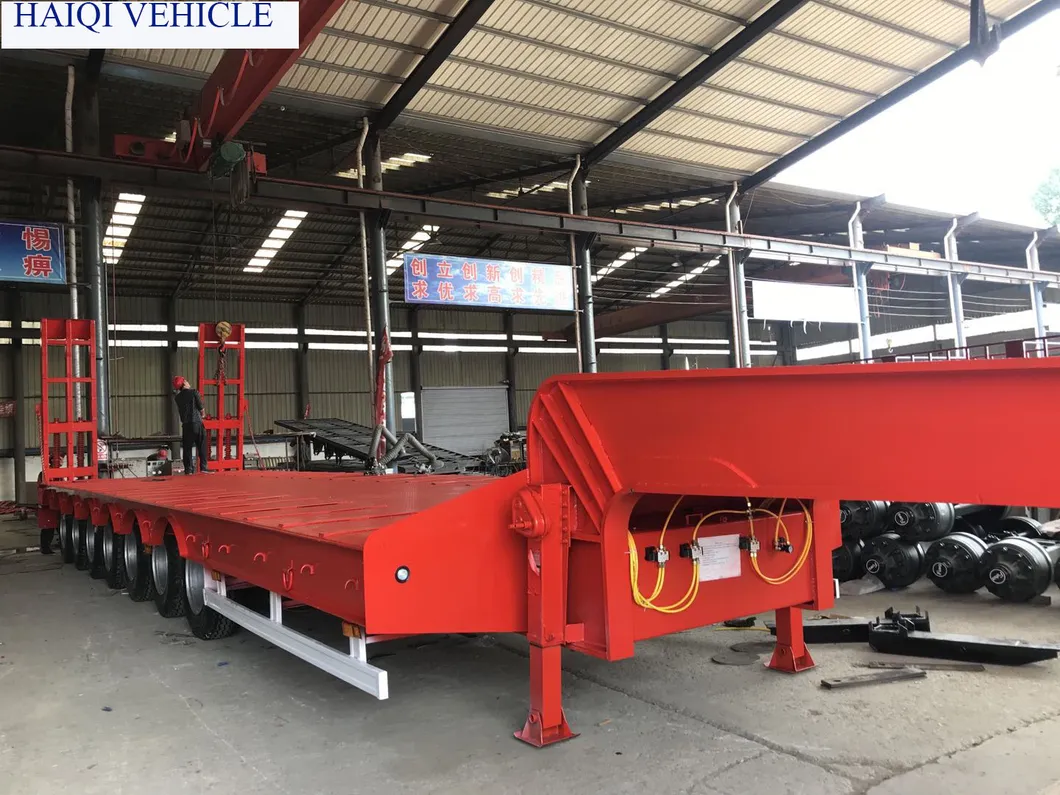

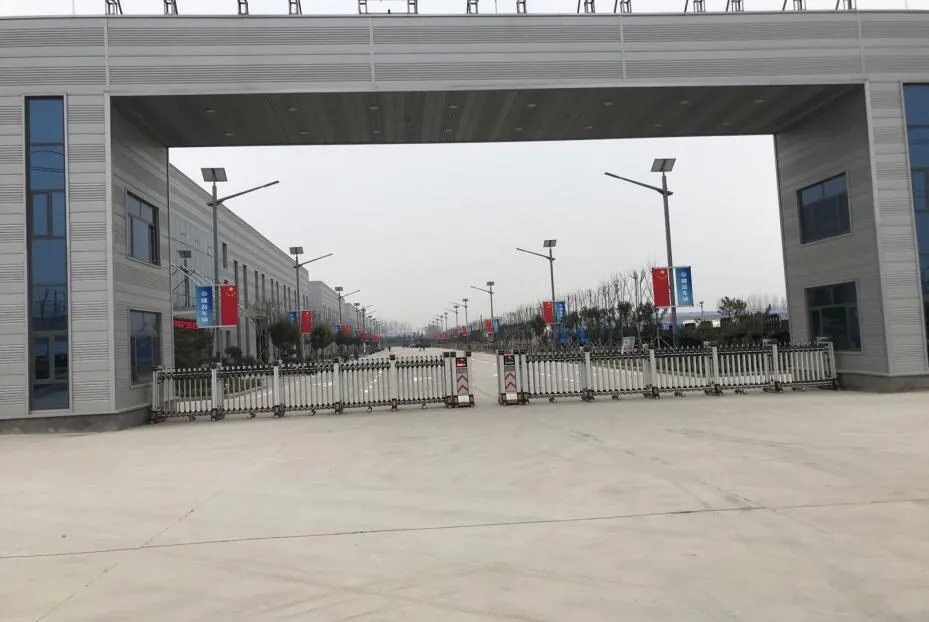

OUR FACTORY WORKSHOPS:

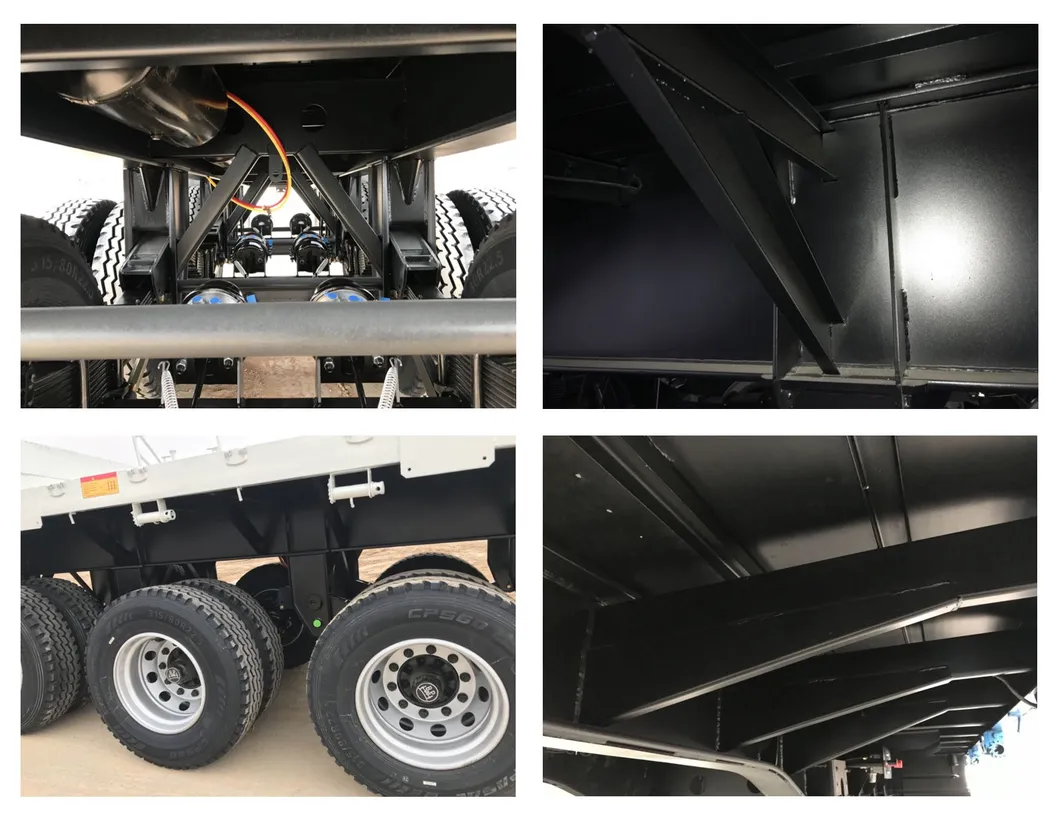

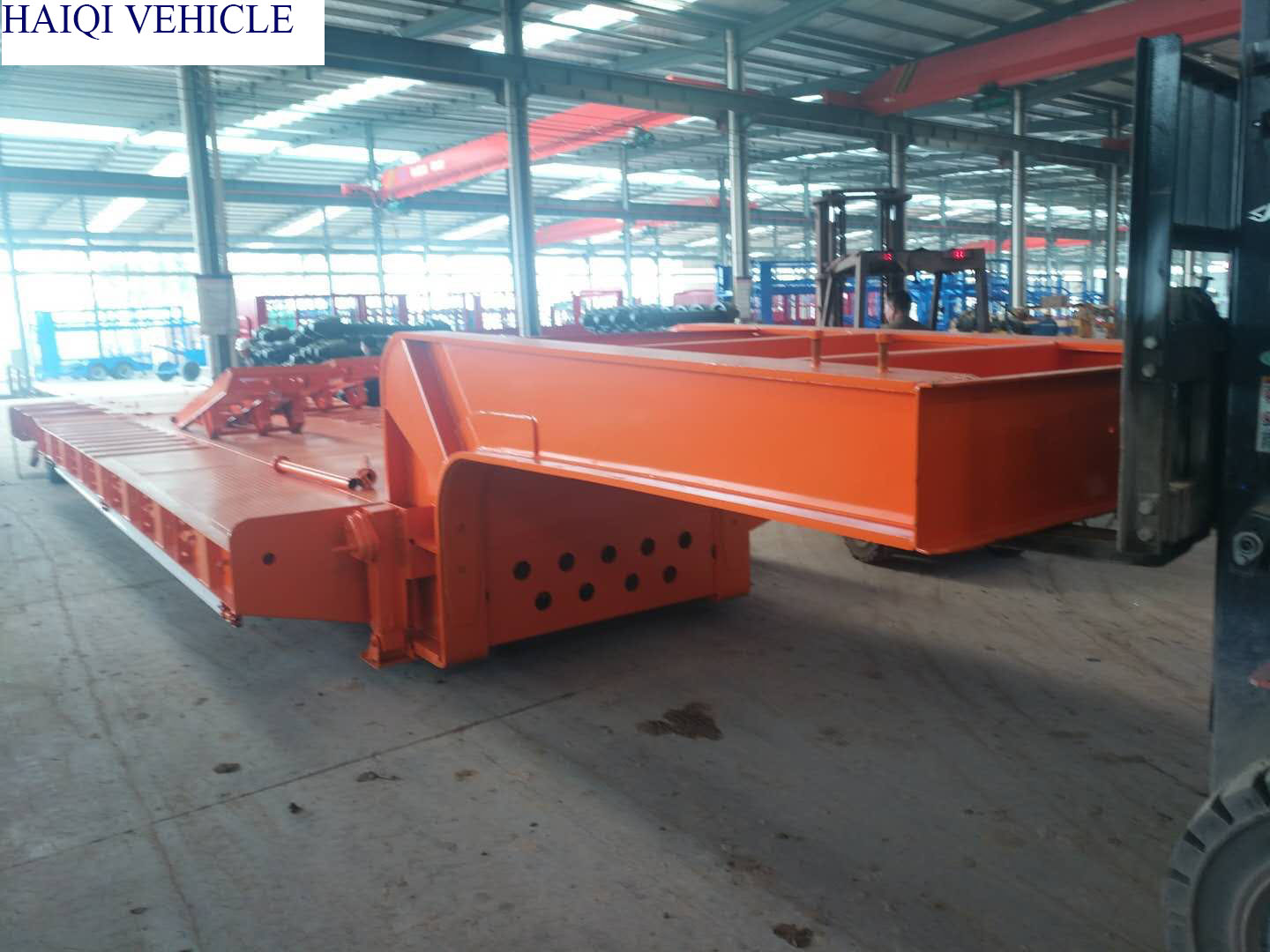

PRODUCTON DETAILS:

Trailer advantages description
· More than 15 years professional design and production experience.
· Design and produce according to your requirements
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is using submerged arc welding process.
·Famous brand trailer parts used, like bpw/ fuwa axle,triangle /double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

CUSTOMERS VISIT:

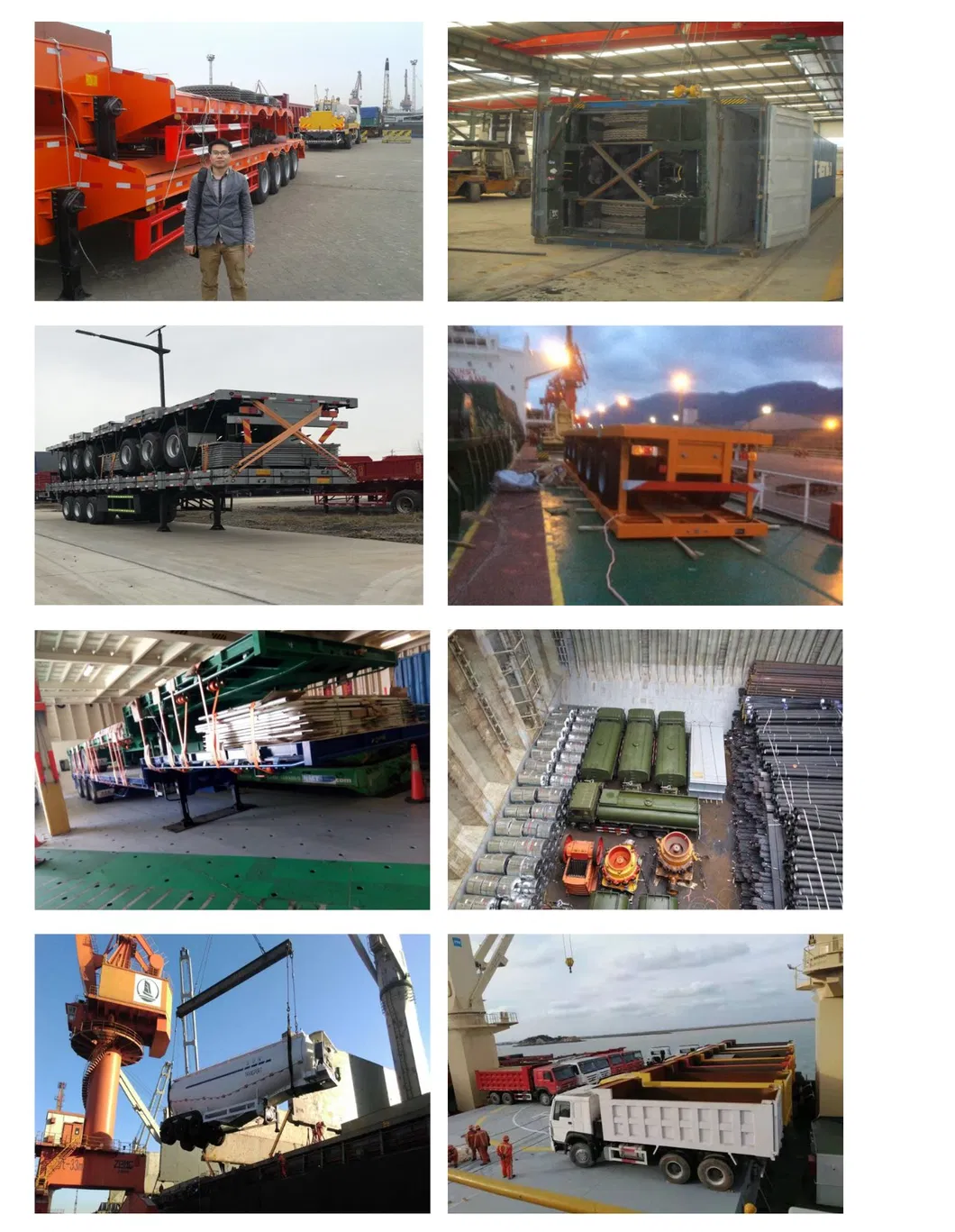

TRAILER &TRUCKS EXPORT AND DELIVERY:

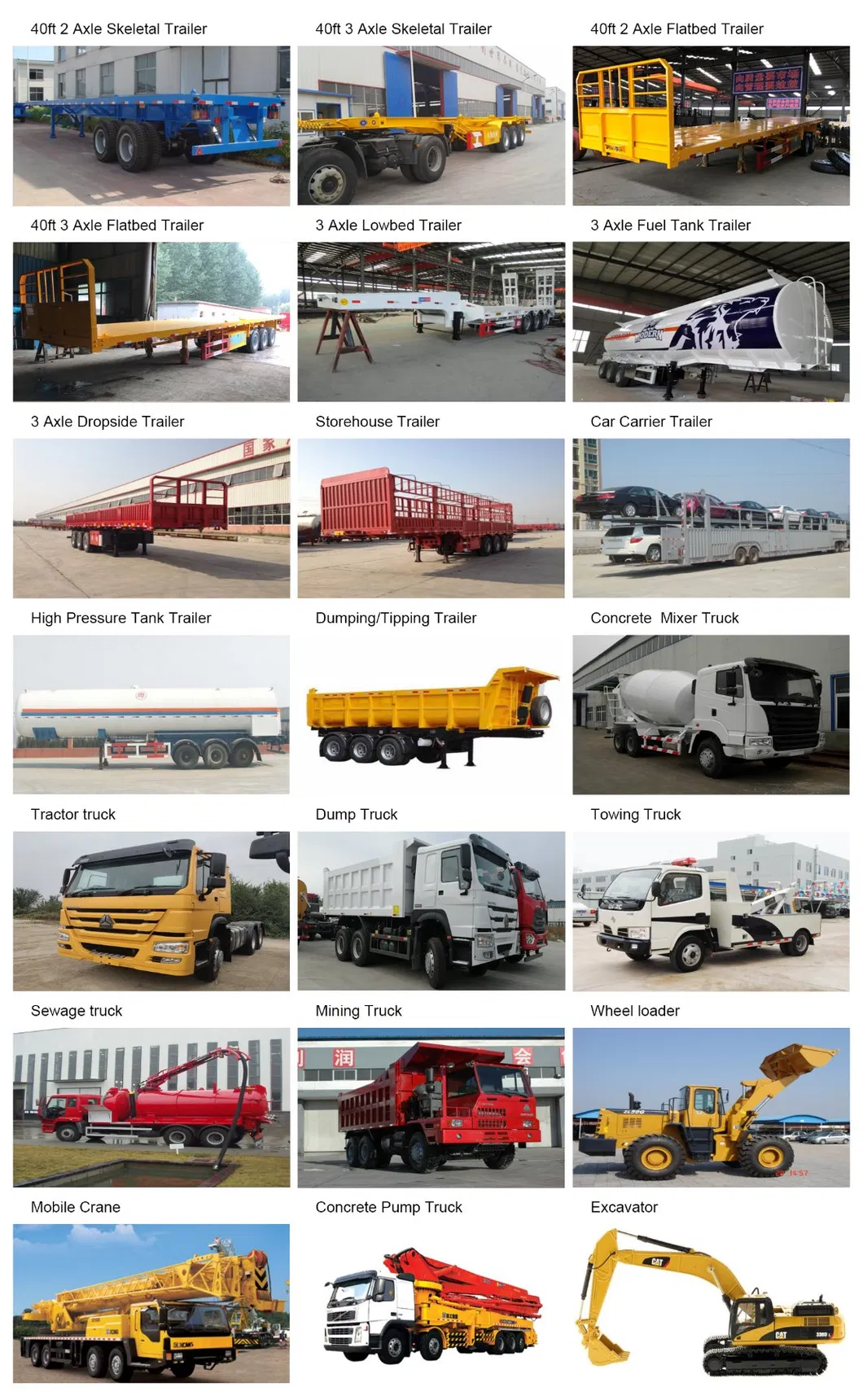

OUR PRODUCTS LIST:

FAQ:
1. How about the quality of your products?Can I trust you?
We have 15 years of trucks and trailer production experience . Guarantee Quality and Delivery !Since our establishment, we have considered
"products quality first" as our principle.
2. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
3.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages.
4. How about your delivery time?
Generally, it will take 7 ~ 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What is your trailer warranty?
The trailer mainbeam is 12 months warranty,other parts are 6 months warranty.
