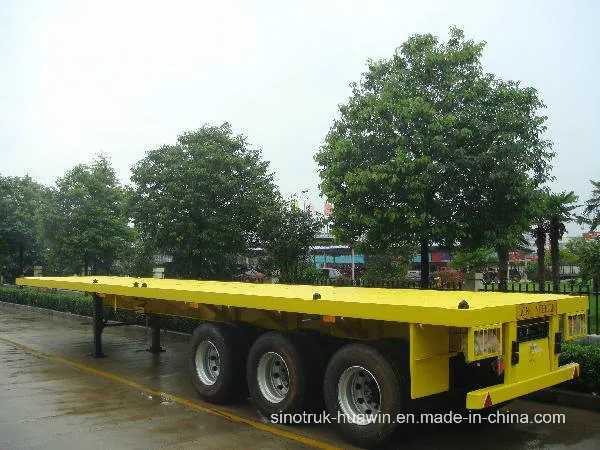

Sinotruk 40FT 3 Axles Flatbed Semi Trailer for Sale
Sinotruk 40FT 3 Axles Flatbed Semi TrailerSpecification(1) flatbed semi trailer(2) 3 Axles(3) Loading Capacity: 50000KG(4) Optional twist locks Can be loaded one 40'' container or two 20'' containers(5) King Pin: JOST(6) Certification: ISO9001 CCC,SGSTechnical Parameters DIMENSIONSTa......
Send Inquiry
Product Description
Sinotruk 40FT 3 Axles Flatbed Semi Trailer
Specification
(1) flatbed semi trailer
(2) 3 Axles
(3) Loading Capacity: 50000KG
(4) Optional twist locks Can be loaded one 40'' container or two 20'' containers
(5) King Pin: JOST
(6) Certification: ISO9001 CCC,SGS
Technical Parameters

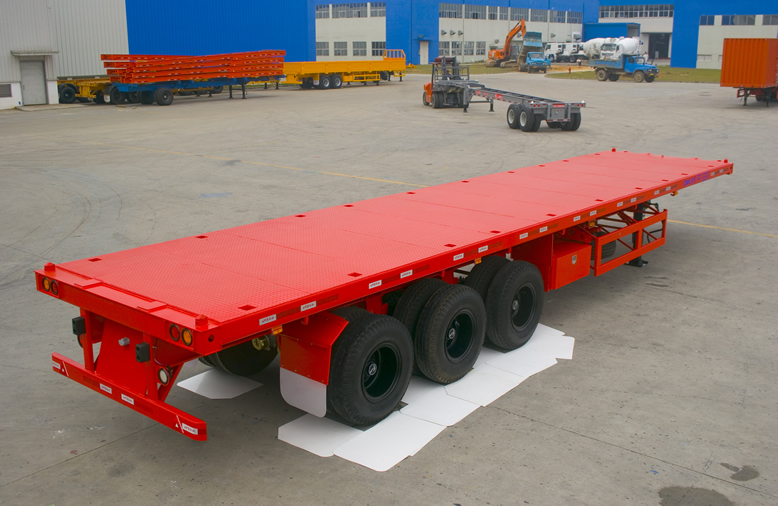

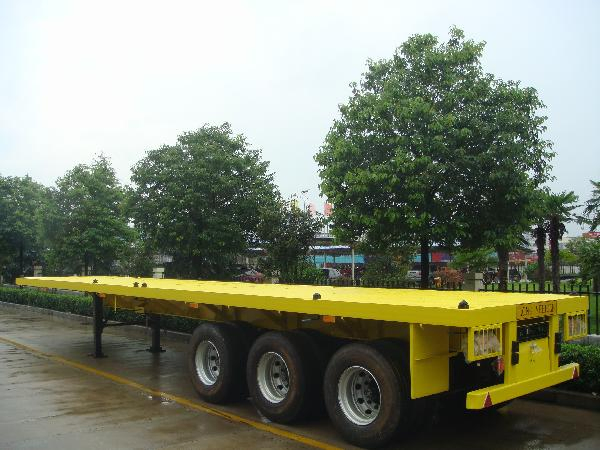

Photo of Products
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
Warranty
1. One year quality guarantee for three key parts axles, beam, landing gear or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers

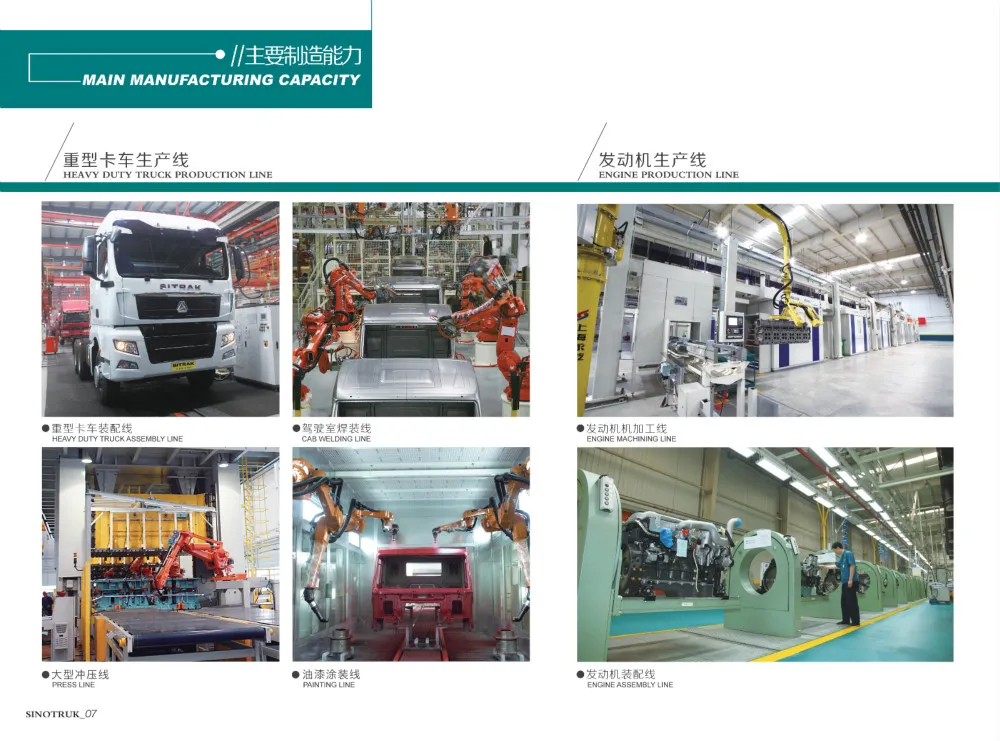

About us
SINOTRUK is the leader in Chinese truck industry, founded in 1956, successively cooperated with Many Europe top manufacturers like Styre,Volvo and MAN. In 2007,we listed in the red-chip Hong Kong ,Germany MAN is our sencond largest share holder. Through centuries development, we have owned 20 subsidiaries in China, our products exported all around the world.

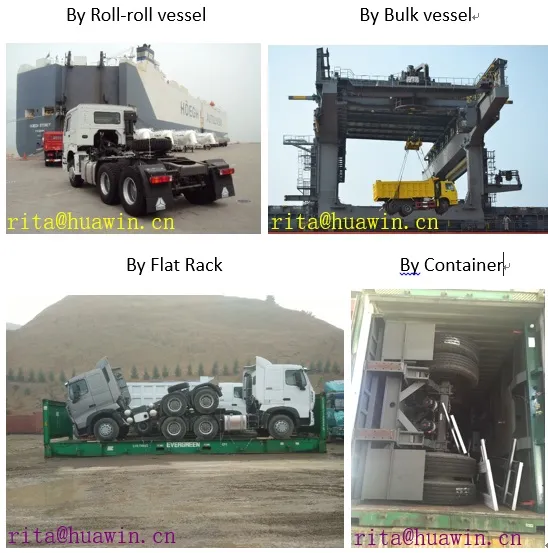

Shipment way

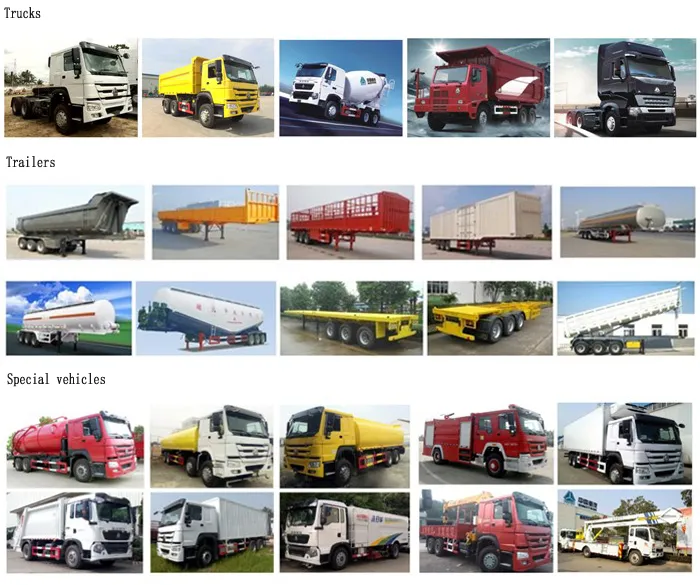

Other products

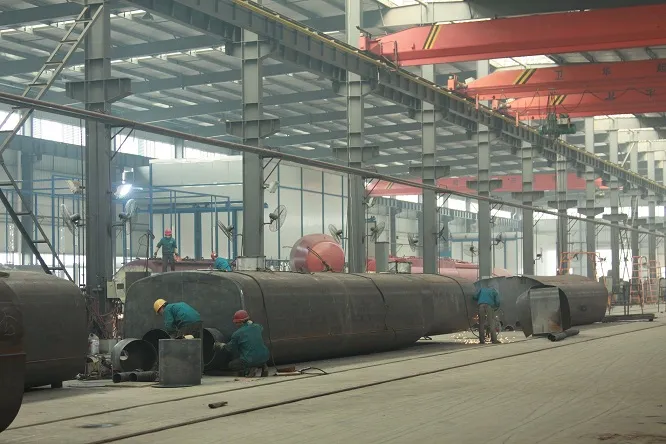

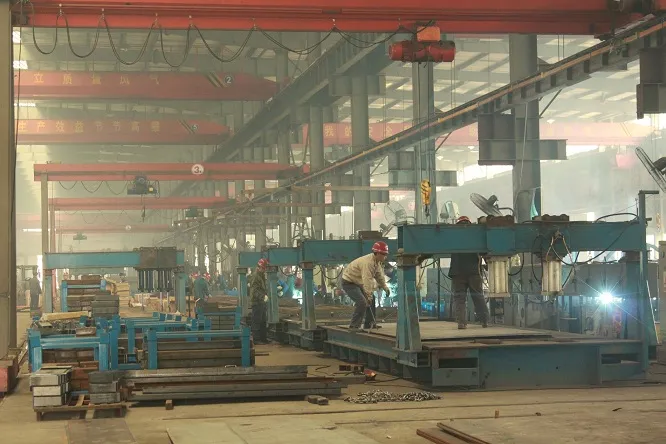

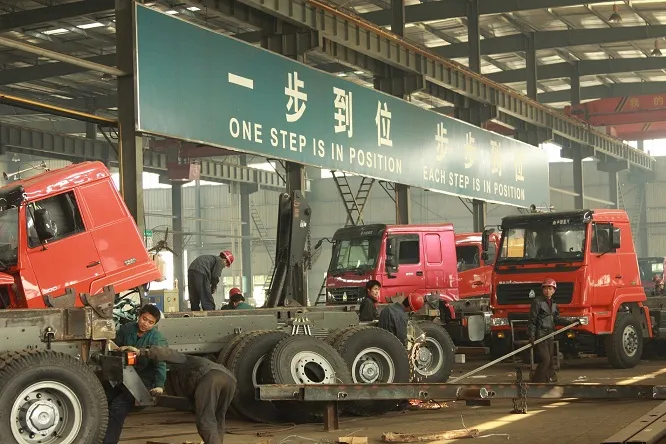

Welcome to visit our factory!
Rita Du
SINOTRUK Hubei Huawin Special Vehicle Co.,Ltd
No.9 new industrial base Zengdou, Suizhou city, Hubei province, China
Web: http://sinotruk-huawin.en.made-in-china.com
Specification
(1) flatbed semi trailer
(2) 3 Axles
(3) Loading Capacity: 50000KG
(4) Optional twist locks Can be loaded one 40'' container or two 20'' containers
(5) King Pin: JOST
(6) Certification: ISO9001 CCC,SGS
Technical Parameters
| DIMENSIONS | |||
| Tare Weight | 7700kg | ||
| Overall Length | 12400mm | ||
| Overall Width | 2480mm | ||
| Payload | 45000kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange8 mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| BPW Brand 13 ton | |||
| Suspension | air suspension | ||
| Floor | 3mm checker plate | ||
| King Pin | JOST brand 2" Bolt-in King Pin | ||

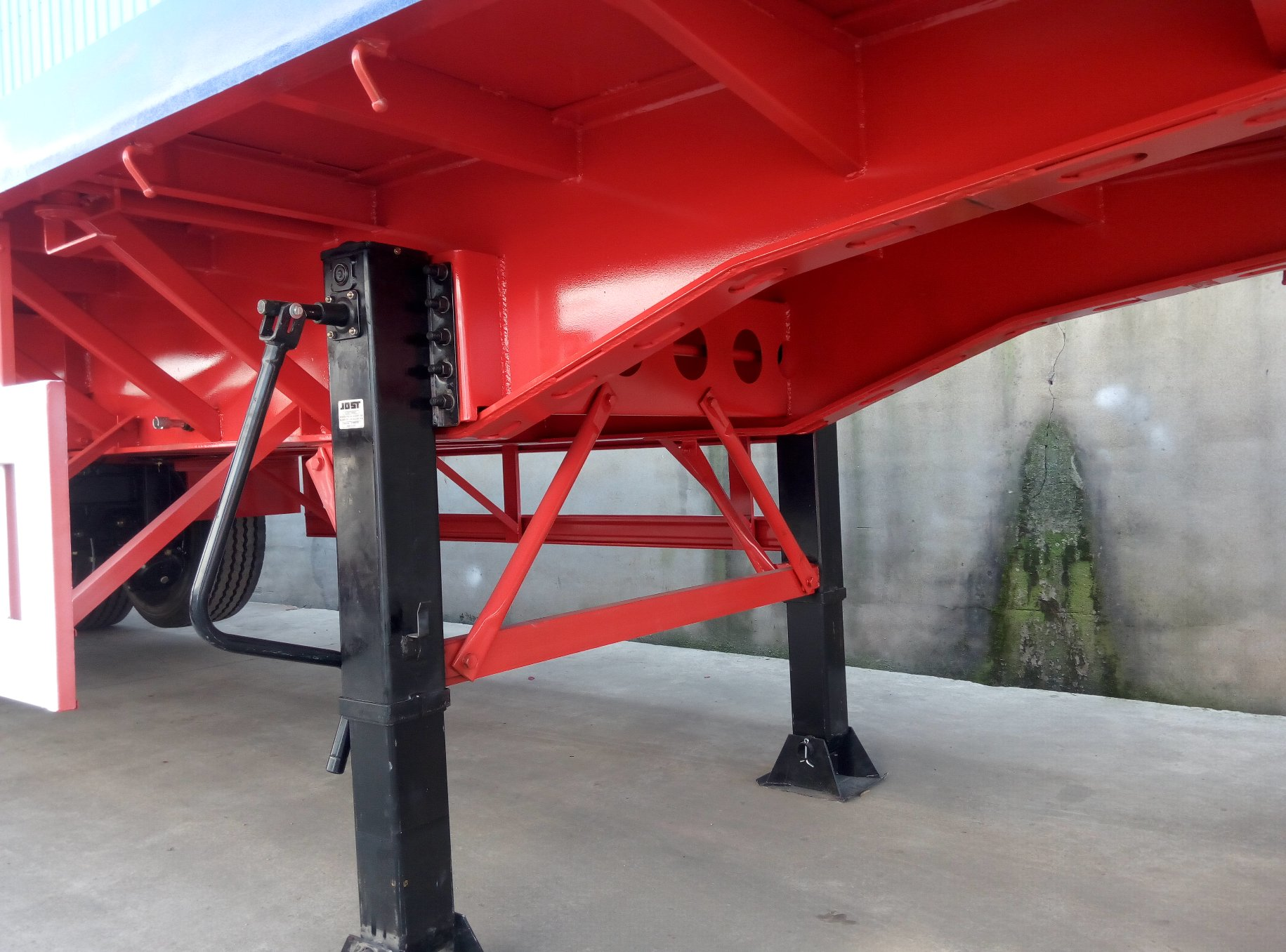

| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
| Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||

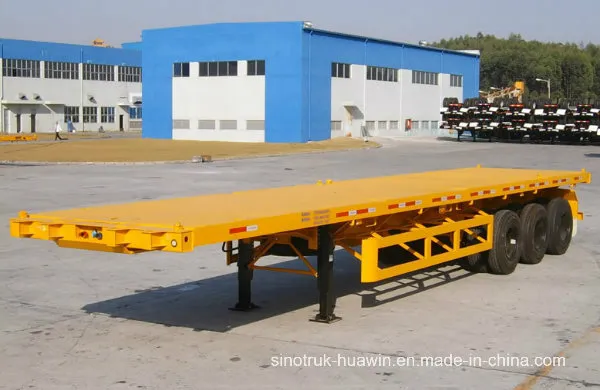

Photo of Products
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
Warranty
1. One year quality guarantee for three key parts axles, beam, landing gear or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
About us
SINOTRUK is the leader in Chinese truck industry, founded in 1956, successively cooperated with Many Europe top manufacturers like Styre,Volvo and MAN. In 2007,we listed in the red-chip Hong Kong ,Germany MAN is our sencond largest share holder. Through centuries development, we have owned 20 subsidiaries in China, our products exported all around the world.
Shipment way
Other products
Welcome to visit our factory!
Rita Du
SINOTRUK Hubei Huawin Special Vehicle Co.,Ltd
No.9 new industrial base Zengdou, Suizhou city, Hubei province, China
Web: http://sinotruk-huawin.en.made-in-china.com
