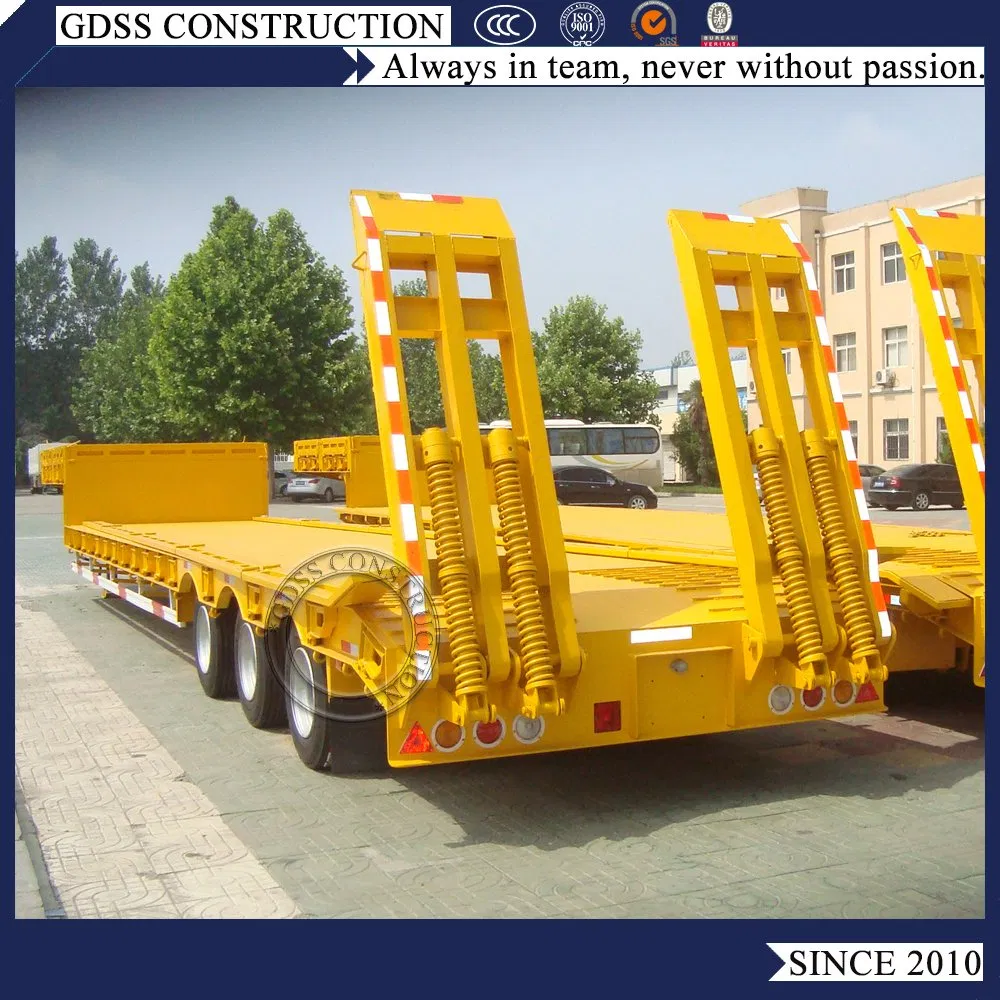

Sunken Lower Loading Deck Lowbed Truck Semitrailer Low Bed Semi Trailer

Product Description

1. Specifications

Model	GC9320TDP
Main size	Overall length	13000mm
	Overall width	3000mm
	Overall height	1750mm
	Loading capacity	80T.
Chassis	Main beam	Material of high strength steel Q345B. Height 500mm. Top/middle/bottom flange:20/18/20mm. Welded by automatic submerged-processes.
	Main cross beam	Material is high strength steel Q345B. Welded by automatic submerged-arc processes
Loading deck	Material: Carbon steel Q345. Length of 9000mm. Height of 1000mm. Floor thickness 5 mm.
Landing gear	28T model landing gear with static capacity of 80T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. 3.5 inches available if want.
Axle	3 sets of 13T model axles, with double tires formation.
Tire	Tire sized 12R22.5, radial tubeless tires. 12 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 9.00X22.5, steel wheel rim. 12 pcs of wheel rim per trailer.
Suspension	Mechanical steel suspension system, four axles type. 6 sets of leaf springs installed.
Brake system	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box.

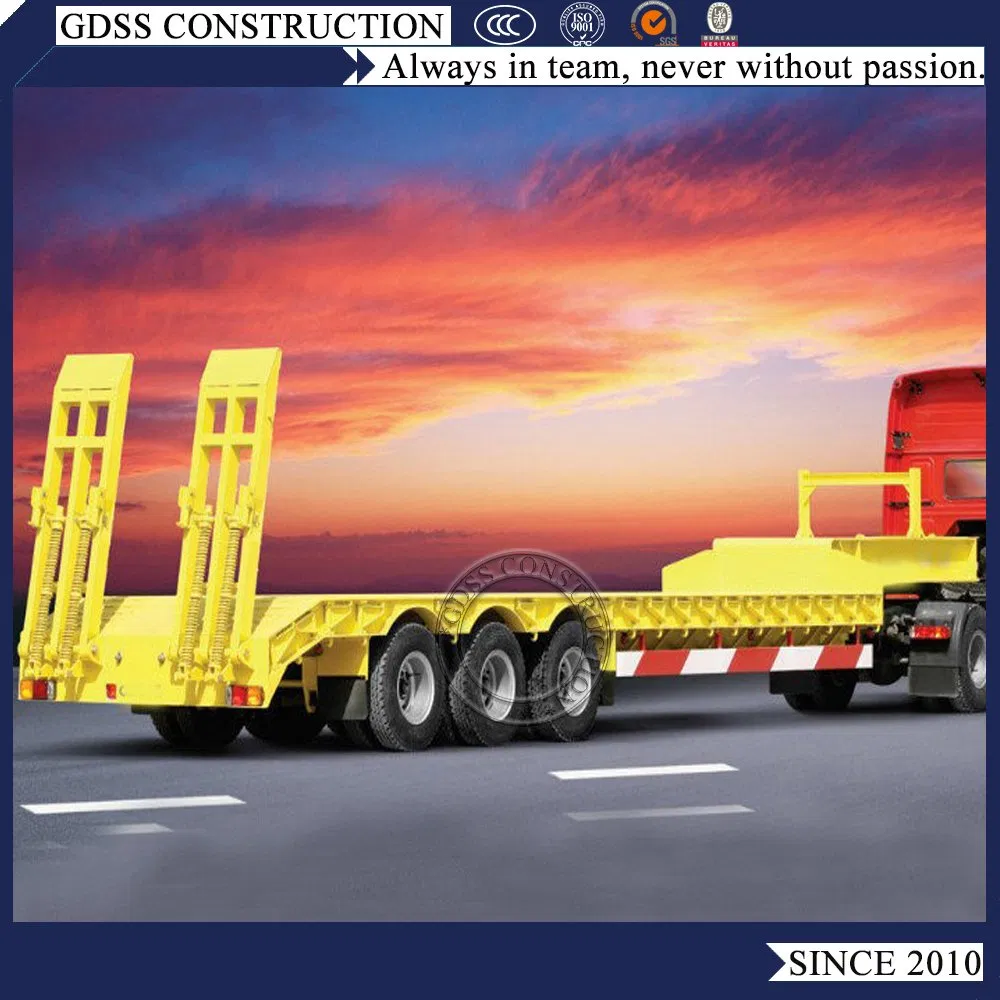

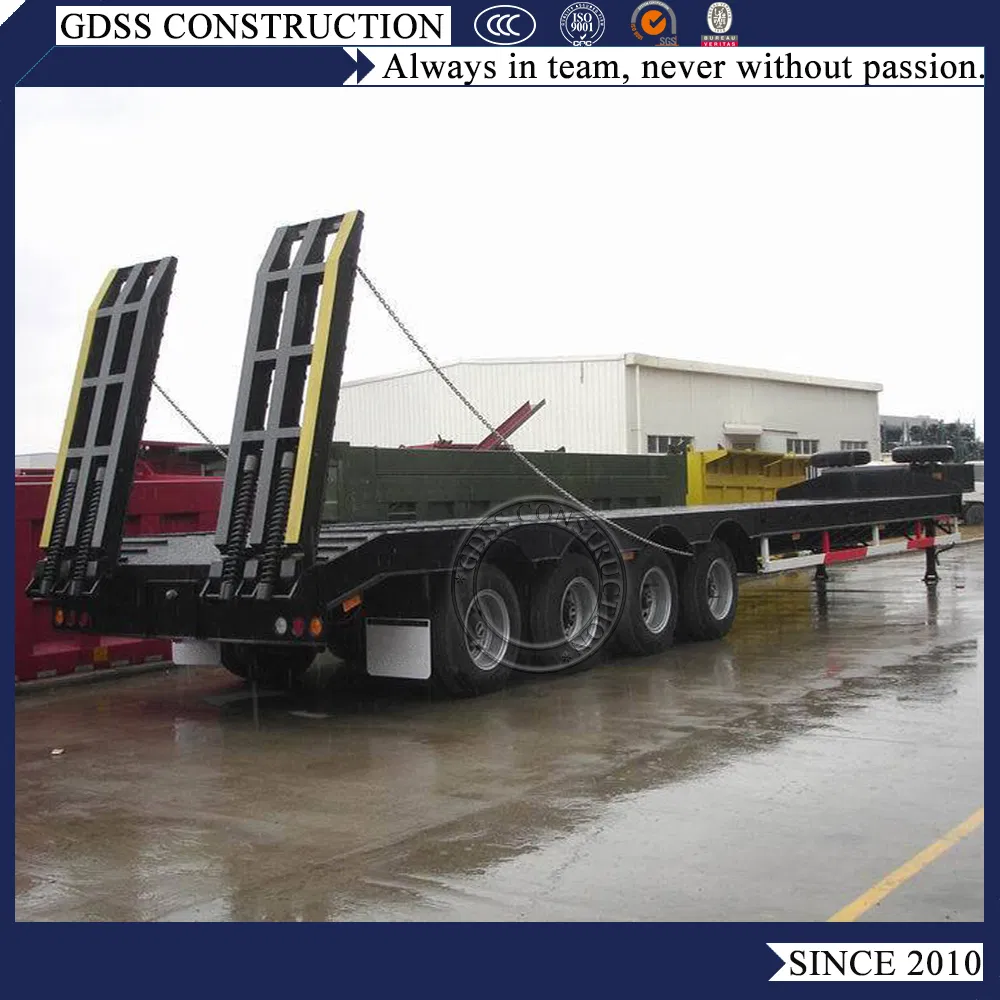

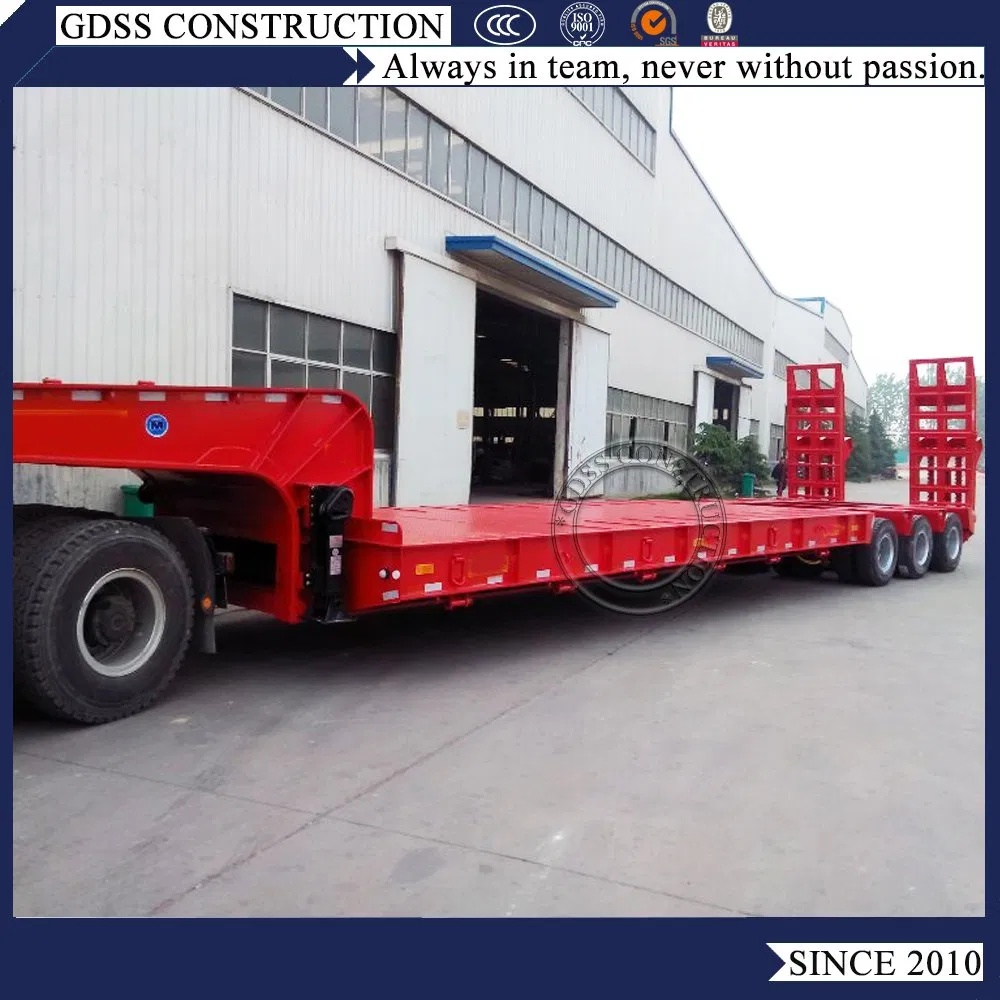

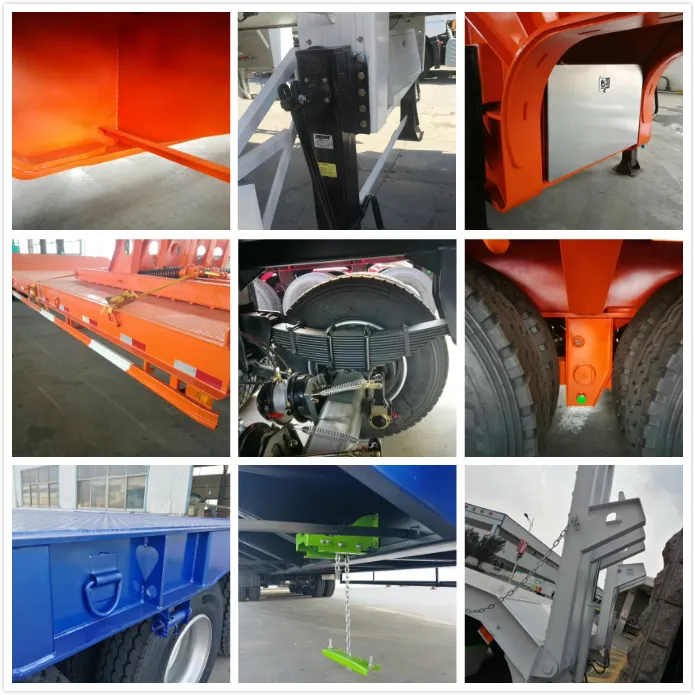

2. Trailer detail

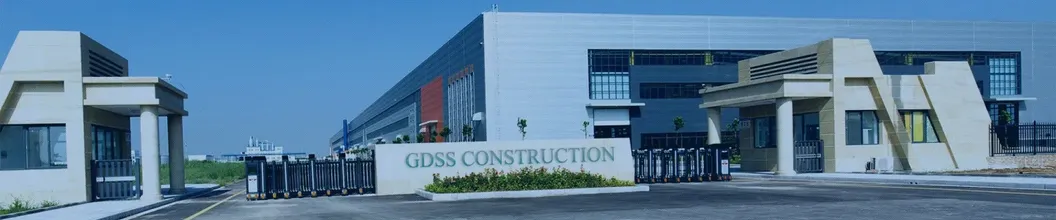

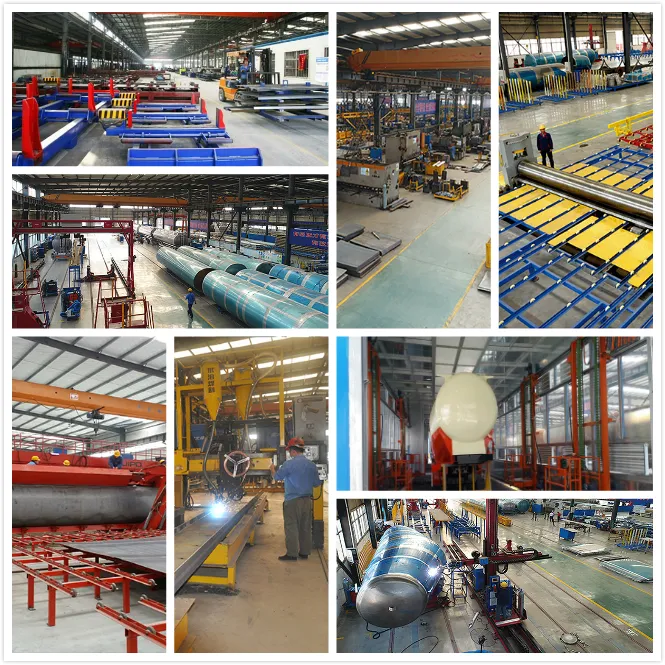

3. Workshop View

Sunken Lower Loading Deck Lowbed Truck Semitrailer Low Bed Semi Trailer

4. Customer visit&feedback

5. Exhibition

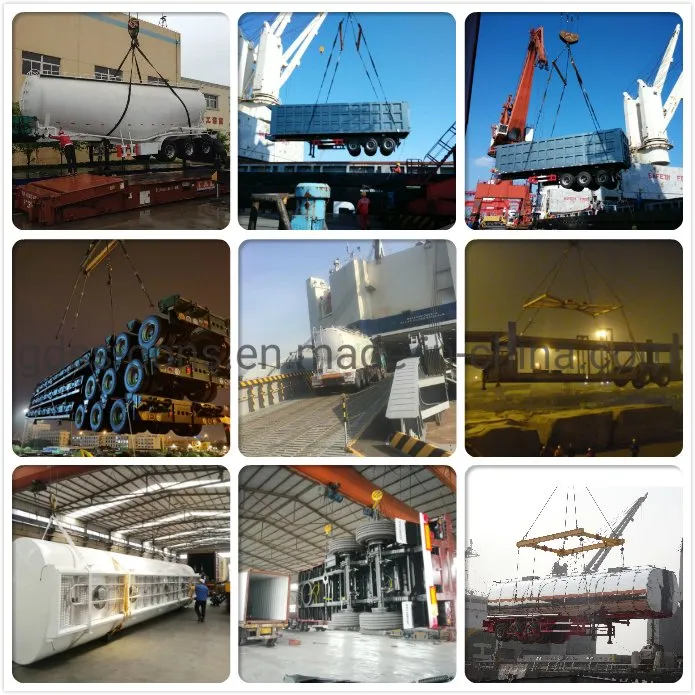

6. Shipping reference

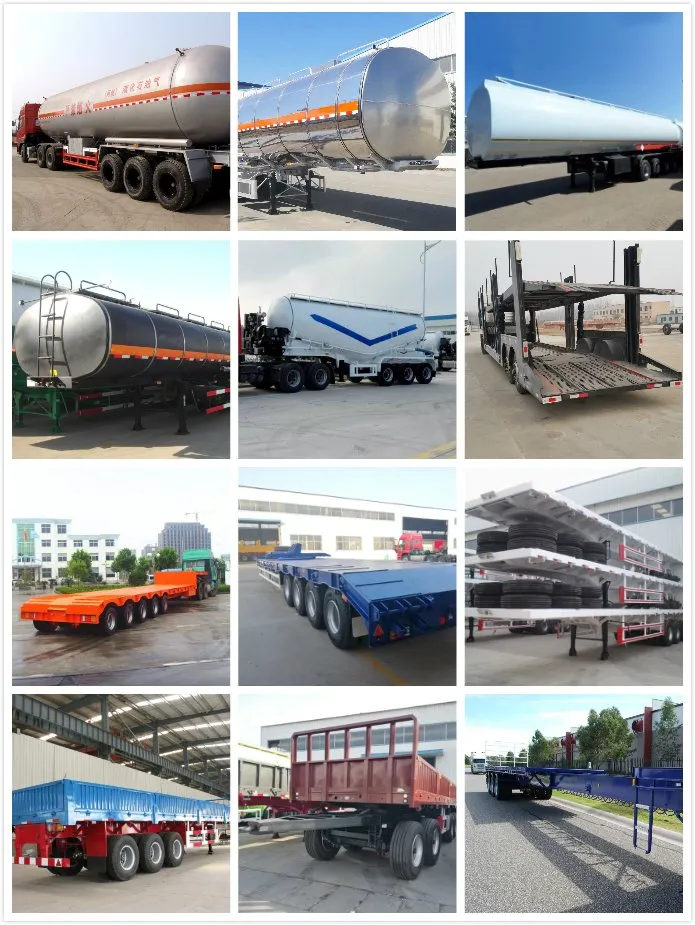

7. What we can build for you

8. FAQ
1) Can we first order one unit for a test?
--Yes, it is no problem.
2) We have our wanted sizes, can you make it?
-- Yes, the design can be made as per your requirement.
3) How long it will take to complete the production?
   -- Normally it will take 35 days around.
4) We want to put our logo on the trailer, can you do it?
-- Yes, we can paint your logo on the vehicle.
5) How will you delivery the trailers?
   -- We will delivery them by container, bulk cargo ship or roro ship. And will try to find the best way to delivery them and save freight.
6) What about the warrantity?
   -- We provide you a warrantity of two years of main beam, other parts like axle will be one year.

9. Welcome to pay a visit to us. And we will provide you the best transport solutions.
