Superlink Interlink Skeleton Trailer for 20FT 40FT Container

Product Description

Superlink Interlink Skeleton Trailer for Container
--------------------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--24 hours After Sales Service !*

I. Product Description
Description: In the road transport or trucking industry an interlink trailer consists of two trailers linked together by a fifth wheel, and up to 27.5m
(92 ft) long. It is also known as a B-train in many countries and as a B-double in Australia;
Application: Interlink trailers are used to transport many types of load and examples include tanks for liquid and dry-bulk, flat-beds and curtain-siders for deck-loads, bulkers for aggregates and wood residuals, refrigerated trailers for chilled and frozen goods, vans for dry goods, logging trailers for forestry work and cattle liners for livestock.

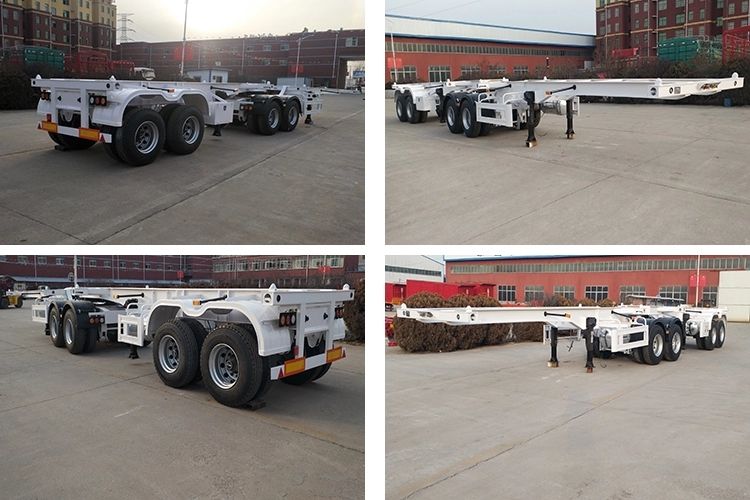

Superlink Interlink Skeleton Trailer for 20FT 40FT Container

II. Product Specs

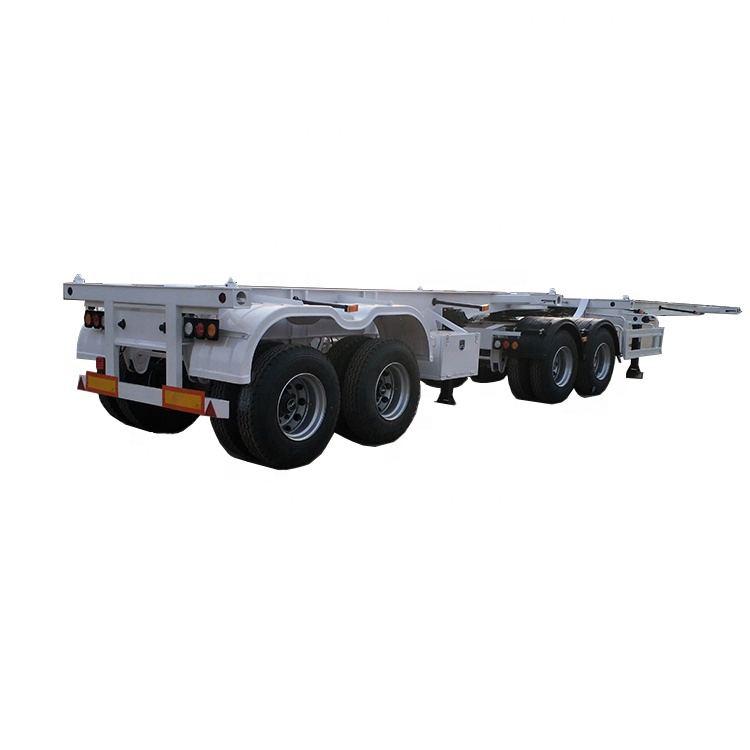

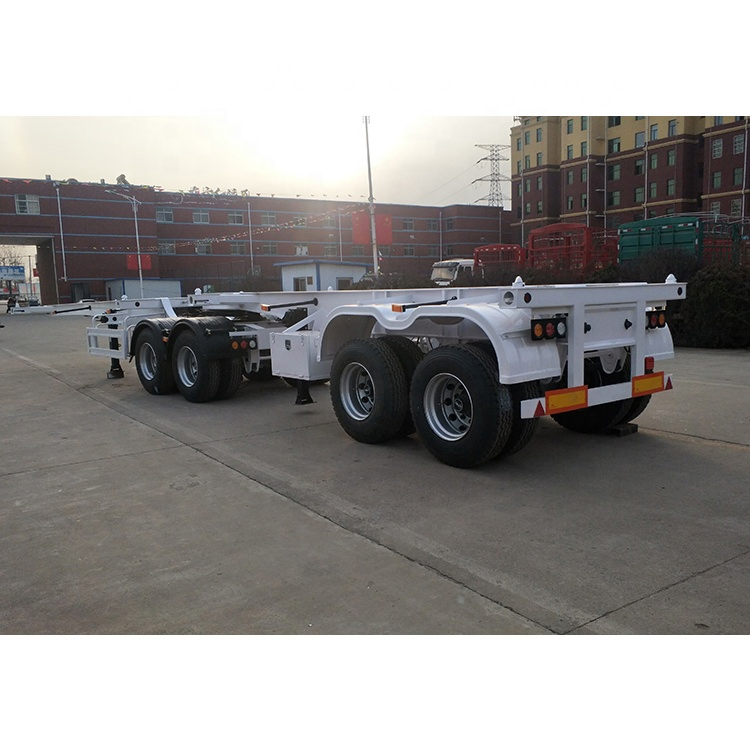

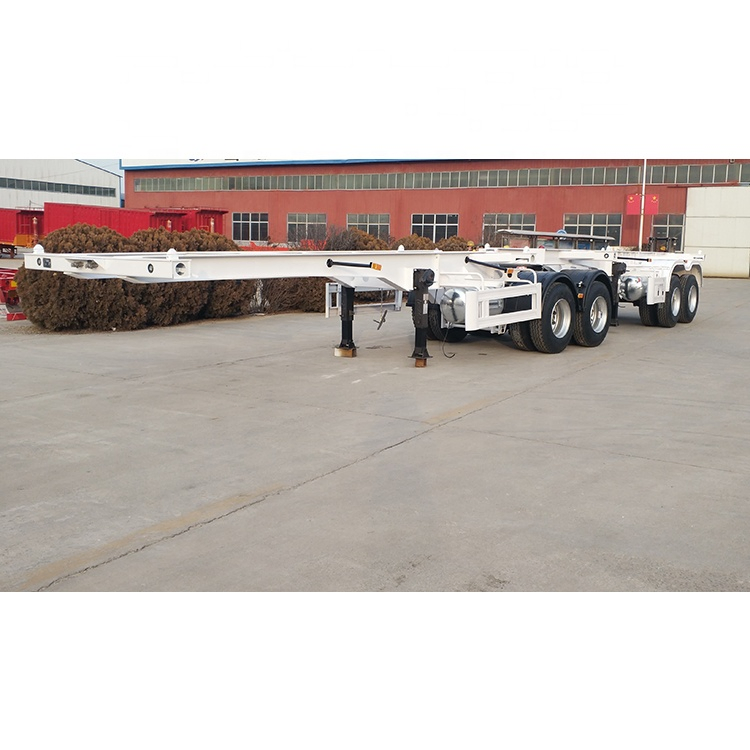

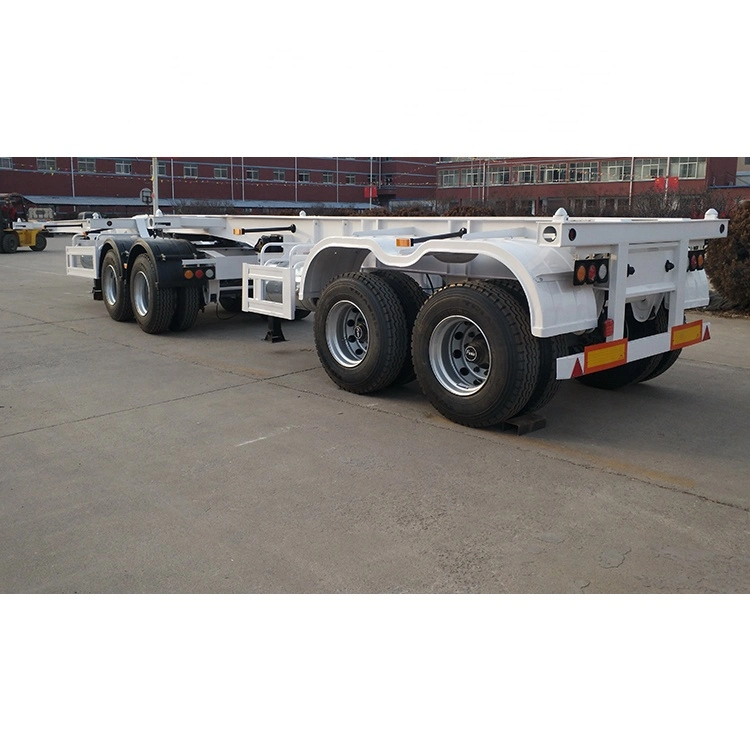

Superlink Interlink Skeleton Trailer for 20FT 40FT Container
Front Trailer Size	6100x 2500x 1600 mm
Rear Trailer Size	12300 x2500 x 1600 mm
Floor	Material	Carbon steel Q235
	Thickness	3mm
	Floor type	Checkered plate
Running mechanism	Axle	FUWA (BPW in optional)
	Suspension	Spring Type
	Spring Leaft	Leaf width	90mm
		Leaf thickness	13mm
		Layer/set	10 layers
	Tire	TRIANGLE 12R22.5, 16pcs
	Kingpin	2'' or 3.5''
	Landing gear	JOST
Accessories	Spare tire carrier, LED light, 24V light, 7 ways(7wire harness)and quick change type Receptacle, tool box, Painting( Polyurethane paint&anti-rust primer & sand blasting )
