Product Description
Tri-axle 54000L LPG tanker semi trailer LPG truck trailer 27 tons propane LPG transport tanker trailer
Product Description
1)liquefied petroleum gas tankeris used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of liquefied petroleum gas tanker: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of liquefied petroleum gas tanker:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity of liquefied petroleum gas tanker : 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons

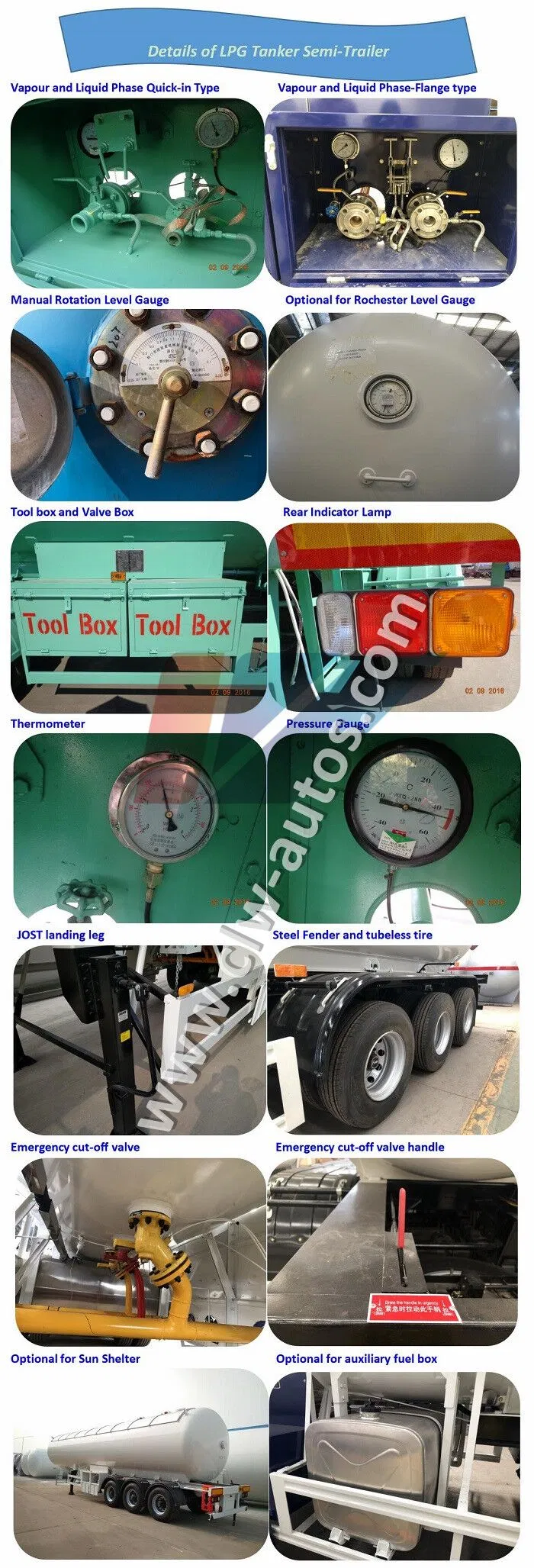

5)The semi-trailer for liquefied gas transportation mainly consists of the following parts:
Liquefied gas tank body (made of Q345R steel plate), axles, tires, outriggers, traction pins, double outlet and double valve boxes (pressure gauges, thermometers, tight cut valves, ball valves), iron anti-wave plates, safety valves, liquid level Meter, fire extinguishing equipment, tool box, anti-static tape, spare tire rack, plastic tire fender, etc.
Specification
| Tanker Essential Information | ||
| Volume of Tank (cbm) | 54 | |
| Overall Dimensions(L*W*H)(mm) | 13000*2500*3980 | |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2450*12*12305 | |
| Estimated Tare Weight (kg) | 15000 | |
| Payload(kg) | 22680 | |
| Total Weight(kg) | 37680 | |
| Wheelbase(mm) | 6800+1310+1310 | |
| Shell of Tanker | ||
| Products | Liquefied Petroleum Gas (propane) | |
| Fluid Property | Flammable | |
| Design Temperature(ºC) | 50ºC | |
| Design Pressure(MPa) | 1.61 | |
| Corrosion Allowance(mm) | 1.00 | |
| Weld Joint Factor | 1 | |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, | |
| End plate:Q345R,12mm | ||
| Main beam:16Mn | ||
| Detection | ||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
| Flaw Detection | 100% Flaw detection | |
| Test Pressure(MPa) | 1.61 | |
| Hydraulic Test(MPa) | 2.1 | |
| Magnaflux Inspection | Aim at welding place that flaw detection can not cover | |
| Manhole (As Customer's Requirement) | ||
| Quantity | 1;on top | |
| Size | DN450 | |
| Safety Valve(As Customer's Requirement) | ||
| Quantity | 2 | |
| Location | On the top of tanker | |
| Size | DN80 | |
Level Gauge | ||
| Type | Manuel Switch type | |
| Location | At the rear of the end dish | |
| Running System | ||
| Axles | 3*13T BPW | |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire | |
| Landing leg | JOST | |
| King Pin | #50 or #90 | |
| Control System | ||
| Emergency Cut-off Valves | 2 or 3 | |
| Ball Valve | 4 or 6 | |
| Liquid Gauge | 1 | |
| Pressure Indicating Thermometer | 1 | |
| Pressure Gage | 1 | |

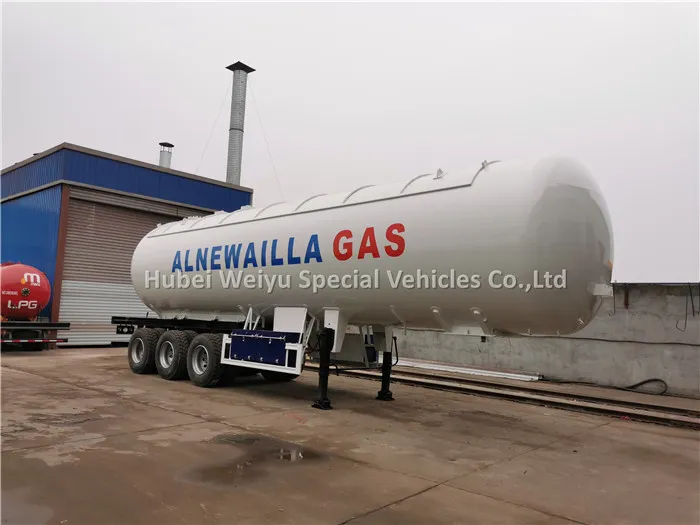

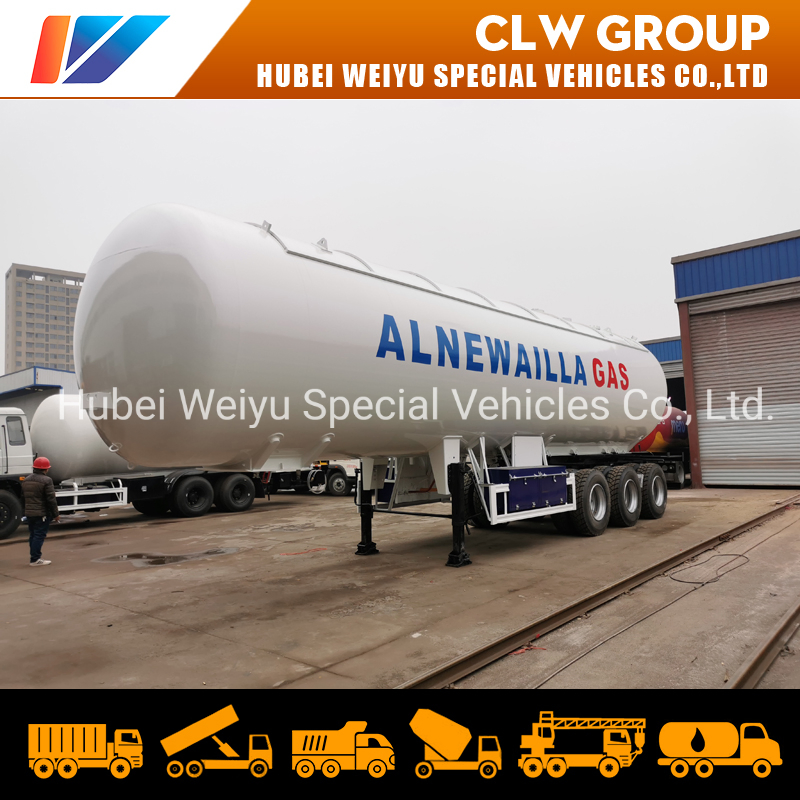

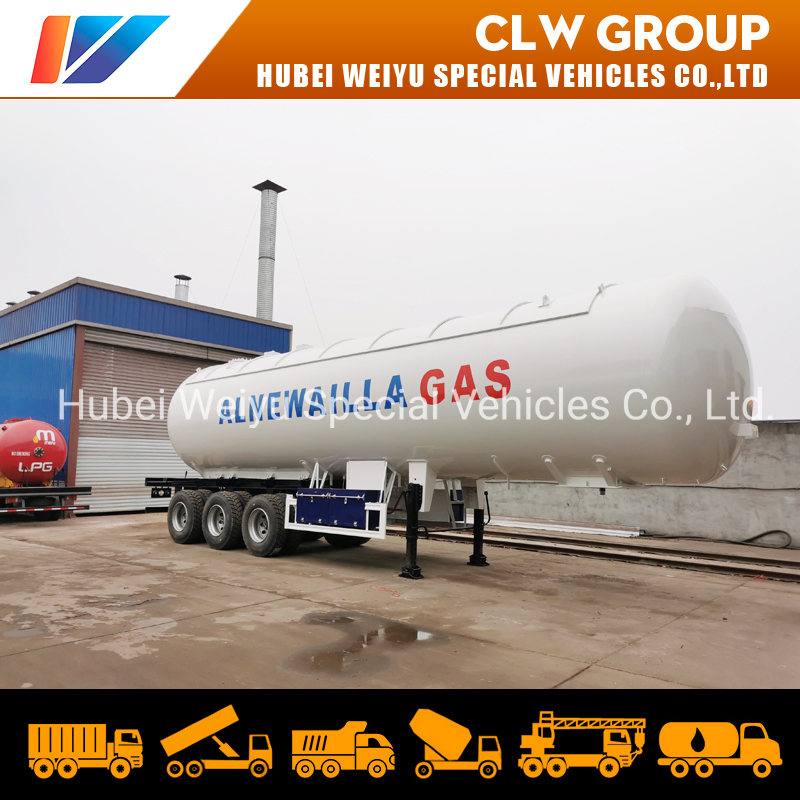

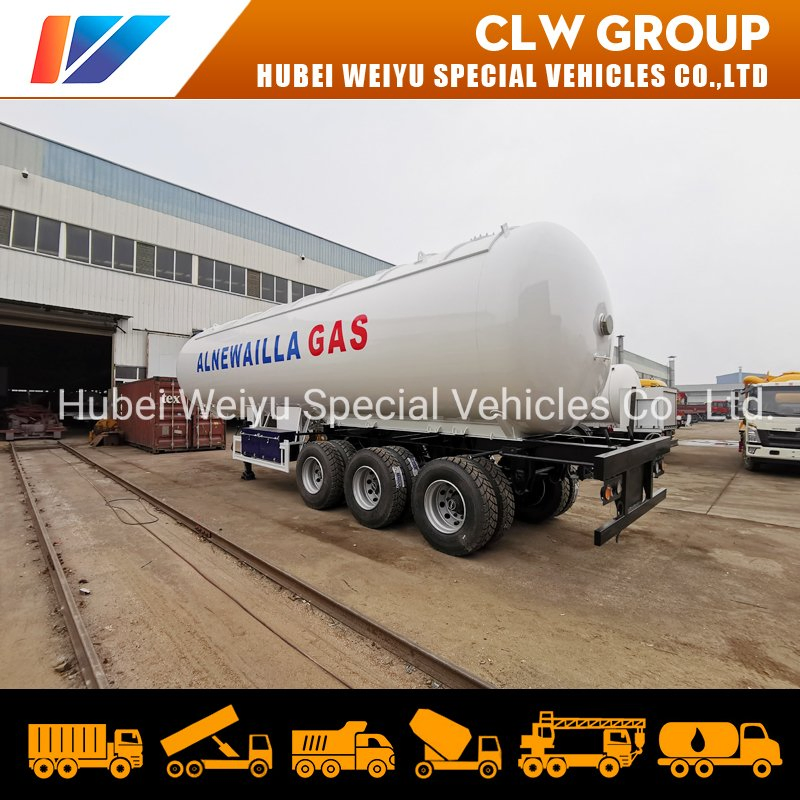

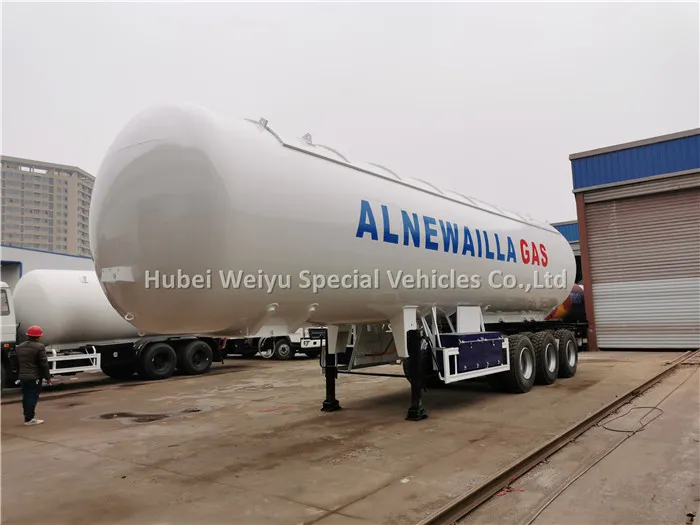

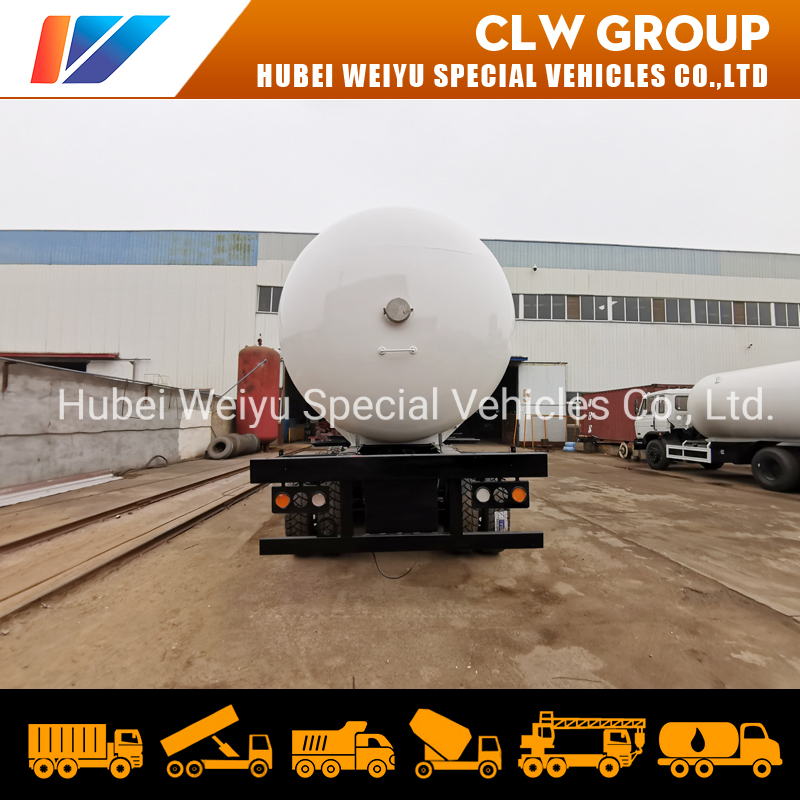

Reference photos for 54000Liters LPG Tanker Trailer

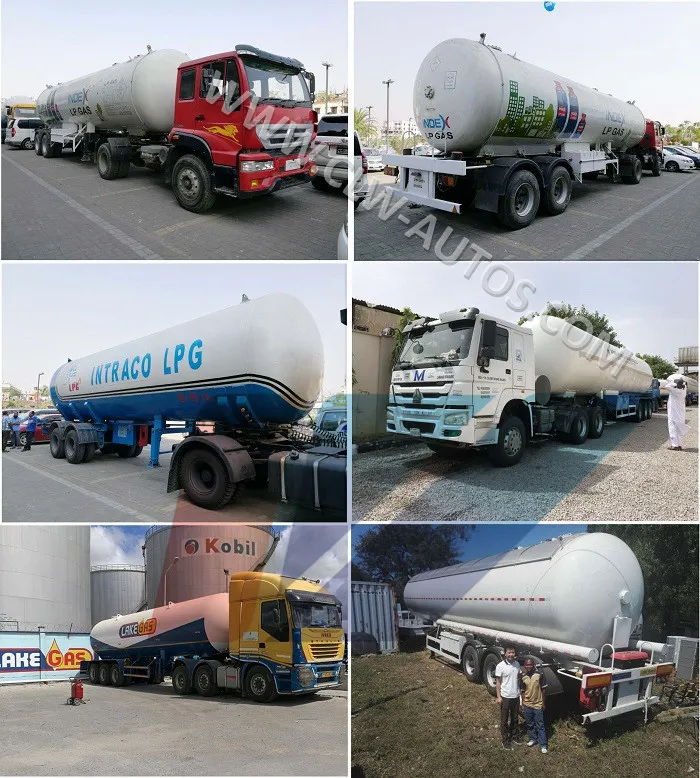

Successful Cases

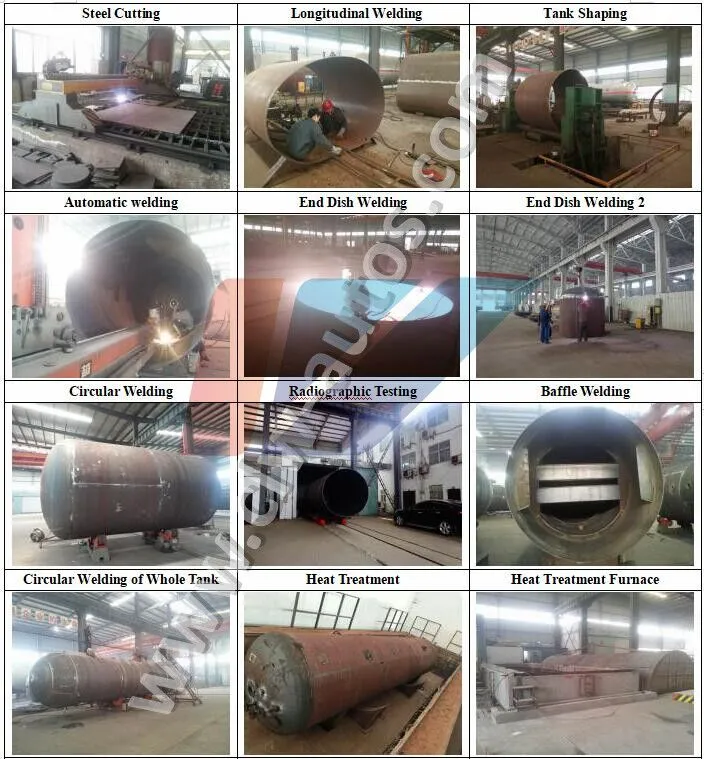

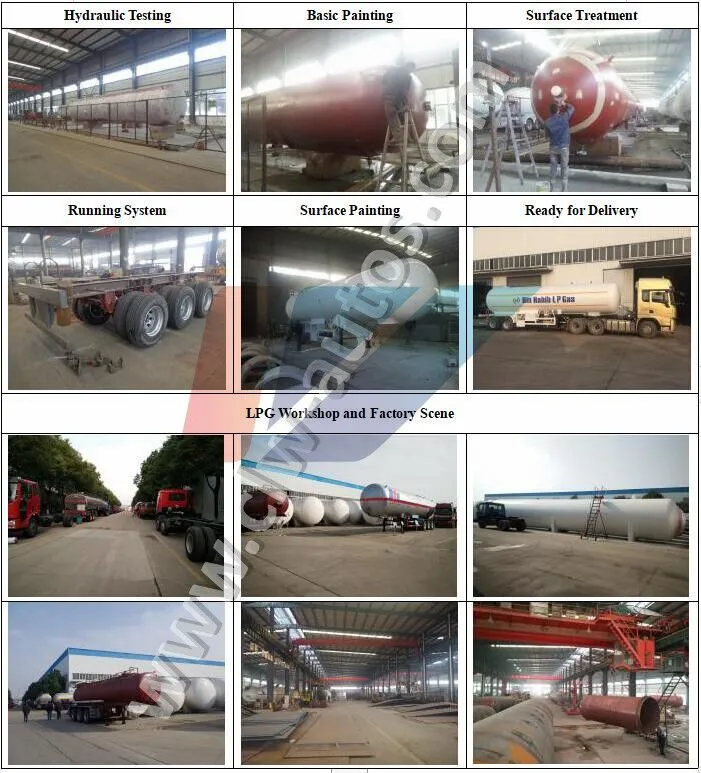

LPG Product Process
Overseas Exhibition and Local Support
Customer Visiting
