Tri-Axle 56m3/56cbm/56000L/56000liters Propane LPG Tank Semi Trailer
Tri-Axle 56m3/56CBM/56000L/56000Liters Propane LPG Tank Semi Trailer 1. 3 Axles 56000L 22Tons LPG Gas Transportation Tank Trailer Specification:Wheelbase mm6800+1310+1310Rear trackmm1840/1840/1840Total massT40Sizem12900×2500×3980Curb weightT16.48Loading massT20T to 22TSteel sprin......
Send Inquiry
Product Description

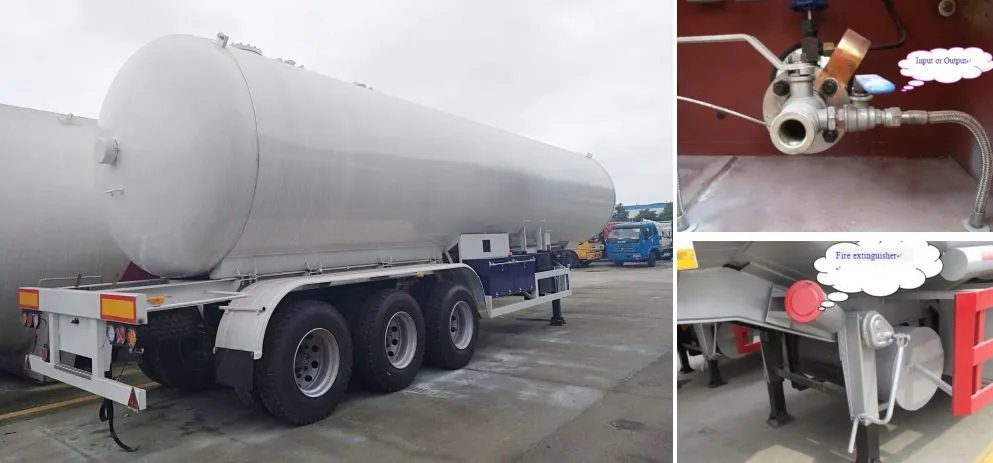

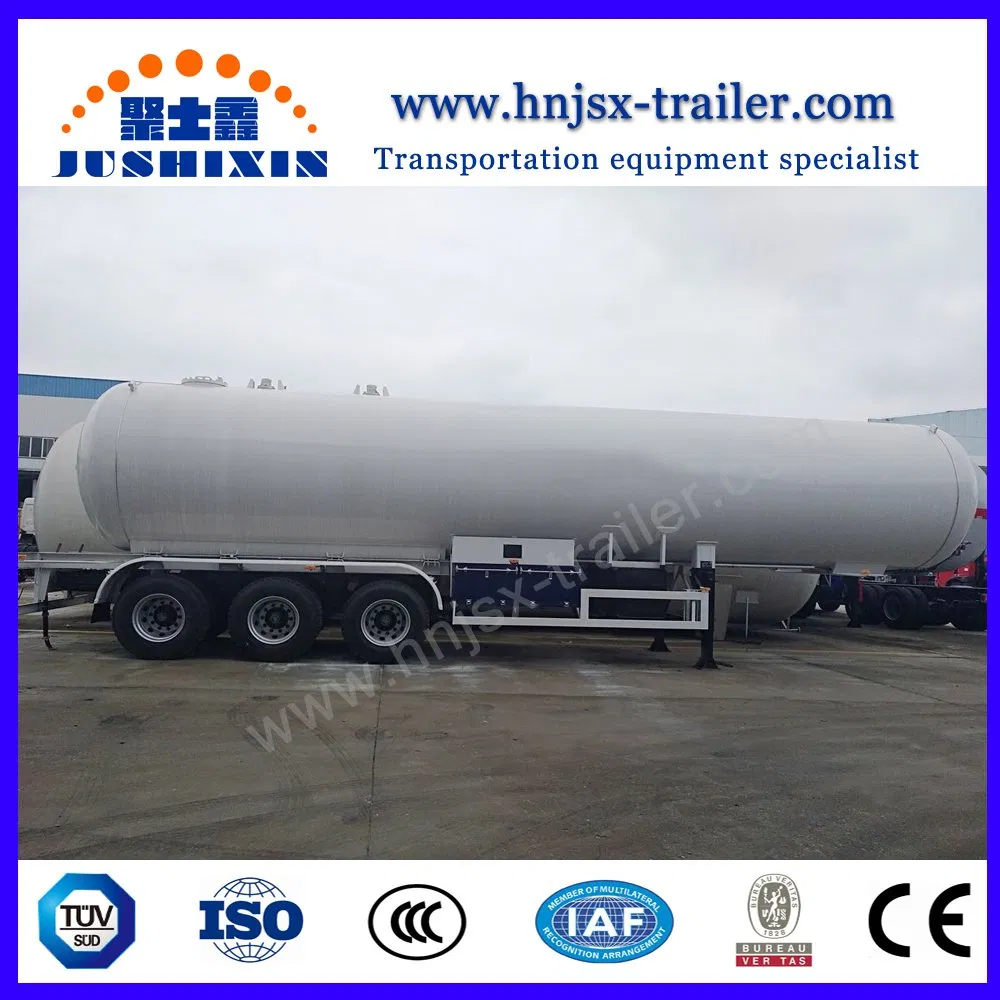

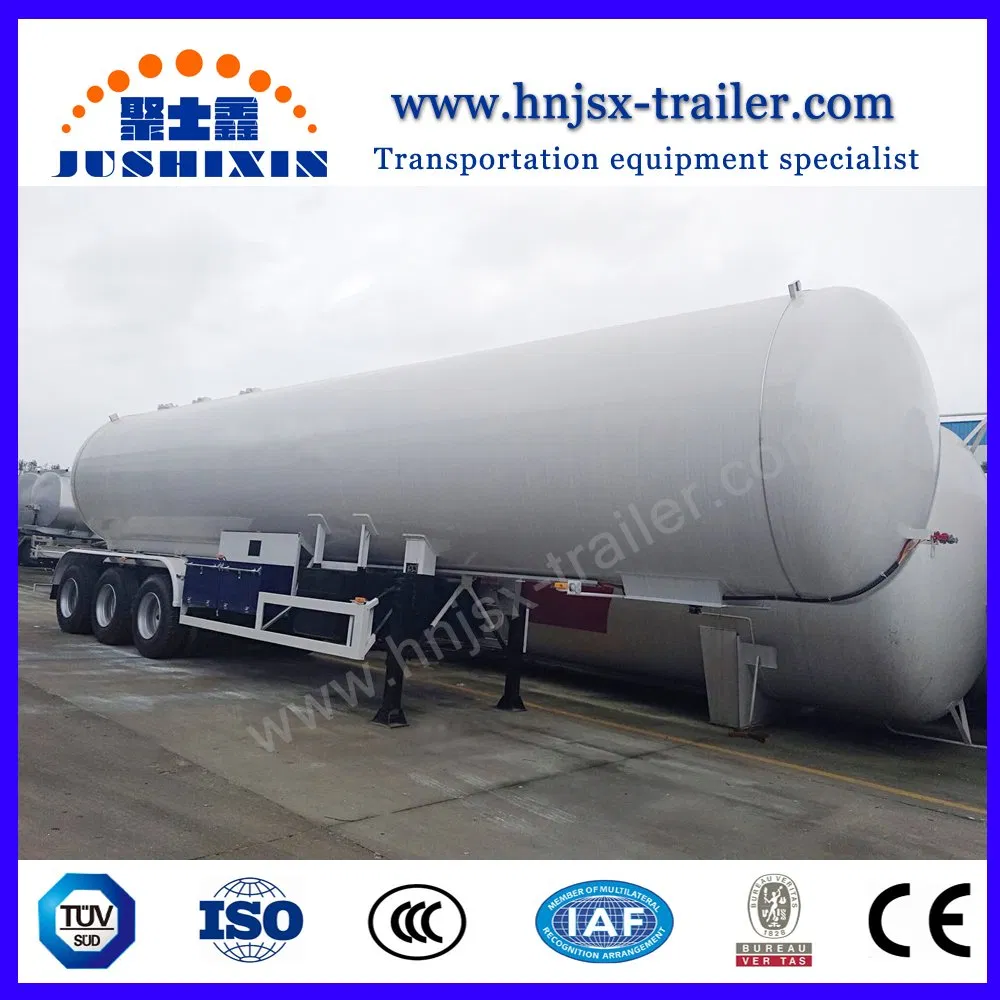

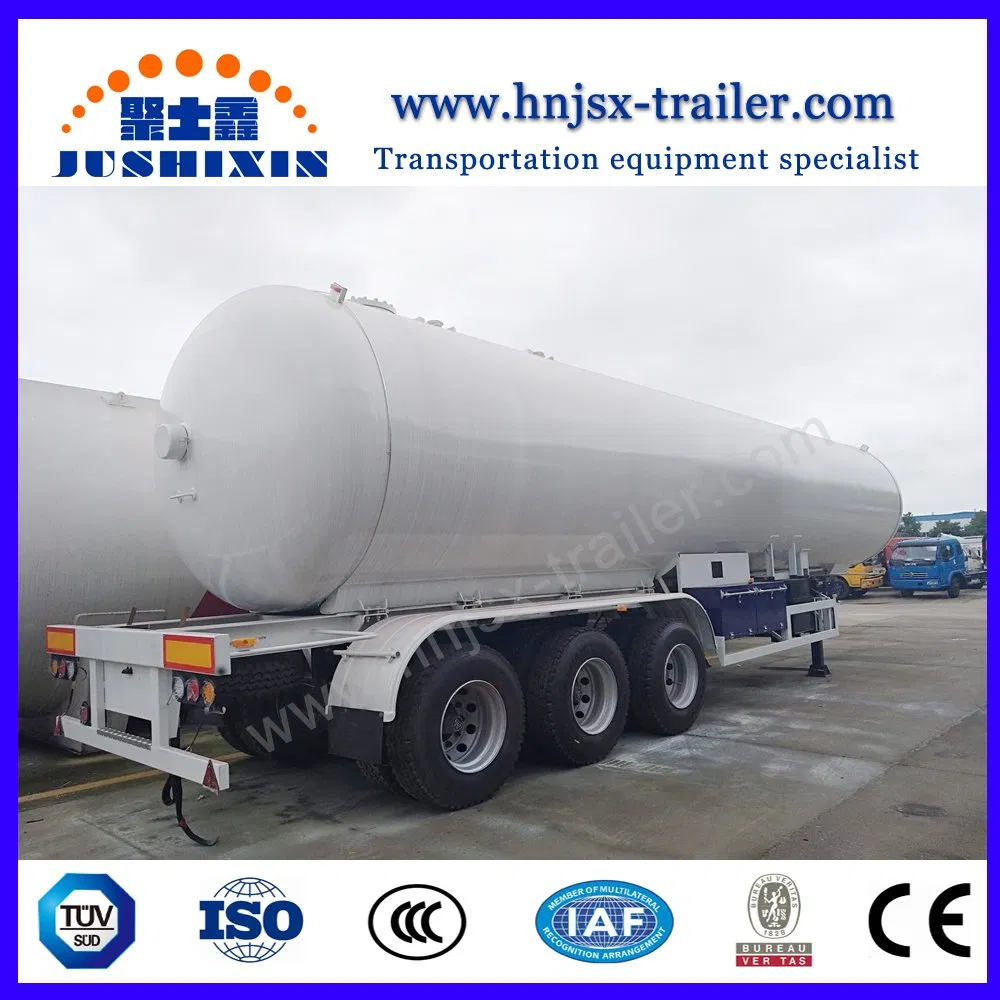

Tri-Axle 56m3/56CBM/56000L/56000Liters Propane LPG Tank Semi Trailer
1. 3 Axles 56000L 22Tons LPG Gas Transportation Tank Trailer Specification: | |||
| Wheelbase | mm | 6800+1310+1310 | |
| Rear track | mm | 1840/1840/1840 | |
| Total mass | T | 40 | |
| Size | m | 12900×2500×3980 | |
| Curb weight | T | 16.48 | |
| Loading mass | T | 20T to 22T | |
| Steel spring NO | Pcs | -/7/7/7 | |
| Axles brand | / | FUWA | |
| Axles NO | Pcs | 3 | |
| Axles loading | kg | 13000 | |
| Legs brand | / | Jost | |
| Legs loading | kg | 28000 | |
| Tyres No | Pcs | 12+1 | |
| Tyre type | / | 12 tubeless | |
| Tyre carrier | Pcs | 2 spare tyre carrier | |
| Frame | / | Carbon steel | |
| King ping | / | #50 | |
| Brakes | / | yes | |
| Dust guard | dust guard of rubber | ||
| Tanker volume | L | 56,000 | |
| Tanker material | / | Carbon steel Q345R | |
| Tanker thickness | mm | 15 | |
| Tanker diameter | mm | 2450 | |
| Tanker design pressure | Mpa | 2 | |
| Water test pressure | Mpa | 2.22 | |
| Tanker temperature | -19 to 55 | ||
| Painting | Chassis paint of gray color(possible another color by future request) | ||
| Other accessories included: 1.Single out the solution 2.Bilateral Handling 3.Double valve box 4.Single Kit 5.Safety valve 6.Thermometer 7.Pressure gauge 8.Emergency shut-off valve 9.Fire extinguishers 10.Anti-static grounding tape | |||
2. 3 Axles 56000L 22Tons LPG Gas Transportation Tank Trailer Advantages: |

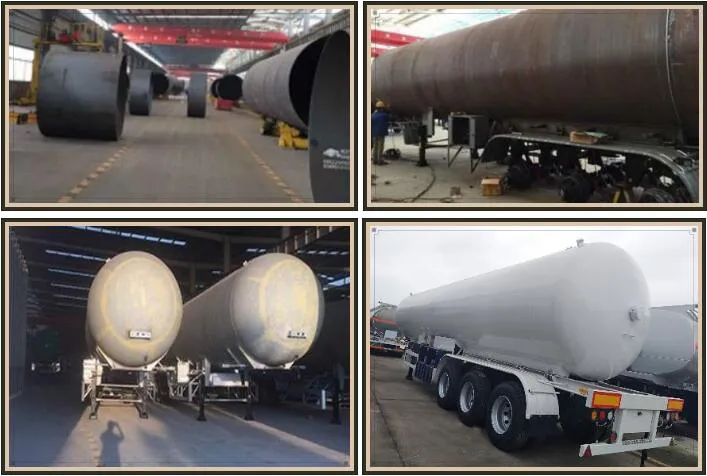

| 1)Tank Rolling: Plate rolling machine is applied for tank body,it is much faster and easier to control quality. 2)Automatic Welding: The tank body sheet are welding together by the auto-welding machine to ensure the quality. 3)Mono-Block Tank Body: Monoblock tank use less welding, which make the tank more steady and beautiful. |
3.Company Information: |
4.Our LPG Gas Transportation Tank Trailer are approved by CCC and ISO: |
| 5.Contact us: |
