Tri-Axle V-Shape 30cbm Silo Dry Bulk Cement Truck Semi Trailer
Product DescriptionTri-Axle V-Shape 30cbm Silo Dry Bulk Cement Tanker Semi Trailer Main Dimensions Tank Body ShapeOne Silo with V typeDimension11450x2500x3990mm ( Exact size depends on the final design)Tare weightAbout 12000KGSLoading weight50tonTotal Volume(m3)45m³Tanker Body MaterialQ235......
Send Inquiry
Product Description
Tri-Axle V-Shape 30cbm Silo Dry Bulk Cement Tanker Semi Trailer
Main Dimensions | |
Tank Body | |
Shape | One Silo with V type |
Dimension | 11450x2500x3990mm |
Tare weight | About 12000KGS |
Loading weight | 50ton |
Total Volume(m3) | 45m³ |
Tanker Body Material | Q235A/5mm steel sheet |
End Plate | Q235A/6mm ball shape |
Diesel Engine | weichai brand model:4102.44KW . |
Compressor | 37 KW,0.2Mpa. 1000r/Min(12m3/minute) Bohai brand |
Manhole Cover | Carbon steel 500mm (Special for export market) |
Discharging Valve | Diameter 4 inch |
Discharging Pipe | 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model ) |
Chassis | |
Main Beams | Welding Design , |
Axle | 3 axles, 13T/ FUWA Brand |
Landing Gear | two-speed,manual operating ,heavy duty landing gear 24t |
King Pin | JOST 2.00 inch bolt-in king pin |
Suspension | Mechanical suspension (Special for export market) |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE6 relay valve ; |
Rim | 9.00-22.5 |
Tire | 12R22.5 |
ABS | optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint + polish with wax |
Accessories | One standard tool box |
1.Flat rack ----bulk cement trailer

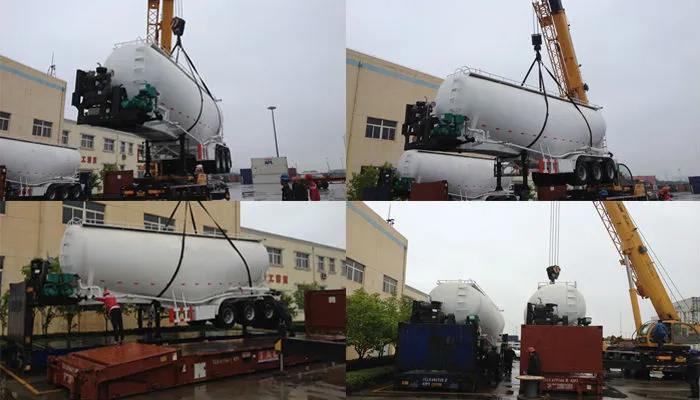

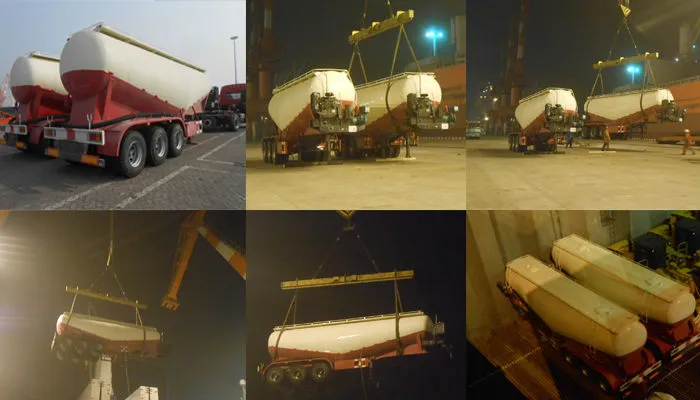

2 Bulk shipment Or Roll Roll shipment
Ship time :30 days after get the 30% deposit
Packaging: Nude or acoording to customers' demand
12months for 3 key parts (engine, transmission, axle).
Tracking service time: lifelong.
Third-party service for overseas client.
Use the steps Description
Parts supply on time
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer.
2. Q: What about your product's quality?
A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept?
A: T/T, L/C;
4.Q:What is the MOQ of your products?
A: 1 set.
