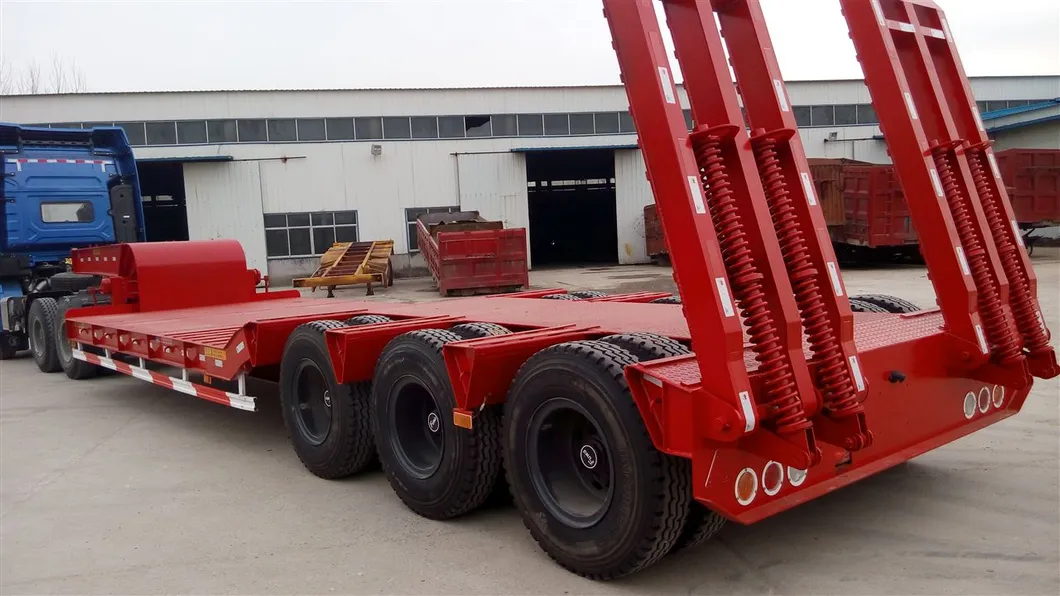

Tri Axles Gooseneck 13meters Excavator Low Bed Semi 3/ 4axles 45-60 Tons Low-Bed Heavy Equipment Lowbed Truck Semi Trailer
Tri Axles Gooseneck 13meters Excavator Low Bed Semi 3/4axles 45-60 Tons Low-Bed Heavy Equipment Lowbed Truck Semi TrailerMAIN PERFORMANCE Product Specification1Type Semitrailer2Product NameLow Bed Semitrailer3Dimension13000x3000x1600mm4Tare Weight9240kg5Payload41t6 Ru......
Send Inquiry

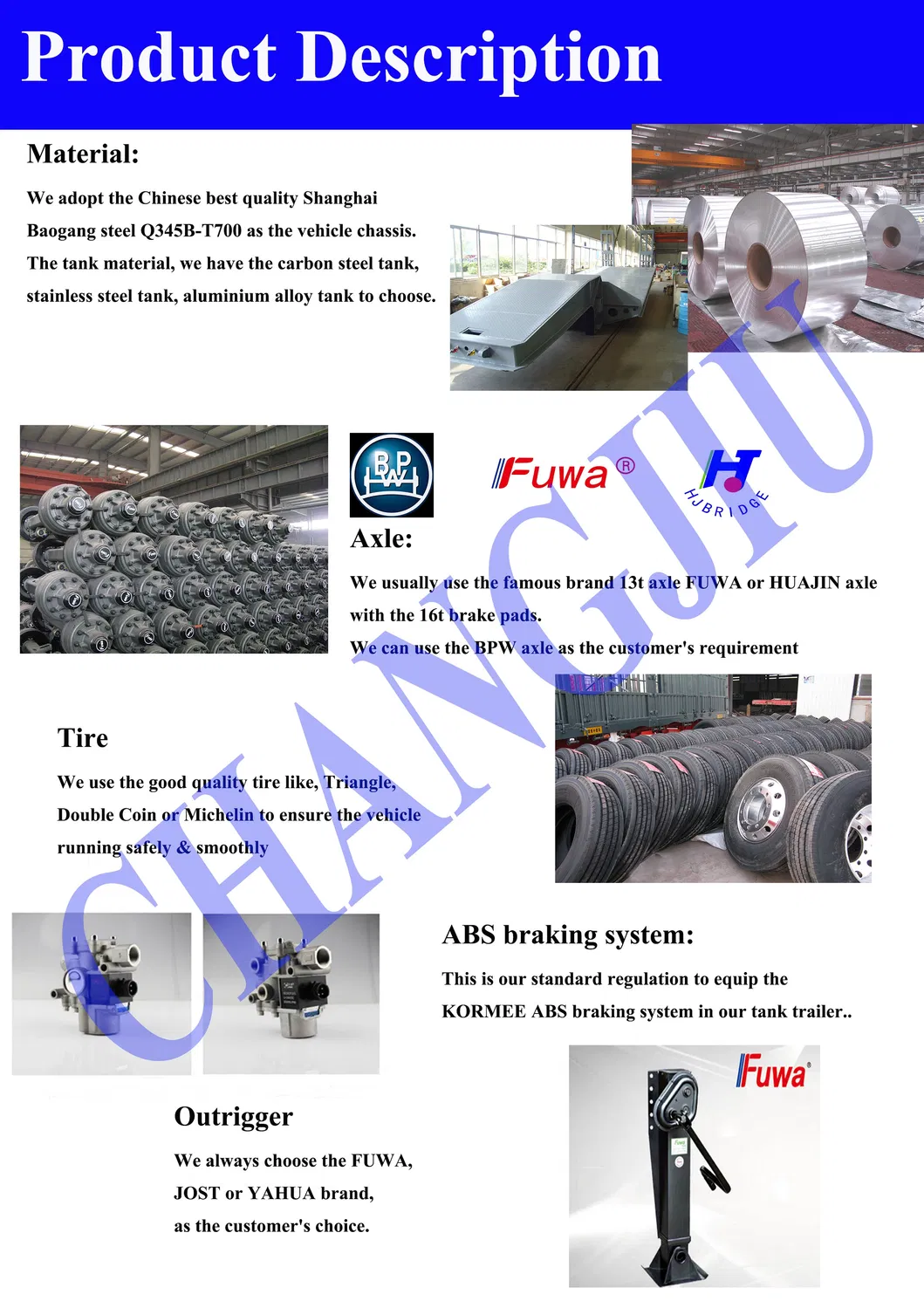

Product Description
Tri Axles Gooseneck 13meters Excavator Low Bed Semi 3/4axles 45-60 Tons Low-Bed Heavy Equipment Lowbed Truck Semi Trailer
MAIN PERFORMANCE
I.The Application and the Technical Highlights:

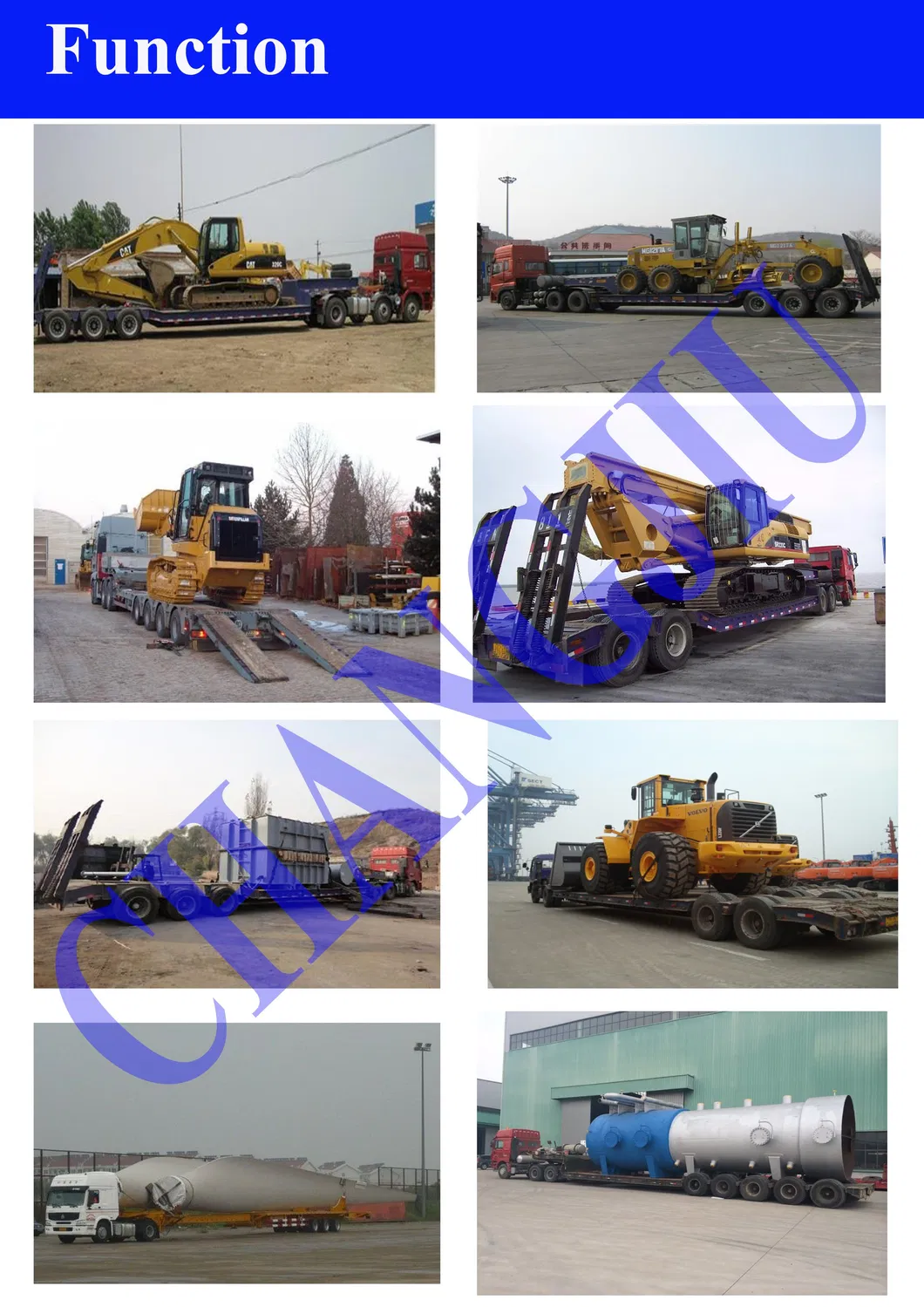

---The low bed semitrailers are mainly suitable for the MID/Long distance transportation of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
---The low bed semitrailer can bed divide into flat bed low bed trailer, concave low bed trailer, tyres appear low bed trailer, tyres covered low bed trailer. The concave low bed trailer structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm.-Low platform makes the stable transportation.
---The chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
--- High Quality Body and high-tensile steel for heavy loading capacity
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---WABCO Vehicle Control System
---JOST ,FUWA or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure
II.The Advantage
***Frame:using the advanced assembly welded equipments to weld the space frame structure which formed by welded-type longitudinal beam (made of 16Mn steel plate) and the whole Run-through cross beam.Our consider the strength,stiffness and toughness of the frame and design the frame is strong enough to carry the heavy cargo.
***Suspension: Lightweight design.High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.Passed strict bench testing and road testing.
***Axle:Specially processed one-piece spindle of high quality low alloy steel, which possesses strong loading capacity, long life, light weight and remarkable performance.High machining precision of the braking system makes the braking performance more stable.

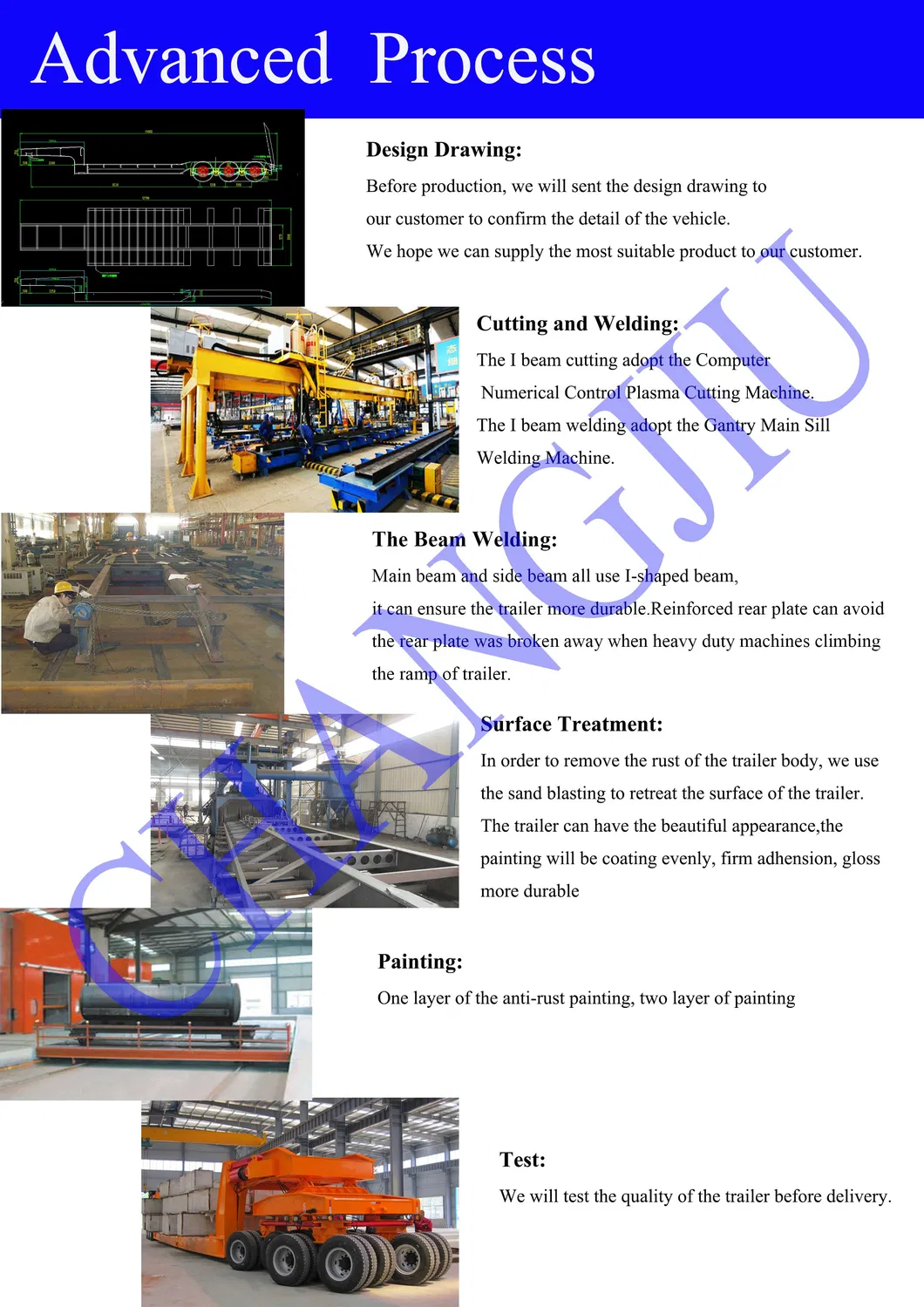

III.Advanced Process
~~~Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
~~~Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.
~~~The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
~~~Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer.
The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable
~~~Painting: One layer of the anti-rust painting, two layer of painting
~~~Test: We will test the quality of the trailer before delivery.

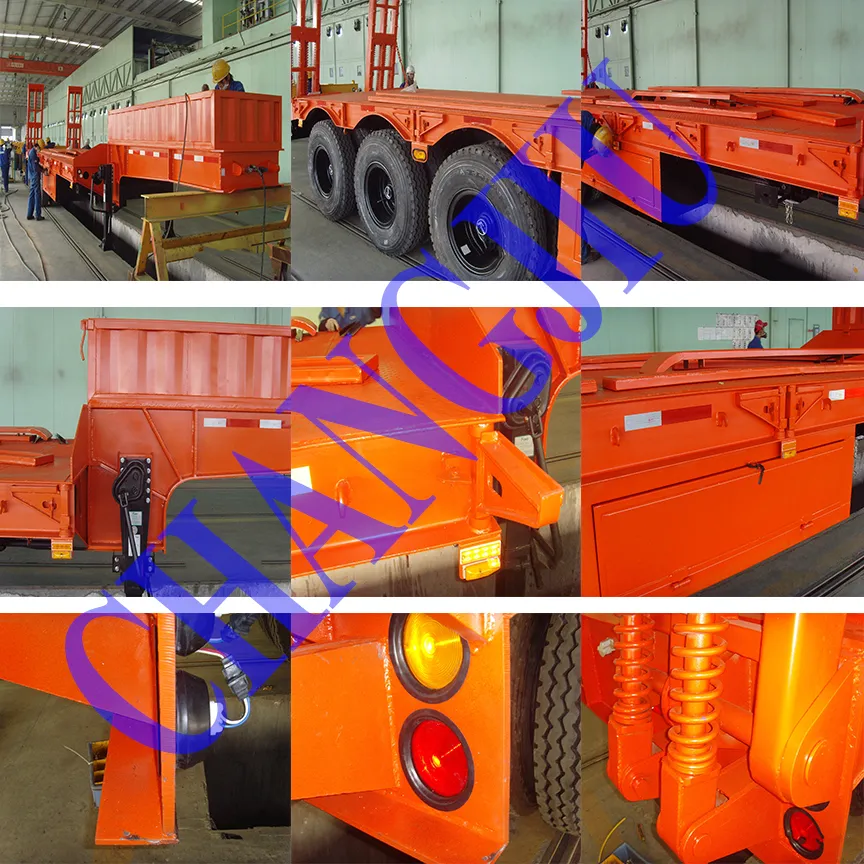

IV.The Detail of the Low Bed Trailer

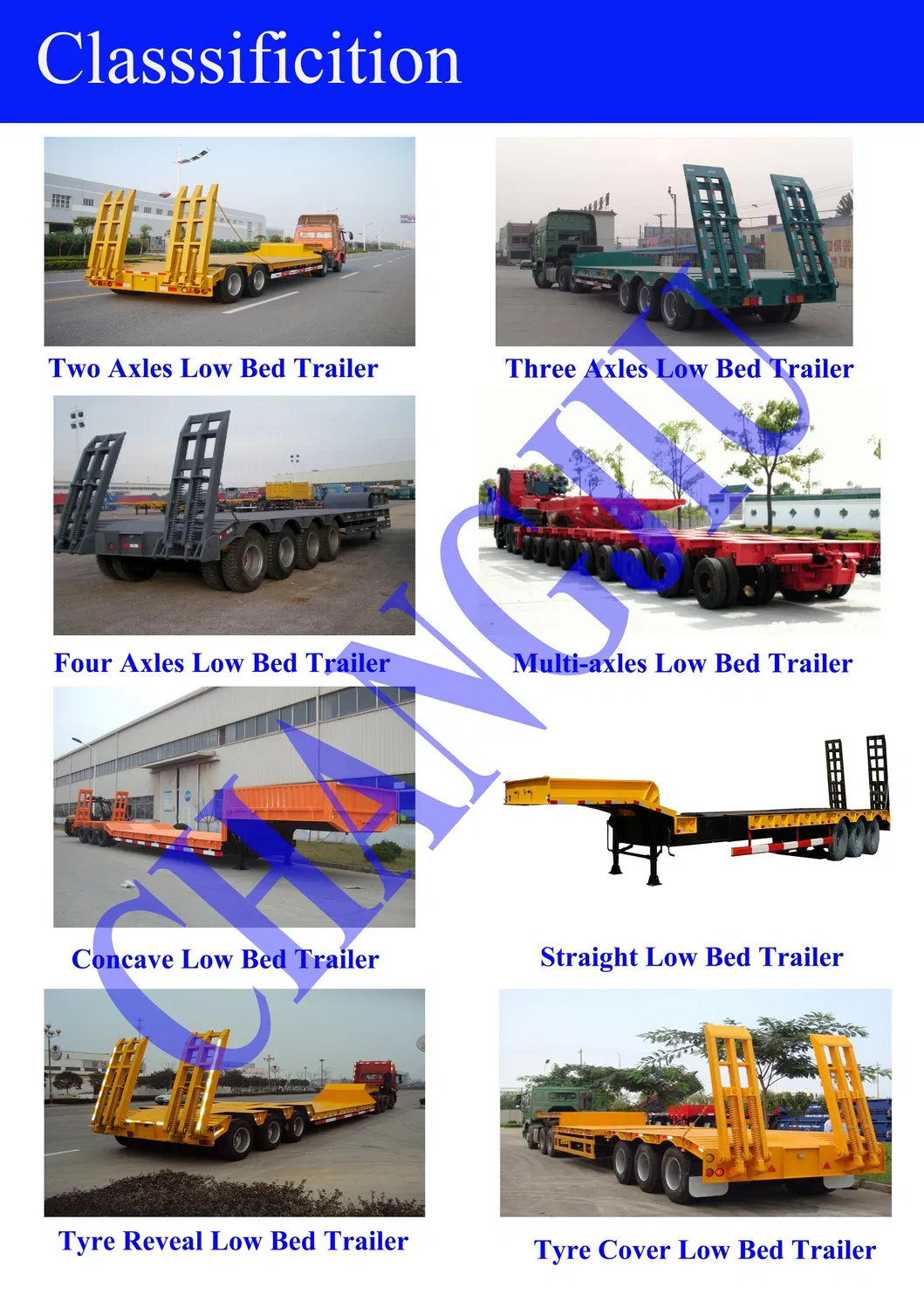

V. Classification Of The Low Bed Trailer
VI. Guarrantee For The Parts Of The Low Bed Traielr:
VII. DEALING PROCESS
1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance
12. A/S service for 1 year.
MAIN PERFORMANCE
| Product Specification | ||||
| 1 | Type | Semitrailer | ||
| 2 | Product Name | Low Bed Semitrailer | ||
| 3 | Dimension | 13000x3000x1600mm | ||
| 4 | Tare Weight | 9240kg | ||
| 5 | Payload | 41t | ||
| 6 | Running System | Axles | FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles | |
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement) | |||
| Tires | Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit | |||
| 7 | Ladder | Manually operated or Hydraulic type | ||
| 8 | Braking System | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system | ||
| 9 | Frame | Main Beam | Q345B steel,Height 500, upper 16mm, lower 18mm. Mid web 10mm | |
| Cross Beam | Mild Alloy Q235 | |||
| 10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
| 11 | Landing Gear | FUWA, JOST Brand Single side operation or double side operation, Static capacity 28Ton | ||
| 12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Lights & Reflectors | 24V, 7 lines | |||
| Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||
| Accessories | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES | |||
I.The Application and the Technical Highlights:
---The low bed semitrailers are mainly suitable for the MID/Long distance transportation of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
---The low bed semitrailer can bed divide into flat bed low bed trailer, concave low bed trailer, tyres appear low bed trailer, tyres covered low bed trailer. The concave low bed trailer structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm.-Low platform makes the stable transportation.
---The chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
--- High Quality Body and high-tensile steel for heavy loading capacity
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---WABCO Vehicle Control System
---JOST ,FUWA or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure
II.The Advantage
***Frame:using the advanced assembly welded equipments to weld the space frame structure which formed by welded-type longitudinal beam (made of 16Mn steel plate) and the whole Run-through cross beam.Our consider the strength,stiffness and toughness of the frame and design the frame is strong enough to carry the heavy cargo.
***Suspension: Lightweight design.High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.Passed strict bench testing and road testing.
***Axle:Specially processed one-piece spindle of high quality low alloy steel, which possesses strong loading capacity, long life, light weight and remarkable performance.High machining precision of the braking system makes the braking performance more stable.
III.Advanced Process
~~~Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
~~~Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.
~~~The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
~~~Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer.
The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable
~~~Painting: One layer of the anti-rust painting, two layer of painting
~~~Test: We will test the quality of the trailer before delivery.
IV.The Detail of the Low Bed Trailer
V. Classification Of The Low Bed Trailer
VI. Guarrantee For The Parts Of The Low Bed Traielr:
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | |||||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
VII. DEALING PROCESS
1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance
12. A/S service for 1 year.
