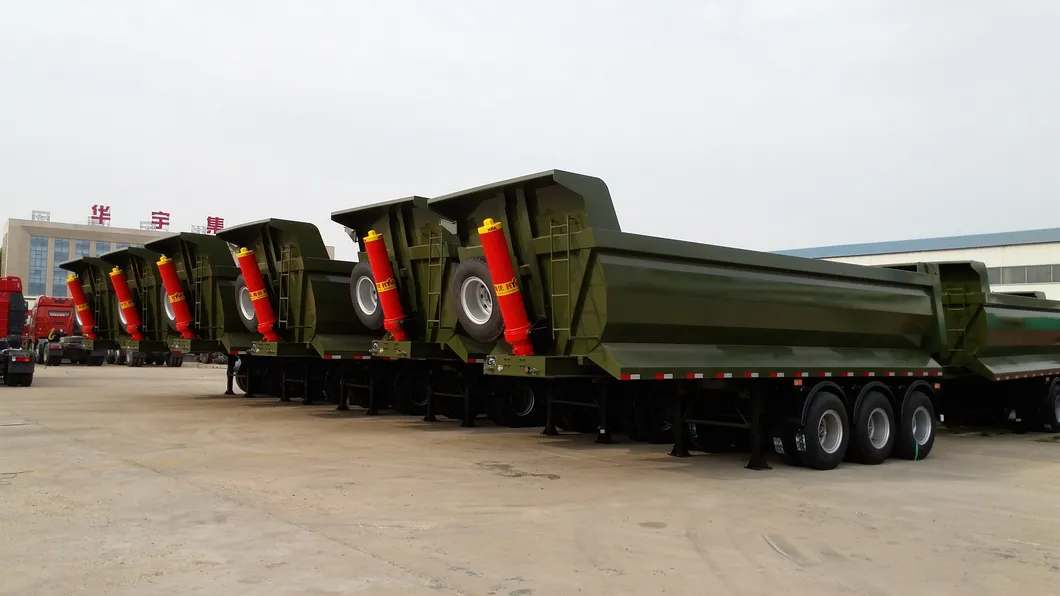

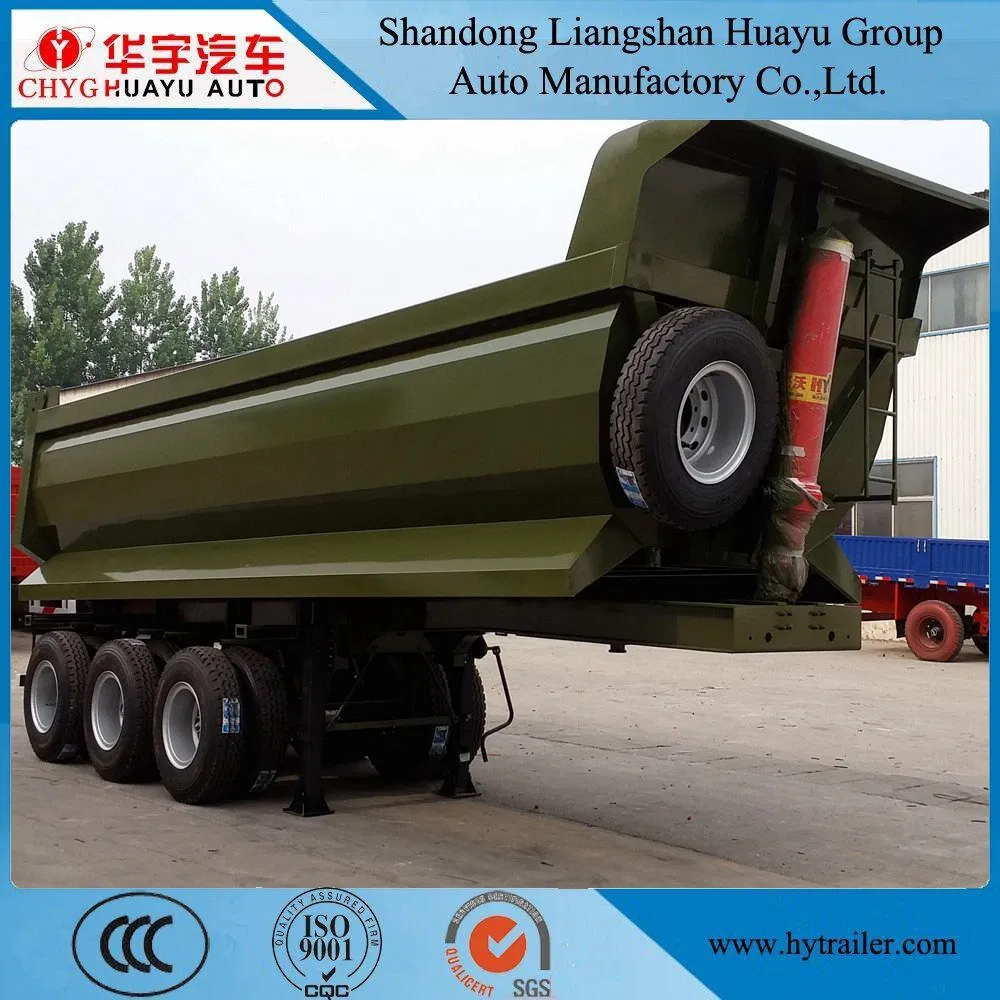

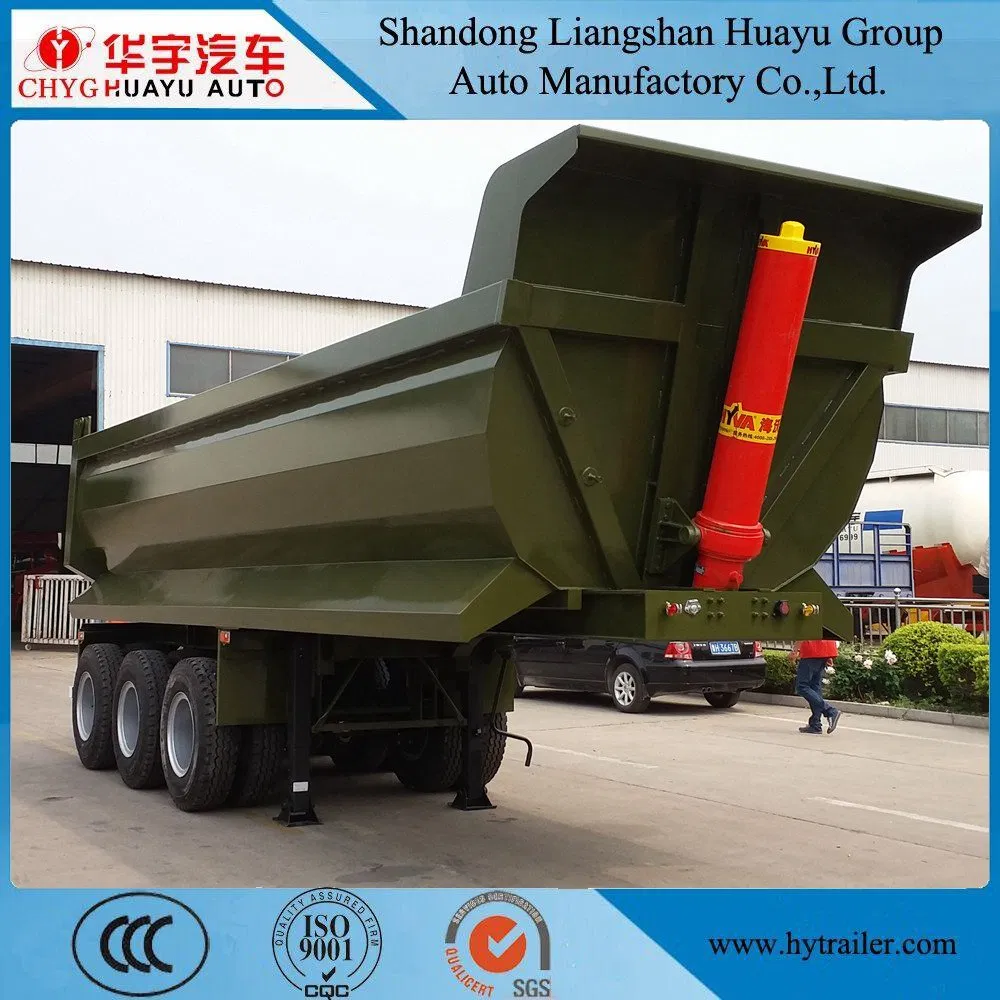

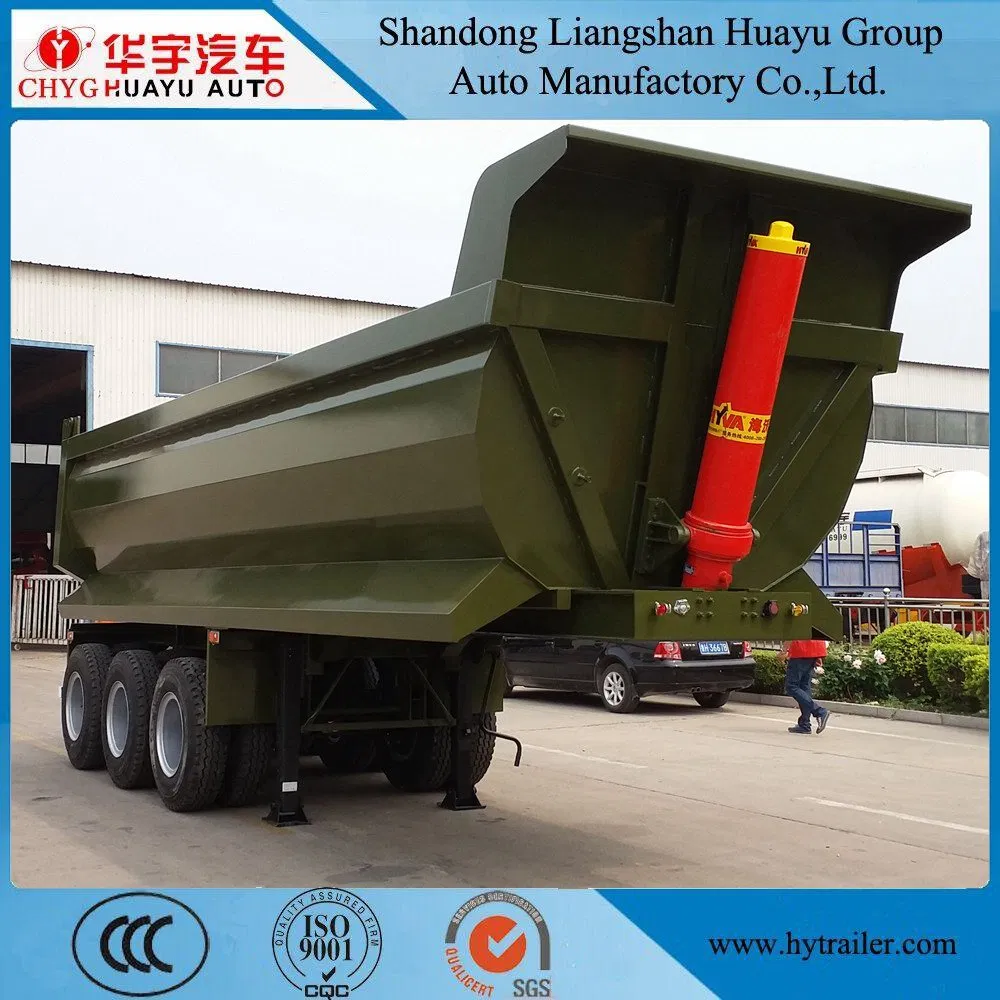

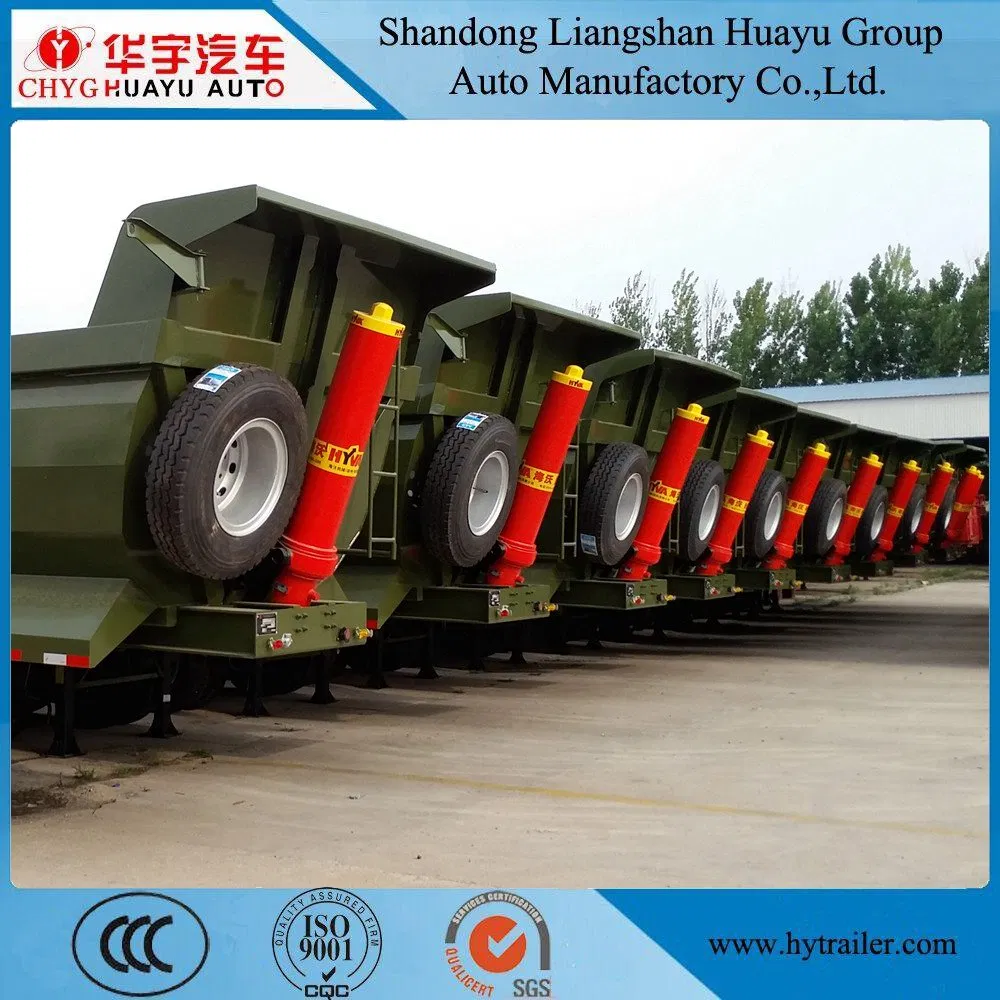

Utility Self Dumping Rear Tipper Tipping Semi Truck Semi Trailer
Utility Self Dumping Rear Tipper Tipping Semi Truck Semi TrailerRear dumper semi trailer is especially designed for heavy transportation, like coal, sand, stone, mineral etc. It's very strong enough to load 80T in a long and rough road distance delivery. U shape model is very popular. We are man......
Send Inquiry
Product Description
Utility Self Dumping Rear Tipper Tipping Semi Truck Semi Trailer
Rear dumper semi trailer is especially designed for heavy transportation, like coal, sand, stone, mineral etc. It's very strong enough to load 80T in a long and rough road distance delivery. U shape model is very popular. We are manufacturer, all specifications and designs of trailers can be customized, and we can provide you with technical drawings. Pls feel free to contact with me for more details!
Competitive Advantages
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
Specification
Delivery
We have trailer wax spray process before delivery
Our workshop
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received 30% of deposit.
If you are interested in our products, pls feel free to contact with me or you can call me freely! Thank you!
Rear dumper semi trailer is especially designed for heavy transportation, like coal, sand, stone, mineral etc. It's very strong enough to load 80T in a long and rough road distance delivery. U shape model is very popular. We are manufacturer, all specifications and designs of trailers can be customized, and we can provide you with technical drawings. Pls feel free to contact with me for more details!
Competitive Advantages
1. It's our own factory, advanced equipment and rich experienced workers are applied during the whole producing process to ensure the quality of semi trailers.
2. Optional trailer sizes and styles are available.3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
Specification
| CHYG dump semi trailer | |
| Function | Stone/coal transporting |
| Overall demension | 10000x2500x3650mm |
| Loading capacity | 50ton |
Main beam (material :Q345) | Beam height :500mm Upper plate:16mm Down plate:18mm Middle plate:8mm |
| Tare weight | 12ton |
| Traction pin | 2/3.5 inch |
| Landing gear | Jost /fuwa/ standard 28t two speed |
| Axle | Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional |
| Suspension type | Mechanical normal suspension ;air suspension can be optional |
| Leaf spring | 10/10/10 (10X90X16mm) |
| Tire | Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional |
| Wheel rim | 9.0-22.5 12pcs |
| Box details | Plate form :8mm side wall:6mm |
| Plateform thickness | 3mm checkered plate |
| Brake chamber | 4 double 2 single |
| Cylinder | HYVA 196-7300/214-5-7130/8130/9130 optional |
| Spare tire carrier | 2 pcs |
| Side marker lamp | LED lamp |
| Electrical system | Chinese stand 24v |
| Air line | Double air line |
| Receptacle | 7 ways(7 wires harnesses) |
| Marking | As Customer requirment |
| Accessories | Head wrech ;spare wheel crank |
| Box | One |

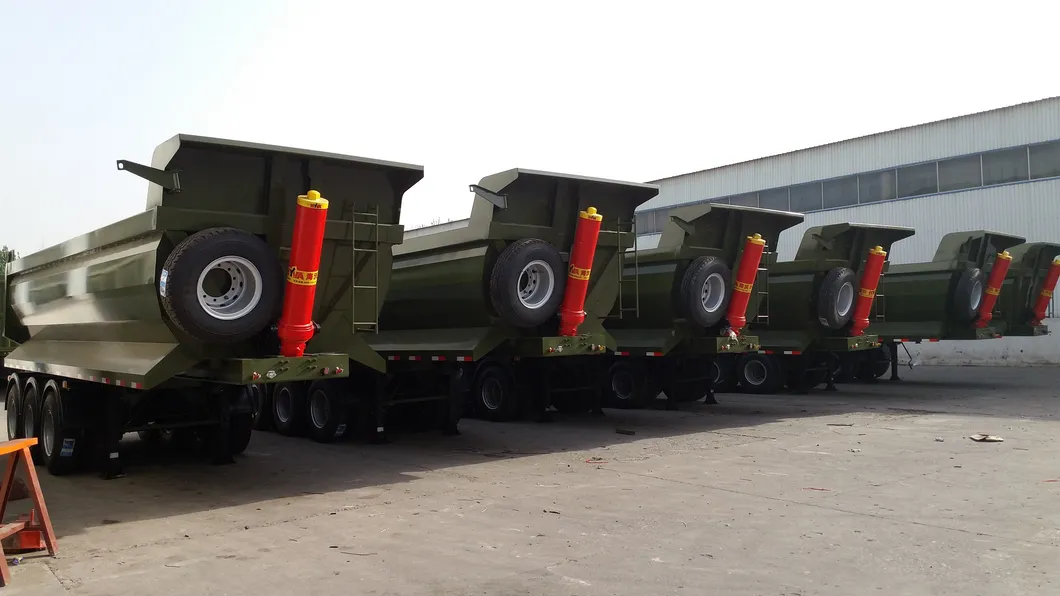

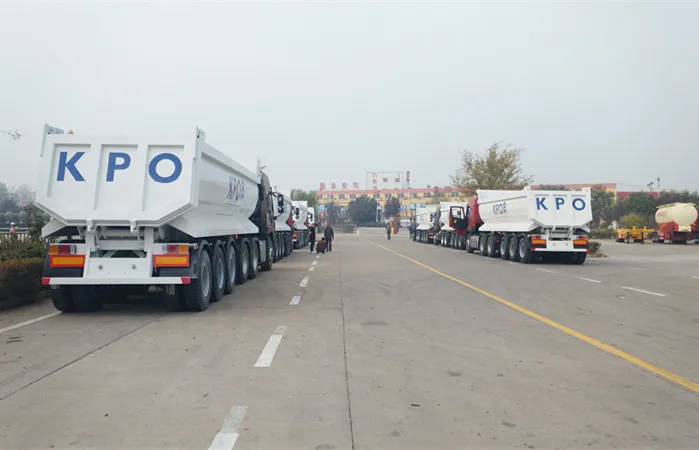

Delivery
We have trailer wax spray process before delivery

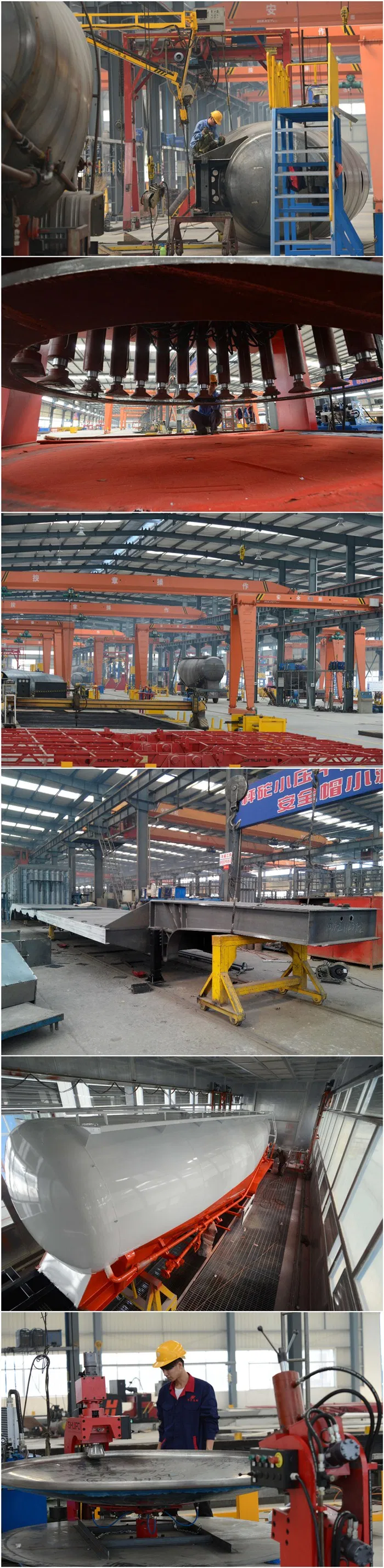

Our workshop
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received 30% of deposit.
·Terms of Payment: T/T with 30% deposit, 70% payment will be made before delivery
If you are interested in our products, pls feel free to contact with me or you can call me freely! Thank you!
