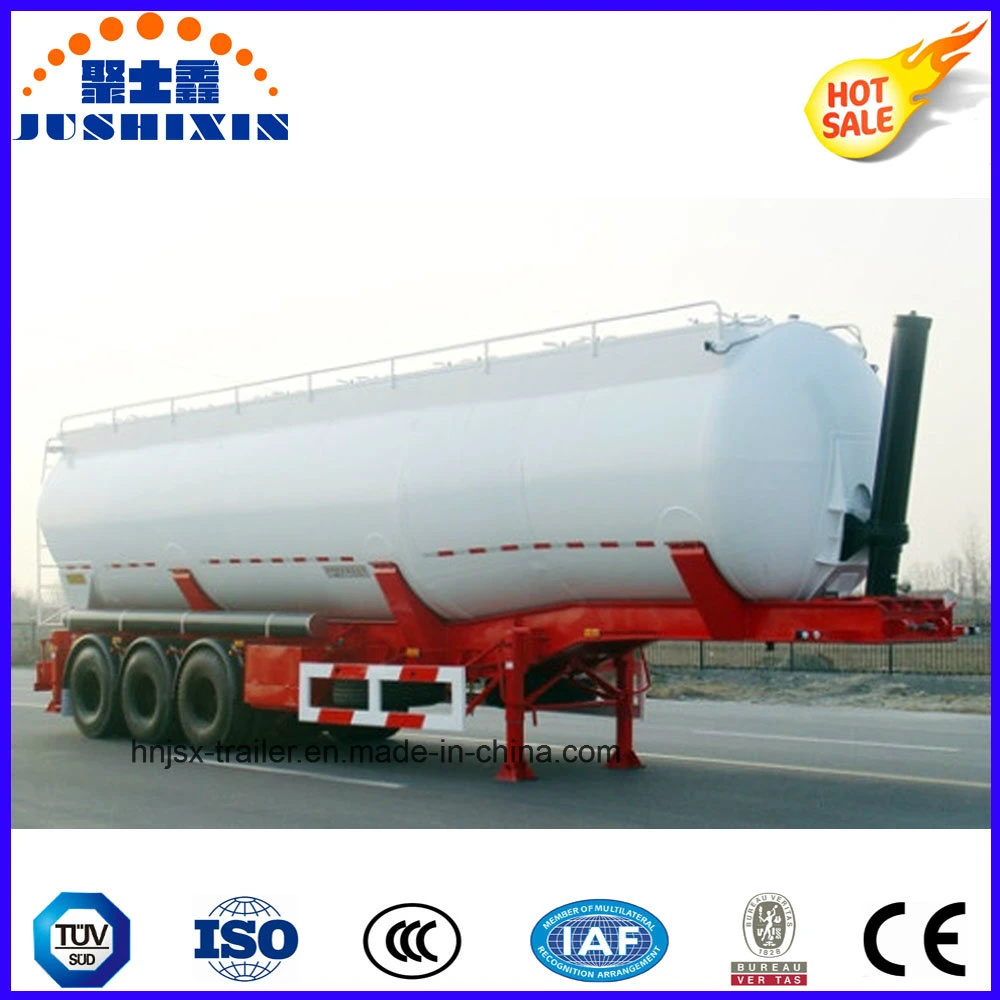

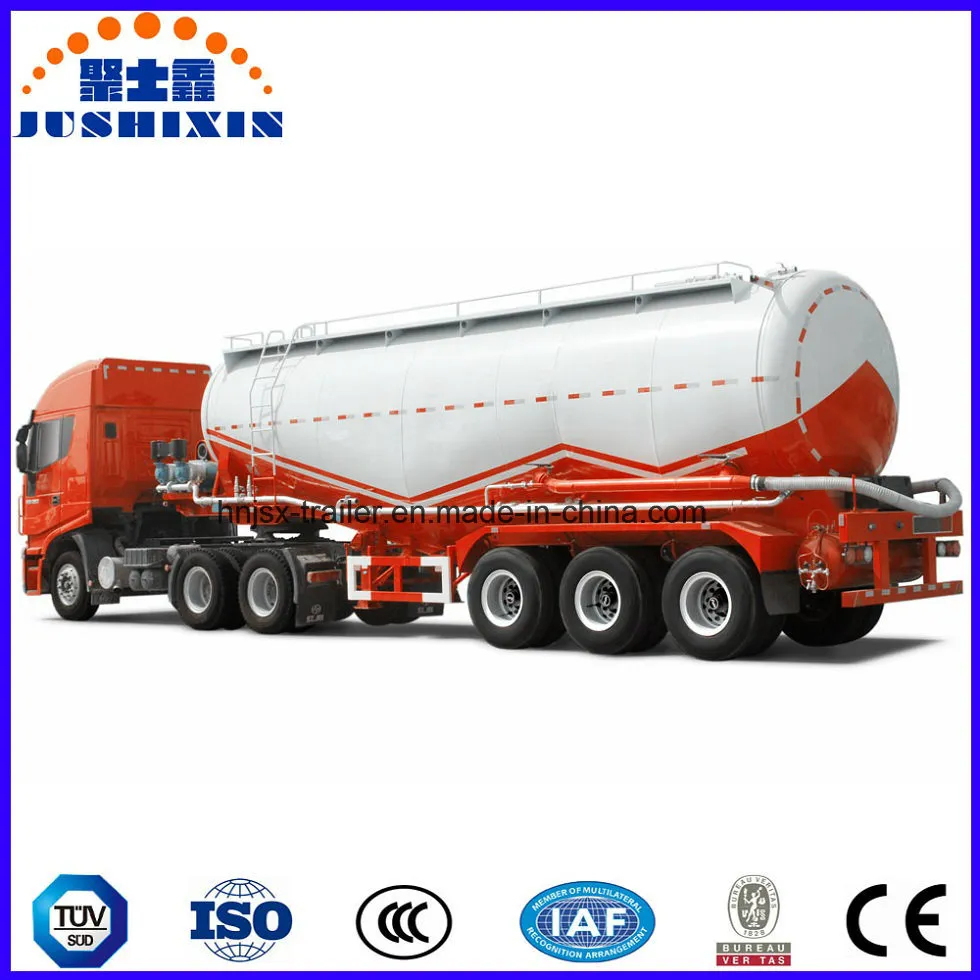

Wheat Grain Flour Hopper Dumping Trailer

Product Description

Wheat Grain Flour Hopper Dumping Trailer

1.Production Specification for this Tank Semi Trailer for Transportation Wheat Grain

Tare Weight	9,800kg
Loading capacity	48,000kg
GVW	59,000kg
Overall Length	12,990mm
Overall Width	2,500mm
Overall Heigth	3,990mm
Wheel Track	1840/1840/1840mm
Wheel Base	6550mm+1320mm+1320mm
Tank body specification	TANK CAPACITY:60M3,goose neck tank,design pressure: 3Mpa,working pressure 0.2Mpa.front tank dim:2300mm,rear tank dim 2500mm,
	Materials: carbon steel Q345,tank Shell 5mm,head 6mm,no compartment,2 pcs manhole,6 pressure handle ficed,manhole cover is aluminum alloy.
	Loading/Discharge valve and pipeline:

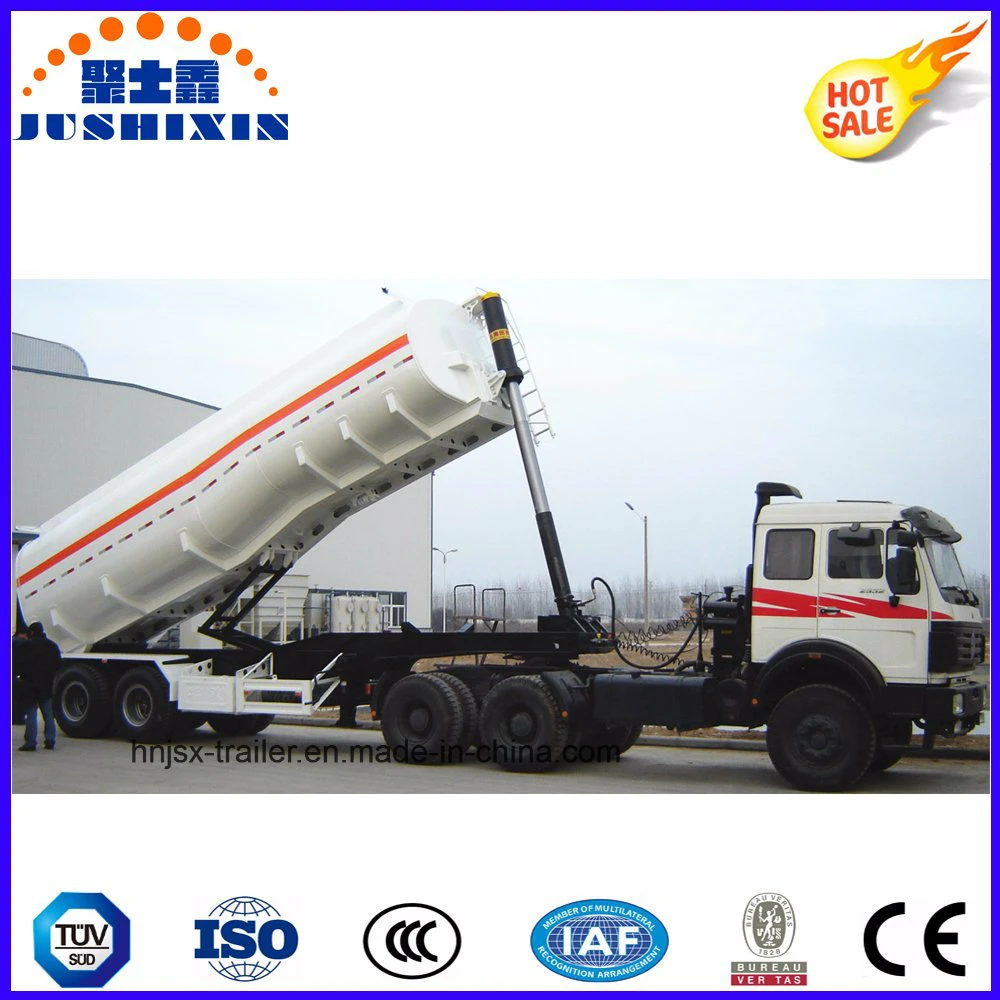

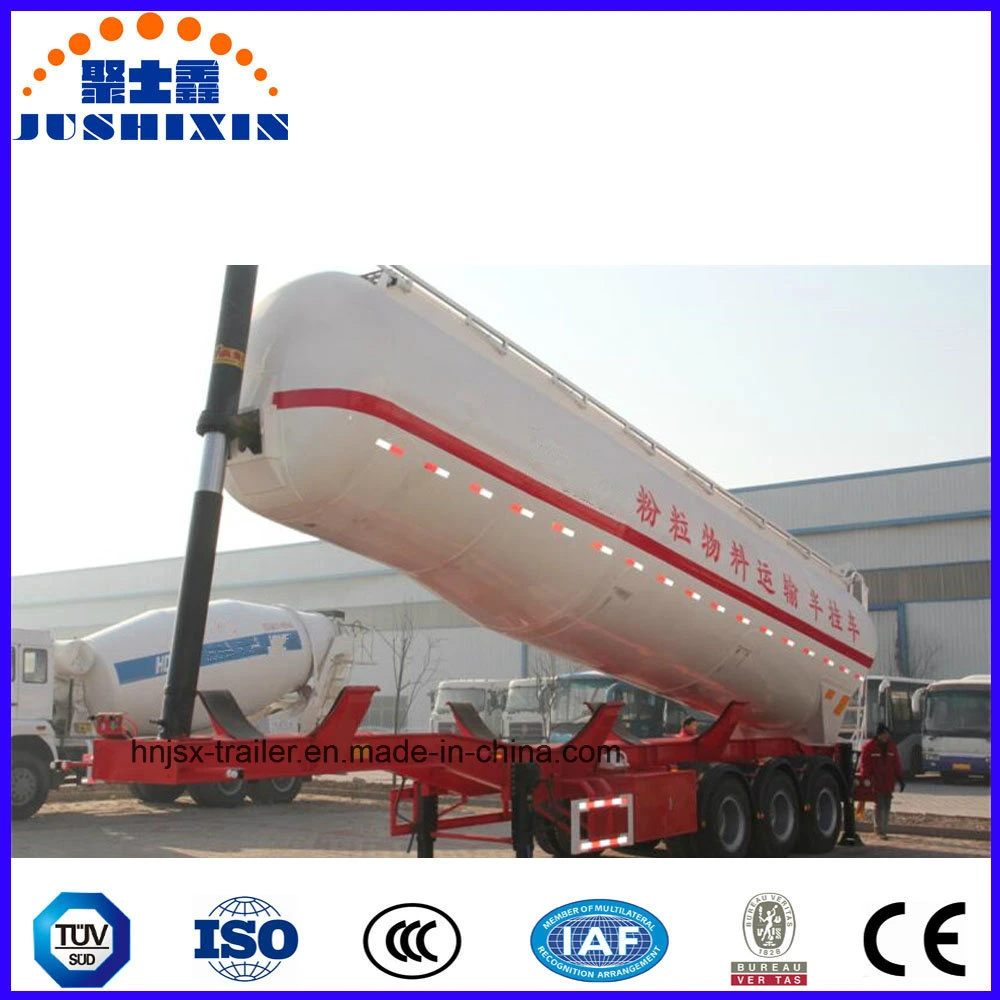

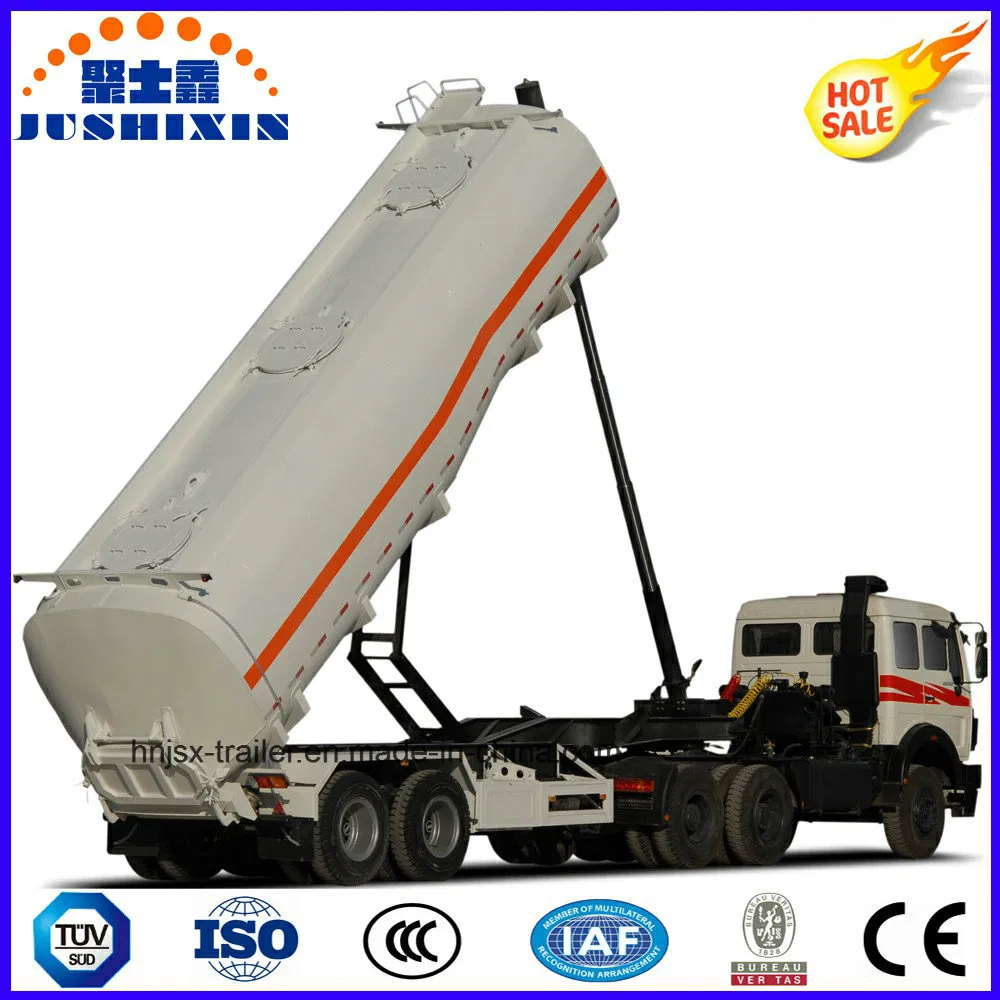

	Hydraulic head lift tank for dump;Rear hydraulic open dim 500mm flange,Discharge pipe and valve: 4inch manual valve and 4inch pipeline
	Accessary: aluminum alloy ladder,steel tool box,Wheel cover and retain fence,fence in both side
TRAILER WALKWAY STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed;
Axle	3 Units of FUWA brand 13Ton axle
Leaf Spring	Six sets of reliable local beand,4-piece leaf spring
King Pin	3inch SAE standard bolted-in kingpin,JOST Brand
Landing Gear	28Ton FUWA Brand manual operation Land leg
Rear Leg	Rear double manual leg.
Wheel Rim	Twelve units of steel 9.00 rim Steel rim
Tire	Twelve units of Aeolus brand 12.00R22.5 tire
Spare Wheel	one set of spare wheel and tire carrier
Brake System	Dual-circuit air brake system
Accessory	Power 24V,light system (2x Brake lights,2x direction lights;another license plate lights,reversing lights),Fire extinguisher and golser with lock. 16ton manual Jack
Painting	Sand blasting before painting;one costs of primer,anti corrosion;one of finish painting advised by client;
For the specification above,we reserve the right to make Little changes without notice.photo just for Reference.

2.Optional parts for the tanker semi trailer:
Axle quantity: 2 axle 3 axle 4 axle
Axle brand: FUWA / BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.

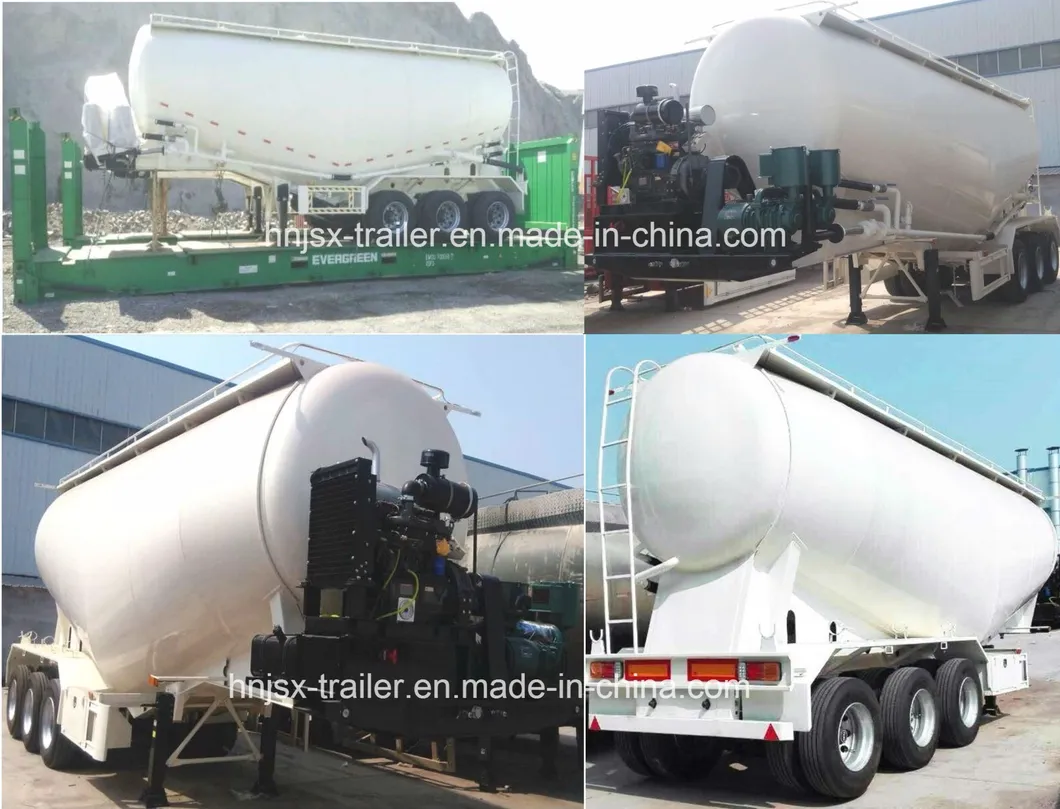

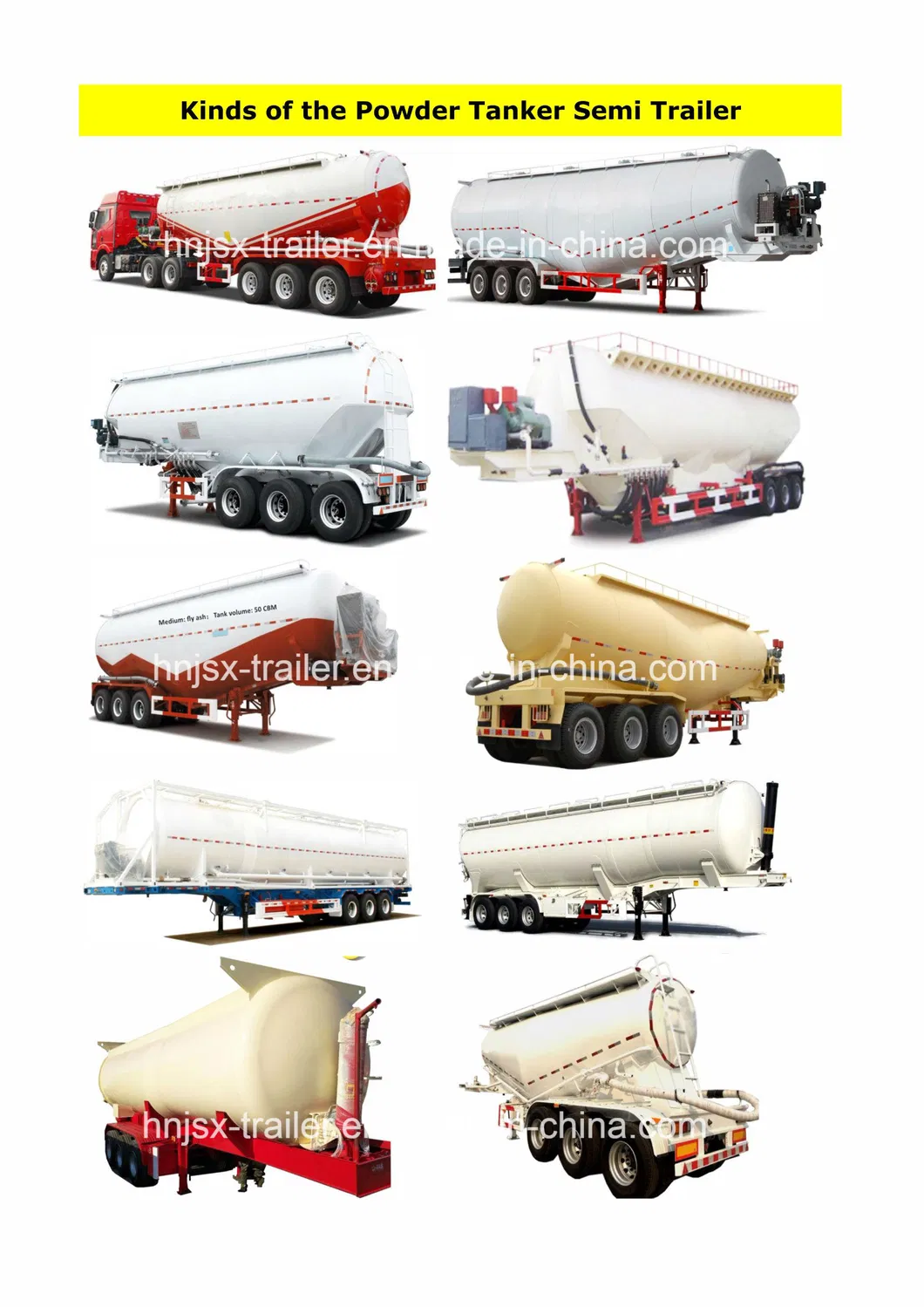

3.More styles for the powder/Wheat Grain tanker trailer:

4.Our advantages:
*** With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
***An professional team which is experienced with international market has strong technical capability to customized cost effective.
***Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
***2 years guarantee for all the beam of trailers, timely shipment

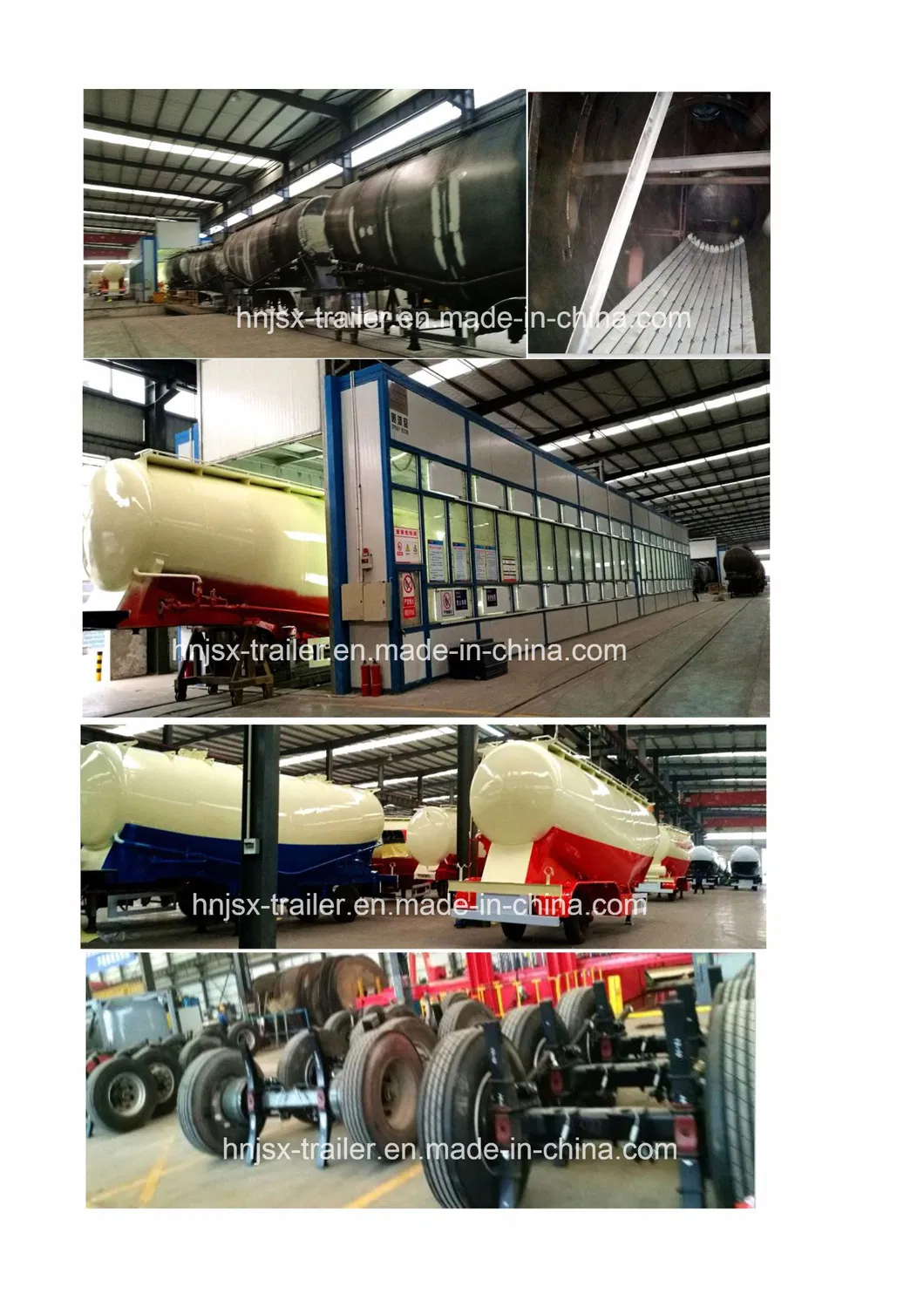

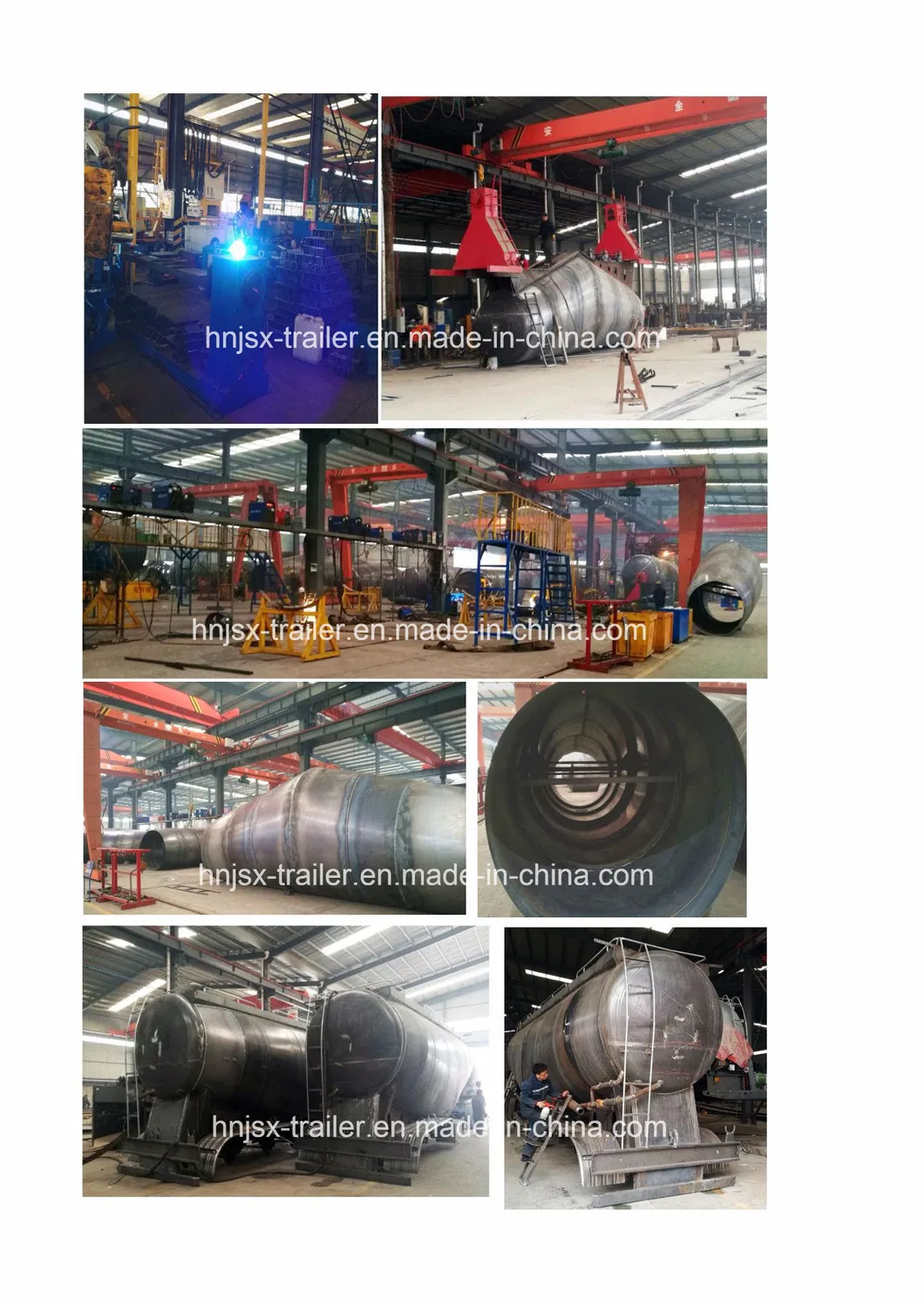

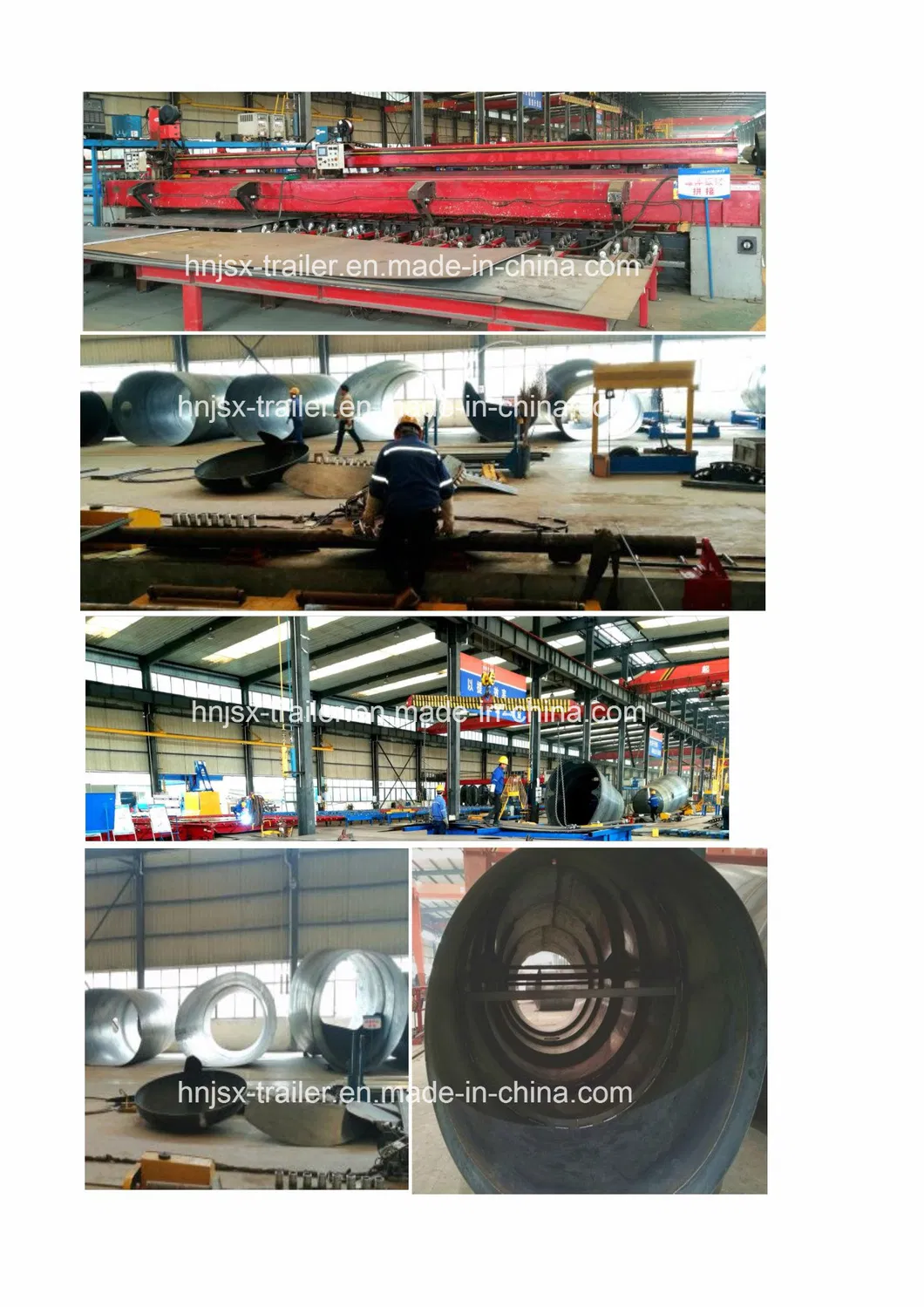

---Cutting Process:

---Welding Process:

---Polishing & Painting Process:

5.Finished powder tanker truck semi trailer,and ready to delivery:

6.Guarrantee for the parts of the tanker traielr:

ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
MAIN FRAME	FRAME		1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION		6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN		1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM		3 MONTHS		TIRE	6 MONTHS
ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM	3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER	3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR	6 MONTHS
ITEM NAME					WARRANTY
OTHERS		LEAF SPRING			3 MONTHS
		BRAKE CHAMBER DIAPHRAGM			3 MONTHS
		EMERGENCY RELAY VALVE			3 MONTHS
		BRAKE SHOE			3 MONTHS
		RELAY VALVE			3 MONTHS

7.Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
