2axles Foton 14-16m3 Compressed Garbage Truck
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high ......
Send Inquiry
Product Description
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.With the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution.

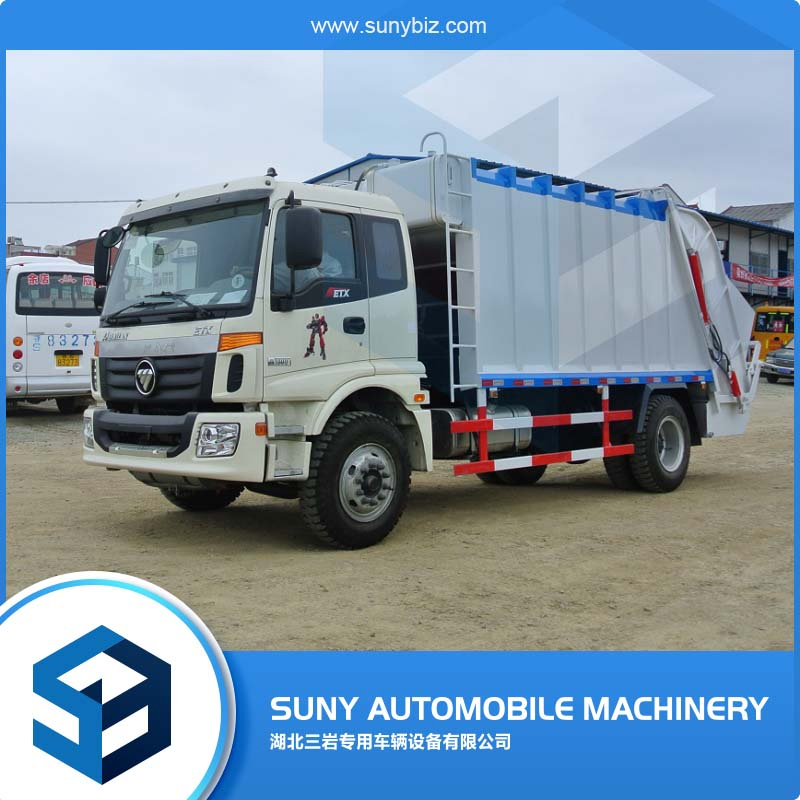

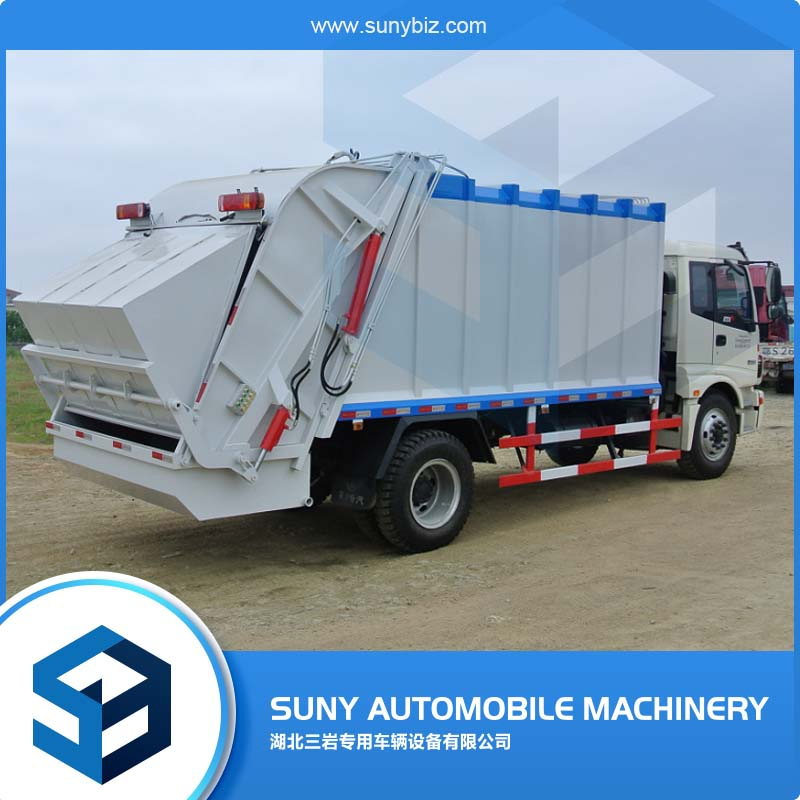

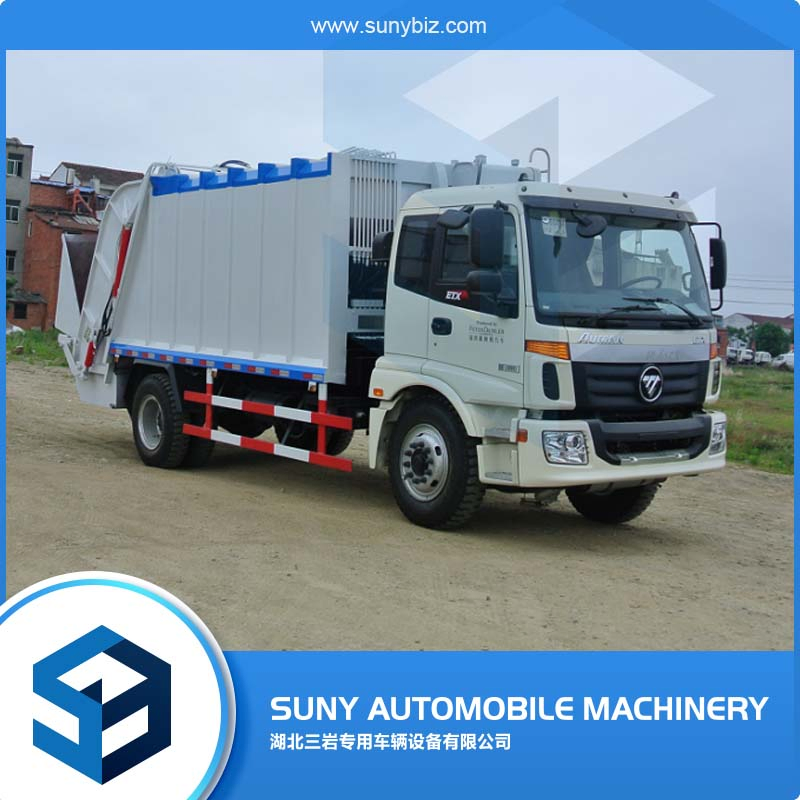

FOTON 14-16cbm compressed garbage truck
Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and quality win for the purpose of customers' intentions.
We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which are widely used in environmental protection, city construction, transportation and many other fields.
Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers all over the world and Chinese main manufactures.
With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and efficiency, meanwhile continuously promoting our service for all the customers all over the world!

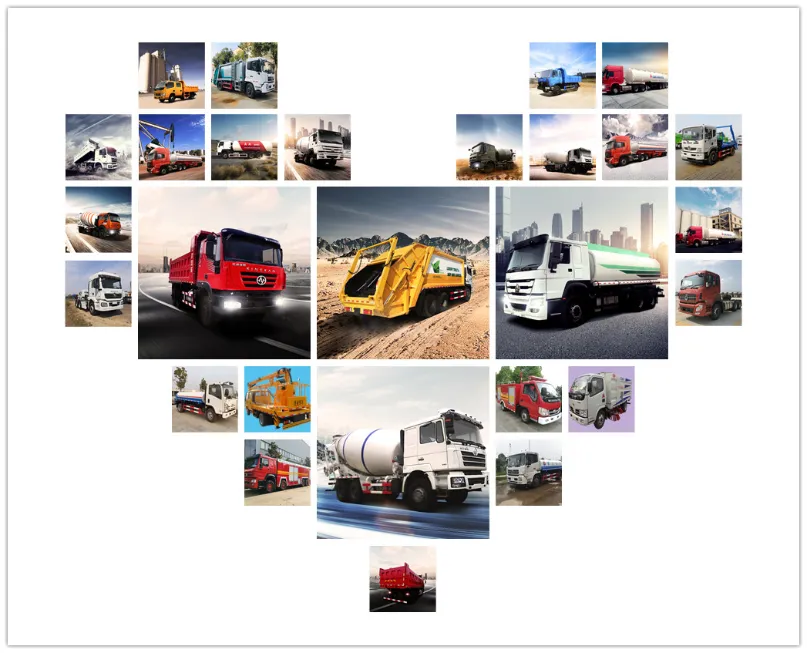

Our product: sanitary truck, different kinds of garbage trucks, fire fighting truck, road wrecker truck, bitumen distributor truck, different kinds of van trucks, dump truck, concrete mixer truck, bulk cement truck, truck with crane, different kinds of semi trailers for transporting the fuel, chemical, bulk cement, containers, LPG, etc.
Our cooperation brand:

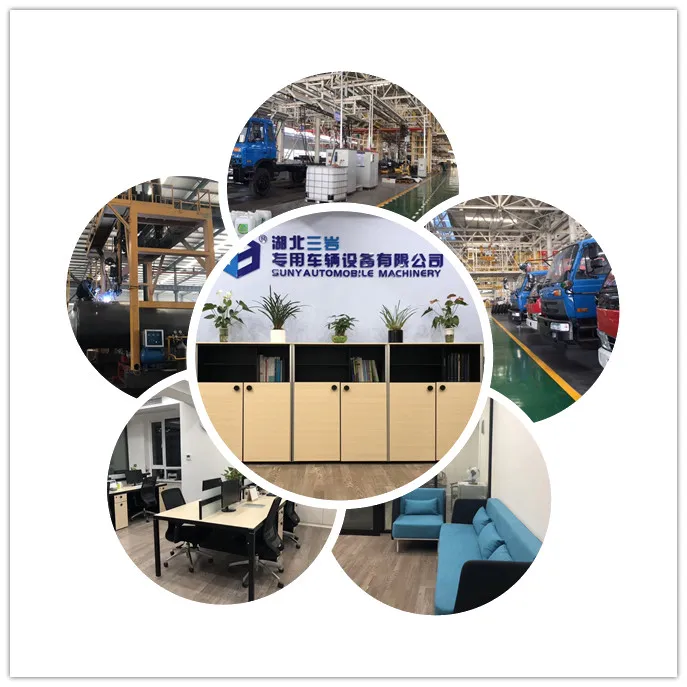

Our office and workshop:
Customers' visiting to us:
Our team abroad:

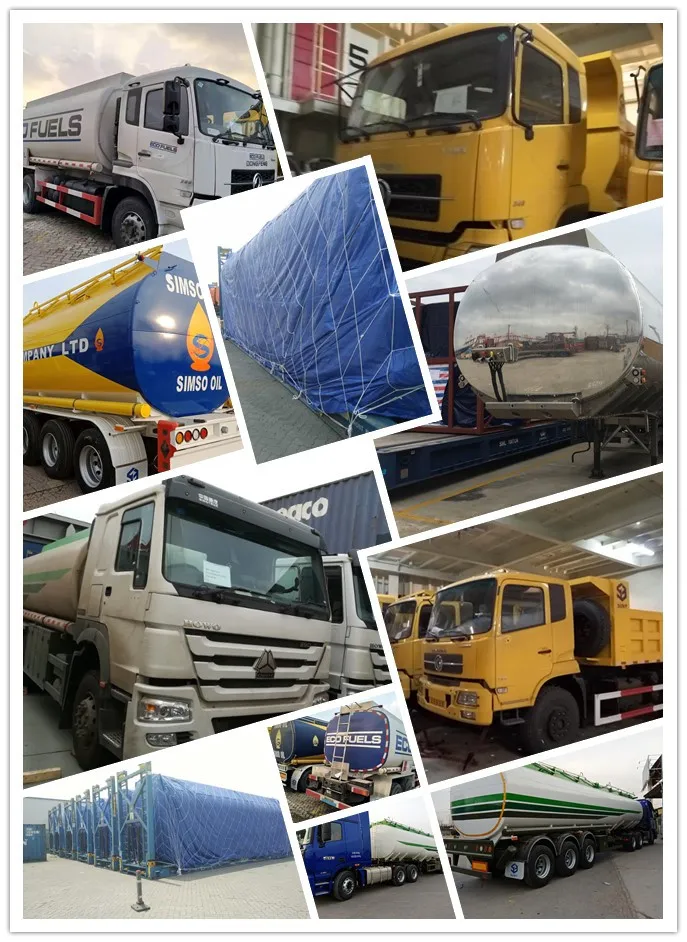

Our shipment:
FOTON 14-16cbm compressed garbage truck
| Vehicle Description | |
| Overall dimensions | 8520x2490x3350mm |
| GVW | 15800kg |
| Curb weight | 9100kg |
| Loading weight | 6500kg |
| Chassis brand | FOTON |
| Traction type | 4*2; Left hand drive |
| Up-parts Specification | ||
| Dustbin volume | 14-16cbm | |
| Material & thickness | Side | 4mm Q345 |
| Bottom | 5mm Q235A | |
| Type of Rear garbage filler (Rear Turnover device) | 1.Hanging trash bin | |
| 2.Swing arm | ||
| 3.Dustpan | ||
| Control system | Electrically Controlled Hydraulic + Manual Hydraulic | |
| Type of compactor | Fill, push and compression | |
| Garbage compact density | 0.9±0.05 T/m³ | |
| Sewage water tank | Rear | About 500L, on the bottom of rear filler |
| Front | About 230L, on the front of garbage van | |
| Max compact | ≥141 KN | |
| Max push | ≥189 KN | |
| Tailgate ascending Angle | ~95° | |
| Cycle of loading | ≤40s | |
| Cycle of discharge | ≤45s | |
| Hydraulic pressure system working pressure | 16 Mpa | |
| PLC | Importation PLC (Programmable controller) | |
| Gear pump | Made in China | |
| Multi-way valve | Air controlled, Made in China | |
| Hydraulic oil cylinder | Made in China | |
| Hydraulic rubber hose | Made in China | |
| Chassis Description | ||
| Chassis model | BJ1123V | |
| Cab | ETX ,one and half row, with A/C | |
| Wheelbase | 5000mm | |
| Tire specification | 8.25-20 | |
| Tire quantity | 6+1 units tires and 1 spare tire | |
| Engine | Engine model | CA4DF3-15E3 |
| Emission level | Euro 3 | |
| Displacement/output | 4700ml/110kw | |
| Horse power | 150hp | |
| Gear box | Model | DC6J70T |
| Number of gears | 6 forward gears & 1 reverse | |
| Brake system | Full air brake | |
| Axle | Front | 4.2T |
| Rear | 7.8T | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Aluminum alloy tanker, with lockable cap |
| Capacity | 200L | |
