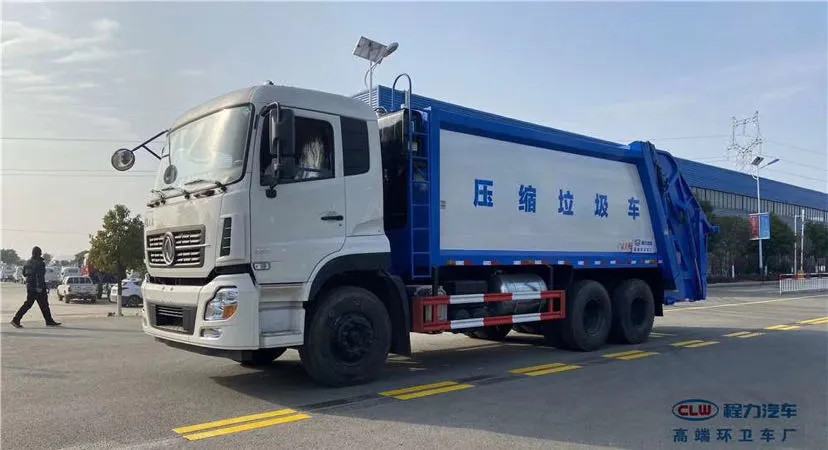

4X2 5m3 Waste Collector Compactor Garbage Truck
4X2 Waste Collector Truck Dongfeng Compression Garbage TruckThe compressed garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.The compress garbage truck usually compacts the waste using a hydraulically powered mechanism ......
Send Inquiry
Product Description
The compressed garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
Product Description
Introduction of compress garbage truck
The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.

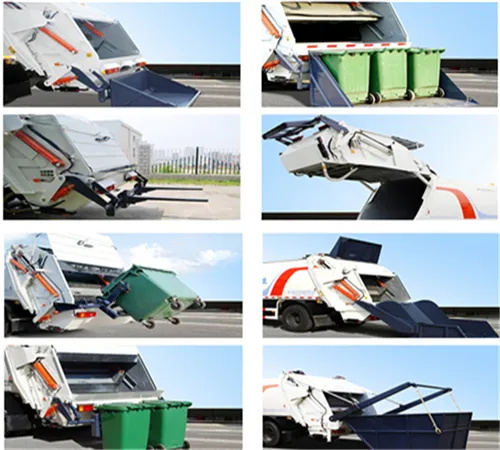

Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm
FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery.All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.
Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of our Garbage Trucks, please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.
| Description | DONGFENG Xiaobawang Garbage Truck | |
| Drive Model | 4X2 | |
| Chassis | EQ1060TJ20D3 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6320×2050×2560 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1988 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 19/10 | |
| Weight in KGS | Curb Weight | 5365 |
| GVW. | 6495 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | YC4F90-30 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 90HP | |
| Emission standard | Euro III | |
| Gearbox | 5forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 150 | |
| Tire | 7.00-16 tire ,6+1 spare | |
| Brakes | dual circuit compressed air brake | |
| Allowable passengers in cab | 2 | |
| upper | ||
| Volume(kg) | 1000 | |
| Material | Q235carbon steel | |
| Thickness | 5mm | |
| Uploading cycling time | <60s | |
| Loading cycling time | ≤30s | |
| Lifting capacity | ≥800KG | |
| Operation control system | Electrically hydraulic control | |
| Equipment | Equipped with dustbin, hydraulic system and operating system Equipped with two advanced double acting hydrocylinders One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time60s | |
a.Competitive Price and Excellent Quality,
b.More than 10 years' experience as a manufacturer
c.CCC,ISO,BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500,000,000 RMB (240,000,000 US d ollars) per year
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Exporting
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
We are confident and committed to providing our customers with the best qualityand service all the time
If you are interested in our trucks, pls contact me, I will send our best quotation to you!
Contact information
Sale Manager: Albert Du
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
