China Aerosun 15000L Cgj5254zxx Arm Type Detachable Container Garbage Truck Euro 3

Product Description

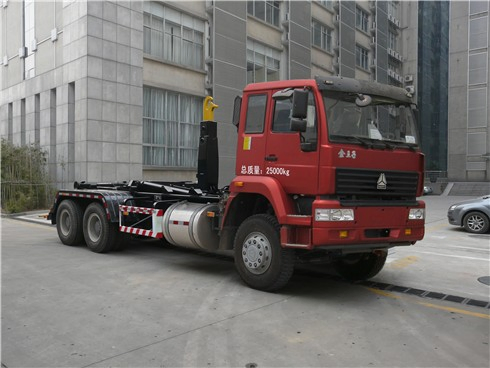

Aerosun 15000L CGJ5254ZXX arm type detachable container garbage truck

CGJ5254ZXX arm type detachable container garbage compactor is developed on the basis of ensuring the technical performance of ZZ1251M4441C type chassis, which provides an effective means for collecting urban household garbage in residential areas, streets and other places and sending it to garbage transfer stations.

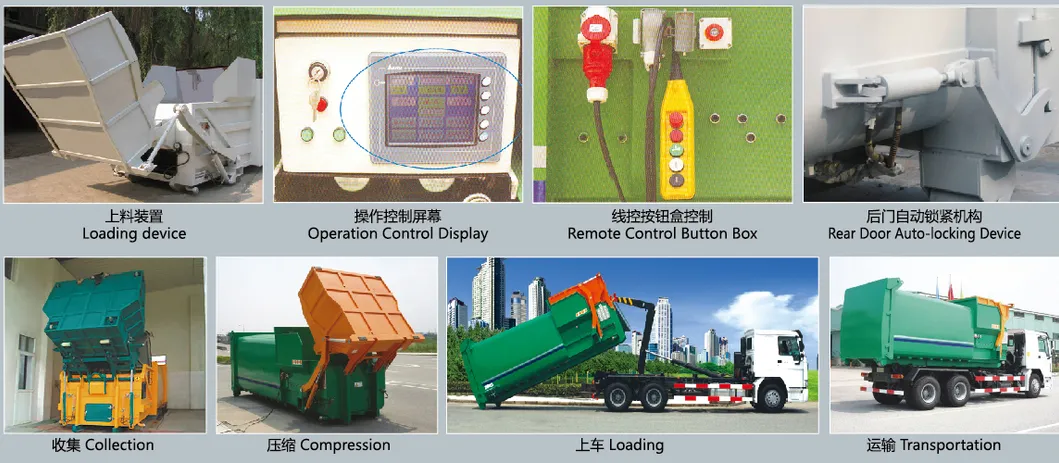

This vehicle can be equipped with mobile compression container, docking compression container, and bulk bins. The mobile compression container can be used independently (380V power is needed). The tank body has the function of compressing garbage, which can be placed in the residential area and used as a garbage collection container. The docking compression container is used in conjunction with the garbage compression station. The push head of the compression station compresses the garbage. The tank body itself does not have compression function. The operating requirement of bulk waste is low and can be placed directly in residential areas or other garbage collection points. When the bins are full, vehicles transport it to waste transfer stations or landfills for disposal. The truck adopts hydraulic control, and the way of garbage discharging is backward dumping. The hydraulic system consists of two double-acting lifting cylinders, one double-acting locking cylinder, one double-acting telescopic cylinder, one double-acting leg cylinder, oil pump, multi-channel reversing valve and high-pressure rubber hose, etc.

It is strictly prohibited to collect construction waste and hard industrial metal waste.

1.Main technical parameters

Product/ Model			CGJ5254ZXX
Overall Dimension(L×W×H)(mm)			8220×2490×3160
Gross Mass			25000
Curb Weight (kg)			11320
Rated Load (kg)			13550
Chassis	Chassis Model		ZZ1251M4441C, Sinotruk GOLDEN PRINCE
	Max. Speed(km/h)		90
	Axle No./ Wheelbase(mm)		3/ 4350+1350
	Tire number/ size		10/ 11.00R20 16PR
	Axle-load		7000/18000(tandem axle)
	Engine	Engine Model	WD615.92E, Sinotruk
		Power(Kw)	196
		Fuel	Diesel
		Emissions standard	Euro 3
Rated operating pressure of hydraulic system(MPa)			32.5
Boarding time for container loaded(s)			≤50
Alighting time of container(s)			≤60
Discharging time of container(s)			≤50
Max. angle of uplift			50°
Time of uplift(s)			≤20
Time of drawdown(s)			≤20
Matching container volume			15 m3 Mobile Compression Station
Arm Drag Type			Sliding

2. Advantages and Characteristics
2.1 With good versatility and interchangeability, one truck can be matched with several garbage transfer stations, and garbage containers can be used for each other, effectively improving garbage transfer efficiency and reducing transportation costs;
2.2 No secondary pollution in transportation, small floor space, saving civil construction investment, no need for additional lifting equipment;
2.3 The arm is made of high strength wear-resisting steel, the equipment is strong and durable, and the service life is long.
2.4 Light dead weight acapacity.
2.5 Safety system includes: load balance valve, hydraulic or mechanical tank body lock device, tilt lock device, good tilt lock stability.
2.6 Operation mode: Each action of the pull arm can be realized by operating the air control valve in the cab.
2.7 High reliability products are selected for hydraulic components, among which high pressure plunger pump is imported.
