China Aerosun 8cbm Cgj5124zxxe5 FAW Arm Type Detachable Container Garbage Compactor Garbage Truck

Product Description

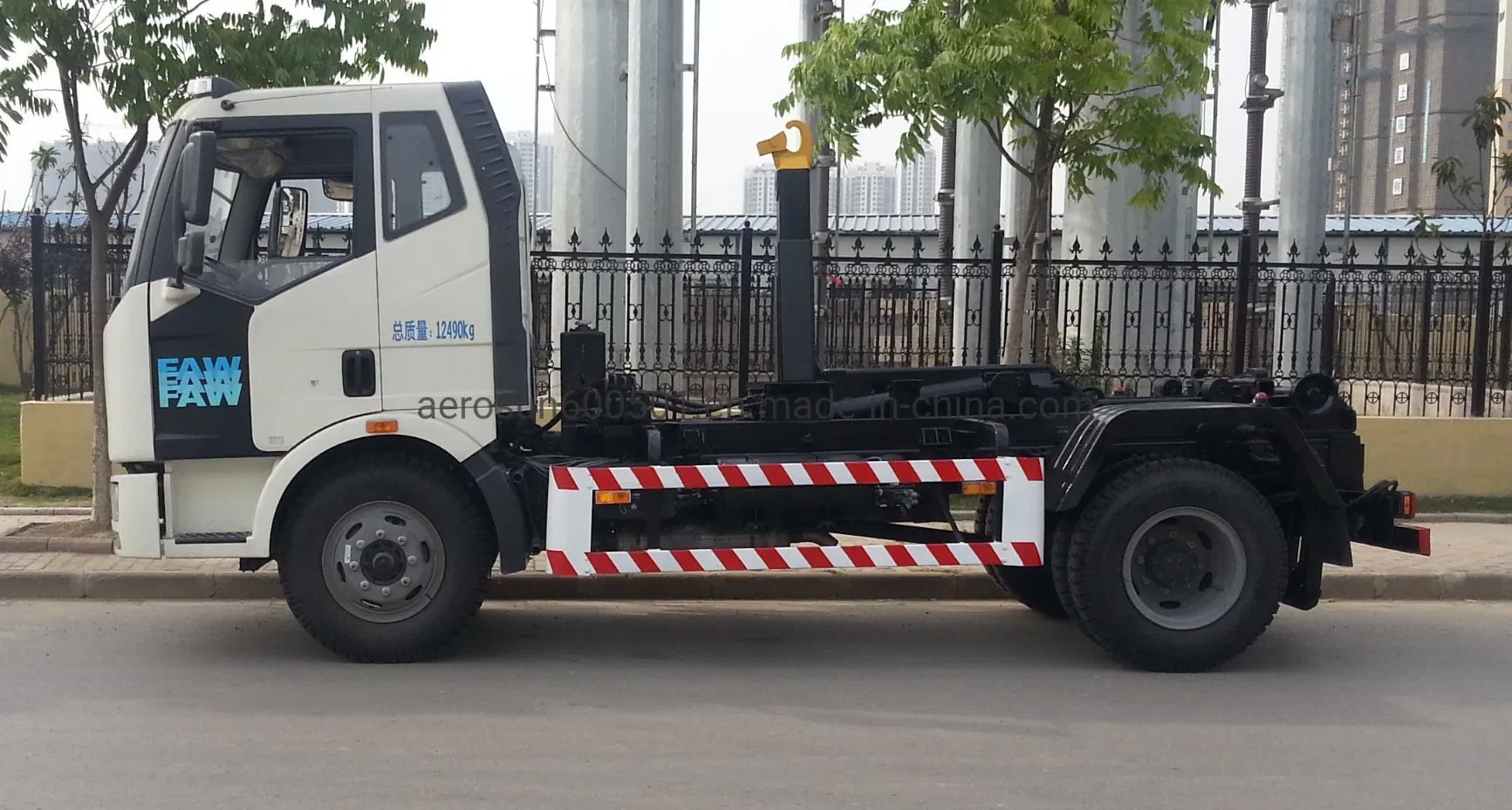

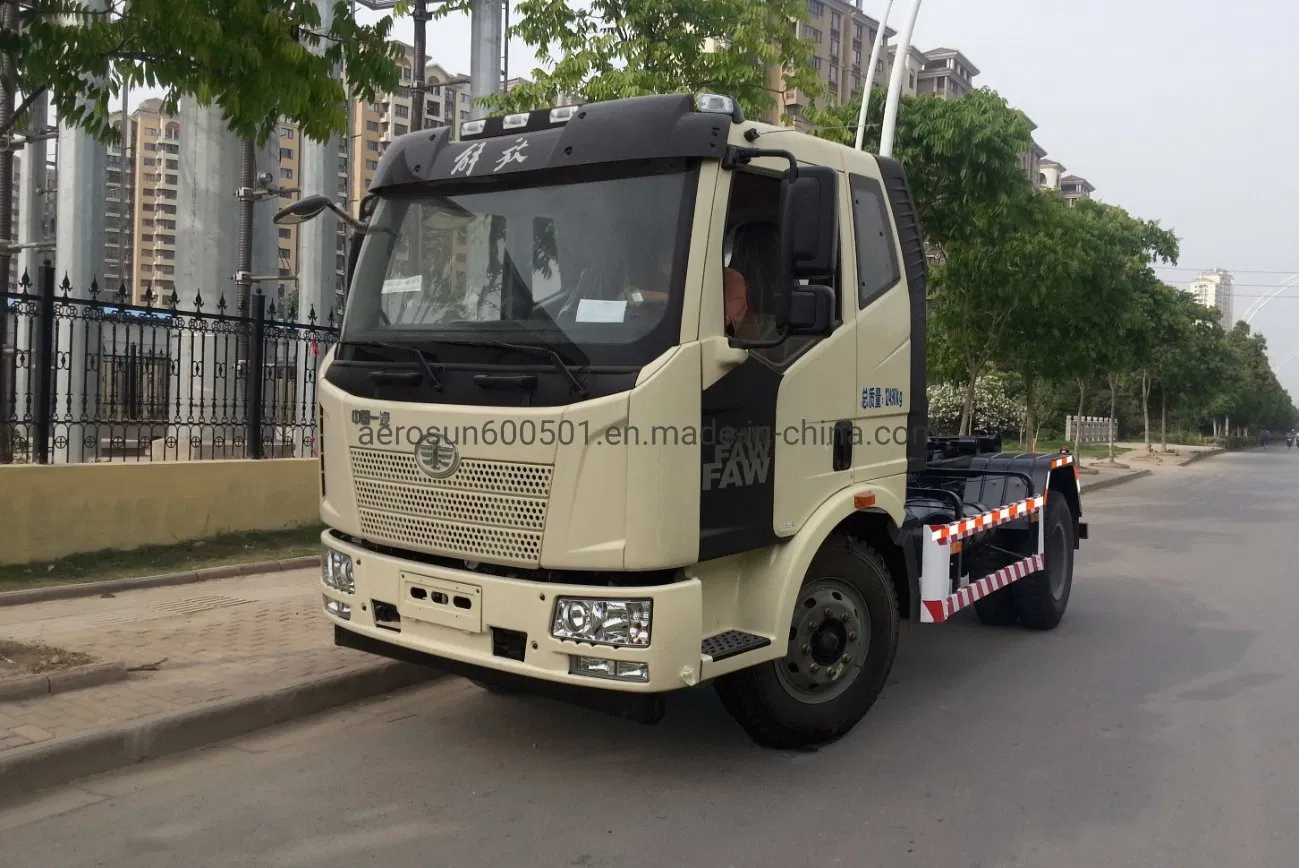

Aerosun 8cbm CGJ5124ZXXE5 FAW arm type detachable container garbage compactor

CGJ5124ZXXE5 arm type detachable container garbage compactor is developed on the basis of ensuring the technical performance of CA1120P62K1LE5Z type chassis, which provides an effective means for collecting urban household garbage in residential areas, streets and other places and sending it to garbage transfer stations.

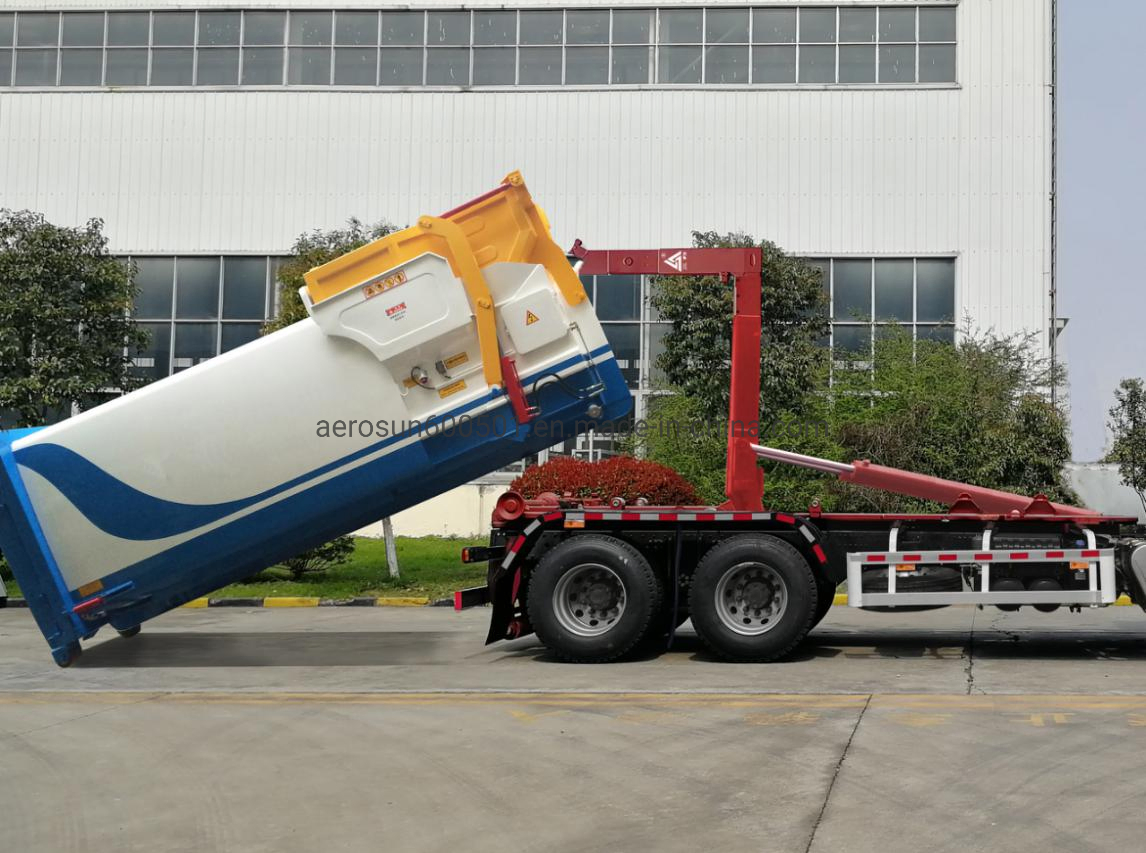

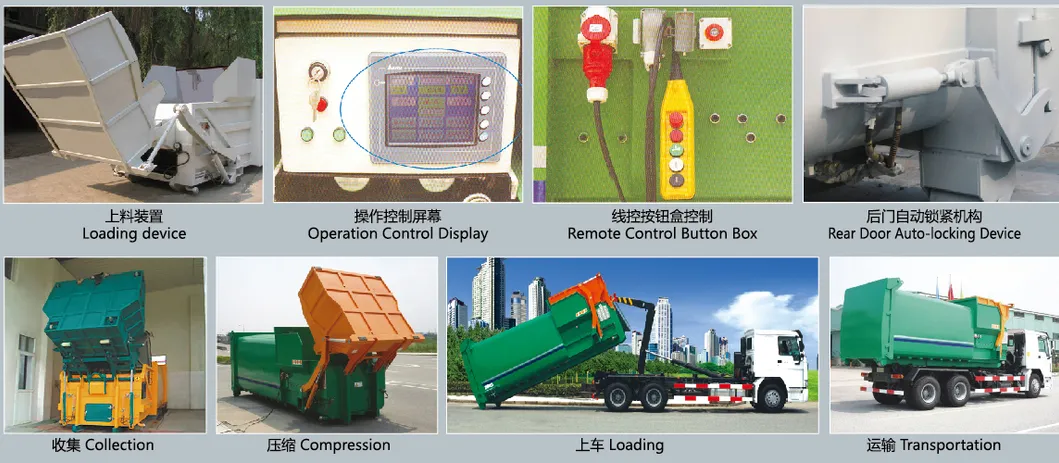

This vehicle can be equipped with mobile compression container, docking compression container, and bulk bins. The mobile compression container can be used independently (380V power is needed). The tank body has the function of compressing garbage, which can be placed in the residential area and used as a garbage collection container. The docking compression container is used in conjunction with the garbage compression station. The push head of the compression station compresses the garbage. The tank body itself does not have compression function. The operating requirement of bulk waste is low and can be placed directly in residential areas or other garbage collection points. When the bins are full, vehicles transport it to waste transfer stations or landfills for disposal. The truck adopts hydraulic control, and the way of garbage discharging is backward dumping. The hydraulic system consists of two double-acting lifting cylinders, one double-acting locking cylinder, one double-acting telescopic cylinder, one double-acting leg cylinder, oil pump, multi-channel reversing valve and high-pressure rubber hose, etc.

It is strictly prohibited to collect construction waste and hard industrial metal waste.

1.Main Technical Specifications

Model					CGJ5122ZXXE5
General Parameters	Overall dimensions (L×W×H)(mm)				6360× 2460×2805
	GVW(kg)				12490
	Curb weight (kg)				6305
	Rated weight (kg)				5990
	Front overhang/ rear overhang (mm)				1400/1160
	Approach/departure angle (°)				17/26
	Min. turning diameter (m)				13.5
Chassis		Model		CA1120P62K1LE5Z
		Manufacturer		FAW
		Axis/axle base(mm)		2/3800
		Tyre number/size		6/9.00-20
		Engine	Model/Manufacturer	CA4DK1-16E51
			Power(kw)	121
			Fuel type/emission standards	Diesel/Euro V
		Max. speed(km/h)		85
Special parameters	Time of container going aboard(s)				50
	Time of container getting downing(s)				55
	Discharge time of container(s)				50
	Max. angle of uplift				50°
	Working pressure of hydraulic system (MPa)				18
	Max. bearing capacity of draw arm(T)				8
	The length of draw arm (mm)				3800
	The height of the hook(mm)				1270
	The allowable width on the rear-wheel (mm)				930

2. Advantages and Characteristics
2.1 With good versatility and interchangeability, one truck can be matched with several garbage transfer stations, and garbage containers can be used for each other, effectively improving garbage transfer efficiency and reducing transportation costs;
2.2 No secondary pollution in transportation, small floor space, saving civil construction investment, no need for additional lifting equipment;
2.3 The arm is made of high strength wear-resisting steel, the equipment is strong and durable, and the service life is long.
2.4 Light dead weight and high lifting capacity.
2.5 Safety system includes: load balance valve, hydraulic or mechanical tank body lock device, tilt lock device, good tilt lock stability.
2.6 Operation mode: Each action of the pull arm can be realized by operating the air control valve in the cab.
2.7 High reliability products are selected for hydraulic components, among which high pressure plunger pump is imported.
