Product Description

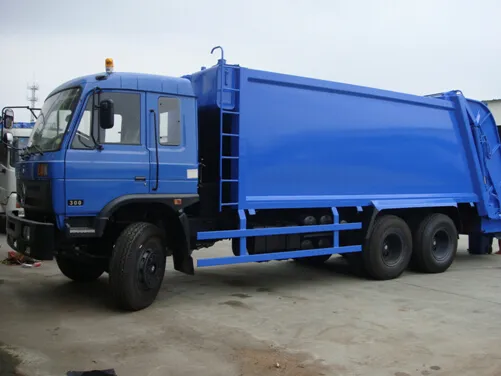

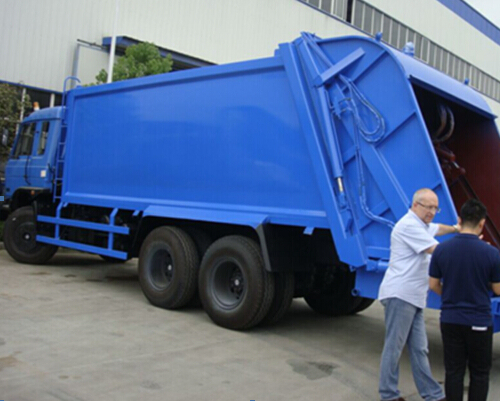

DONFENG 6X4 18m3 Compressed Garbage Truck
Main Technical Data:
Main Technical Data:
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Garbage Compactor truck |
| Drive Type | 6*4 | |
| Loading Capacity (kg) | 12000 | |
| Curb Weight (kg) | 14990 | |
| Approx. Overall Dimensions(mm) | 10300*2500*3300 | |
| Engine | Engine Model | B210 33 |
| Engine Brand | Cummins | |
| Fuel Type | Diesel | |
| Power | 155kw/210HP | |
| Emission Standard | Euro III | |
| Displacement(ml) | 5900 | |
| Chassis | Chassis Brand | DONGFENG |
| Wheelbase (mm) | 4350+1300 | |
| Axle No. | 3 | |
| Tire No. | 10 | |
| Tire Specification | 10.00R20 steel tire | |
| Steering Wheel | Left Hand Drive with power-assisted | |
| Gear Box | 8 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Radiator | Suitable for tropical climate | |
| Garbage Container | Container Volume(m3) | 18 |
| Container Material | Q345, side 4mm, bottom5mm | |
| Pre-compressor Volume(m3) | 1.2 | |
| Sewage tank volume(L) | 200 | |
| Others | Compression cycle time(s) | 30 |
| Unload garbage time(s) | 40 | |
| Remarks | 1.With completely sealed garbage container, hydraulic system, operation system. 2.Equipped with rear turnover mechanism, can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself. High compression ratio. 4.The sewage will flow to sewage tank automatically, avoid second pollution. 5.Good sealed performance, easily operation, high safety. | |
