Dongfeng 153 Chassis with 7 8 9 10 M3 11 12tons Capacity Garbage Refuse Collect Truck
1. Parameters datasheet of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck:(1) The garbage truck are mainly used for garbage collecting and transportation.(2) Chassis brand: Dongfeng 4x2(3) Garbage Truck capacity: 5 m3 (4) Wheelbase: 3300mm(5) Drive Mode: LHD/RH......
Send Inquiry
Product Description
1. Parameters datasheet of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck:
(1) The garbage truck are mainly used for garbage collecting and transportation.
(2) Chassis brand: Dongfeng 4x2
(3) Garbage Truck capacity: 5 m3
(4) Wheelbase: 3300mm
(5) Drive Mode: LHD/RHD, Diesel Engine
| Main specification | Chassis brand | Dongfeng | ||||
| Chassis model | EQ1126 (WITH PTO) | |||||
| Overall dimension(L*W*H) | 7570*2500*3250mm | |||||
| Compressed tank | 8m3 | |||||
| Rated Loading capacity | 46,00 kg | |||||
| Gross weight | 12,940 kg | |||||
| Chassis | Drive modle | 4*2 left hand drive | ||||
| Front axle | Loading capacity:3,600kg | |||||
| Rear axle | Loading capacity:9,000kg | |||||
| Wheel Base | 3950 mm | |||||
| Front/rear suspension | 1250/2800 mm | |||||
| Approach/departure angle | 32/22 (°) | |||||
| Transmission | Six Forward & one reverse. | |||||
| Tyre size & number | 225R17.5, with one spare tyre | |||||
| Max speed | 85 km/h | |||||
| Engine | Model | B170 33 Dongfeng cummins engine | ||||
| Engine Type | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | |||||
| Horse power | 170hp | |||||
| Max Torque | 560N.m | |||||
| Displacement | 5900ml | |||||
| Emission | Euro 3 | |||||
| Garbage tank | Volume of compartment | 8m3 | ||||
| Thickness | Side :4mm ; Bottom:5mm | |||||
| Material | Carbon steel,inner epoxy anticorrosive | |||||
| Function | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket | |||||
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, garbage trucks.

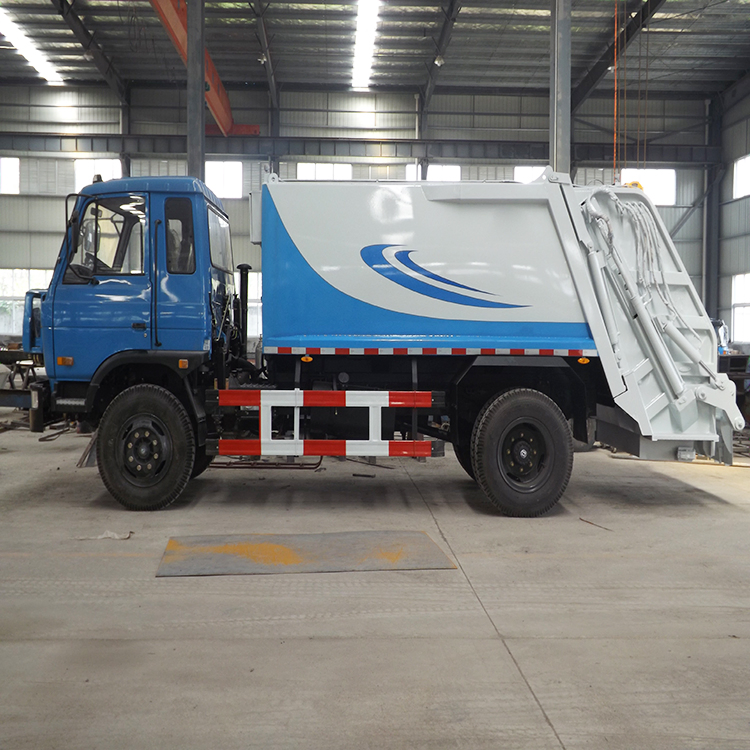

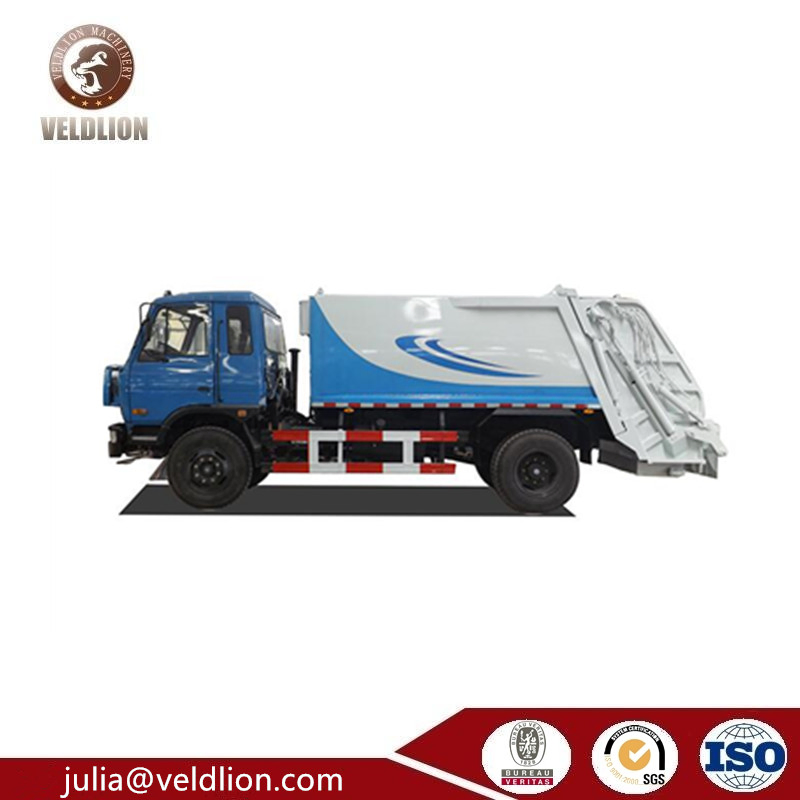

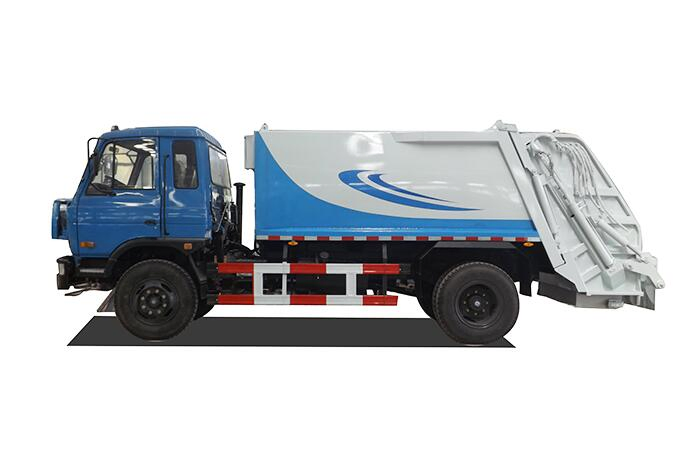

2. Pictures of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck

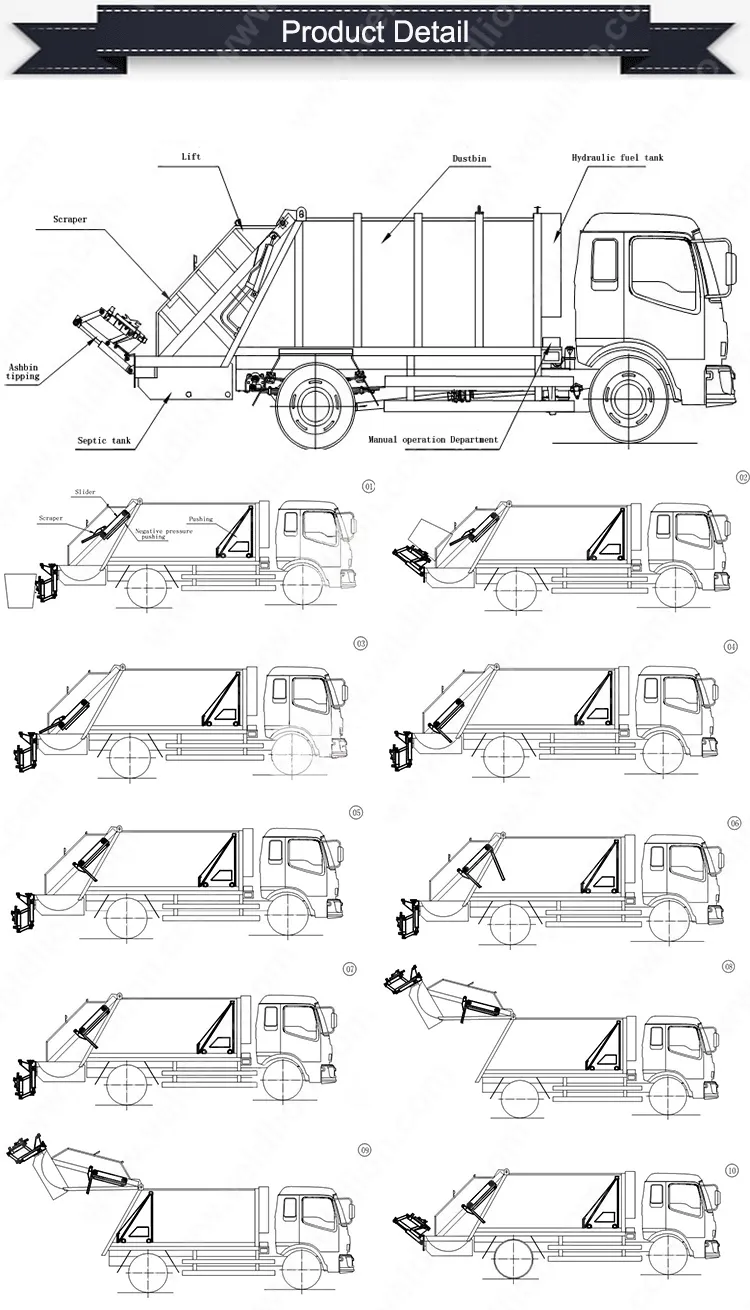

Drawings of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck:

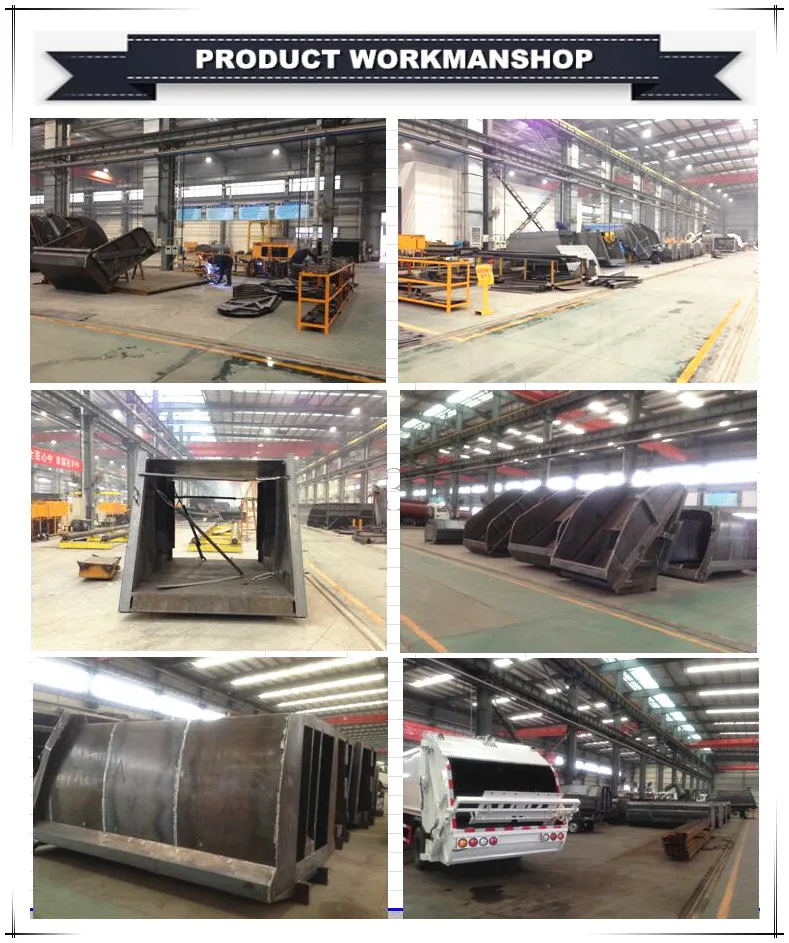

3. Product Workshop of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck:
4. Company introduce of Dongfeng 153 chassis with 7 8 9 10 m3 11 12tons Capacity Garbage Refuse Collect Truck:
HUBEI VELDLION MACHINERY CO., Ltd is an authorized special trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
