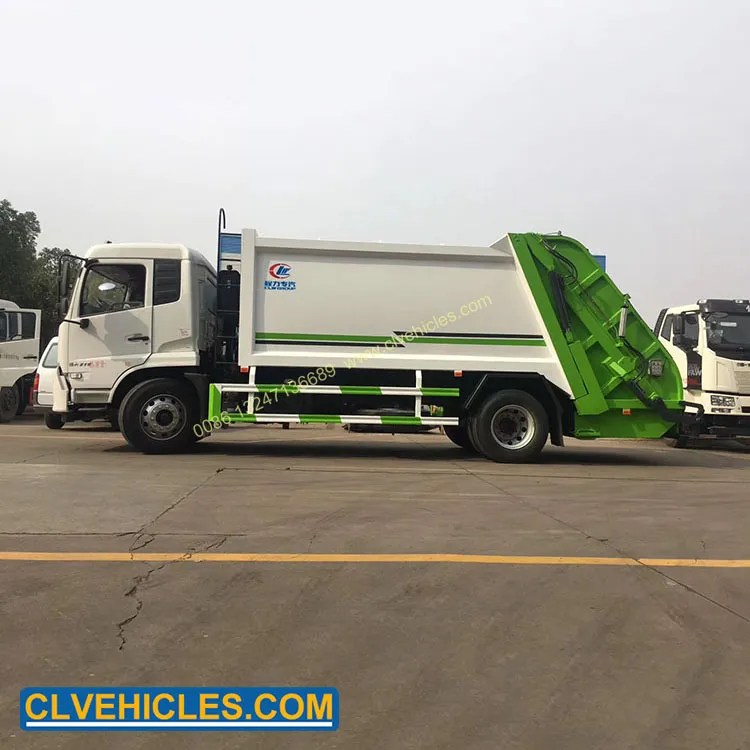

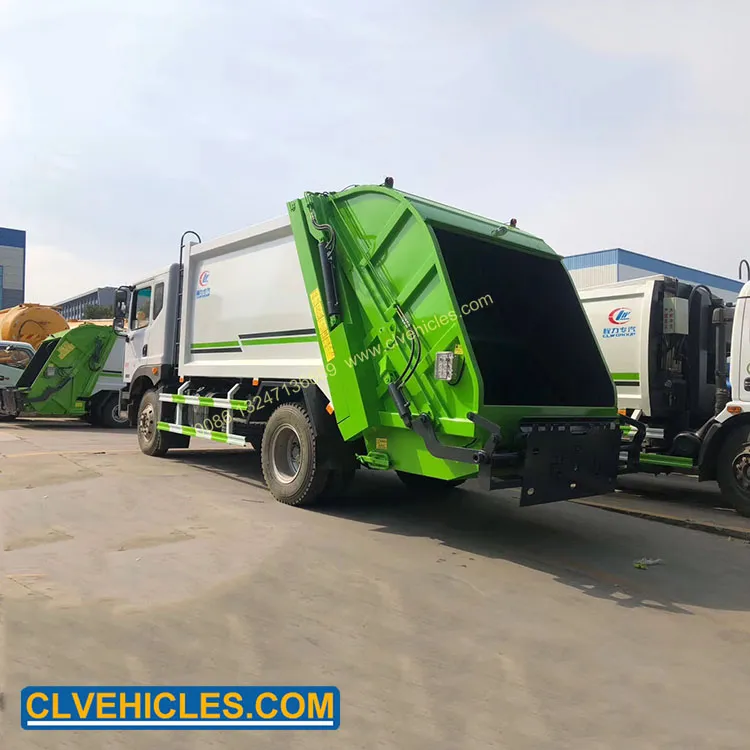

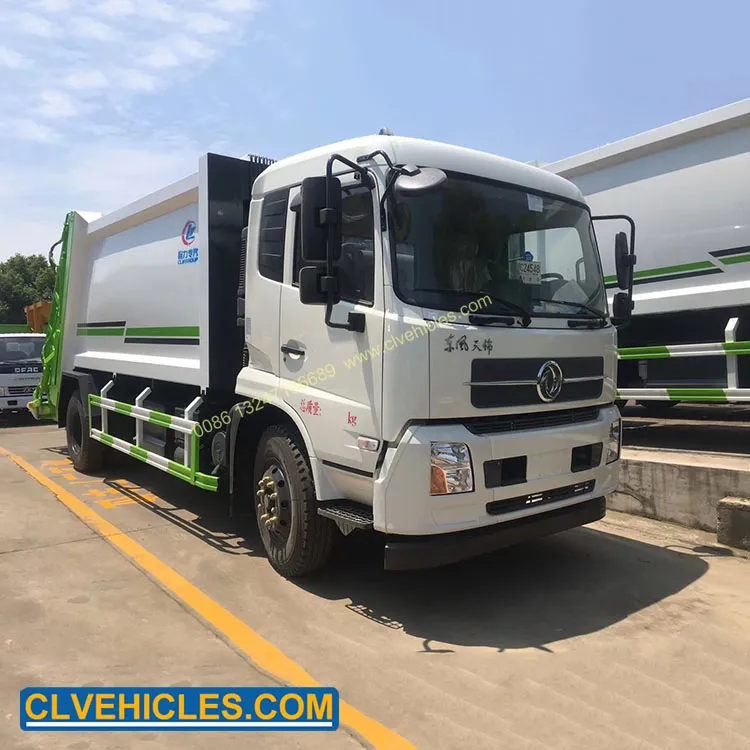

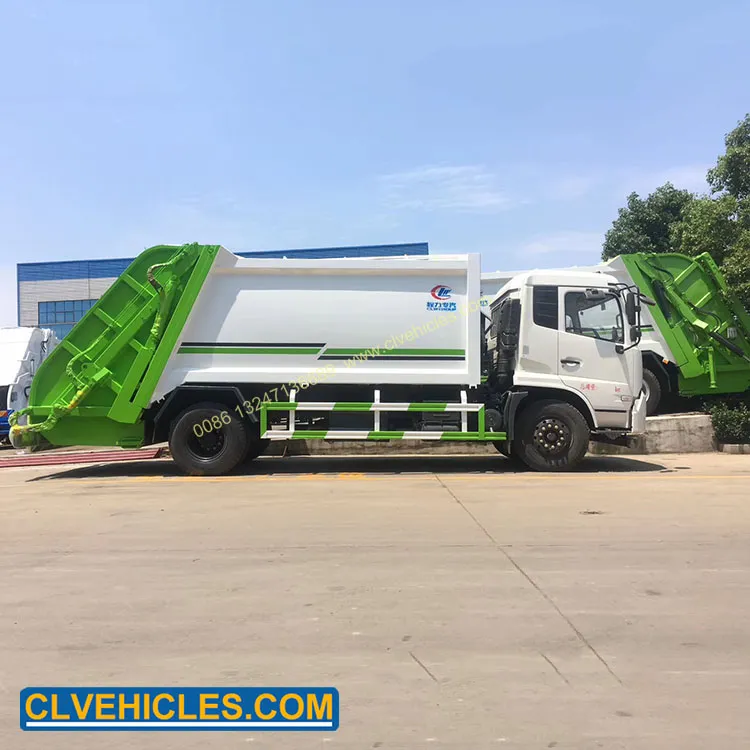

Dongfeng 190HP Waste Collection Truck 14000L Waste Compactor Truck
DONGFENG 190HP Waste Collection Truck 14000L Waste Compactor TruckGarbage Compactor Truck, also called Compressed Garbage Truck, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor, Trash Compactor Tr......
Send Inquiry
Product Description
Garbage Compactor Truck, also called Compressed Garbage Truck, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor, Trash Compactor Truck, Trash Truck
How the Garbage Compactor Truck Works?

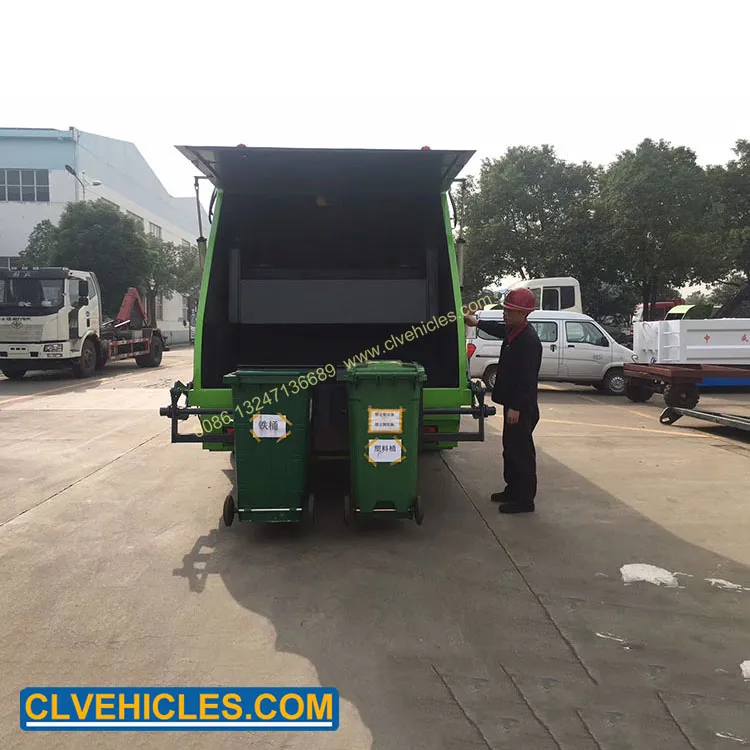

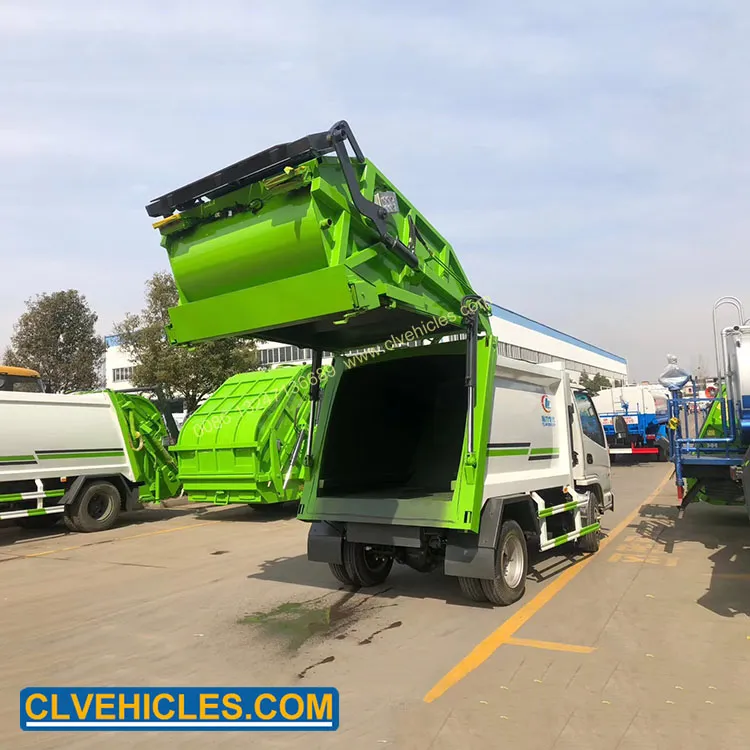

The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.
How much does a Garbage Truck hold?
Different types of garbage trucks that hold different amounts of waste. The truck that comes through your neighborhood can hold anywhere from 3 tons to 20 tons of waste.
The available chassis brands for Garbage Compactor Truck are ISU.ZU, SINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc.
| Garbage Compactor Truck Specification | ||
| General | Model | CLW5140BBLJCDF14 |
| Chassis Brand | DONGFENG | |
| Overall Dimension | Appro. 8500*2500*3400 (mm) | |
| GVW | Appro. 18000 (kg) | |
| Truck Tare Weight (kg) | Appro. 9900 (kg) | |
| Garbage Container Capacity | Appro. 14CBM | |
| Drive Type | 4x2, Right Hand Drive with power assisted steering | |
| Drive Speed | ≥90Km/h | |
| Cab | Type | One and a half row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat |
| No of Seats | 3 persons allowed, including driver, with safety belts | |
| Number of Doors | 2 | |
| Air Conditional | With air conditional | |
| Electric System | 24V | |
| Audio System | FM/AM radio, CD/USB player | |
| Engine | Brand | DONGFENG CUMMINS |
| Model | EQB180 20 | |
| Fuel Type | Diesel Fuel | |
| Emission Standard | Europe II | |
| Type | Water-cooled four-stroke, direct injection, turbocharged & intercooled | |
| Nos of Cylinder | 6 | |
| Cylinders Arrangement | In-line | |
| Max Output Power | 132 (kw) | |
| Exhaust | 5900(ml) | |
| Max output power/rated speed | 180/2500 (hp/rpm ) | |
| Max torque/rotate speed | 610/1500 (N.m/rpm) | |
| Fuel System | Fuel Tank Capacity | 160Ltr |
| Material | Steel fuel tank | |
| Gear Box | Model | DF6S900 |
| Type | Manual | |
| Forward Speeds | 6 | |
| Reverse Speed | 1 | |
| Synchronizer | Yes | |
| Forward Ratios | 6.938;3.996;2.320;1.493;1.0;0.814 | |
| Reverse Ratio | 6.188 | |
| Clutch | Plate's Diameter | ¢395mm |
| Operation System | Hydraulic control with air booster, pushing | |
| Bridge | NOs of Axle | 2 |
| Front Alex | Elliot type, I beam section | |
| Front axle load-bearing (kg) | 4500 | |
| Rear Alex | Single reduction | |
| Rear axle load-bearing (kg) | 9000 | |
| Suspension | Front | 7- Leaf spring with shock absorber |
| Rear | (9+6)-leaf spring | |
| Electric System | Voltage | 24V |
| Battery Capacity (A.h) | 100X2 | |
| Braking System | Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake | |
| Tire | Type | 10.00R22.5 |
| Nos | Total 7 pieces, including one spare tire | |
| Garbage Compactor Truck Specification | ||
| Garbage Container | Volume | 14CBM |
| Material | Q345 | |
| Thickness (side/bottom) | 5mm/5mm | |
| Hydraulic Pump | 1 set | |
| Multi-way Valve | 1 set | |
| Flap Cylinder | 2 set | |
| Lifting Cylinder | 2 set | |
| Scraper Cylinder | 2 set | |
| Skateboard Cylinder | 2 set | |
| Push plate Cylinder | 1 set | |
| The Electromagnetic Valve | 2 set | |
| Dirty Tank Volume | 200L | |
| Filing Time | 8-10s | |
| Filling Cycle Time | 20-28s each time | |
| Discharge Type | Flat-pushing and Dumping | |
| Dumping Time | 15-20s | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manually and Electrical control | |
DONGFENG 190HP Waste Collection Truck 14000L Waste Compactor Truck
