Product Description

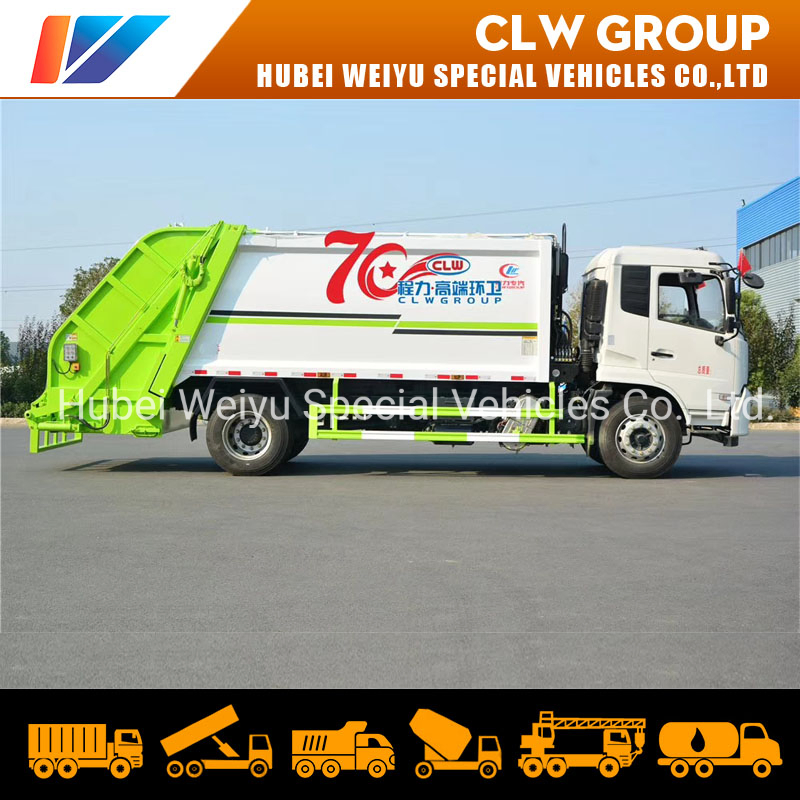

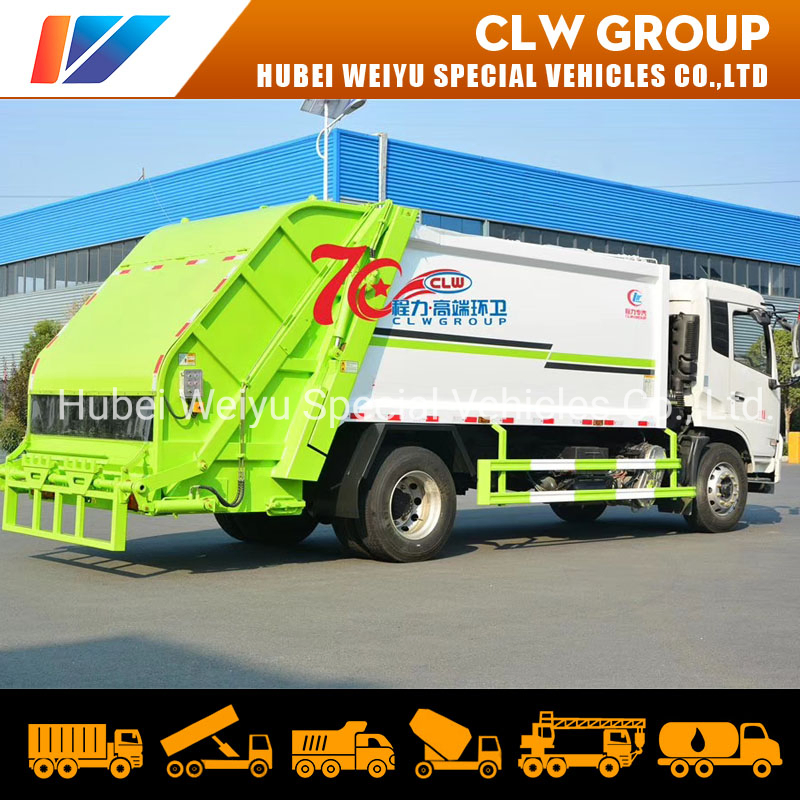

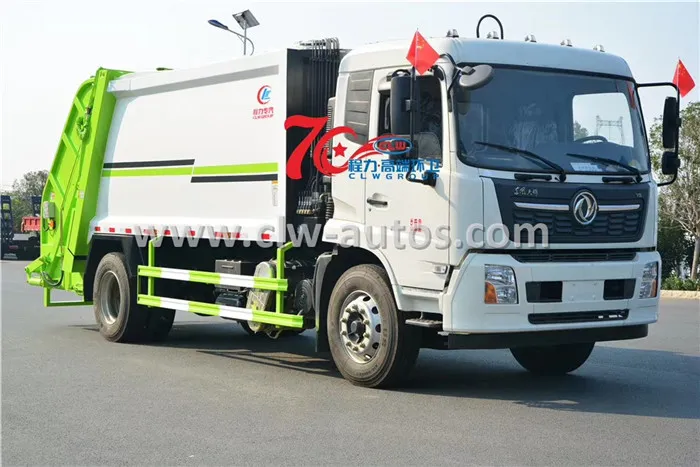

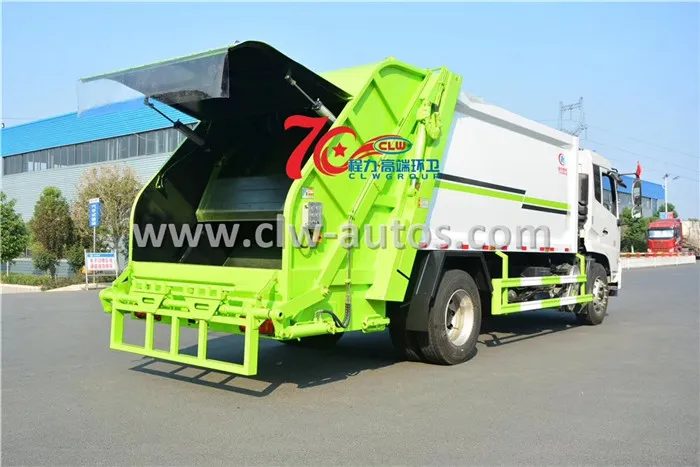

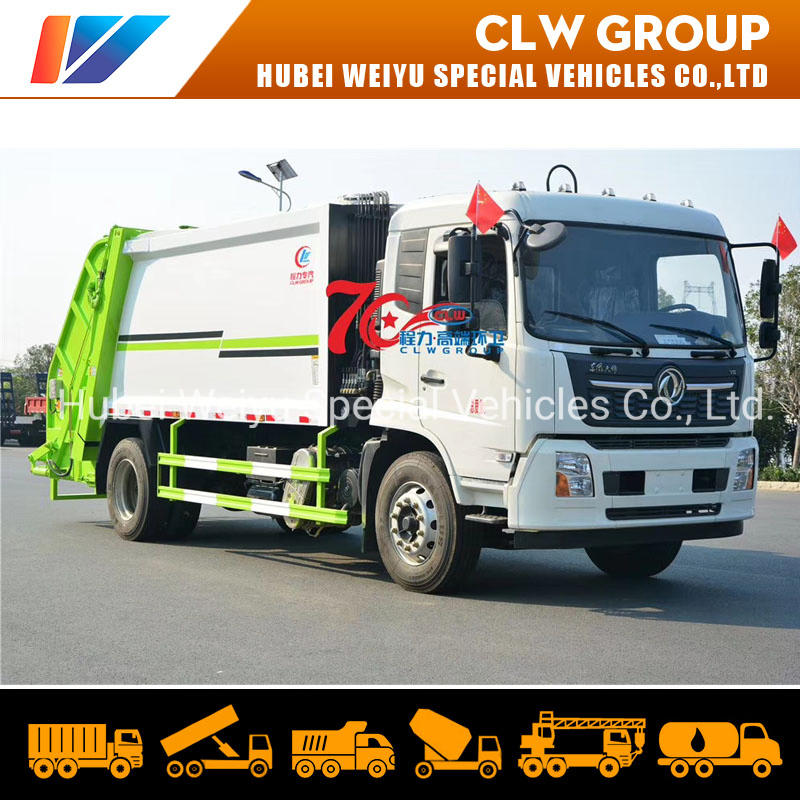

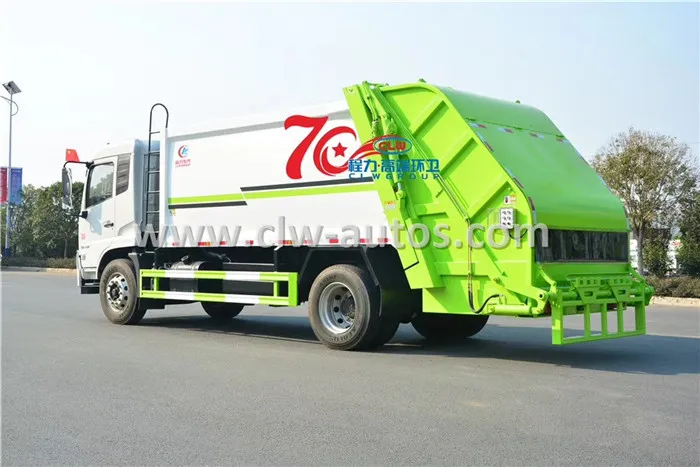

Dongfeng 4X2 LHD 14cbm Waste Collector Compressed Refuse Garbage Truck

Description:

1.The collection garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.

2.The garbage compactor truck is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected.

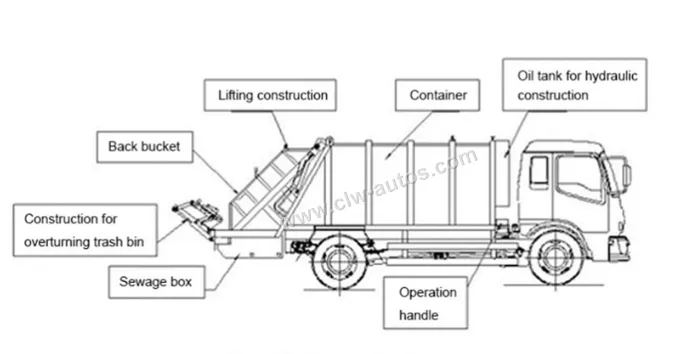

3.Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation.

As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 25cbm.

Cabin	Driving type 4x2
	with A/C. Left Hand Drive.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		835024903250mm
	Wheel base (mm)		4700
	Approach/Departure angle(°)		24/16
Weight in KGS	Tare Weight		9850
	Front axles loading capacity		4500kg
	Rear axles loading capacity		9000kg
Max. driving speed(km/h)			95
Engine	Brand		Cummins
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		180 HP
	Emission standard		Euro V
Gearbox	6 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Tire	9.00R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume		14m3
Material Thickness		5mm
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16

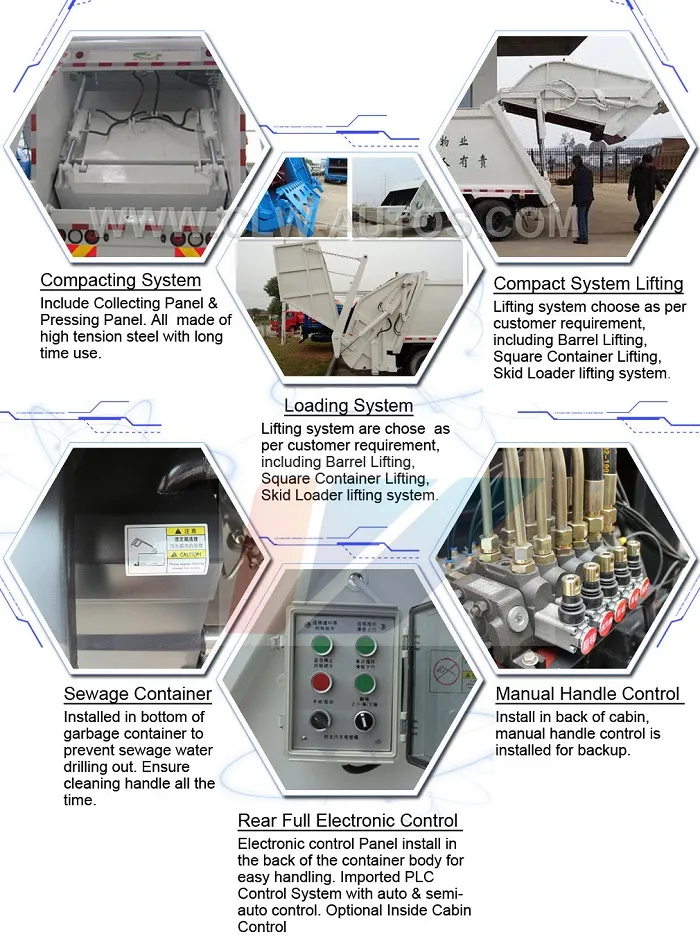

Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.
