Product Description

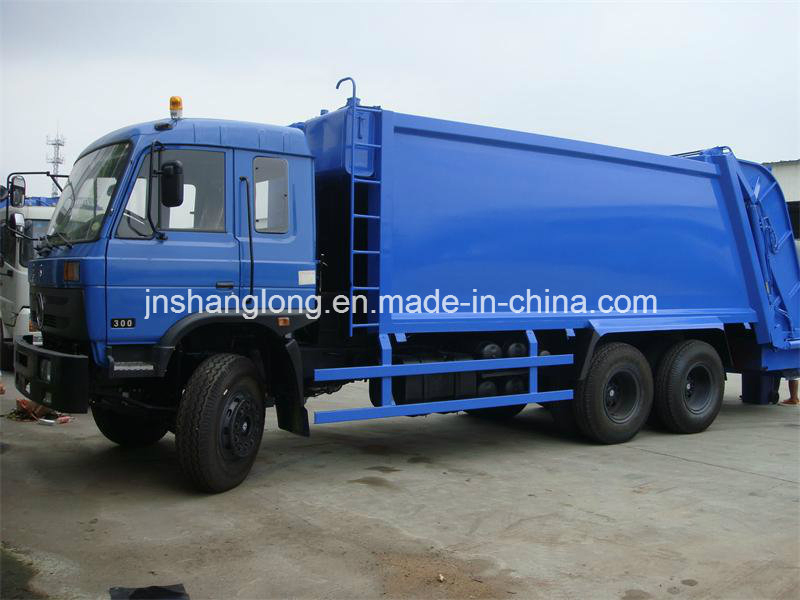

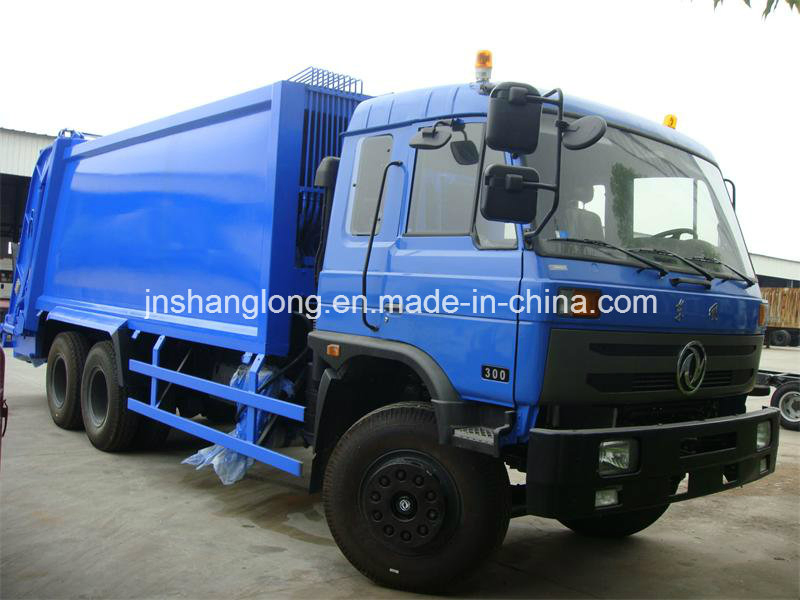

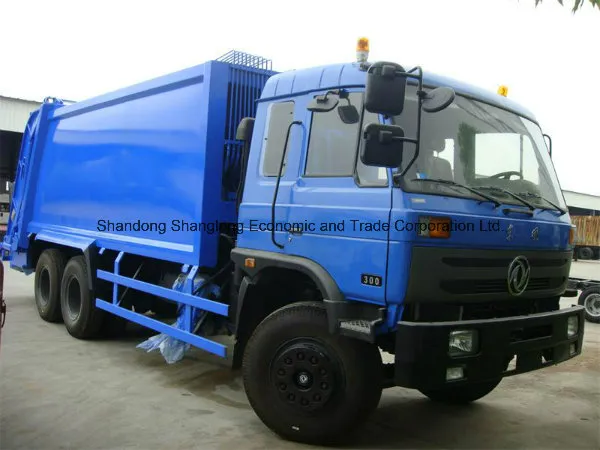

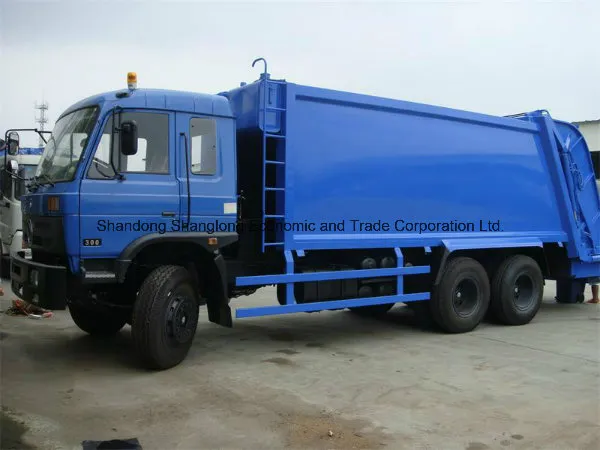

Dongfeng Chassis 18cbm Compactor Garbage Truck
| General | |
| Truck Name | Garbage Compactor truck |
| Drive Type | 6*4 |
| Gross Vehicle Weight(kg) | 25000 |
| Loading Capacity (kg) | 12000 |
| Curb Weight (kg) | 14990 |
| Overall Dimensions L*W*H(mm) | 10300*2500*3300 |
| Engine | |
| Engine Brand | Cummins , B210 33 |
| Fuel Type | Diesel |
| Power | 155kw/210HP |
| Emission Standard | Euro III |
| Displacement(ml) | 5900 |
| Chassis | |
| Chassis Brand | DONGFENG |
| Tire No. | 10 |
| Tire Specification | 10.00R20 steel tire |
| Wheelbase (mm) | 4350+1300 |
| Axle No. | 3 |
| Steering Wheel | Left Hand Drive or Right hand drive |
| Gear Box | 8 speed forward with 1 reverse, manual |
| Brake | Air brake |
| Radiator | Suitable for tropical climate |
| Garbage Container | |
| Container Volume(m3) | 18 |
| Container Material | Q345, side 4mm, bottom5mm |
| Pre-compressor Volume(m3) | 1.2 |
| Sewage tank volume(L) | 200 |
| Others | |
| Compression cycle time(s) | 30 |
| Unload garbage time(s) | 40 |
| Remark | |

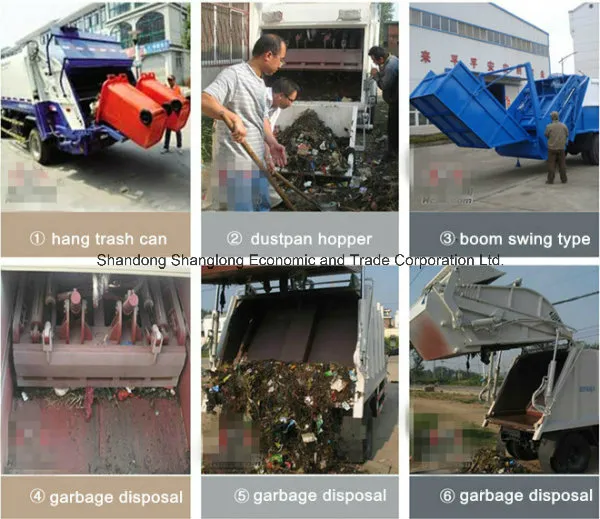

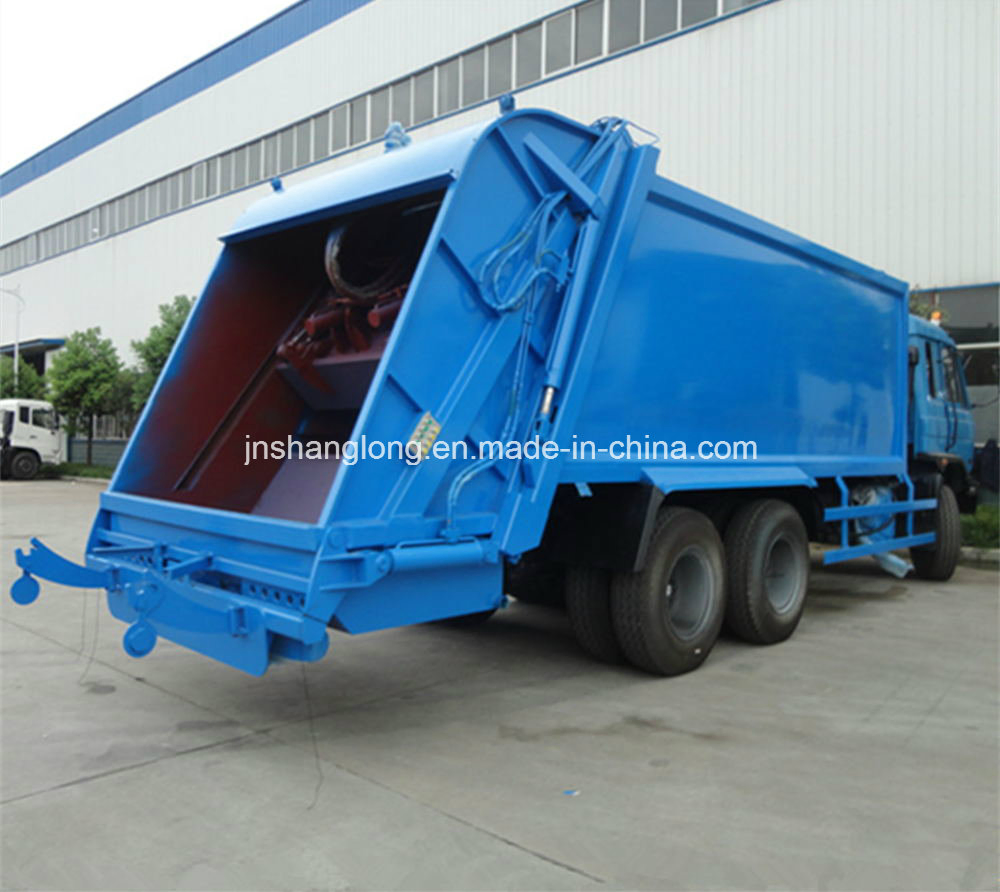

| 1.With completely sealed garbage container, hydraulic system, operation system. 2.Equipped with rear turnover mechanism, can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself. High compression ratio. 4.The sewage will flow to sewage tank automatically, avoid second pollution. 5.Good sealed performance, easily operation, high safety. | |
