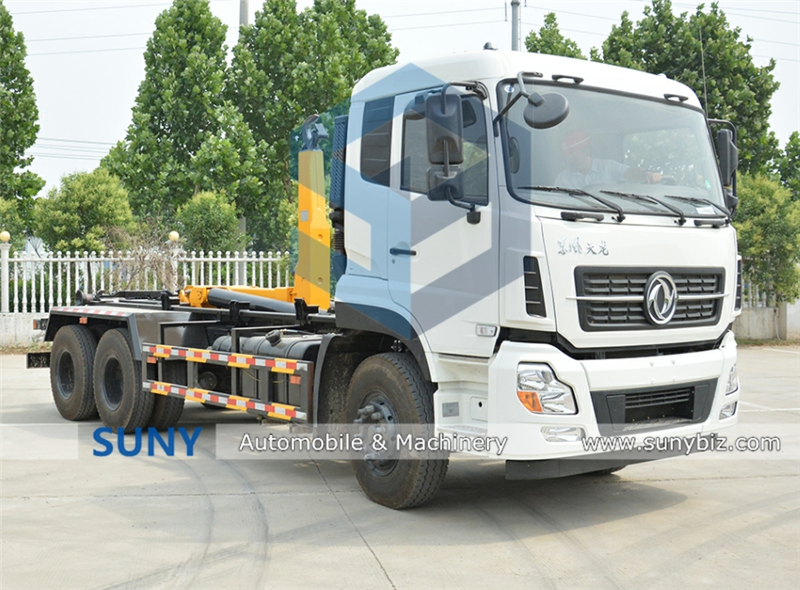

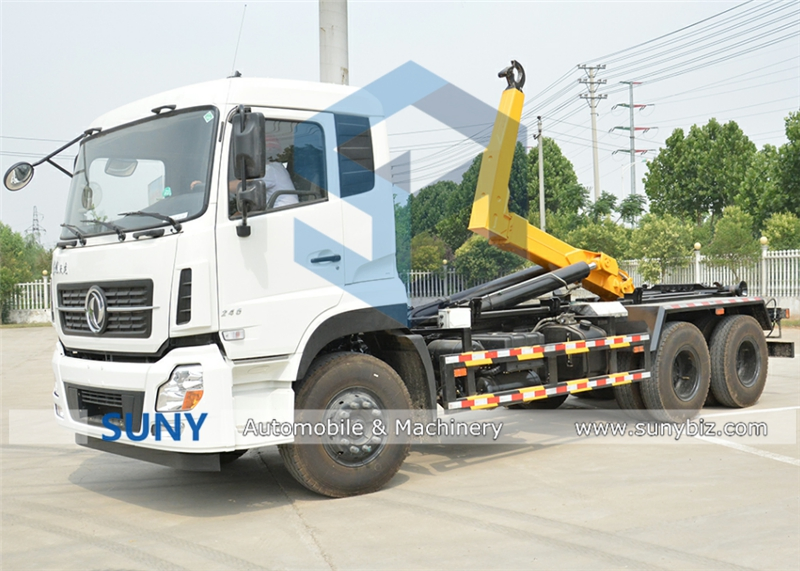

Dongfeng Tianlong 6*4 20t Hook Lift Garbage Truck
Hook lifting garbage truck is designed with detachable carriage, which also equipped with auxiliary garbage collection box to transport the solid waste.It's widely use in residential area, public area, and garbage transfer station, etc.DONGFENG TIANLONG 6*4 20T Hook lift garbage truckVehicle Des......
Send Inquiry
Product Description
Hook lifting garbage truck is designed with detachable carriage, which also equipped with auxiliary garbage collection box to transport the solid waste.It's widely use in residential area, public area, and garbage transfer station, etc.
Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and quality win for the purpose of customers' intentions.
We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which are widely used in environmental protection, city construction, transportation and many other fields.
Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers all over the world and Chinese main manufactures.
With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and efficiency, meanwhile continuously promoting our service for all the customers all over the world!
Our product: sanitary truck, different kinds of garbage trucks, fire fighting truck, road wrecker truck, bitumen distributor truck, different kinds of van trucks, dump truck, concrete mixer truck, bulk cement truck, truck with crane, different kinds of semi trailers for transporting the fuel, chemical, bulk cement, containers, LPG, etc.
Our cooperation brand:

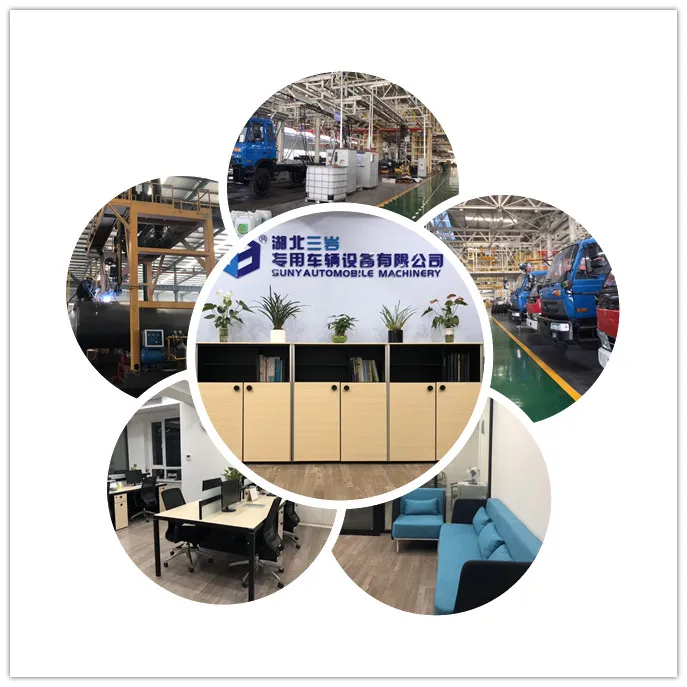

Our office and workshop:
Customers' visiting to us:
Our team abroad:
Our shipment:

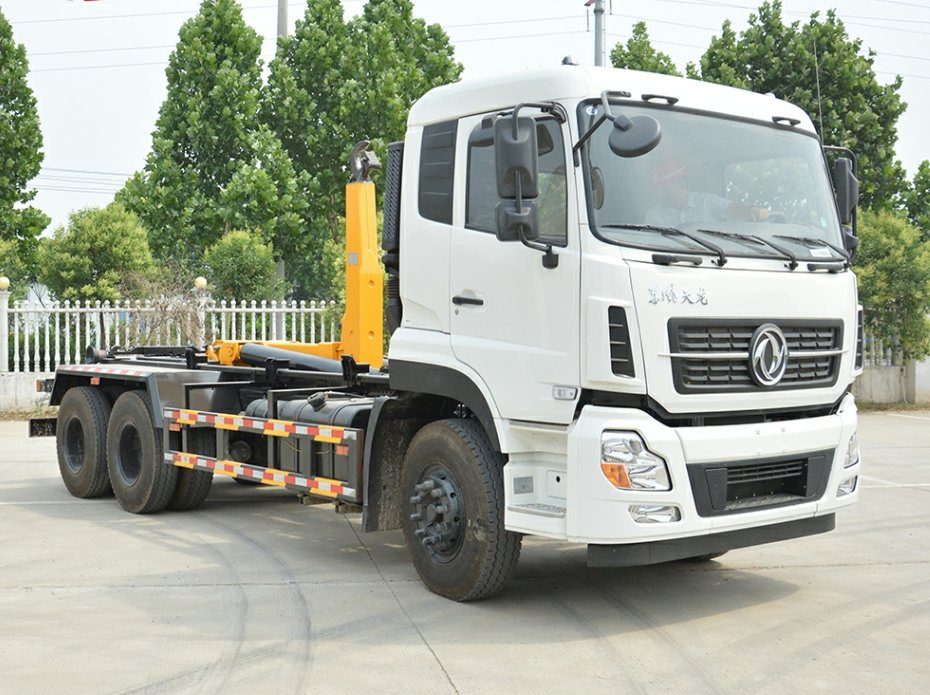

DONGFENG TIANLONG 6*4 20T Hook lift garbage truck
| Vehicle Description | |
| Overall dimensions | 8300×2500×3250 mm |
| GVW | 25000kg |
| Curb weight | 13205kg |
| Loading weight | 11600kg |
| Chassis brand | DONGFENG |
| Traction type | 6*4; Left hand drive |
| Up-parts Specification | |
| Dustbin volume | 20T |
| Dustbin material | Carbon steel |
| Hydraulic system | Chinese top brand multi-way valves, cylinder |
| Self unloading angle | ≥49° |
| Lifting time | ≥60s |
| Loading time | ≥60s |
| Standard configuration |
|
| Optional | Rear supporting device is available |
| Chassis Description | ||
| Chassis model | DFL1250A8 | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Wheelbase | 4350+1300mm | |
| Tire specification | 11.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | C260 33 |
| Emission level | Euro 2 | |
| Displacement/output | 8300ml/191kw | |
| Horse power | 260hp | |
| Gear box | Model | 9JS119T-B |
| Number of gears | 9 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T*2-Single reduction, ratio 5.143 | |
| Suspension | Front | 8/8- Leaf spring with shock absorber |
| Rear | 9/9-Leaf spring | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 350L | |
