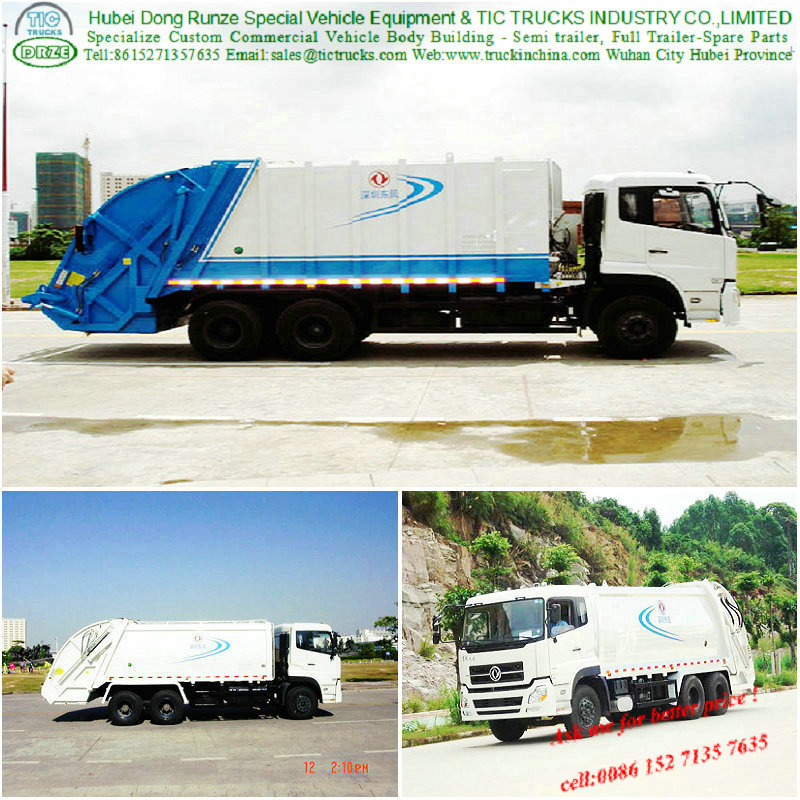

Dongfeng Tianlong Compression Garbage Truck (16-20T)
16~22m3 compressed garbage truck/garbage refuse compactor vehicle Advantages of factory over 10years' exporting experience Professional staff ,high working efficiency and responsible In cooperation with powerful and reliable shipping service when CIF terms TEL &colo......
Send Inquiry
Product Description
16~22m3 compressed garbage truck
/garbage refuse compactor vehicle
Advantages of factory
over 10years' exporting experience
Professional staff ,high working efficiency and responsible
In cooperation with powerful and reliable shipping service when CIF terms
TEL :0086-15271357675;8615271357635
Skype tomsongking Dolika compression garbage truck(5-6T)
Dongfeng Tianlong compression garbage truck(16-20T)
Trash Compactor Truck 22cube garbage truck,garbage compactor truck(Dongfeng Cummins 270hp)
Price: FOB/DAF/CNF/CIF
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
2
Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
The carriage of our Trash compactor truck is designed with circular arc with good appearance.
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
TIC TRUCKS , tictrucks.en.made-in-china.com
Trash Compactor Truck
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
Hooklift Garbage Truck with Hydraulic Self Loading System
Dongfeng Roll off Garbage Truck
Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
6m3 compression garbage truck, garbage compactor truck, garbage trucks, mini garbage truck electric garbage truck, NISSAN, NISSAN garbage truck, nissan garbage truck: garbage truck, small Garbage Truck
/garbage refuse compactor vehicle
Advantages of factory
over 10years' exporting experience
Professional staff ,high working efficiency and responsible
In cooperation with powerful and reliable shipping service when CIF terms
TEL :0086-15271357675;8615271357635
Skype tomsongking Dolika compression garbage truck(5-6T)
Dongfeng Tianlong compression garbage truck(16-20T)
Trash Compactor Truck 22cube garbage truck,garbage compactor truck(Dongfeng Cummins 270hp)
Product | Dongfeng Tianlong compression garbage truck(15-20T) | |
| Chassis type | DFL1250A11; DFL1250A12 | |
| Cubage(T) | 15-20 | |
| Parameters | Overall dimension length/width/height (mm) | 10010*2496**3450 |
| Total Mass(kg) | 25000 | |
| Payload(kg) | 13350 | |
| Kerb Mass(kg) | 11650 | |
| Approach angle/ Departure angle(mm) | 25/13 | |
| Front suspension/rear suspension(mm) | 1420/2710 | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 98 | |
| Engine | Type | ISDE270 40 |
| Displacement/Power(kw) | 6700 / 198 | |
| Manufacturer | Dongfeng Cummins disel engine company | |
| Type | 6 cylinders,turbcharge inter-cooling | |
| Chassis | Drive type | 6×4 |
| Wheelbase(mm) | 4350+1300; 5350+1300 | |
| Tread(front/rear) | 1986/1860,1860 | |
| Front axle | 7T | |
| Rear axle | 18T | |
| Steering gear | Hydraulic assistance | |
| Transmission | 8 forward gear,1 reverse gear,manual mechanical type | |
| Clutch | Single,dry type, hydraulic remote control | |
| Braking system | Double rear axle braking su | |
| Cab | Non-long headed cabin,one sleeper bed in the cab | |
| Number of spring axle(front/rear) | 8/9,8/10 | |
| Tire Type | 11.00-20 | |
| Air-condition | With air conditioner | |
Special parameter | Compressed Dustbin capacity (m3) | 16~23 |
| Ground clearance from the fill mouth to ground (mm) | 1000 | |
| The Max boken force (KN) | 400 | |
| The Max compressed force (KN) | 310 | |
| Once cycle time (s) | 28 | |
| The lifting time of filli(mm) | 1570 |
Price: FOB/DAF/CNF/CIF
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
COMPACTOR BODY INFORMATION | |||||
Shape | Smooth Body (Optional) | ||||
Body Capacity (m3) | 22 | ||||
Hopper Capacity (m3) | 1.6 | ||||
Gate size (width x height) (mm) | 1380 x 1350 | ||||
Operation Mechanism | manual & automatic | ||||
Discharging System | horizontal push-out | ||||
Loading Time [one cycle] (sec) | 25~30 | ||||
Discharge Time (sec) | 30~35 | ||||
Hydraulic System Working Pressure (Mpa) | 16.2 | ||||
Compression Ratio | 2.5-3 to 1 | ||||
Body Material | Carbon steel made of Q235B | ||||
Plate thickness (mm) | Body | Floor | 4 | ||
Roof | 5 | ||||
Side | 4 | ||||
Hopper | Side(upper) | 5 | |||
Side(lower) | 5 | ||||
Bottom | 5 | ||||
Discharge plate | 4 | ||||
Press plate | 5 | ||||
2
Product | Dongfeng 153 compression garbage truck | |
| Chassis type | EQ1141G7DJ | |
| Cubage(CBM) | 12 | |
| Parameters | Overall dimension length/width/height (mm) | 8470×2480×3190 |
| Total Mass(kg) | 14745 | |
| Payload(kg) | 6300 | |
| Kerb Mass(kg) | 8250 | |
| Approach angle/ Departure angle(mm) | 34/14 | |
| Front suspension/rear suspension(mm) | 1245/2725 | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 85 | |
| Engine | Type | B190-33 Commins six-cylinder inner-cooling supercharged diesel engine |
| Displacement/Power(kw) | 5880 / 138(130HP) | |
| Manufacturer | Dongfeng Commins Diesel Engine Co., Ltd | |
| Type | Water-cooling 6-in line, four-stroke supercharged diesel engine | |
| Chassis | Drive type | 4×2 |
| Wheelbase(mm) | 4700 | |
| Tread(front/rear) | 1940 / 1860 | |
| Front axle | 5T | |
| Rear axle | 10T | |
| Steering gear | Duel-armed steering wheel, power steering | |
| Transmission | 6 gear mechanical drive transmission | |
| Clutch | Diaphragm clutch, hydraulic remote control, pneumatic servo | |
| Braking system | Split air braking system, spring braking, exhaust braking | |
| Cab | Non-longheaded, one and a half row cab,whole metal-enclosed | |
| Number of spring axle(front/rear) | 9/10+8 | |
| Tire Type | 10.00-20 16PR | |
| Air-condition | Choose to fix | |
Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
The carriage of our Trash compactor truck is designed with circular arc with good appearance.
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
TIC TRUCKS , tictrucks.en.made-in-china.com
Trash Compactor Truck
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
Hooklift Garbage Truck with Hydraulic Self Loading System
Dongfeng Roll off Garbage Truck
Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
6m3 compression garbage truck, garbage compactor truck, garbage trucks, mini garbage truck electric garbage truck, NISSAN, NISSAN garbage truck, nissan garbage truck: garbage truck, small Garbage Truck
