Product Description

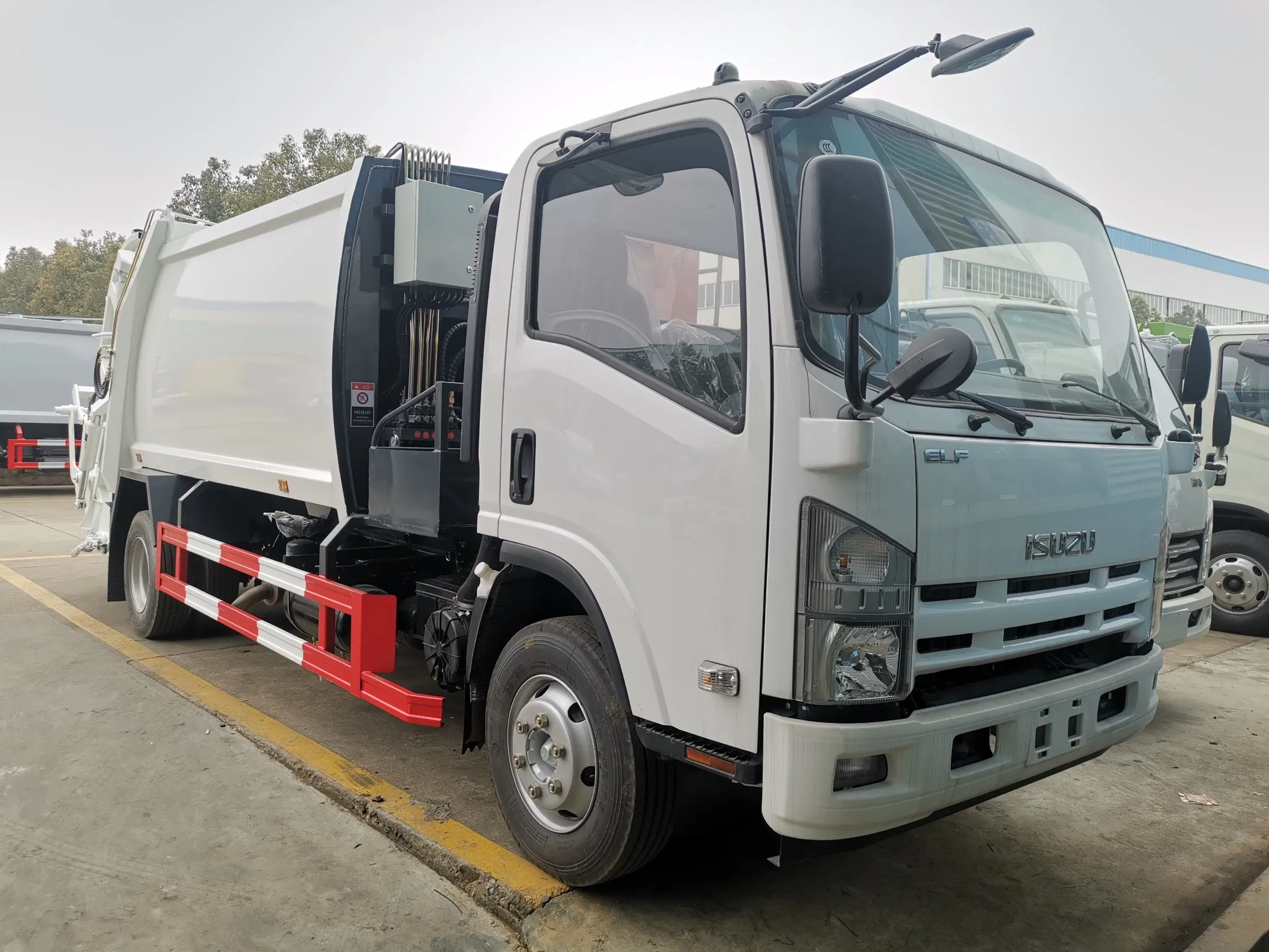

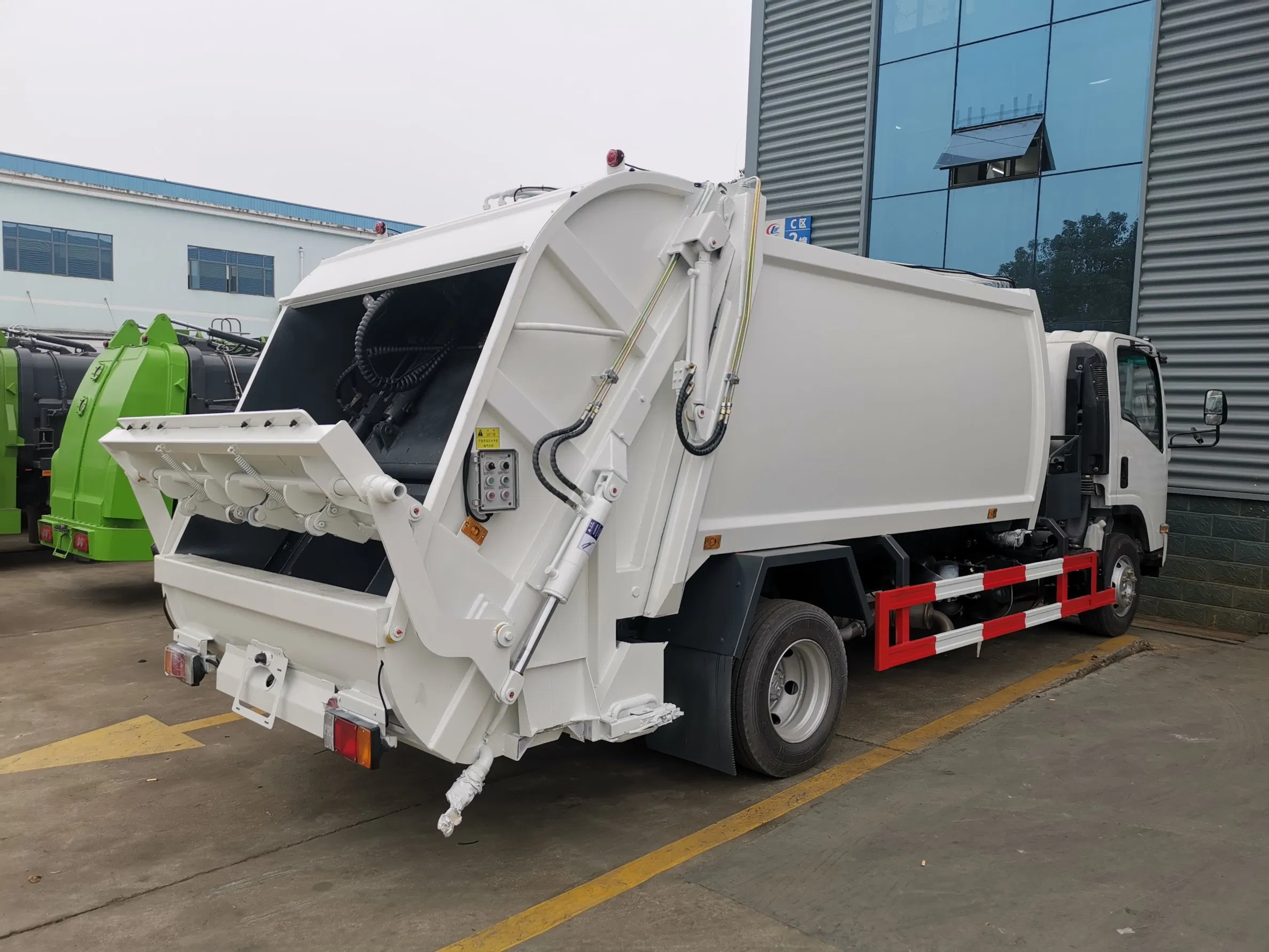

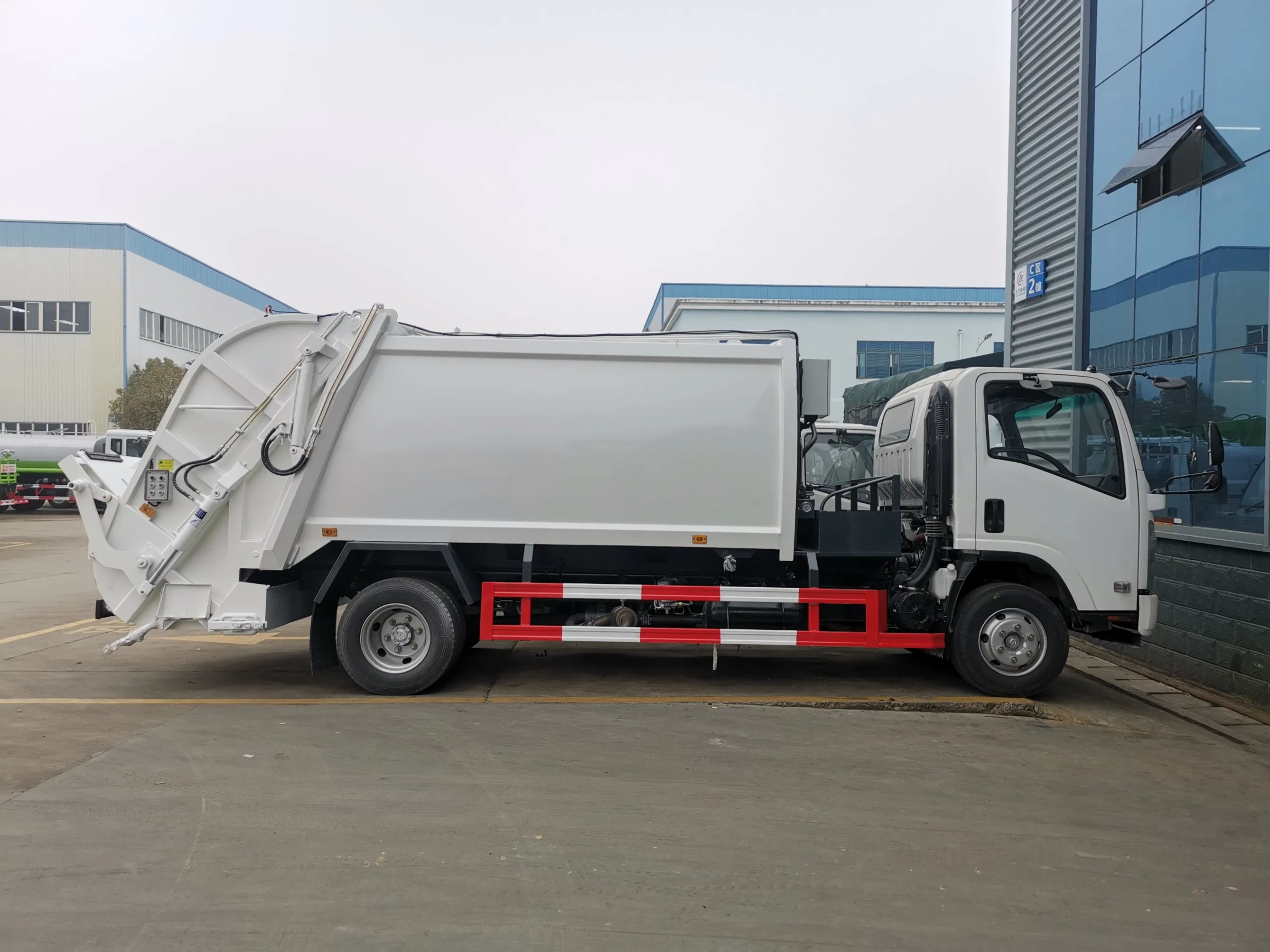

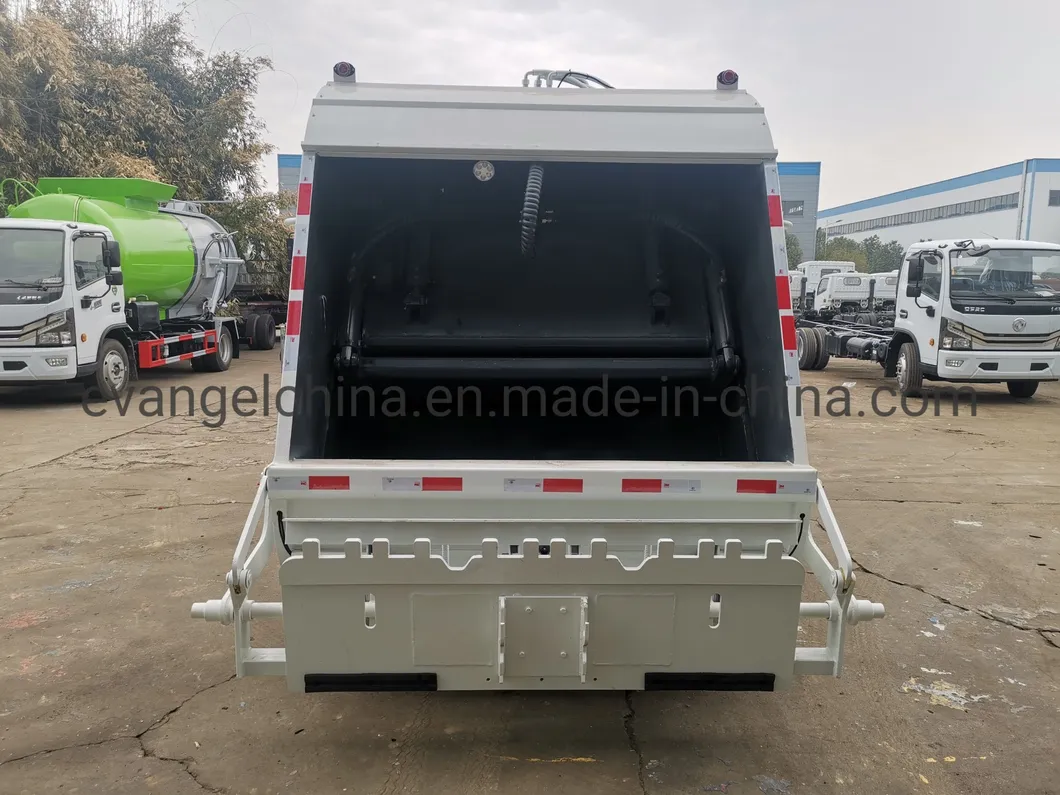

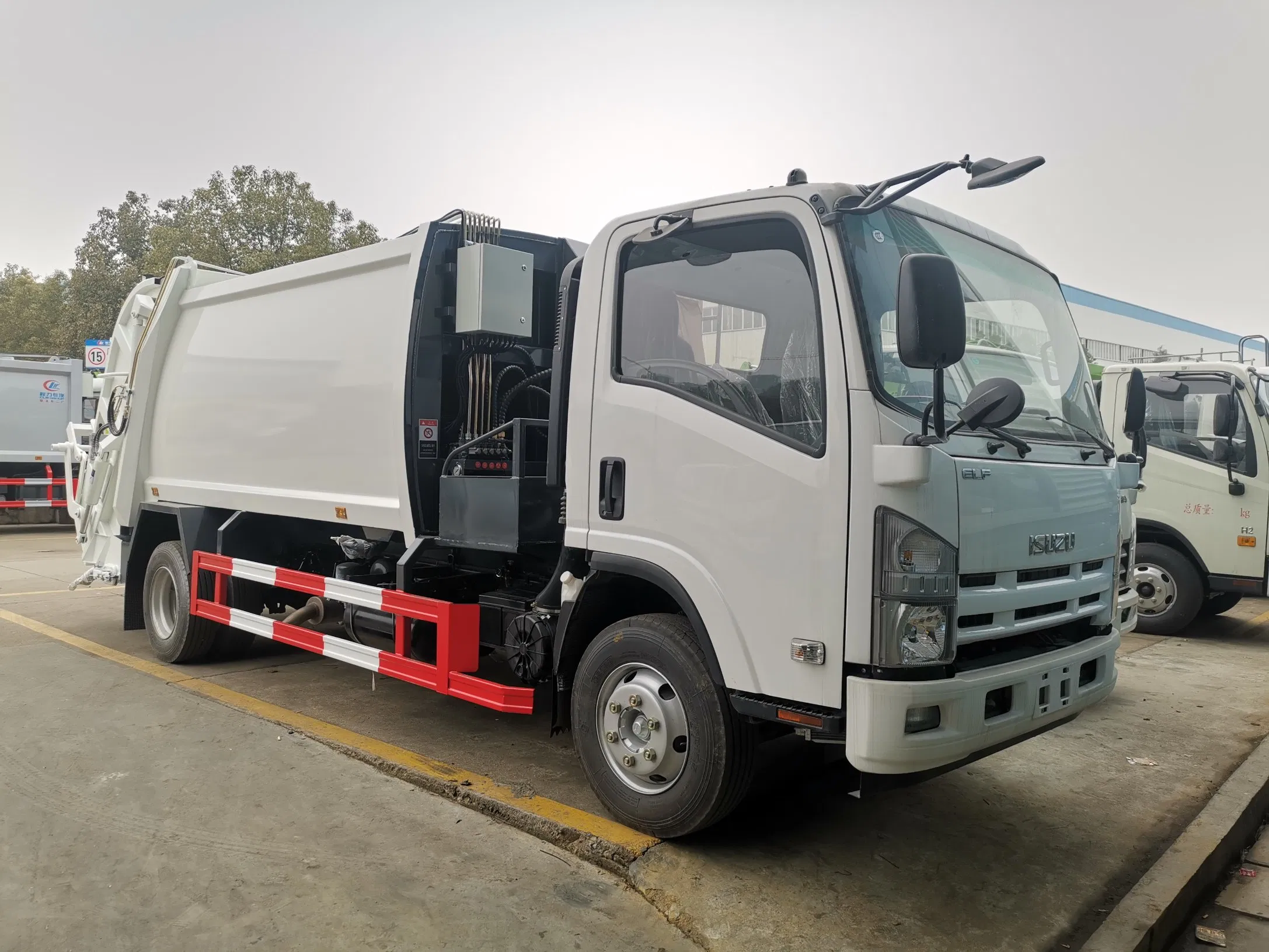

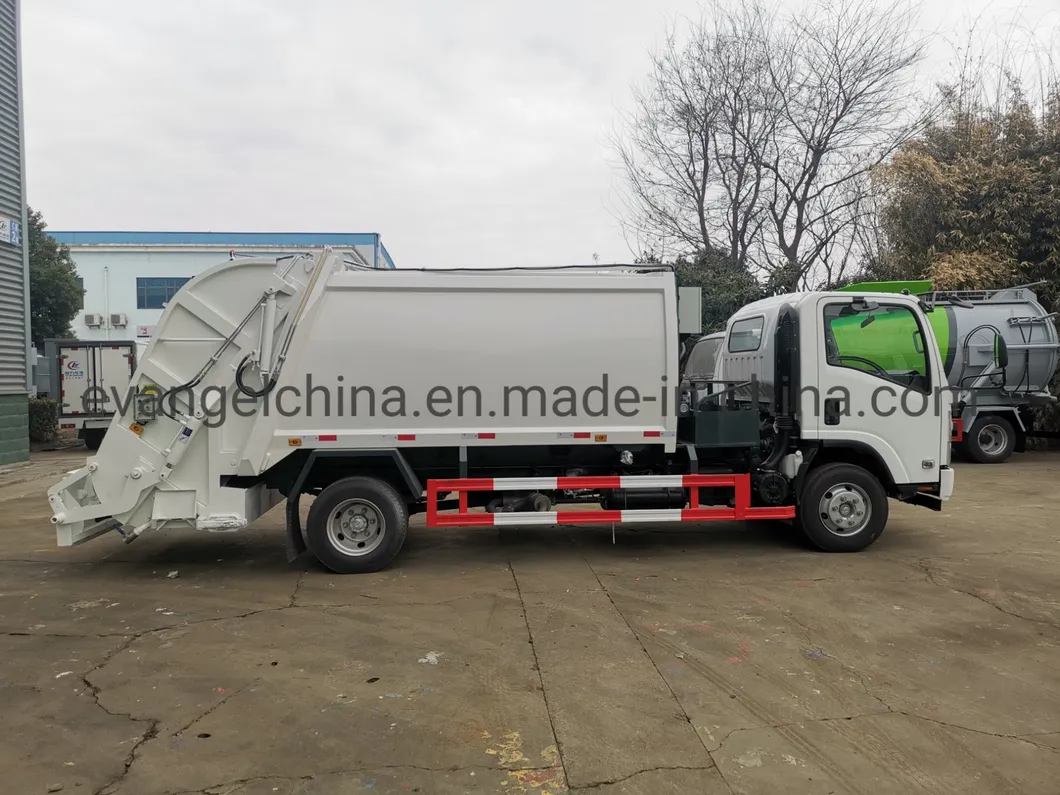

Diesel Fuel Type Rear Loader Garbage Compactor Truck 5CBM ISUZU Mini Refuse Collector
1. Easy to Collect Garbage All over the City with Garbage Compactor Truck
2. Full Garbage Barrel or Container Lifting System with Automatic Compressing & Discharging System
3. High Compression Ratio with Large Loading Capacity, Max Crushing Pressure 12Tons.
4. 2 Times Larger in the loading Capacity with Self Discharging System
5. One Man Work Required with Internatioanl Brand PLC Control System.
6. Doubel Insurance: Computer Control with Backup Manual Control.
7. Lifting System: Plastic Bin or Steel Container lifting.
Specifications Detail of the Truck
| Item No. | Parameters | ||
| Overall Dimension | 6450 x 2050 x 2570mm | ||
| Gross Vehicle Weight | 730 kg | ||
| Loading Weight | 2000 kg | ||
| Curb Weight | 5170 kg | ||
| Wheel Base | 3360 mm | ||
| Axles Quantity | 2 Axles | ||
| Front / Rear Axle | 2500 kg / 4800kg | ||
| Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, with ABS | ||
| Engine | ISUZU 4JB1CN, Four Stroke, 4 Cylinder in line, Mechanical Engine Pump. | ||
| Engine horsepower | 98HP, EURO 4 | ||
| Displacement | 2771 ml | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
| Fuel Tank | 100 Liter | ||
| Tire | 7.00-15 (6 pieces with one spare) | ||
| Garbage Bin | Capacity | 5 CBM | |
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Plat Form | 2 side for 2 worker for foot transport | ||
| Garbage Compact Ratio | 1/3 - 1/4 | ||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2.Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time<14~18s | ||
