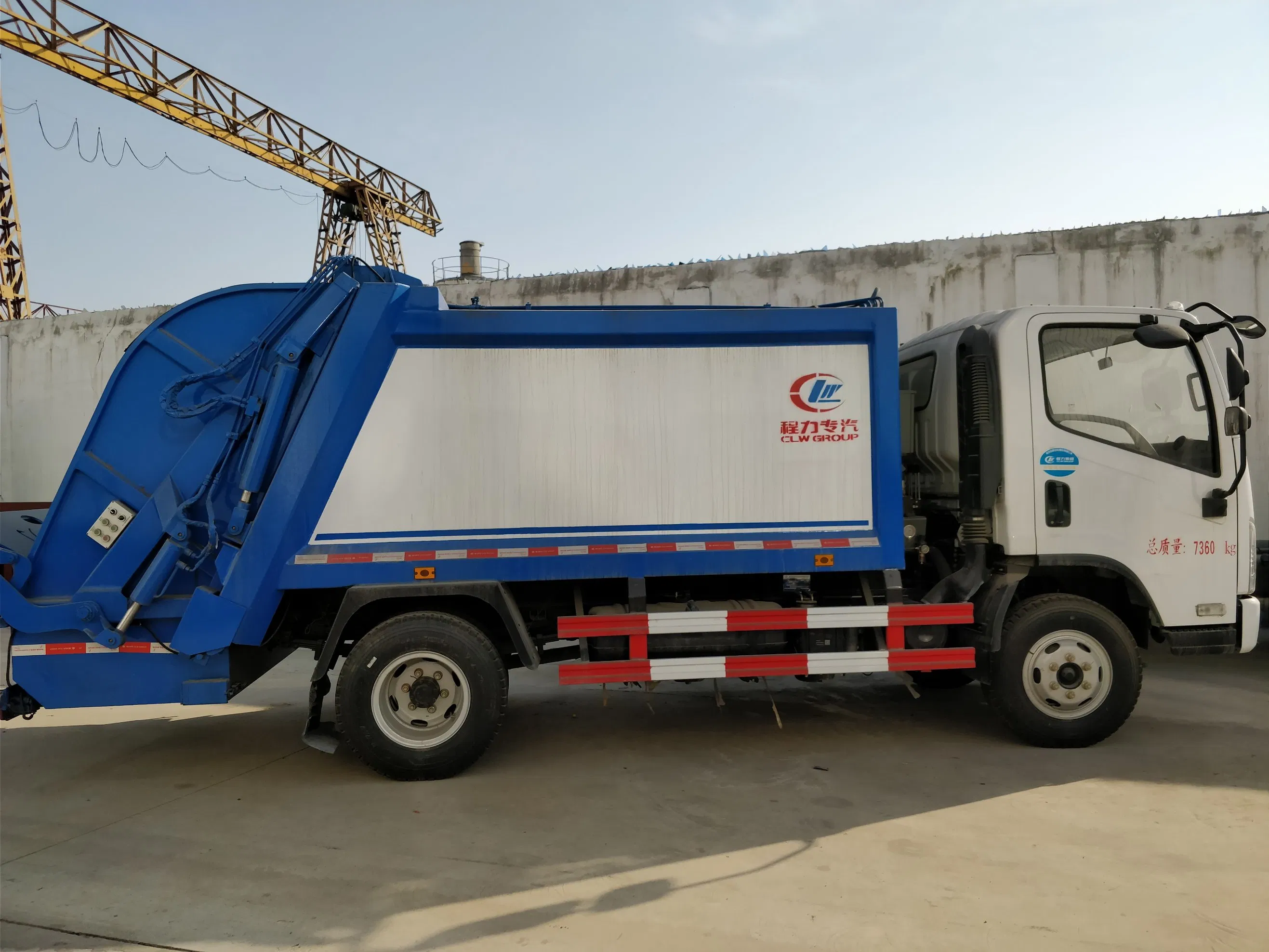

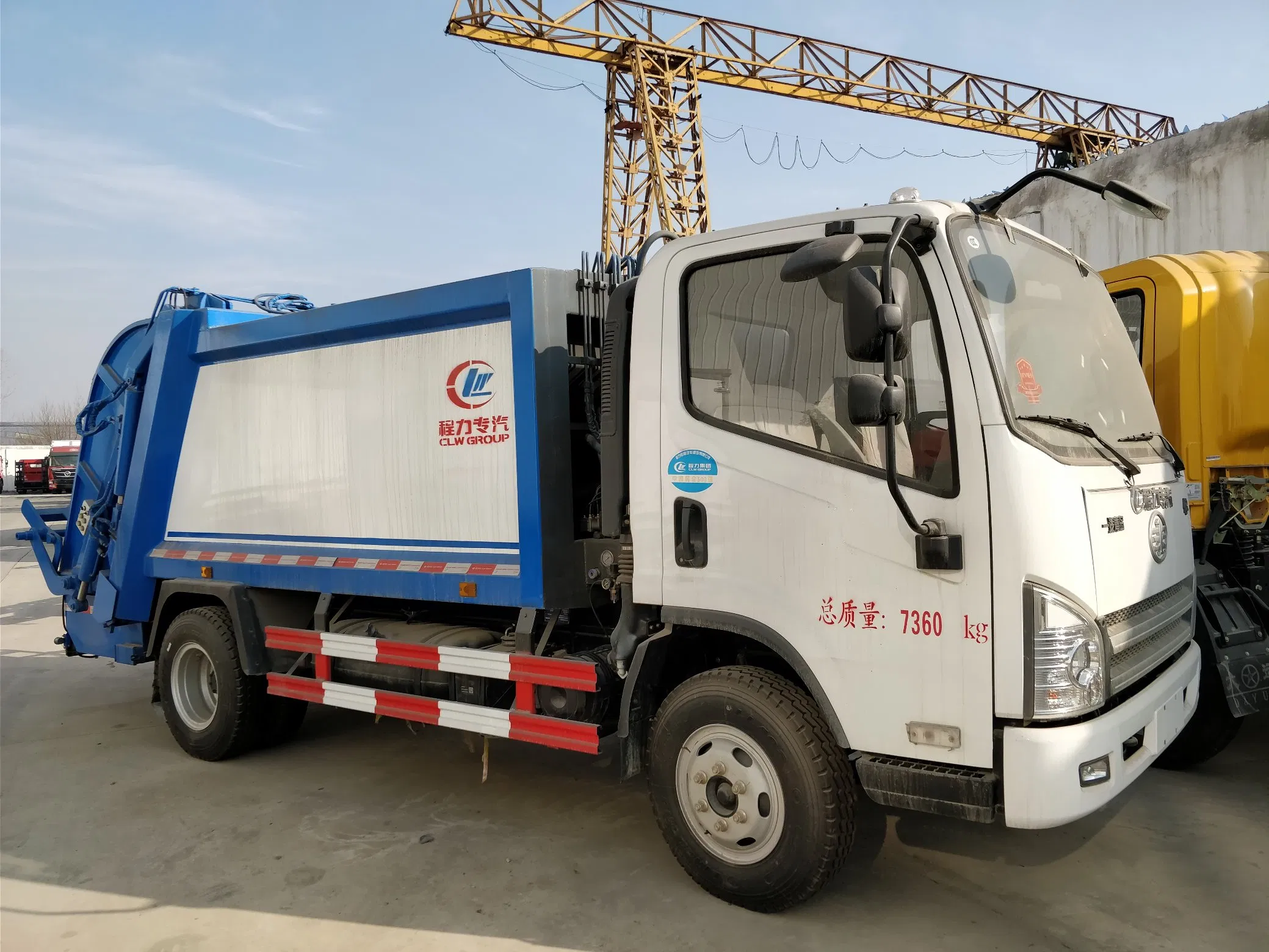

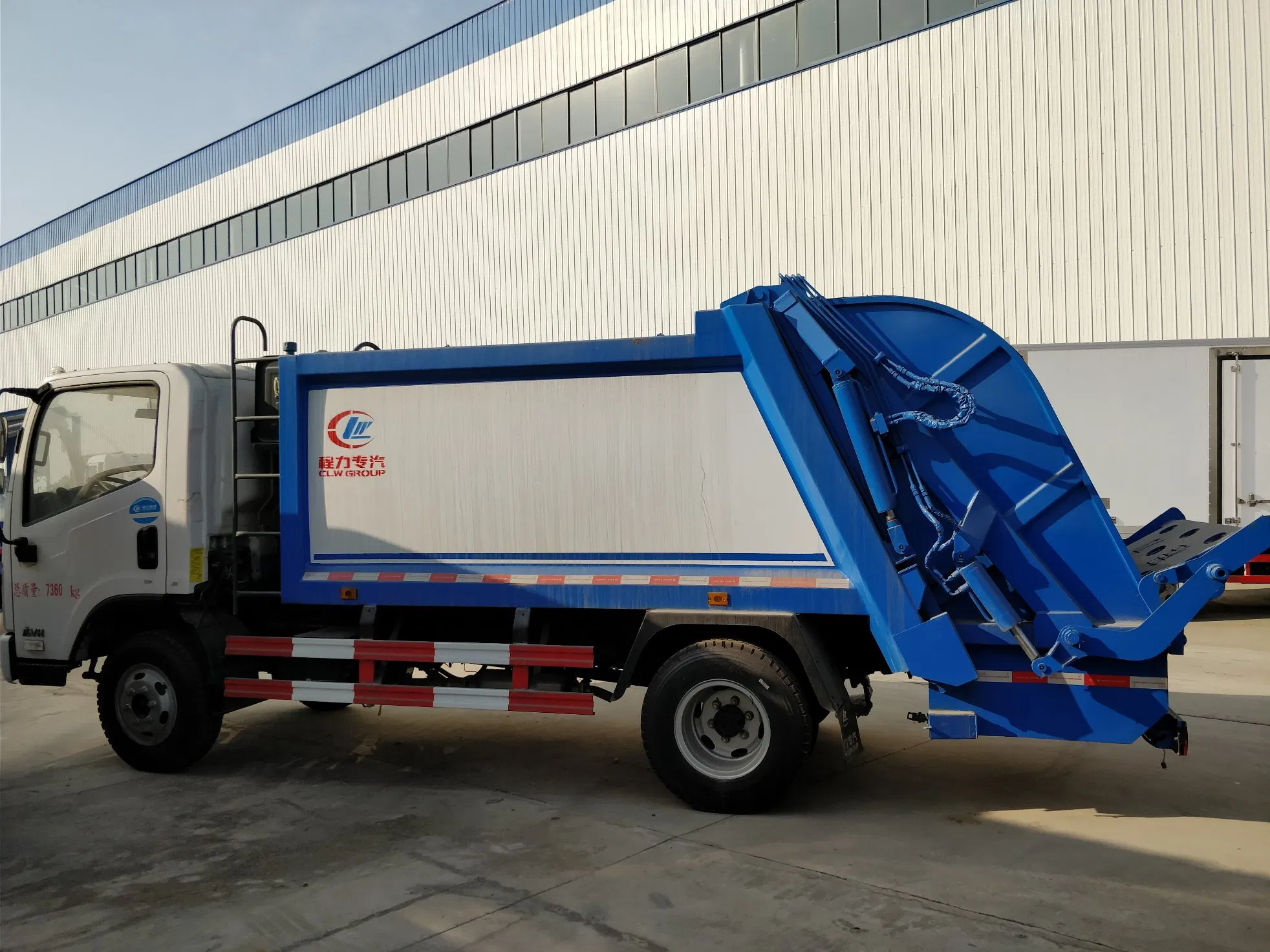

Heavy Duty 4X2 10cbm 12cbm Garbage Compactor Truck
Dongfeng 4x2 10cbm hydraulic compression garbage truck, garbage compactor truck, waste collector truck1.rear load garbage compactor truck, Cummins 210hp2, electric and manual operation,convenient3.good sealed effect.Heavy Duty 4X2 10cbm 12cbm garbage compactor truck Dongfeng Compressed Garbage Truck......
Send Inquiry
Product Description
Dongfeng 4x2 10cbm hydraulic compression garbage truck, garbage compactor truck, waste collector truck
1.rear load garbage compactor truck, Cummins 210hp
2, electric and manual operation,convenient
3.good sealed effect.
Heavy Duty 4X2 10cbm 12cbm garbage compactor truck Dongfeng Compressed Garbage Truck
Introduction of compress garbage truck
The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Latest compactor garbage truck price, more garbage truck pictures, garbage truck dimensions, detailed garbage compactor parameters or other information needed, please feel free to contact Ms.Helen Jiang.
Sales Manager: Ms.Helen Jiang
Mob.: 0086-135 5419 5719
1.rear load garbage compactor truck, Cummins 210hp
2, electric and manual operation,convenient
3.good sealed effect.
Heavy Duty 4X2 10cbm 12cbm garbage compactor truck Dongfeng Compressed Garbage Truck
Introduction of compress garbage truck
The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Latest compactor garbage truck price, more garbage truck pictures, garbage truck dimensions, detailed garbage compactor parameters or other information needed, please feel free to contact Ms.Helen Jiang.
Sales Manager: Ms.Helen Jiang
Mob.: 0086-135 5419 5719
Items | Descriptions | Specifications and Types |
General | Truck Name | Garbage Compactor truck |
Drive Type | 4 * 2 , left hand drive or right hand drive | |
Loading Capacity | 10 m ³ | |
Gross Vehicle Weight(kg) | 16000 | |
Curb Weight (kg) | 9805 | |
Overall Dimensions L*W*H(mm) | 8470 ×24 90 × 325 0 | |
Engine | Engine Model | ISDe210 40 |
Engine Brand | Cummins | |
Fuel Type | Diesel | |
Power | 155 kw/ 21 0HP | |
Emission Standard | Euro II | |
Displacement(ml) | 6700 | |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load( KG ) | 6000 / 10000 | |
Tire No. | 6 | |
Tire Specification | 9.00-20 Nylon tire or 9.00R20 steel tire | |
Wheelbase (mm) | 4500 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Brake | Air break | |
Radiator | Suitable for tropical climate | |
Front/rear suspension(mm) | 1 430 /2 540 | |
Leaf Spring No. | 8 / 10+8 | |
Equipment: 1. Equipped with completely sealed dustbin, hydraulic system, operation system. 2. Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself.High compression ratio.The sewage will flow to sewage tank automatically, avoid second pollution. Good sealed performance, easily operation,high safety. | ||
